REMOTE CONTROLS

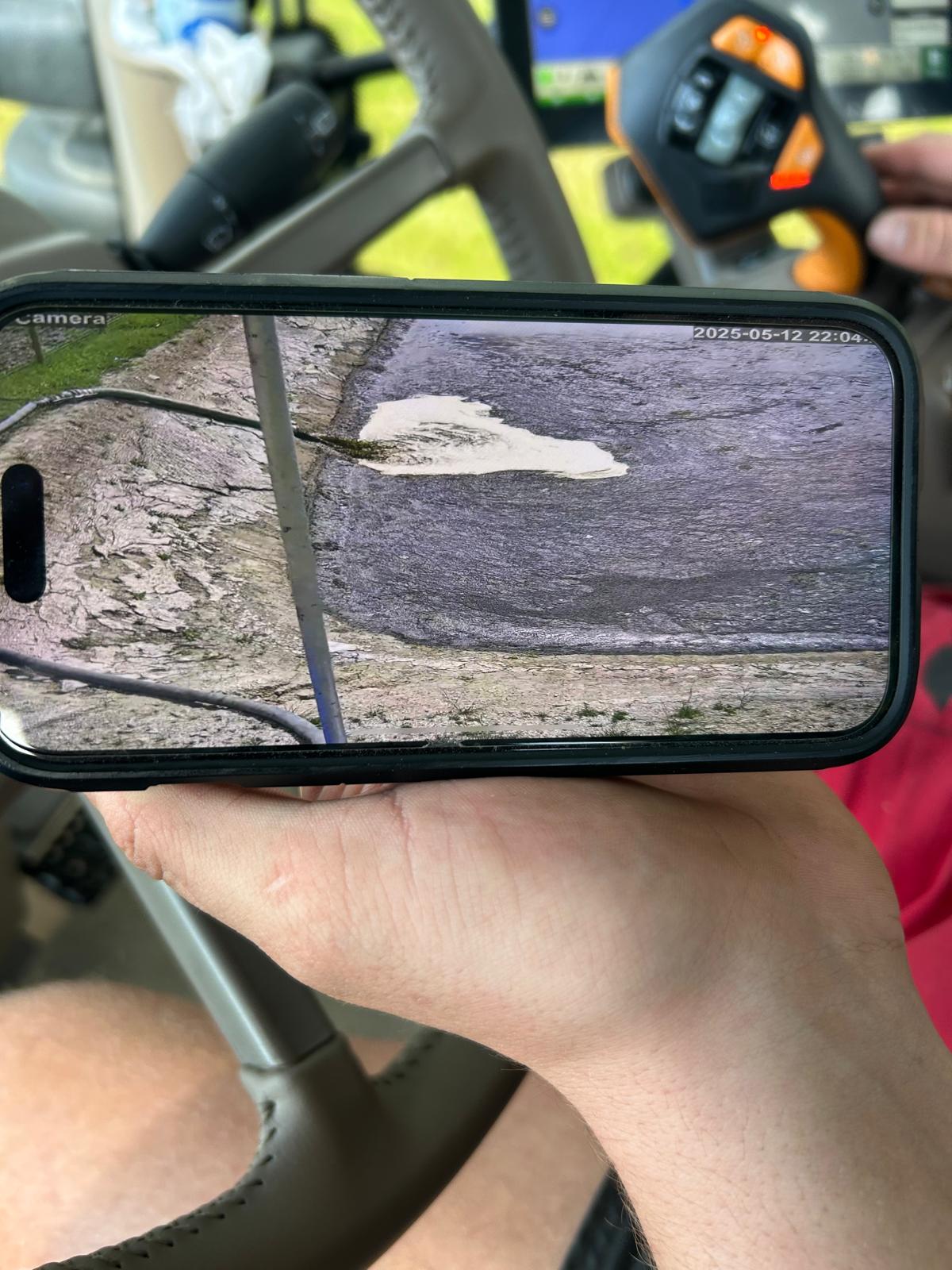

Tramspread were early pioneers of remote-control systems for engine-driven pumps which make it possible for an entire umbilical system to be operated and monitored by just one operator. As well as saving labour, the systems allow the pump to be controlled at the push of a button from the cab of the applicator tractor and, when coupled with inlet and outlet pressure sensors and flow meters, can also warn of potential issues such as drag hose leaks. When fitted with an optional 360-degree video camera the tractor driver can also monitor the slurry store and surrounding area from the seat.

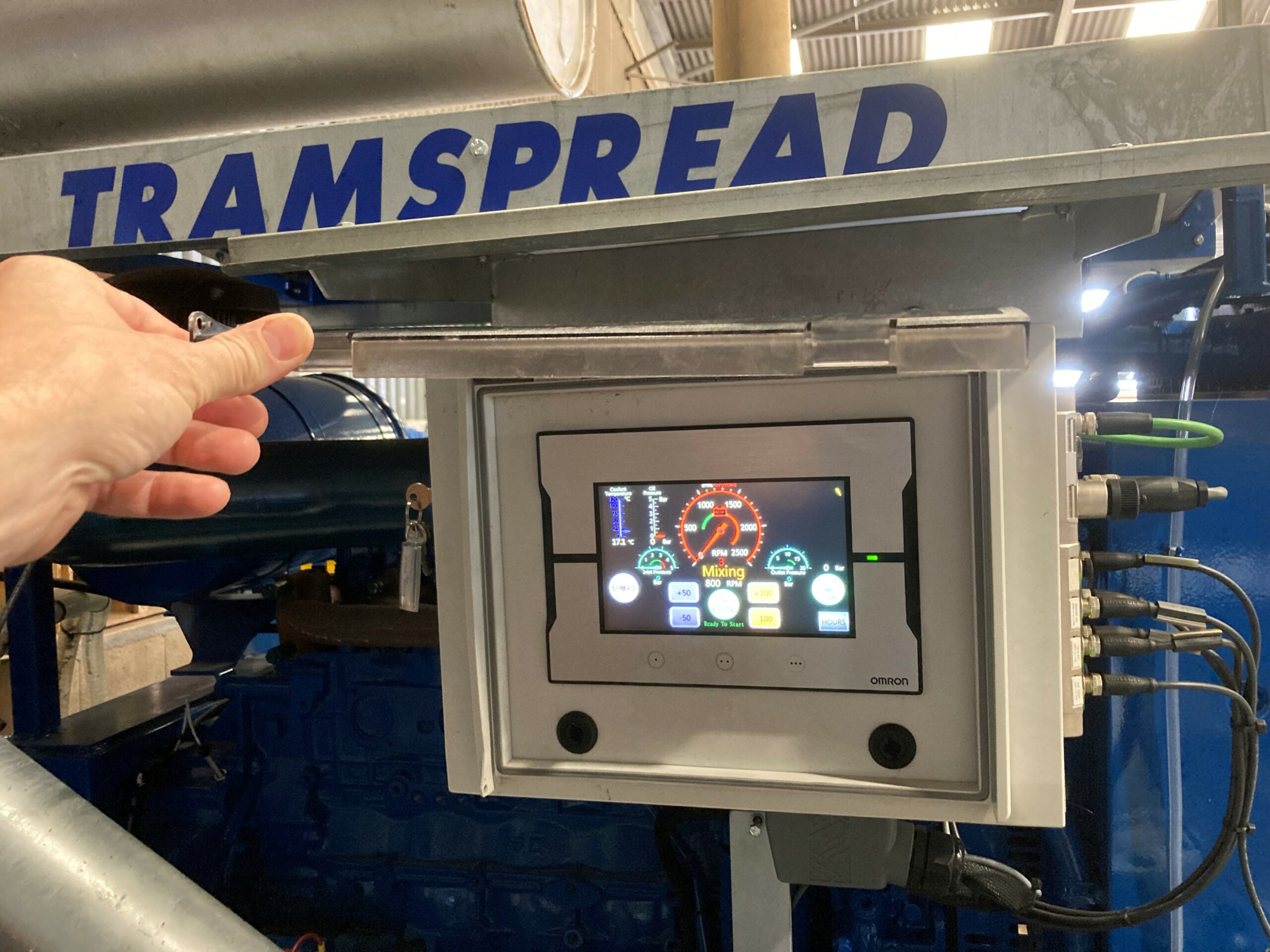

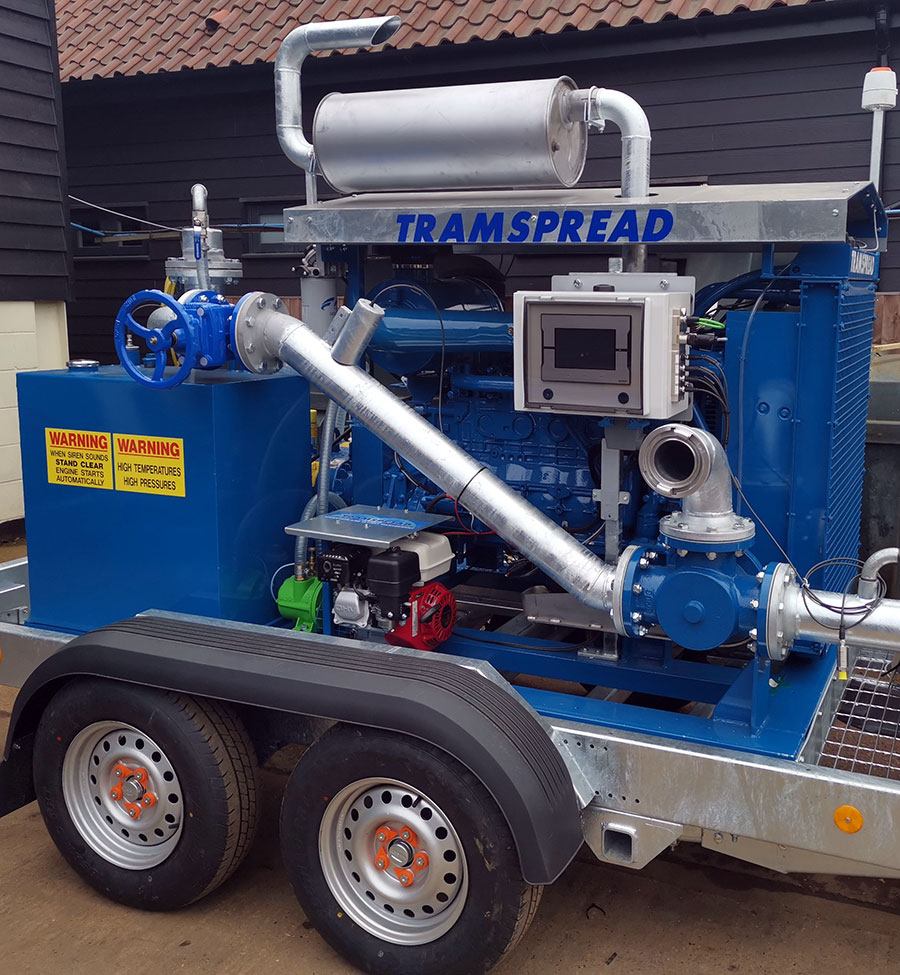

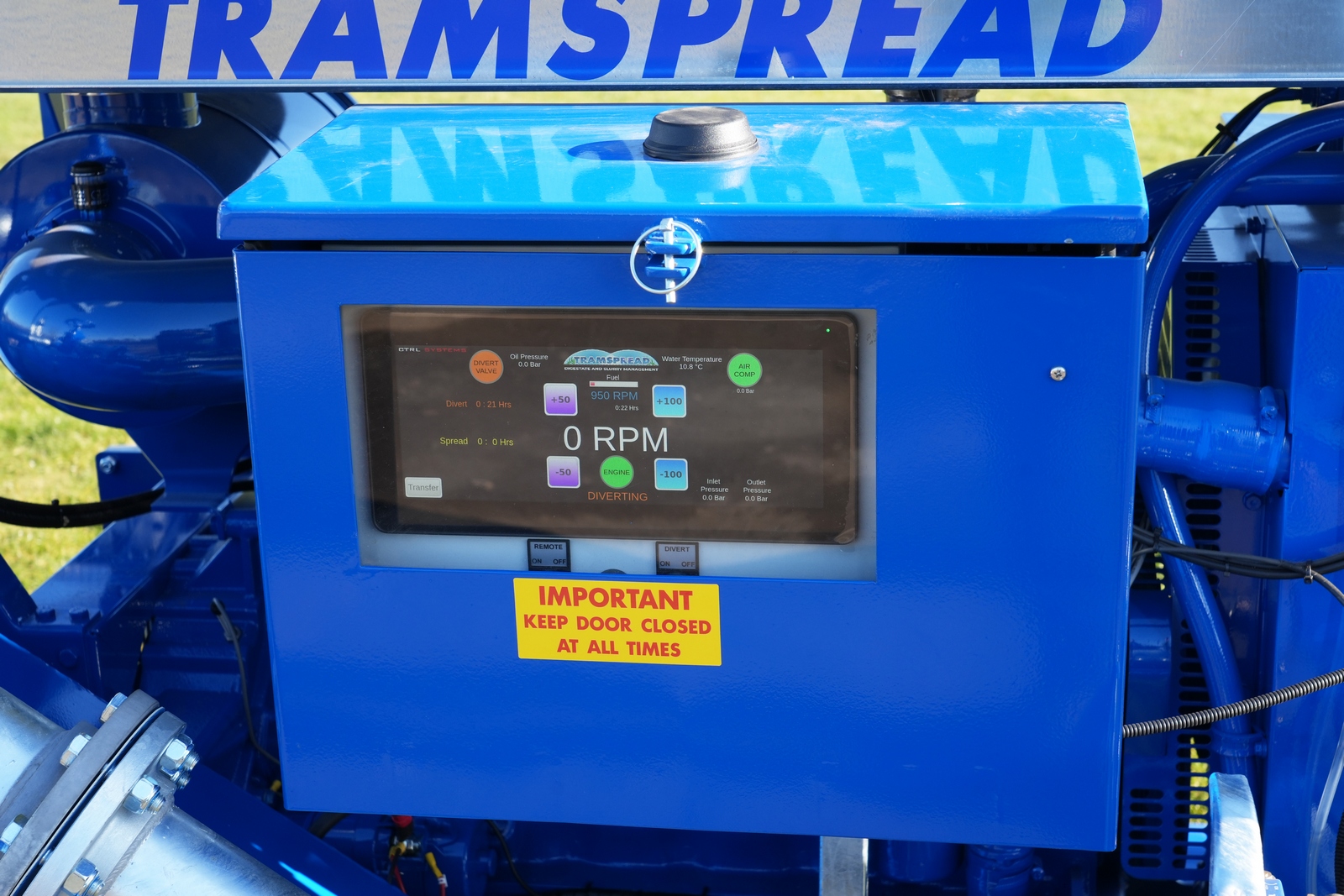

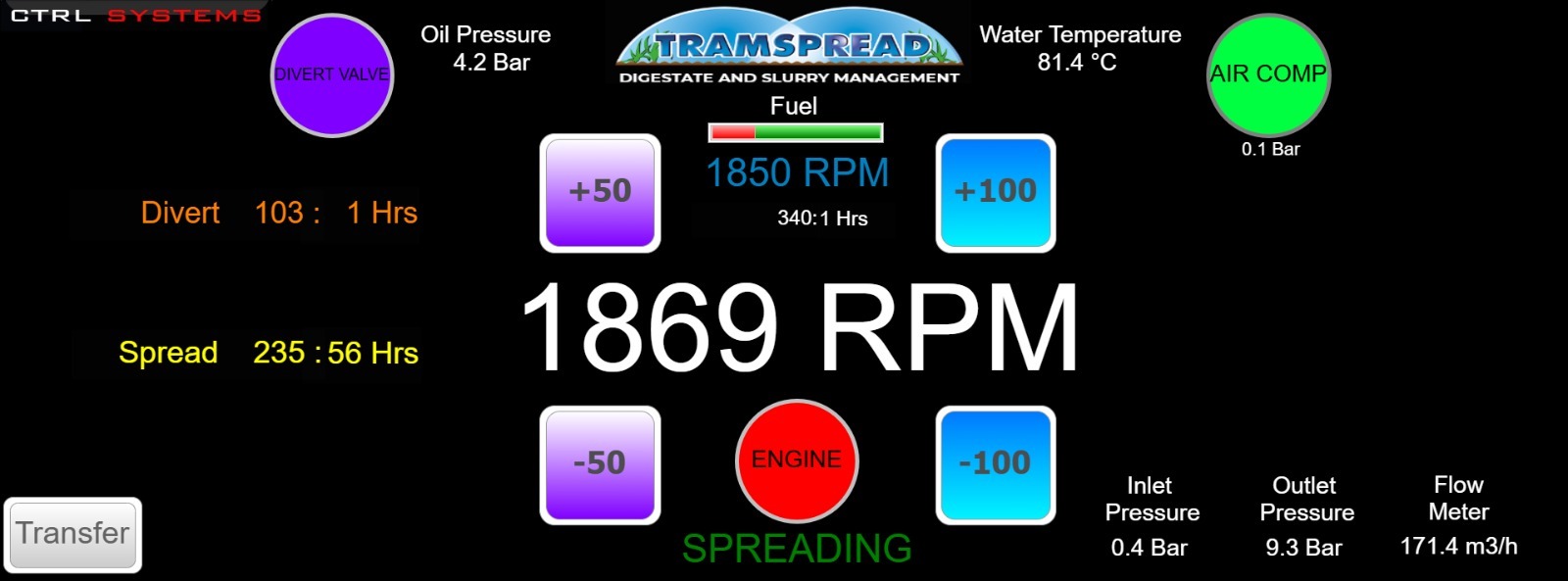

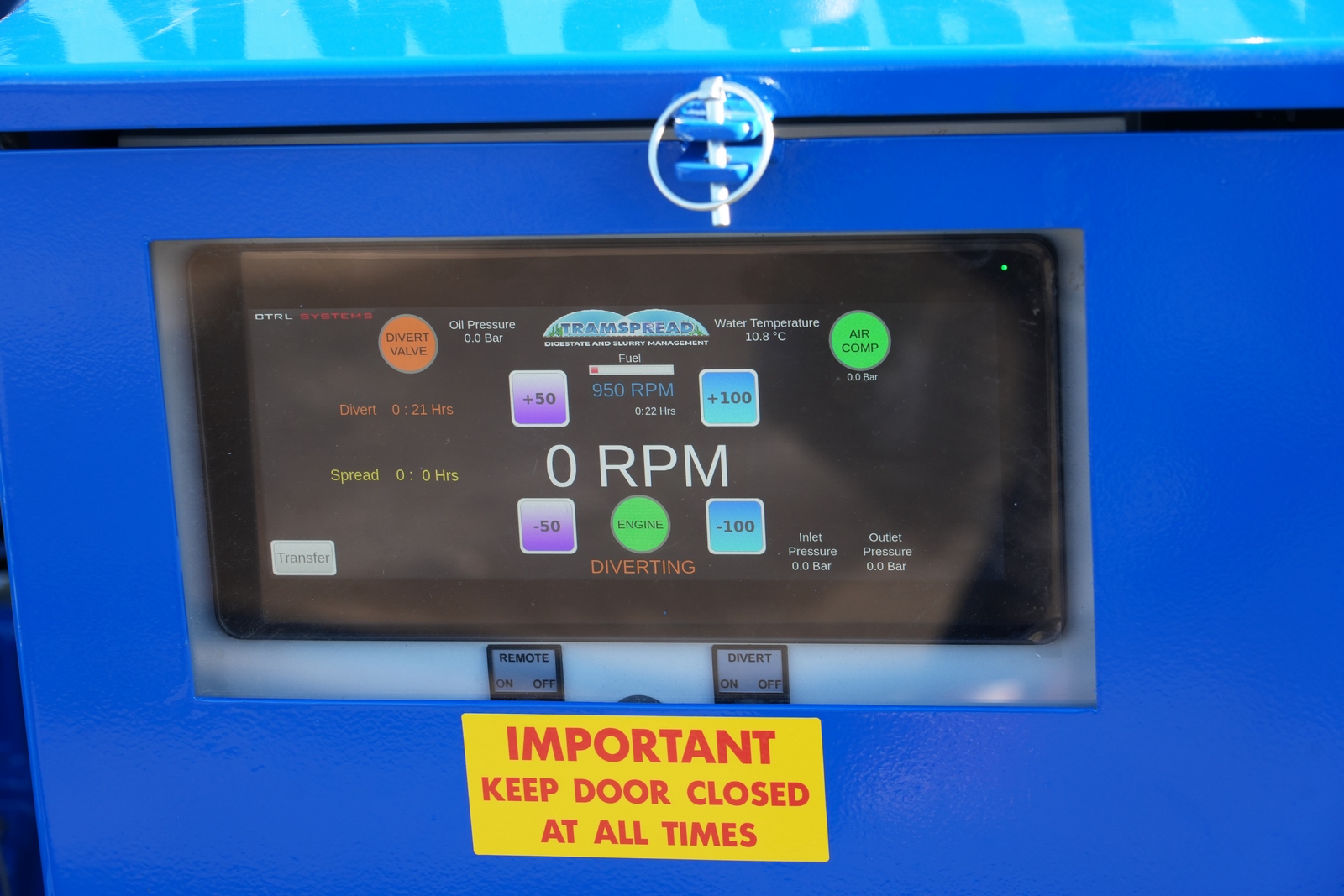

TRAMSPREAD Teletram 2020 GPS Remote Control
With GSM communication, distance is not an issue. The system operates using the 3G, 4G or 5G communication network.
- Full remote control via built-in GSM 3G/4G/5G modem
- Industrial grade instrumentation – IO link data connections
- High level security via Android or Apple device
- Communication not affected by distance
- Engine start/stop, throttle and divert
- Inlet pressure sensor
- Outlet pressure sensor
- Compressor pressure
- Flowmeter connection

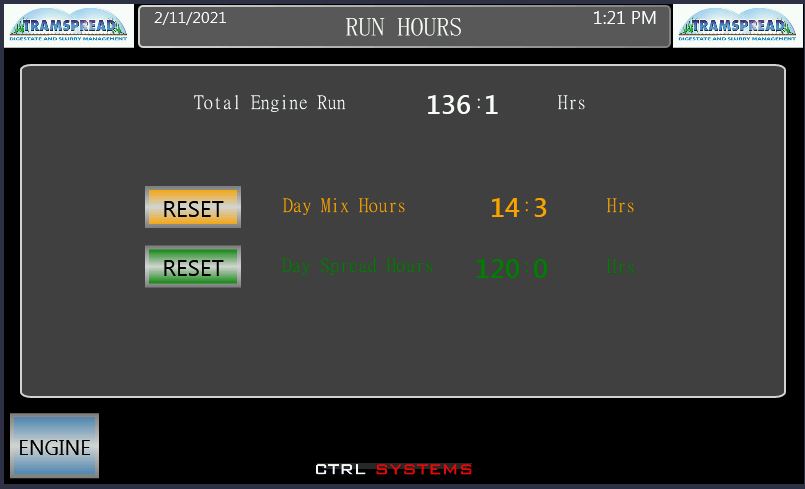

- Recording of spread/mix hours
- Recording of slurry volume applied
- Divert valve

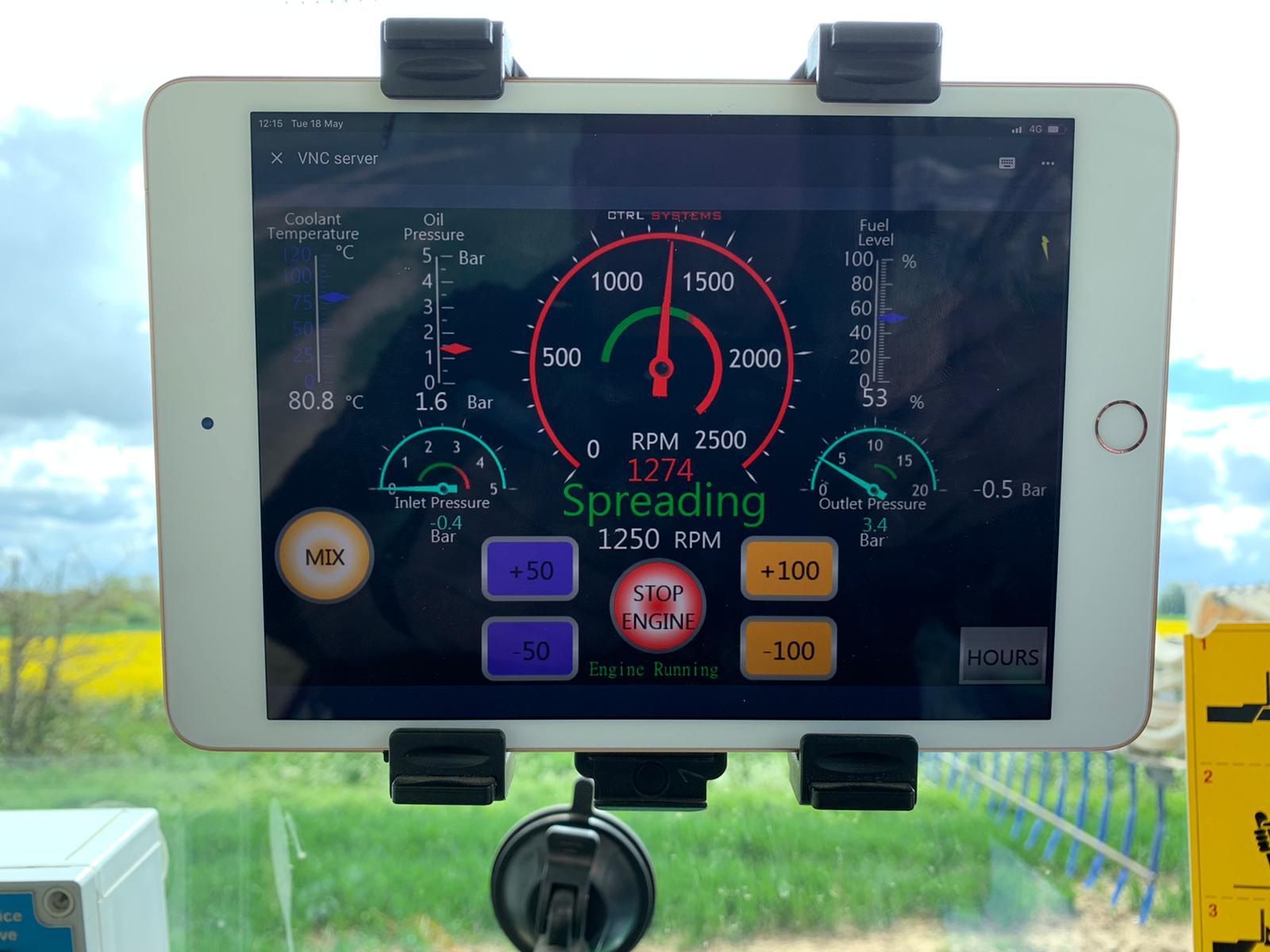

- Android tablet in-cab display
- Target engine speed
- Actual engine drive speed
- Divert status
- Pressure
- Flow
- Compressor pressure
- Fuel-level sensing
- Engine protection
- Low oil pressure
- High coolant temperature
- Low coolant level
Remote Control Options:
- Air compressor control
- Sponge ball (pig) launcher

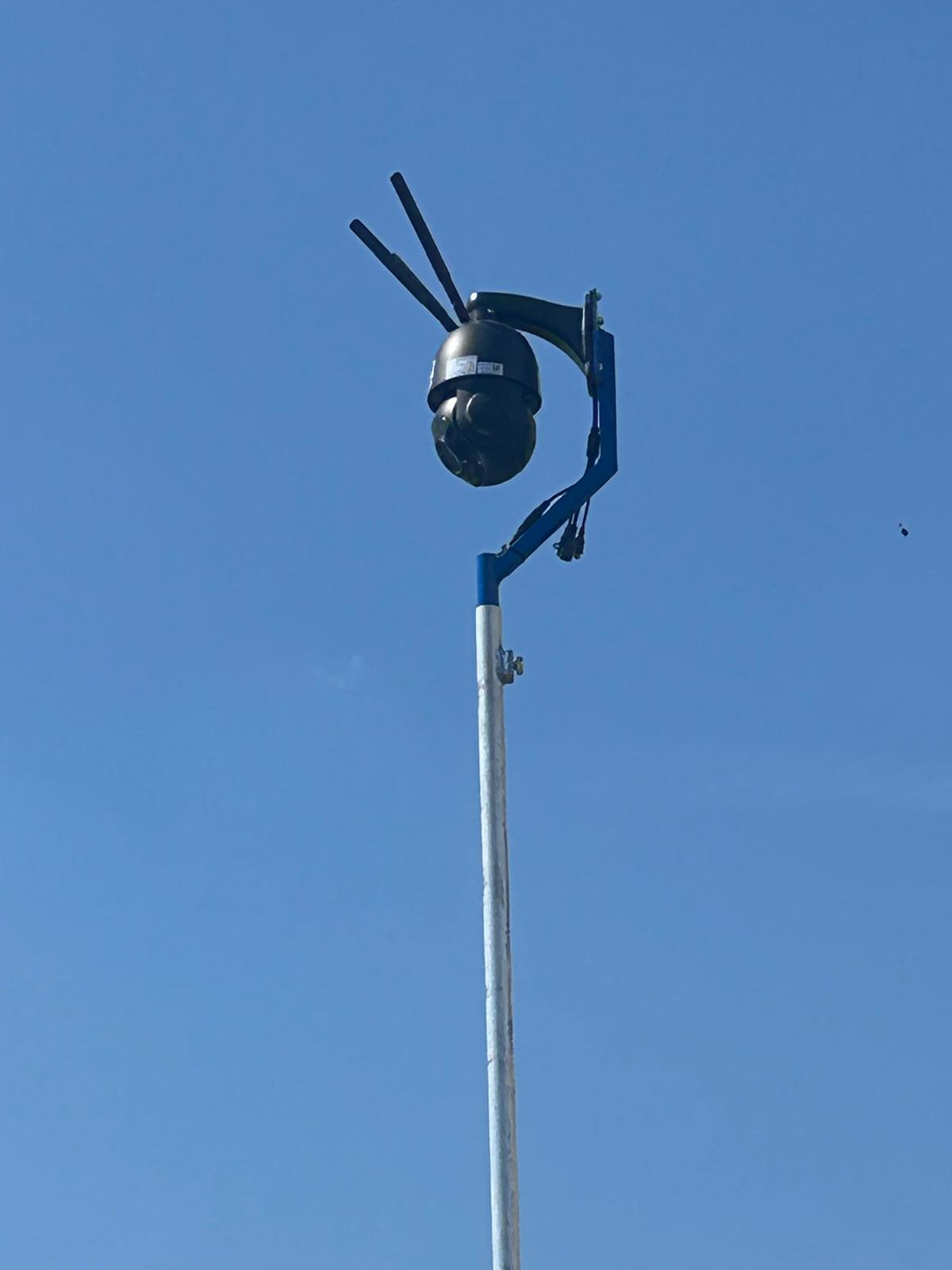

- 360 degree video camera
- Transfer mode (monitored unmanned slurry transfer)
- Nurse tank level sensor

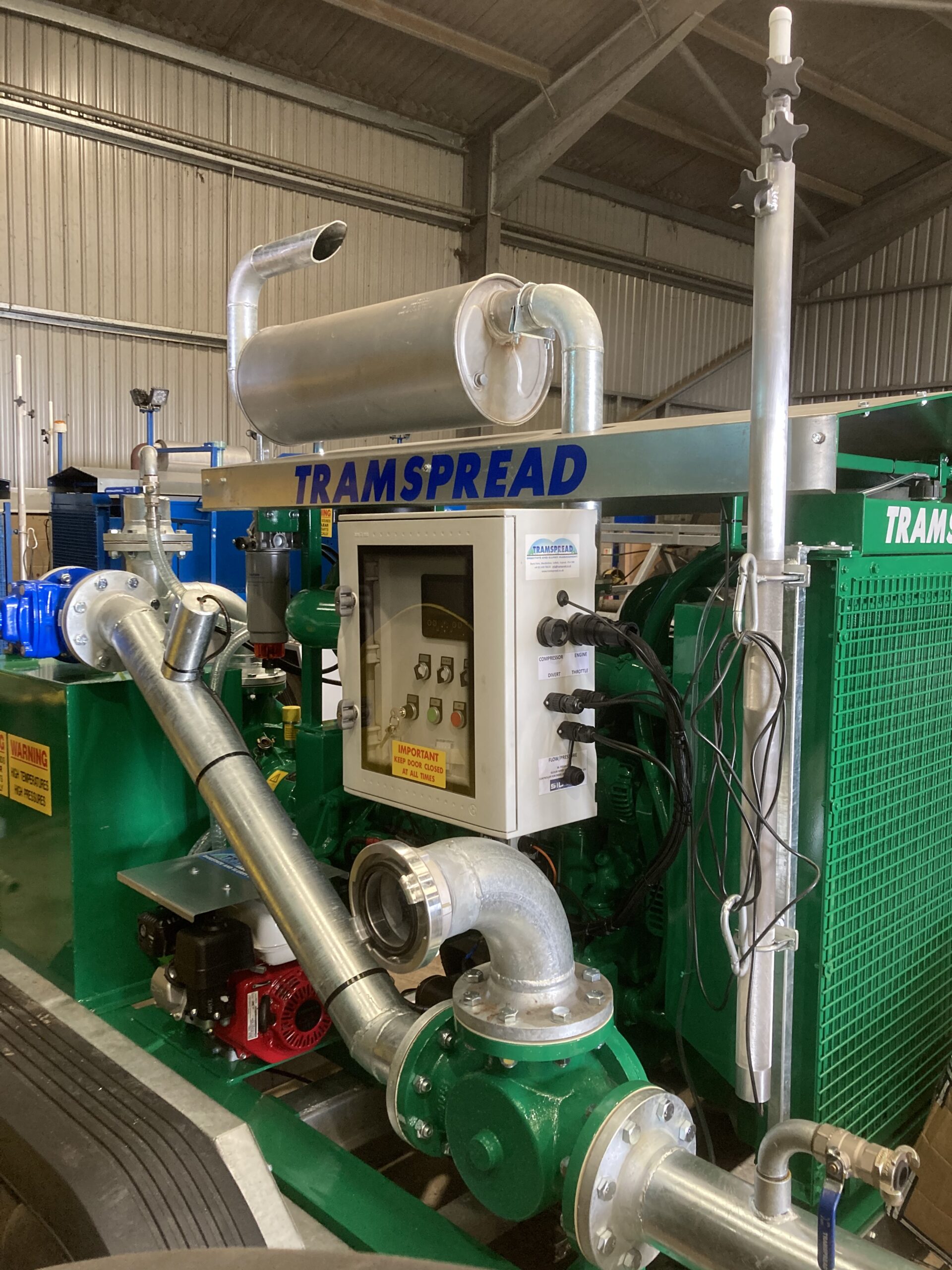

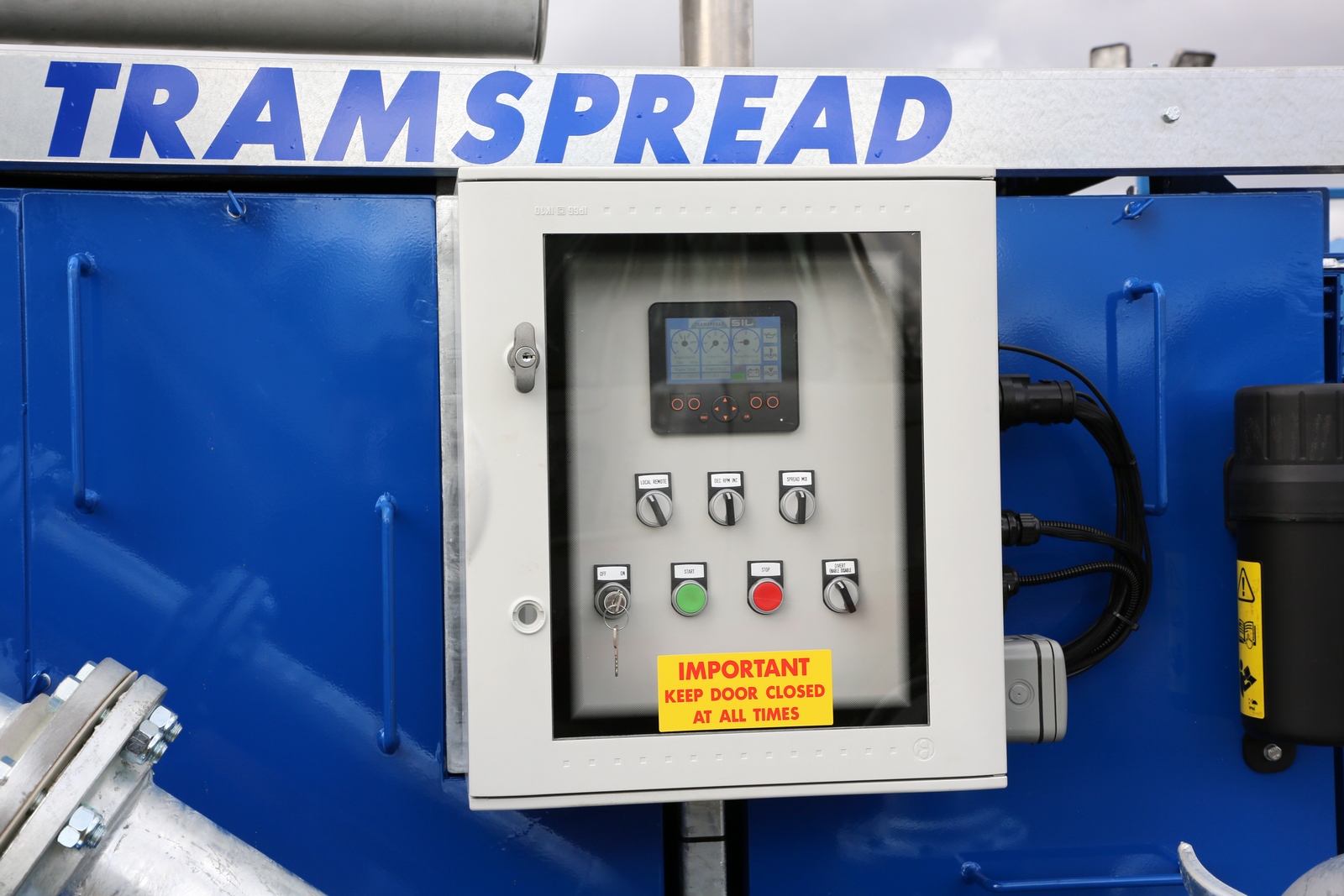

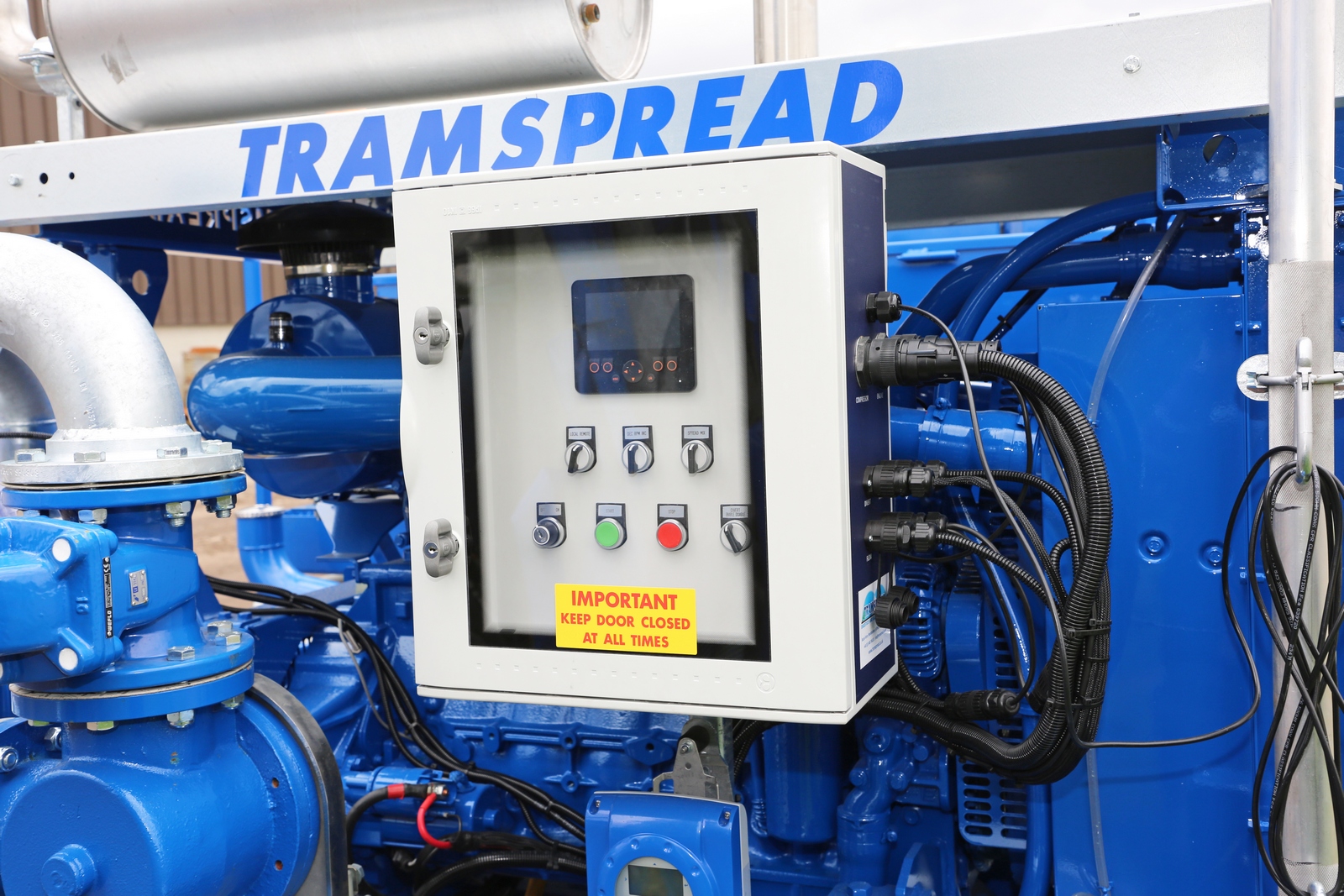

TRAMSPREAD SIL Vision-IV Radio Remote Control

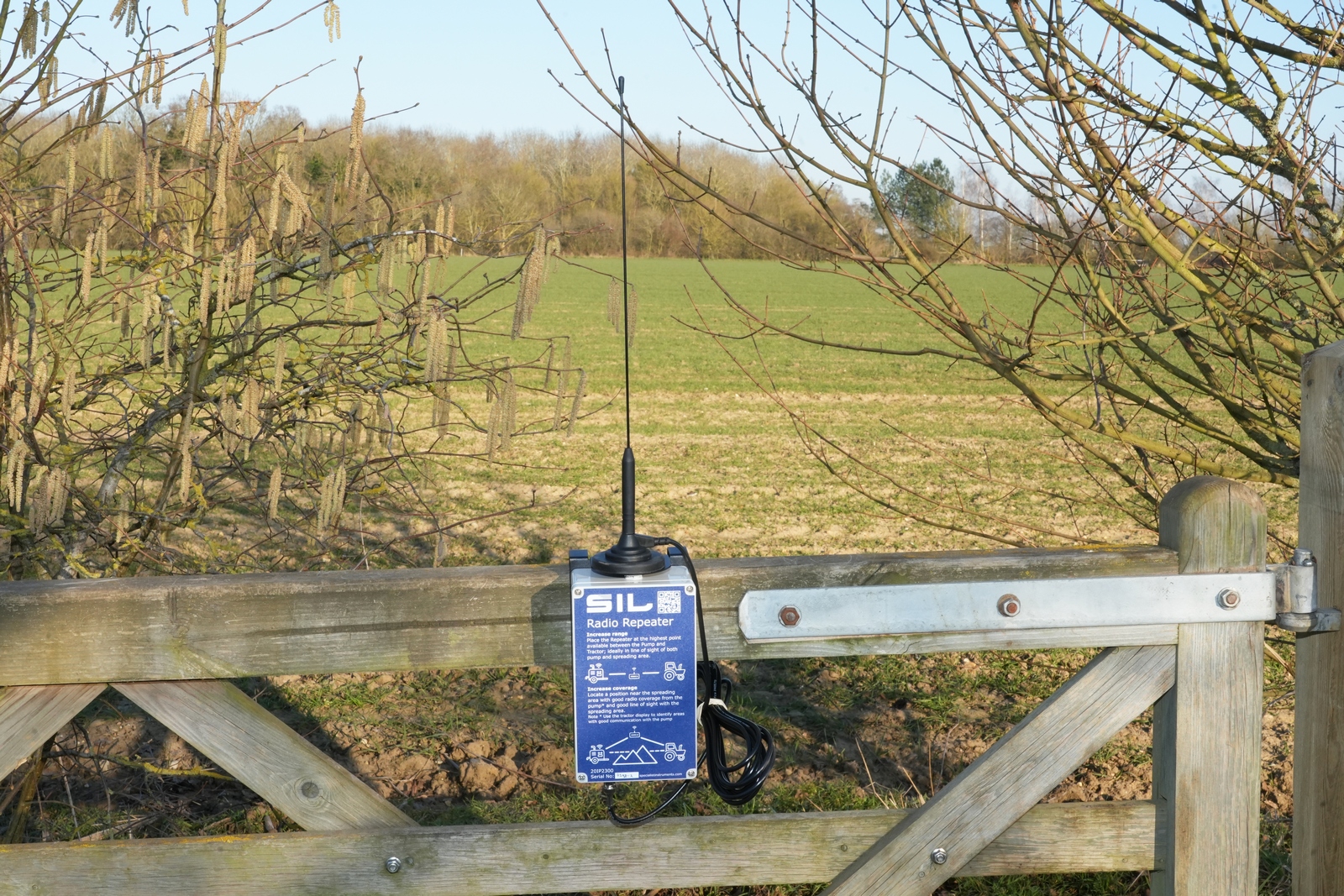

Tramspread tests the radio signal to 3000m, and optional self-contained signal repeater can be placed in an appropriate location to increase the radio signal by a further 3000m.
- Electric throttle control
- Engine start/stop
- Inlet pressure sensor
- Outlet pressure sensor
- Compressor start/stop
- Flowmeter connection
- Recording of spread/mix hours
- Recording of applied slurry volume
- Divert valve

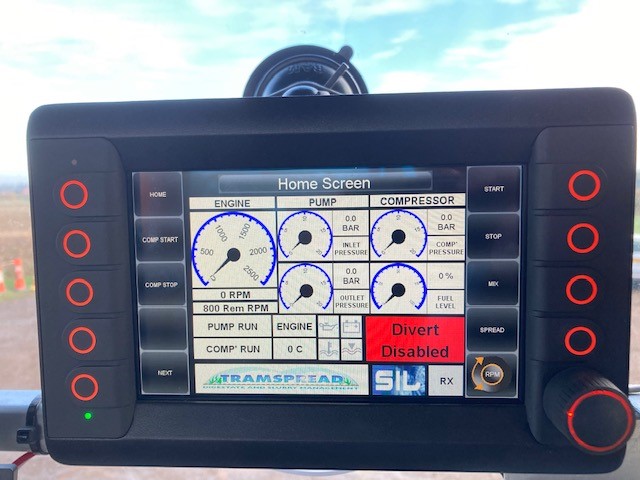

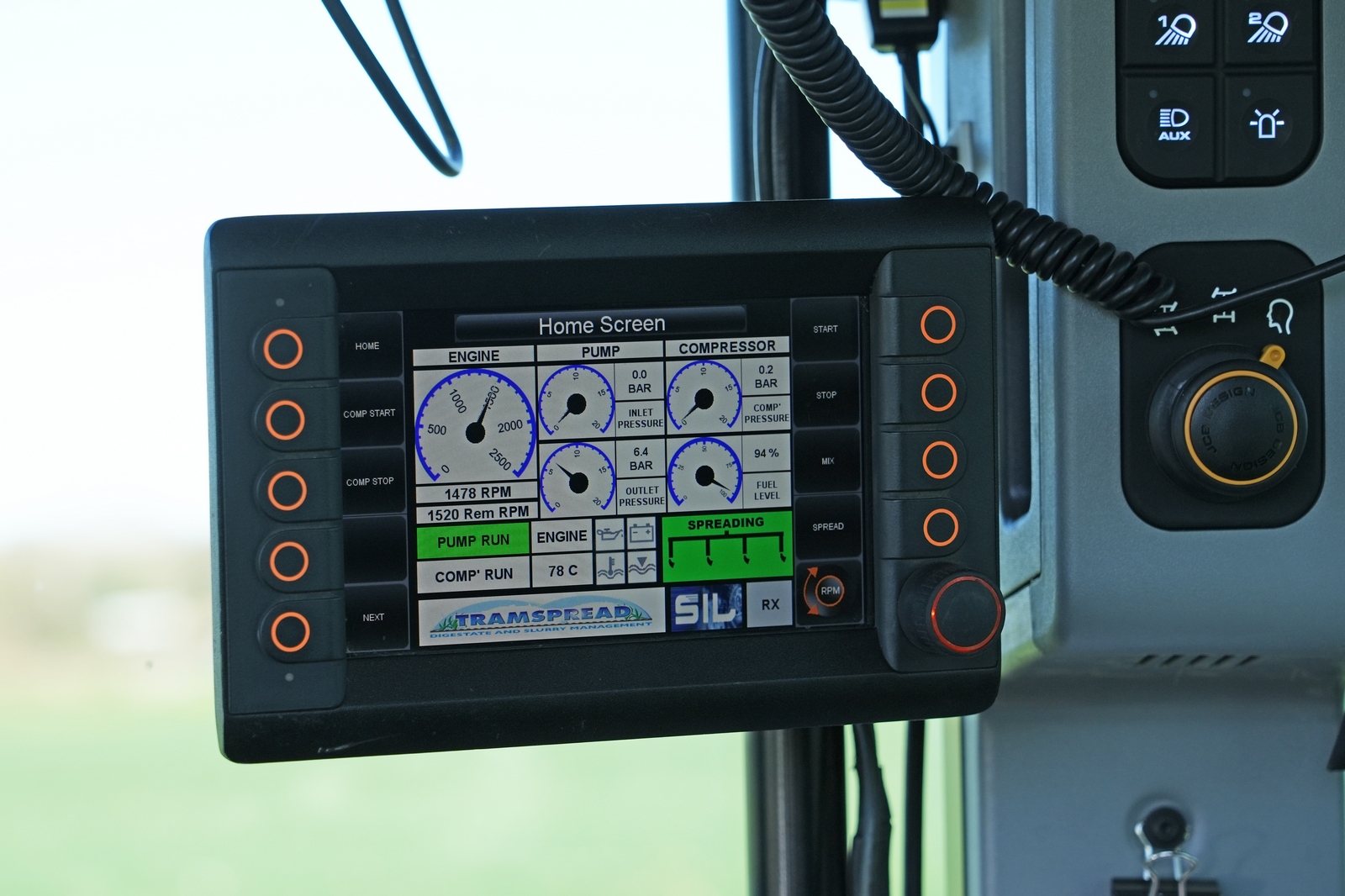

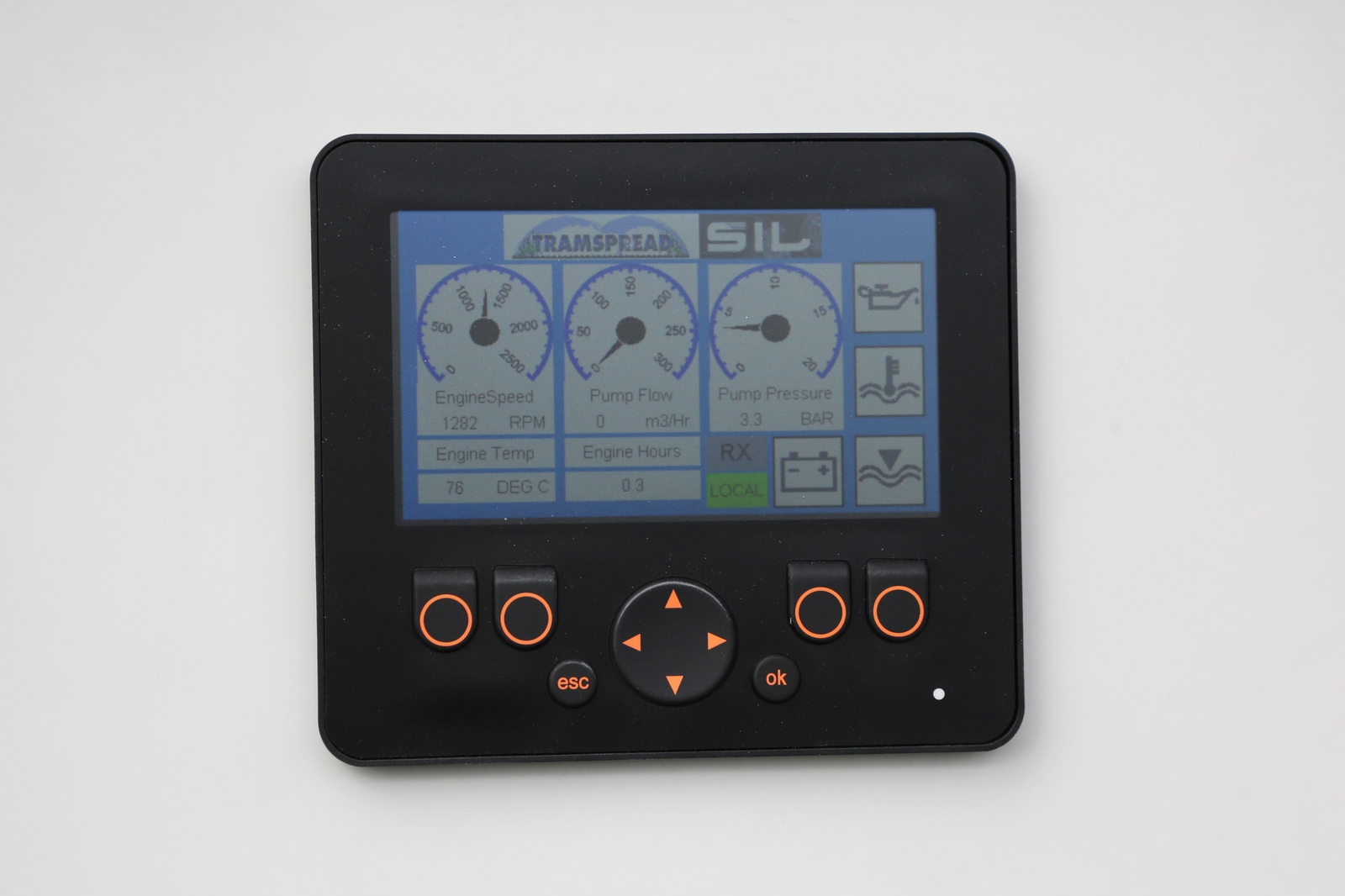

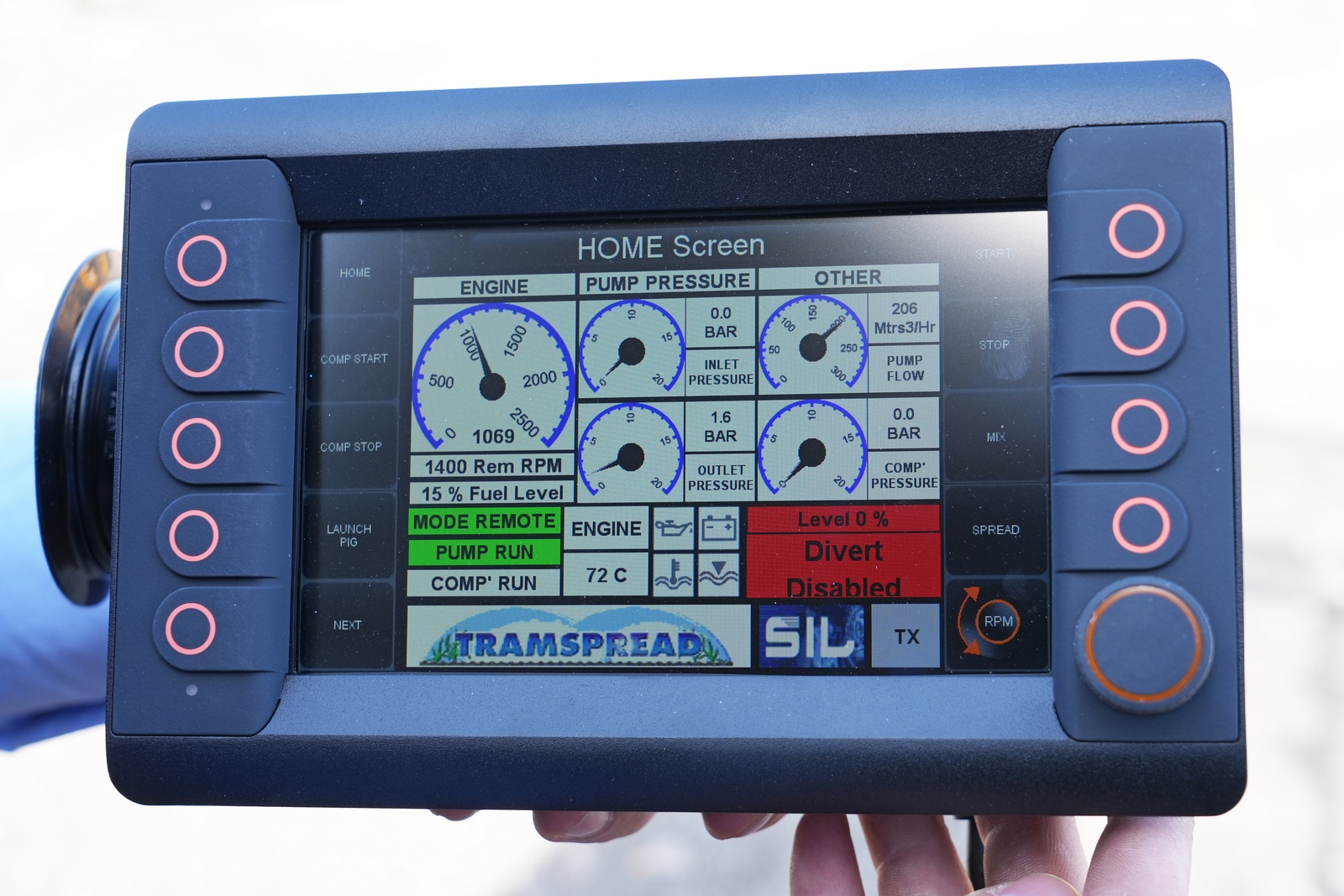

- LCD in-cab display
- Target engine speed
- Actual engine drive speed
- Divert status
- Pressure
- Flow
- Compressor pressure
- Fuel-level sensing
- Engine protection
- Low oil pressure
- High coolant temperature
- Low coolant level
Remote Control options:
- Air compressor control
- Sponge ball (pig) launcher
- Video camera 360 degree
- Transfer mode (monitored unmanned slurry transfer)
- Nurse tank level sensor
