STALLKAMP SLURRY SEPARATORS

As a manufacturer of high performance separators, Stallkamp separators are best suited to separate a medium into its solid and liquid fractions. The medium to be separated is located in the screen basket. The liquid part goes through the screen, whereas the solid part is caught by the screen. This screen is permanently cleaned by a plated stainless steel press screw, which conveys the solid material to the outlet building up a plug. In this process the adjustable counterpressure at the outlet controls the required dryness of the solid material.

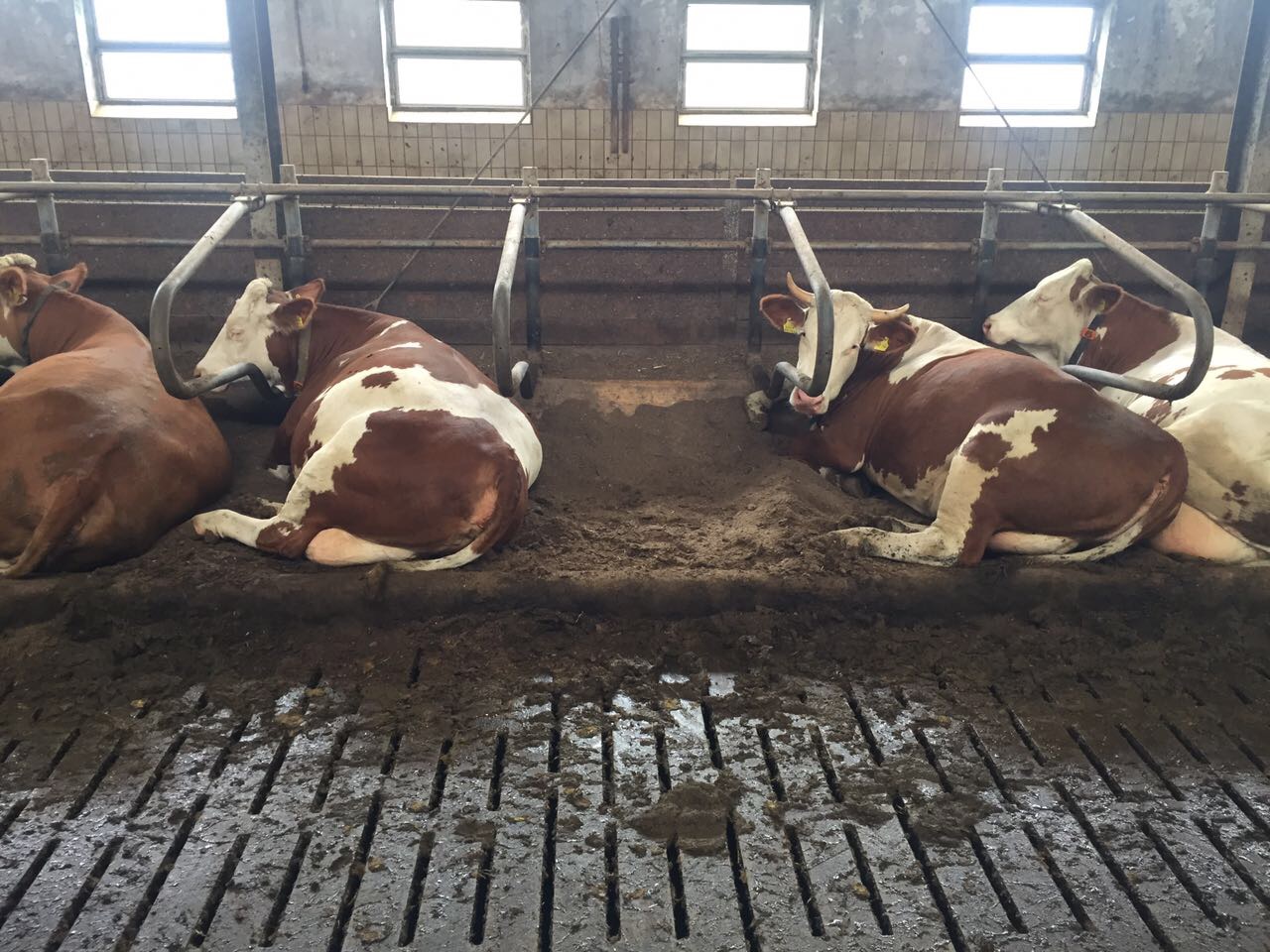

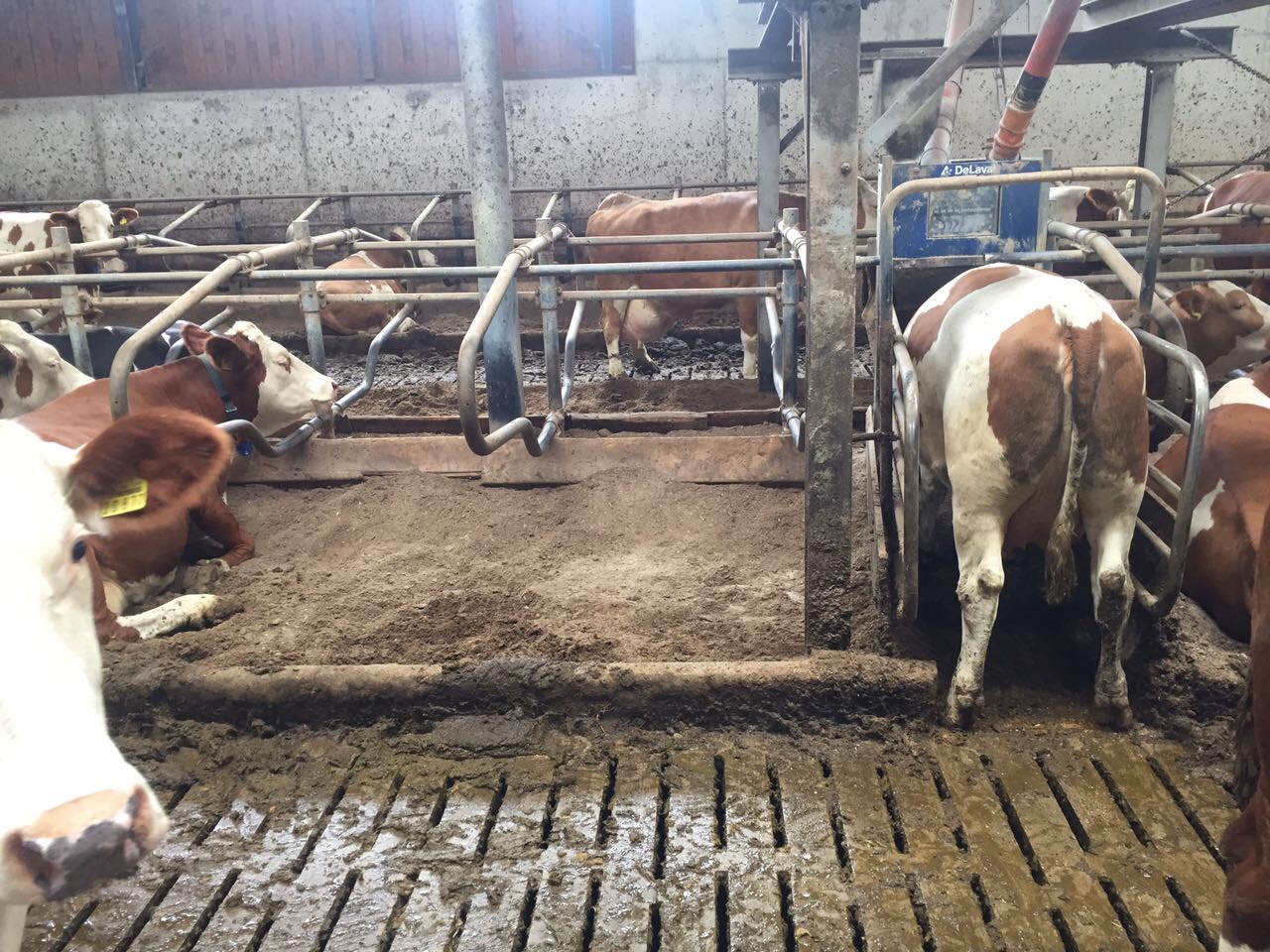

  • For the easy dribution of cattle and pig manure of for the production of bedding material in agriculture
  • Separating solid and liquid matter before and after the digester process in biogas plants
  • Separating vegetable waste, for example potato peelings in the food industry, rumen contents in meat packing plants, mash in distilleries, wastewater treatment plants

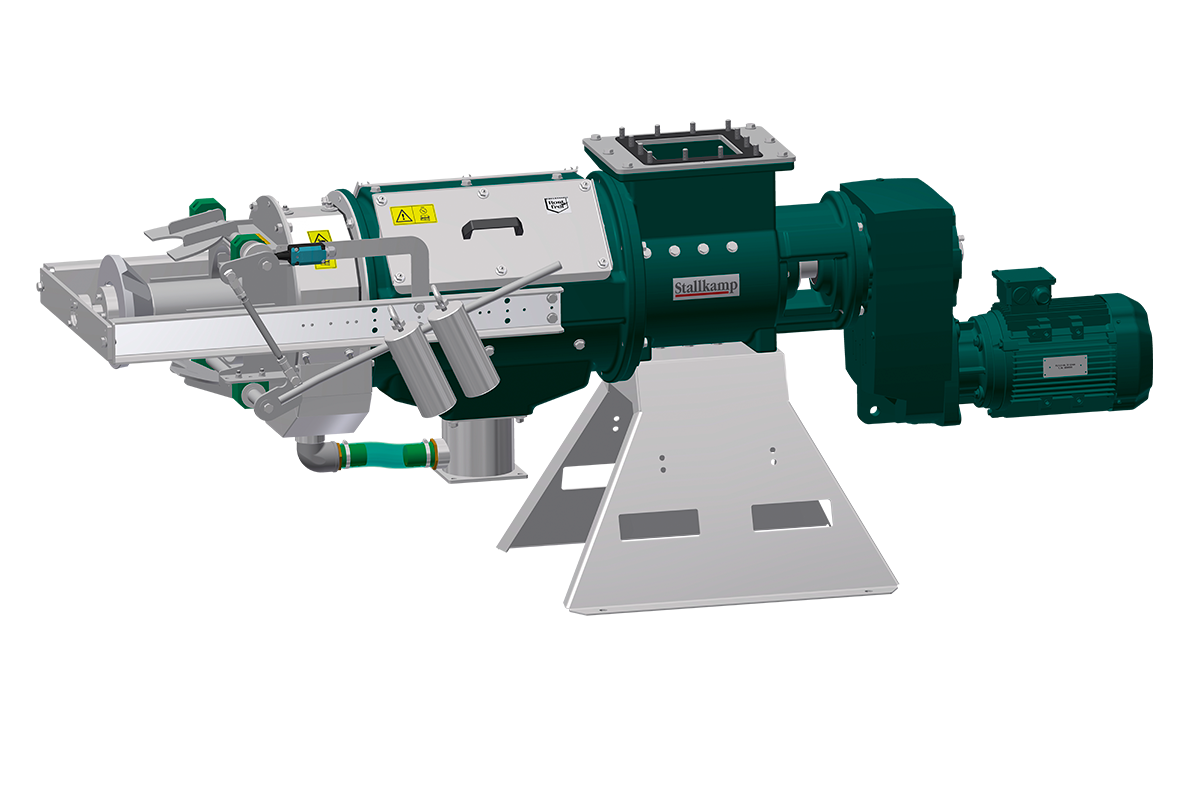

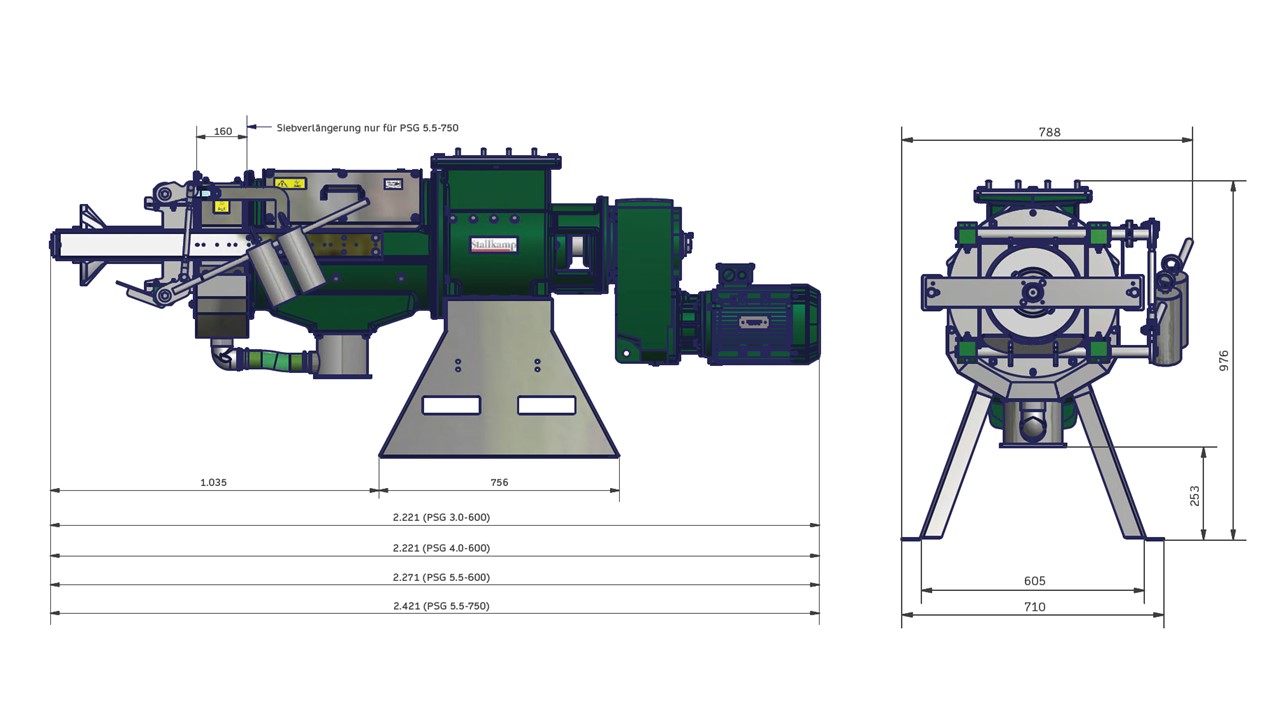

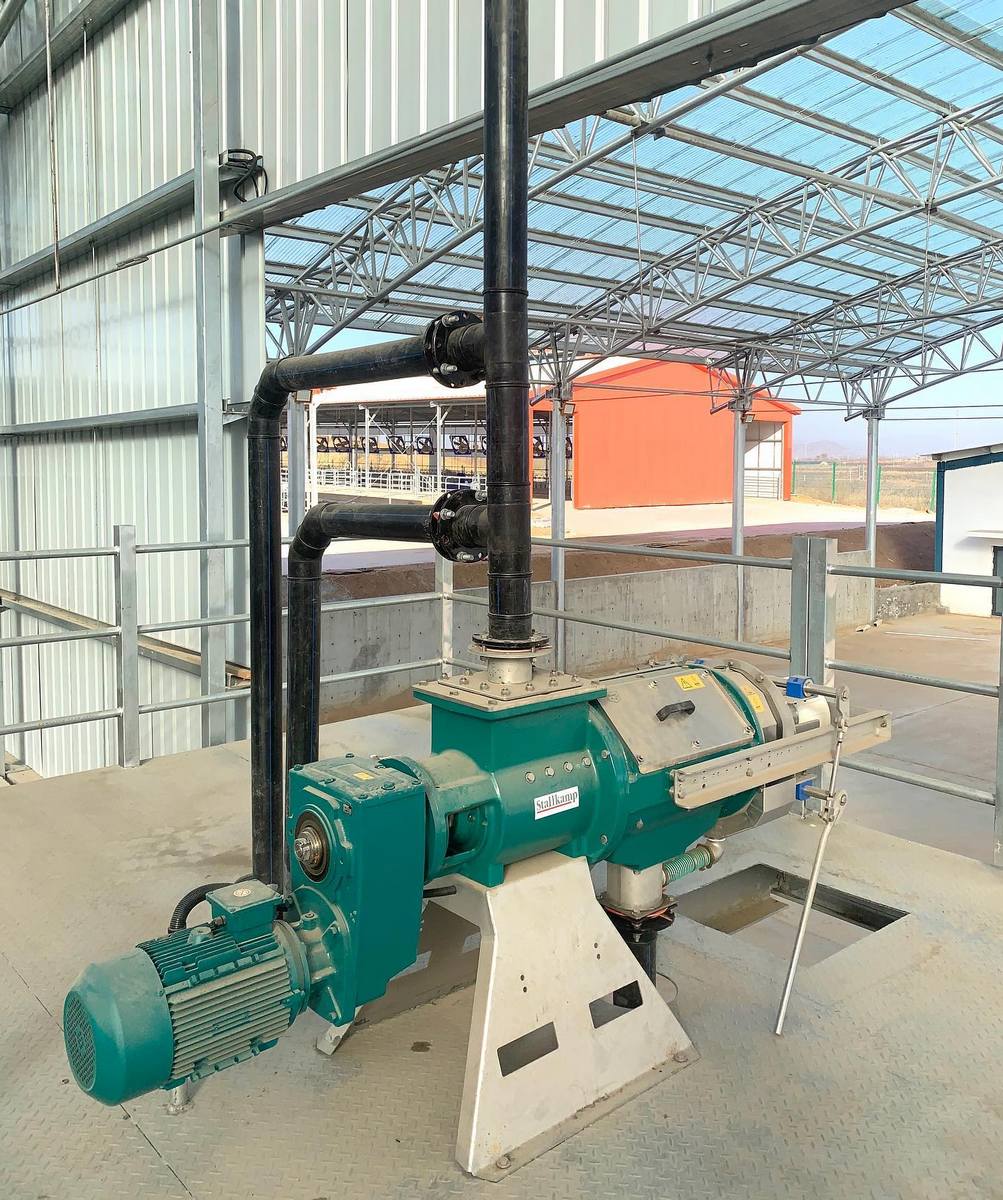

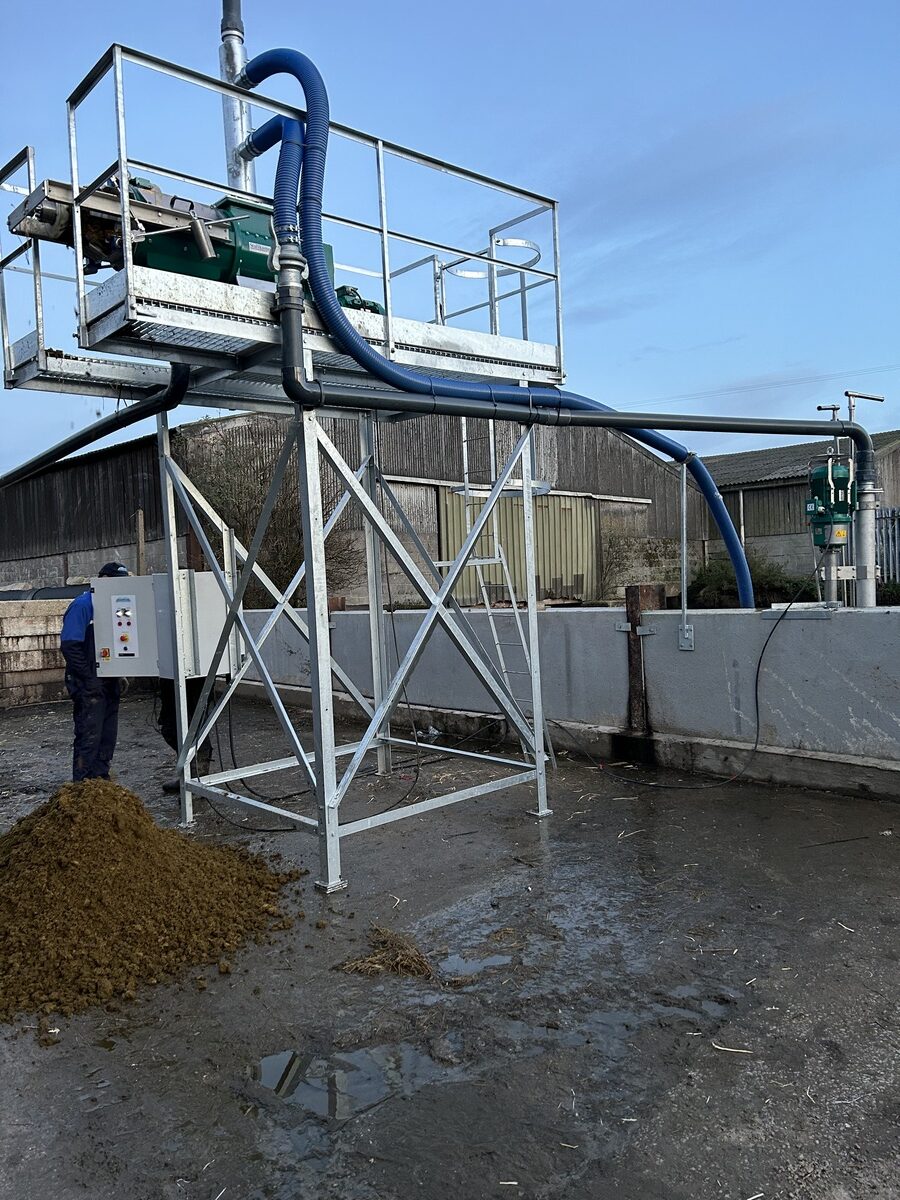

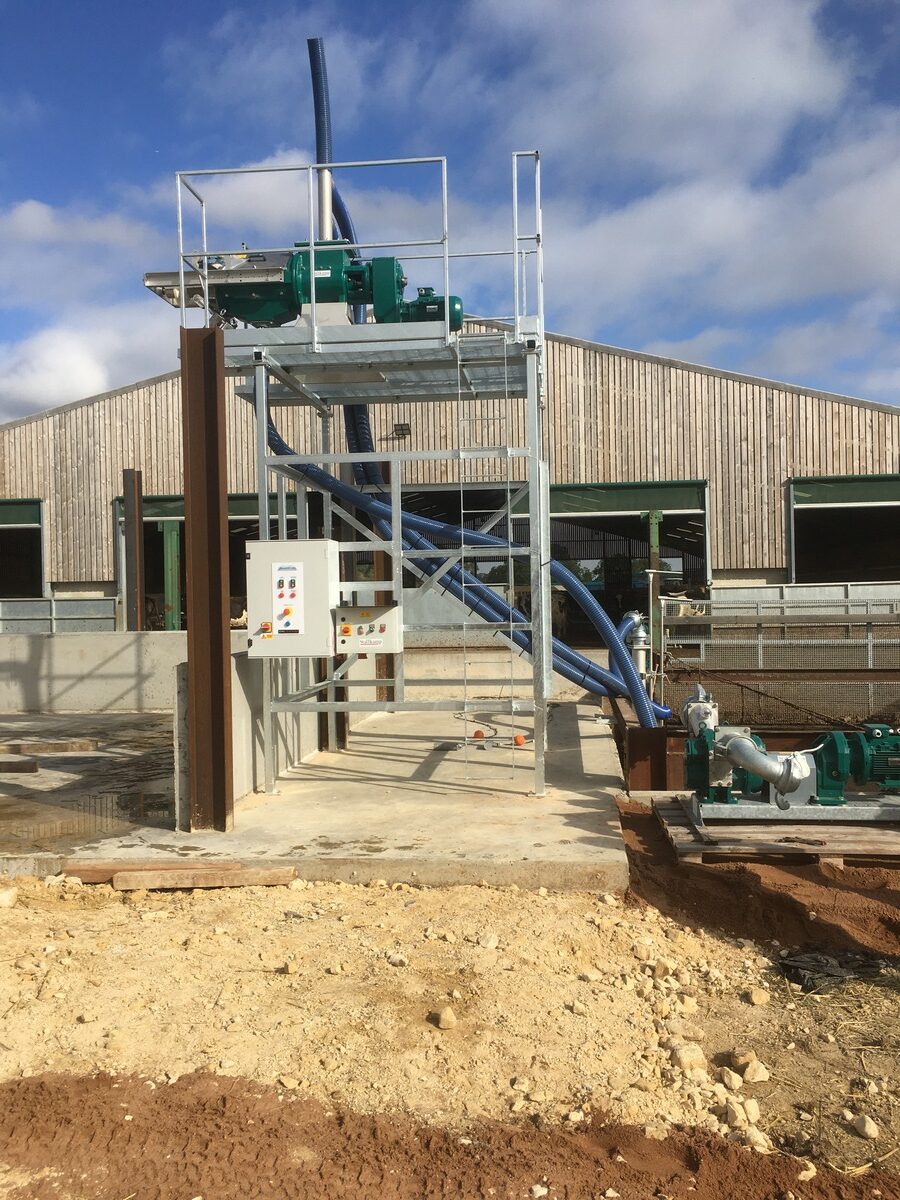

PSG Separator

  • Heavy machine housing made from cast iron with inlet chamber and 2 separate cleaning holes
  • Robust, fine-mesh screen cylinder made from stainless steel
  • Plated, two-way press screw made from stainless steel with precision fit for the screen
  • Solids outlet made from stainless steel; flaps steplessly adjustable via counterweight for controlling the residual moisture content
  • Subframe/fastening frame made from stainless steel
  • Efficient separation performance with high throughput
  • Drive motor 4 / 5.5 kW
  • Rotational speed 30 rpm.
  • Screen basket Ø 254 mm L = 600 / 750 mm
  • Gap widths:0,35 / 0,50 / 0,75 / 1,00 mm (other widths upon request)
  • Throughput 5-25 m³/h

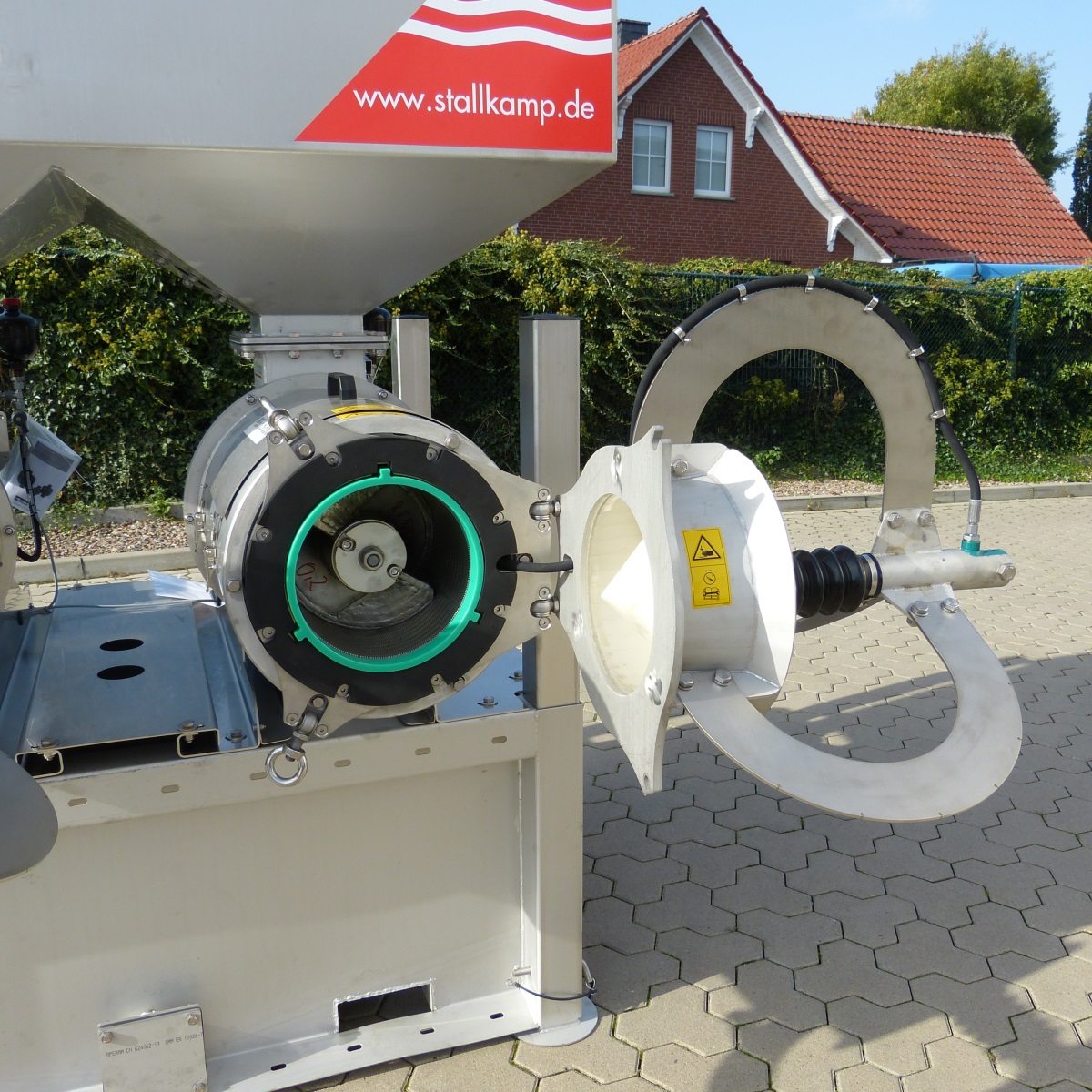

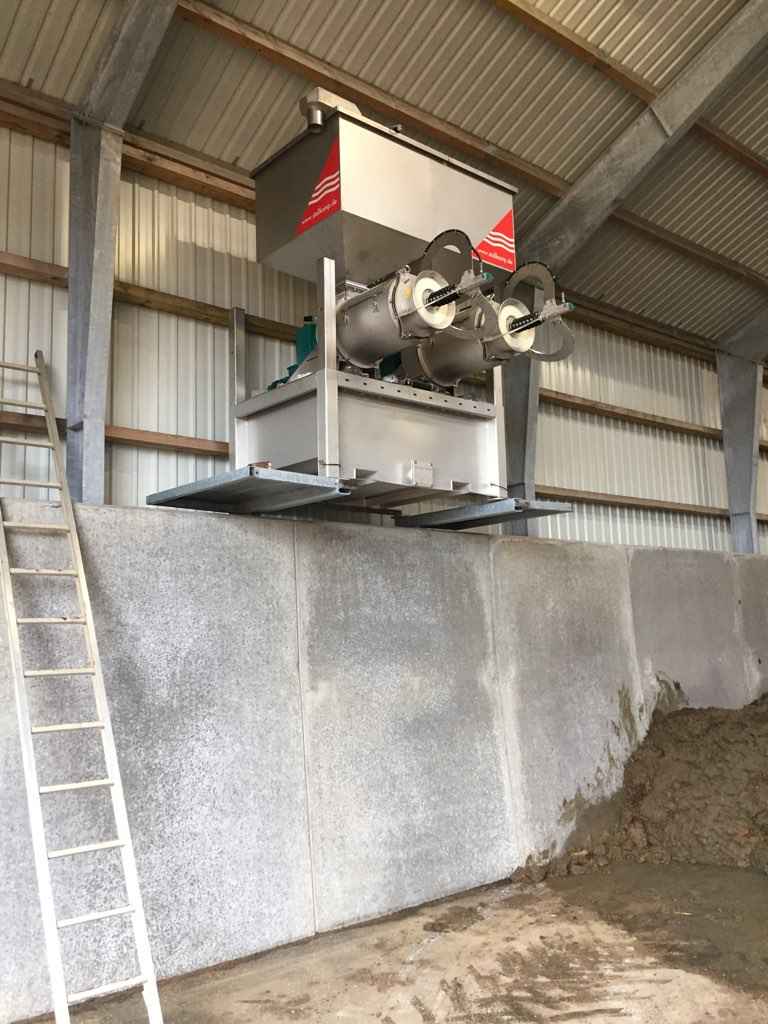

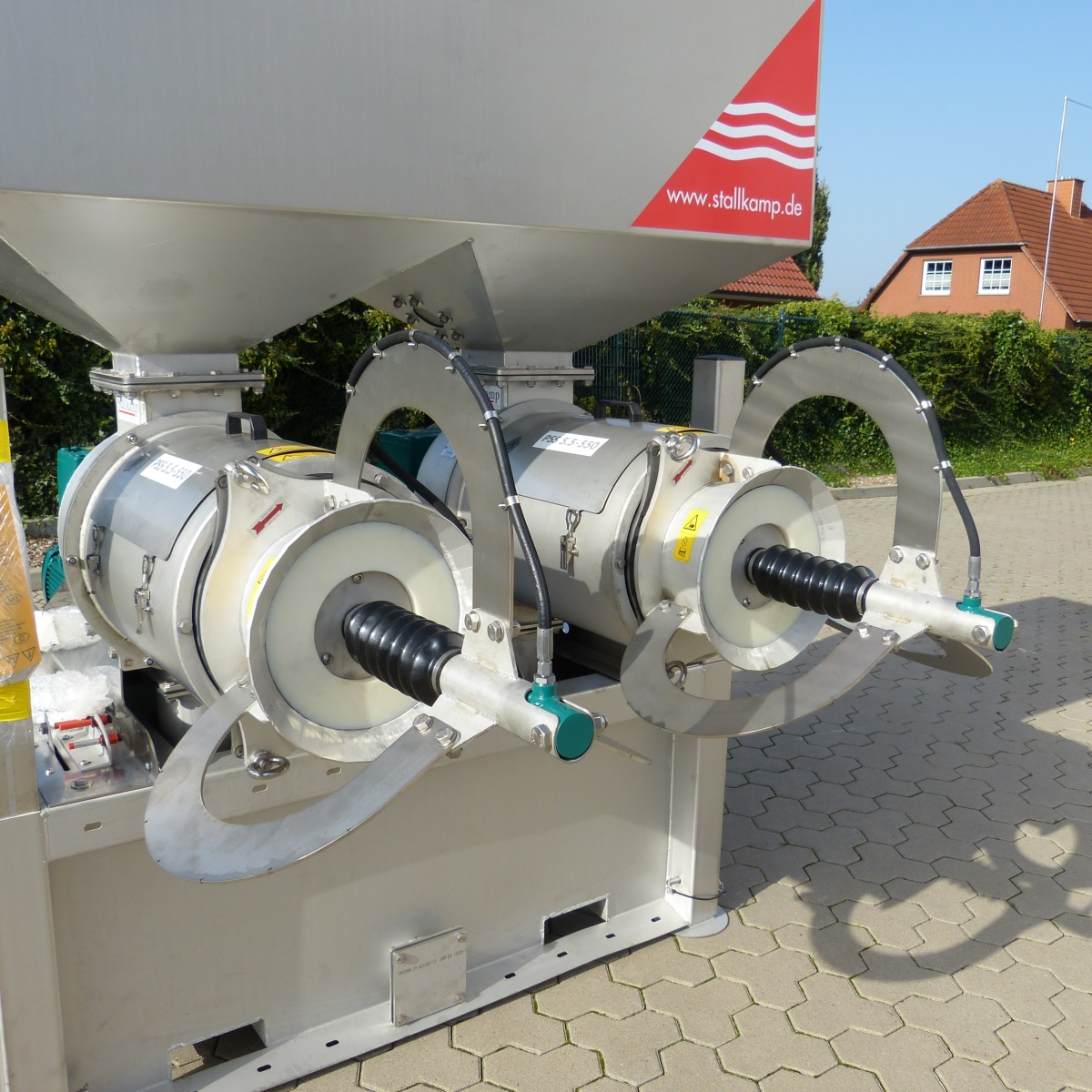

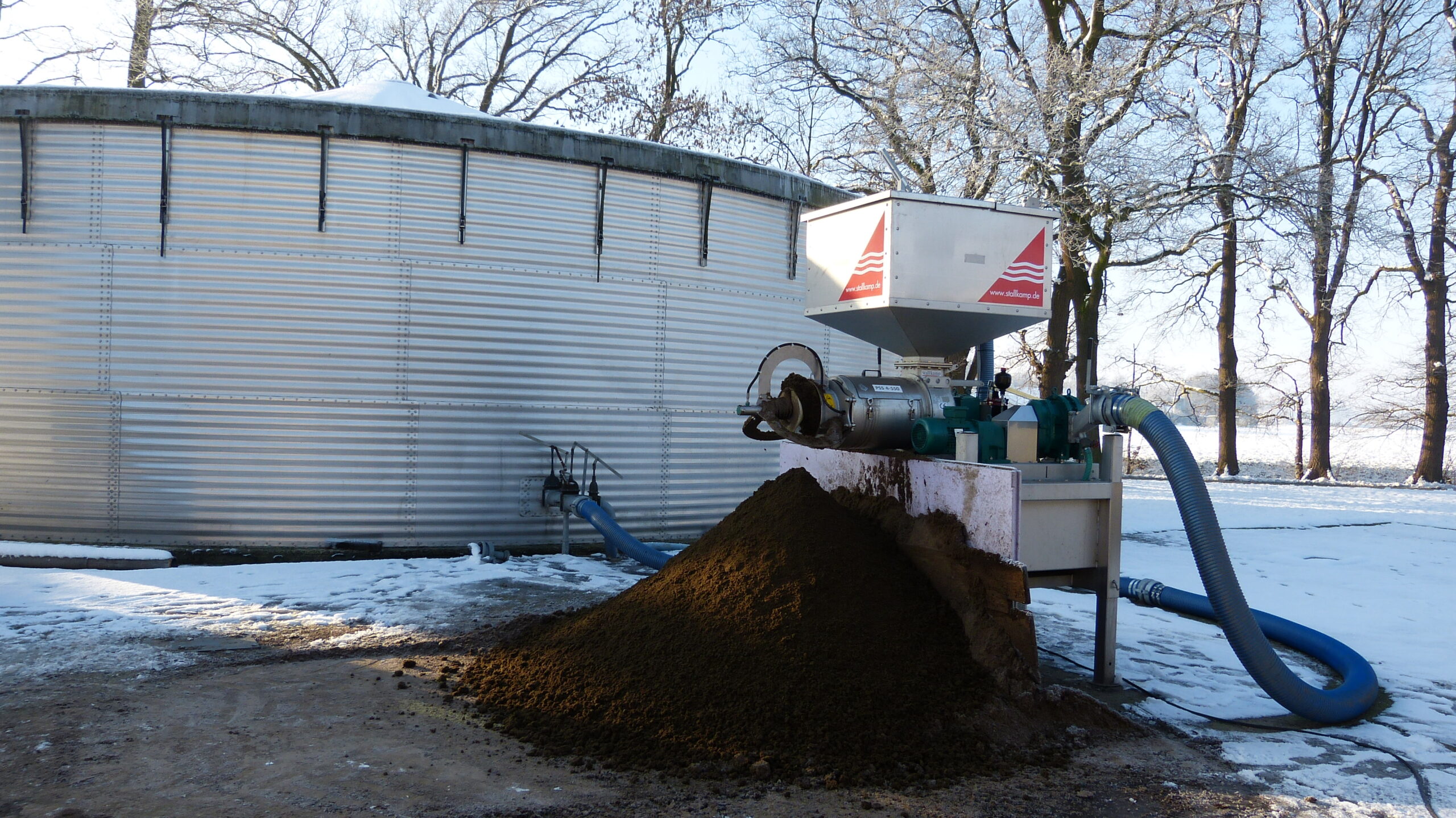

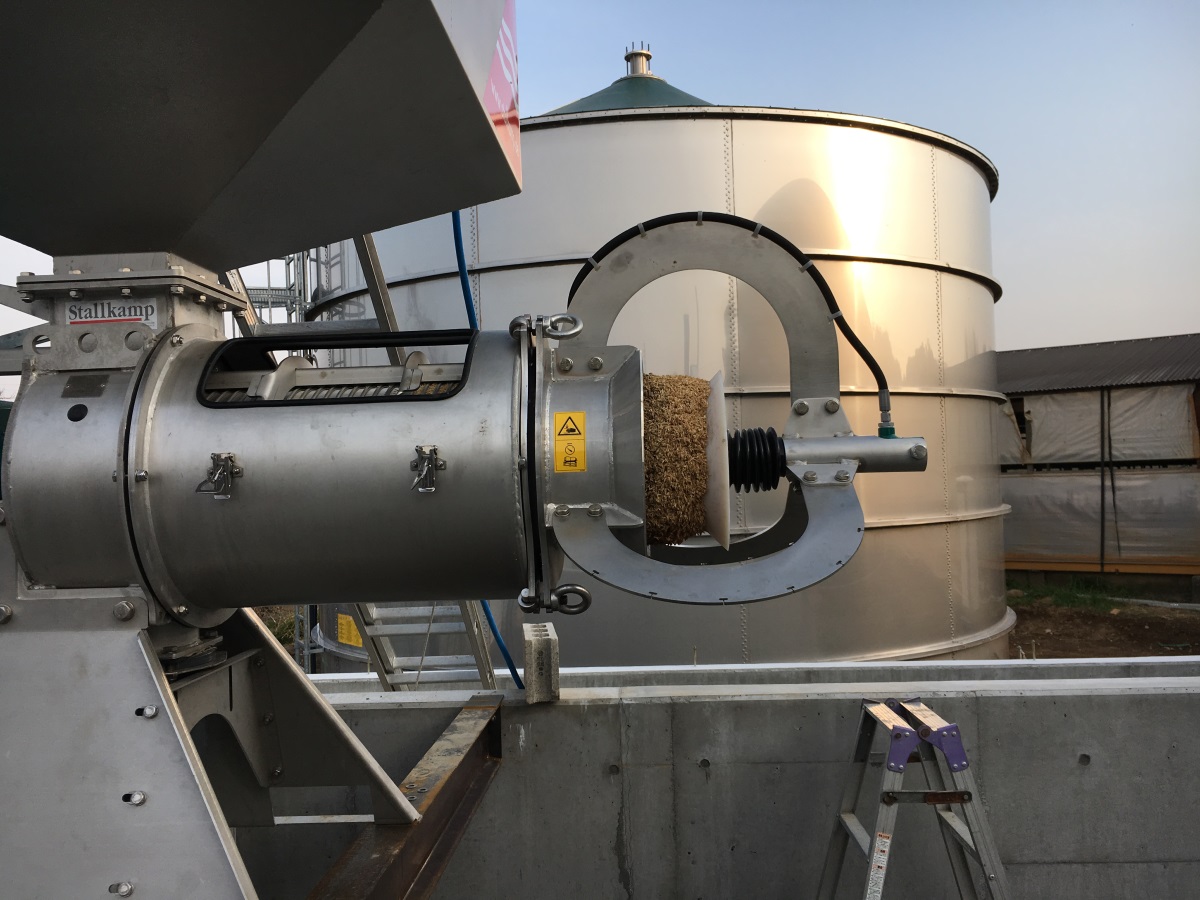

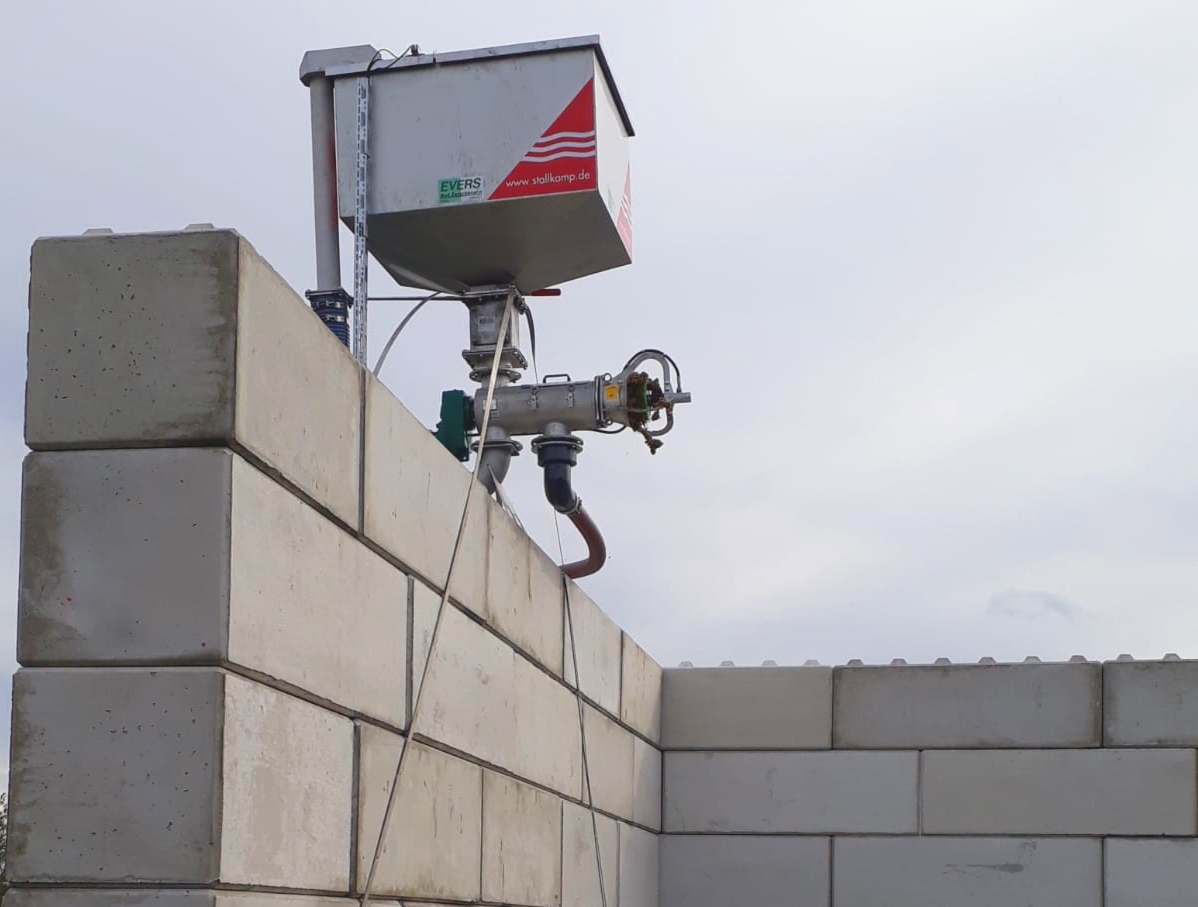

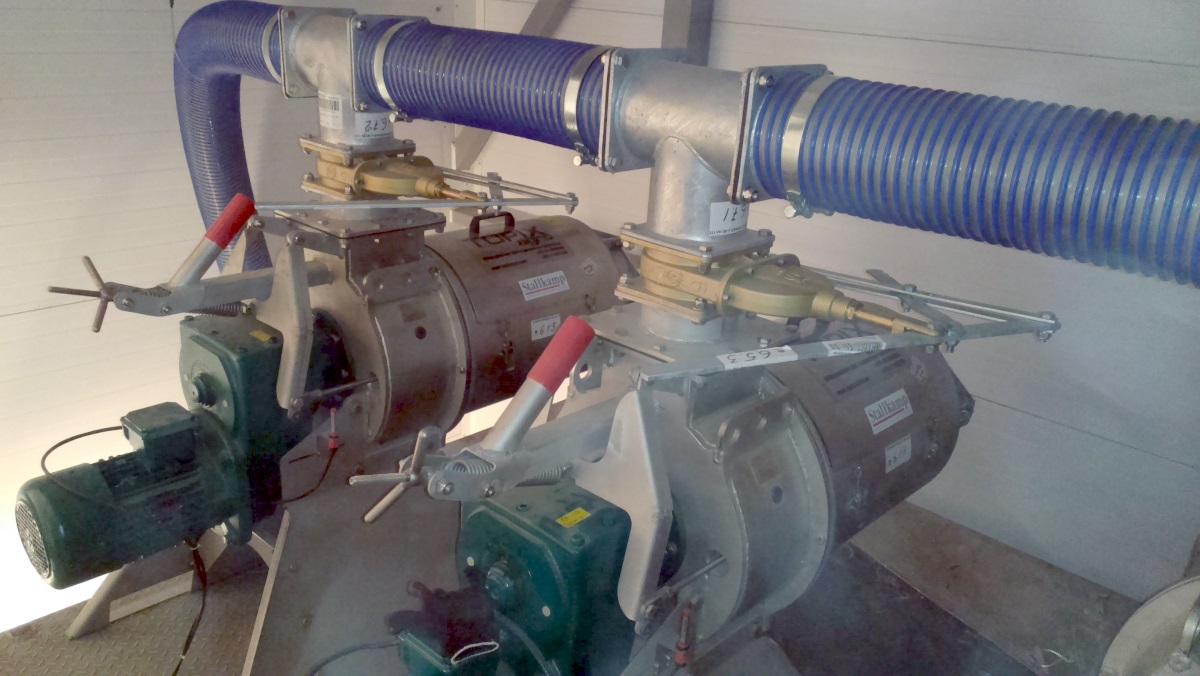

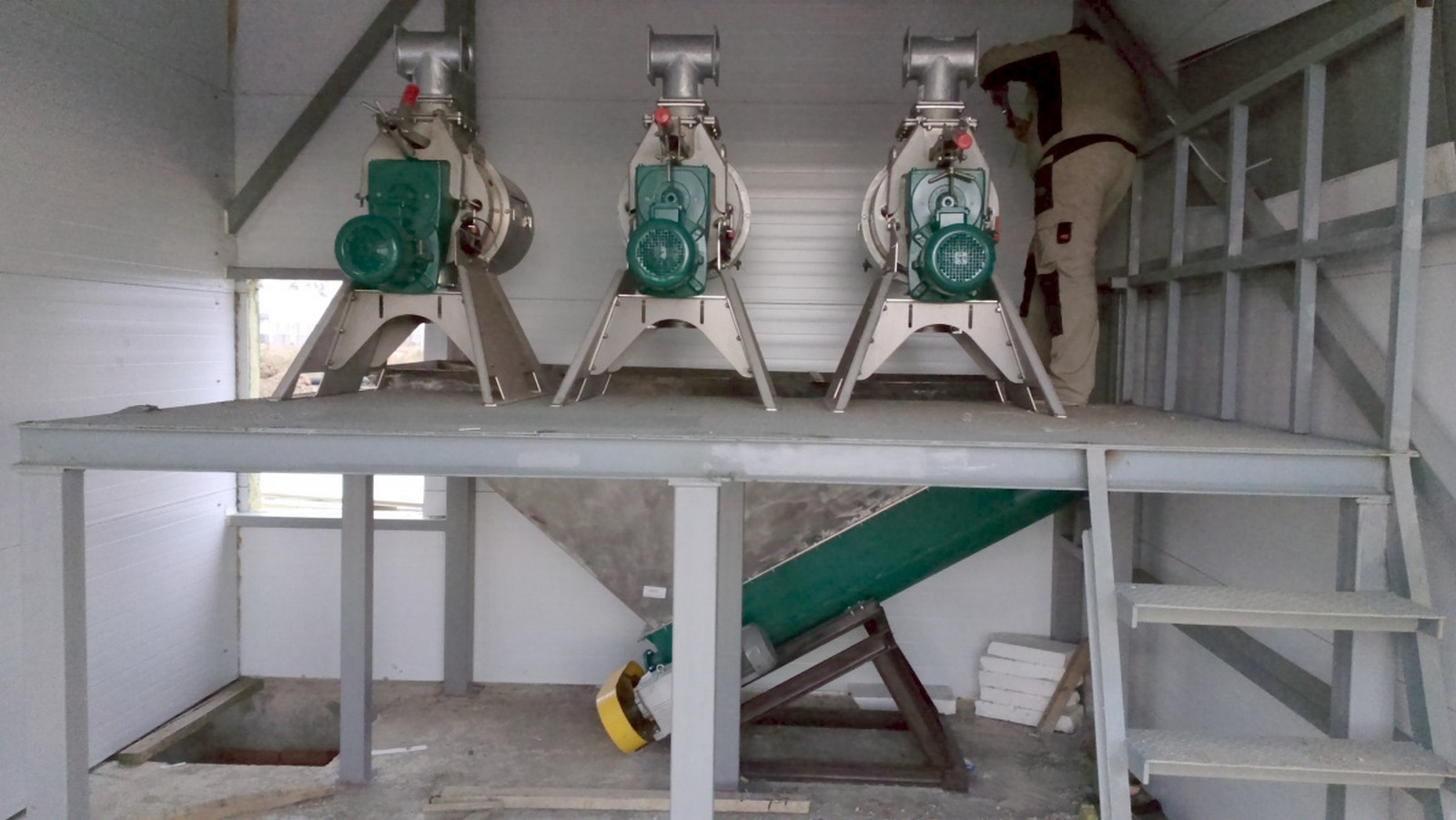

PSS Separator

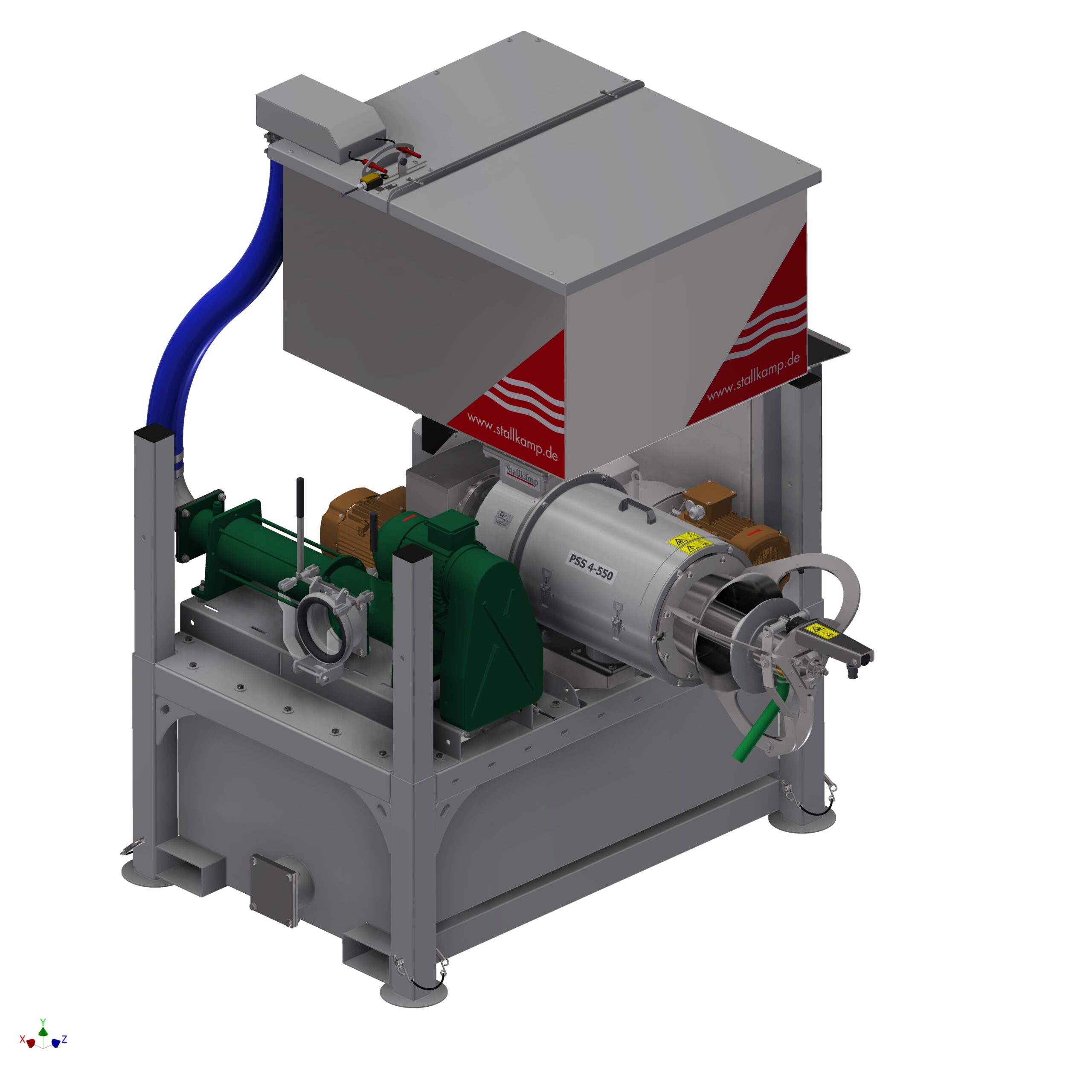

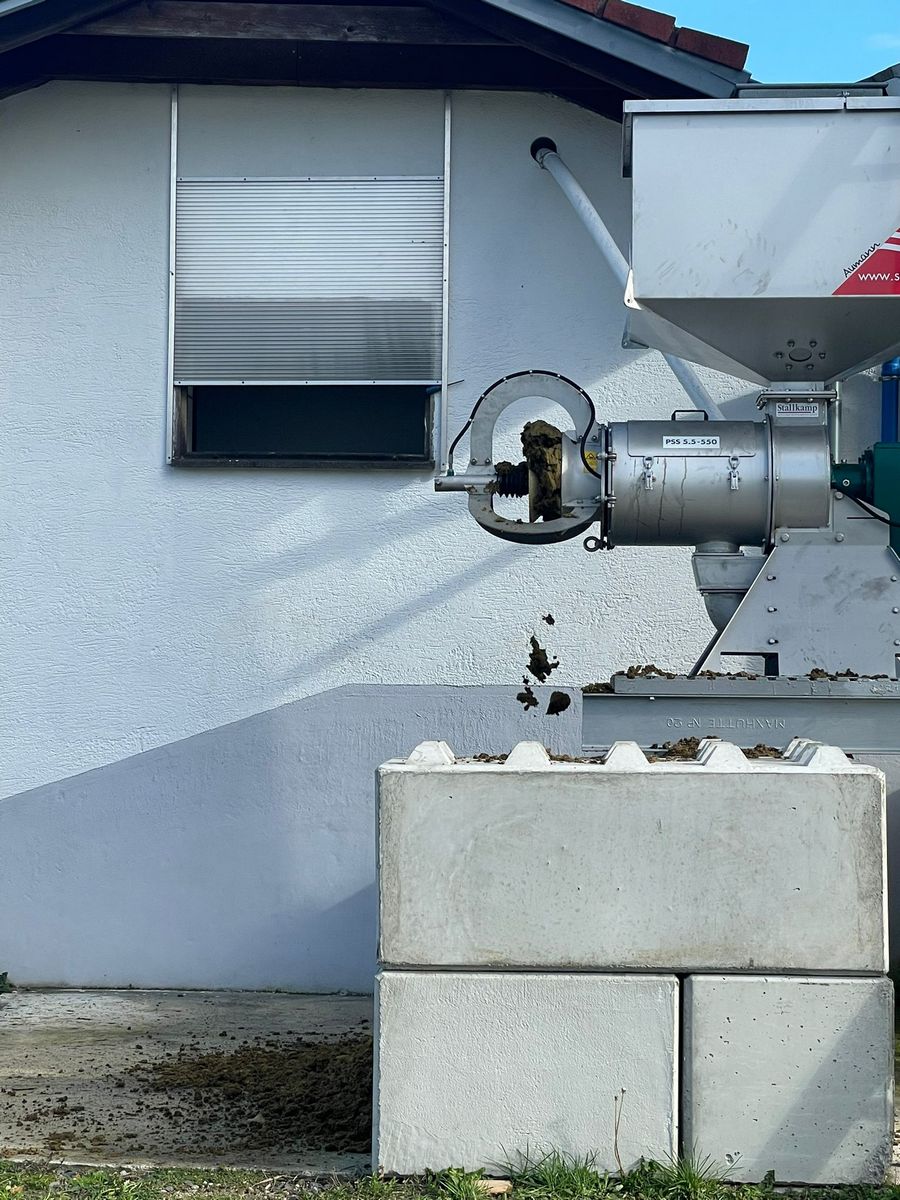

  • Basic machine PSS 4-550 or PSS 5.5-550

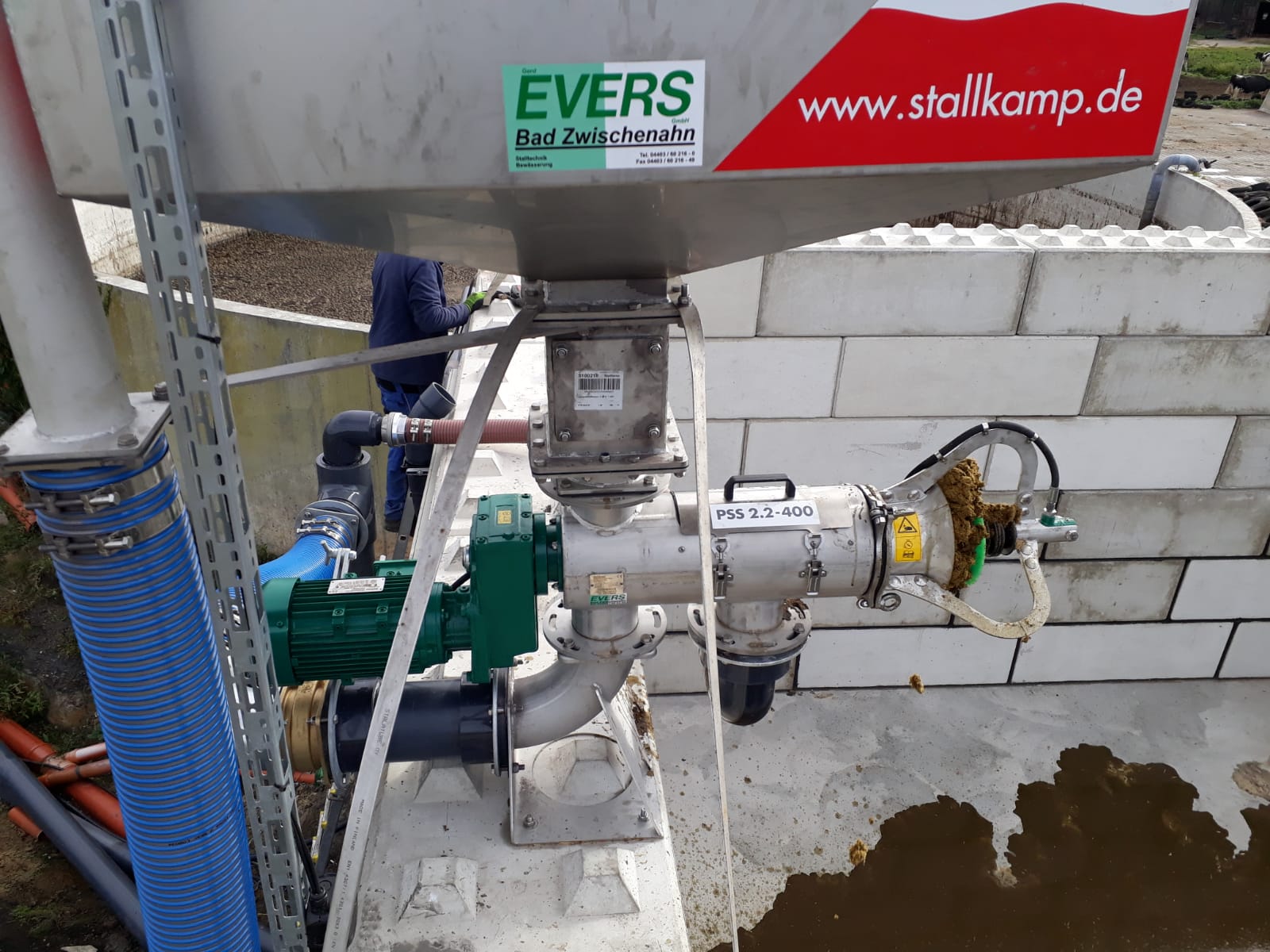

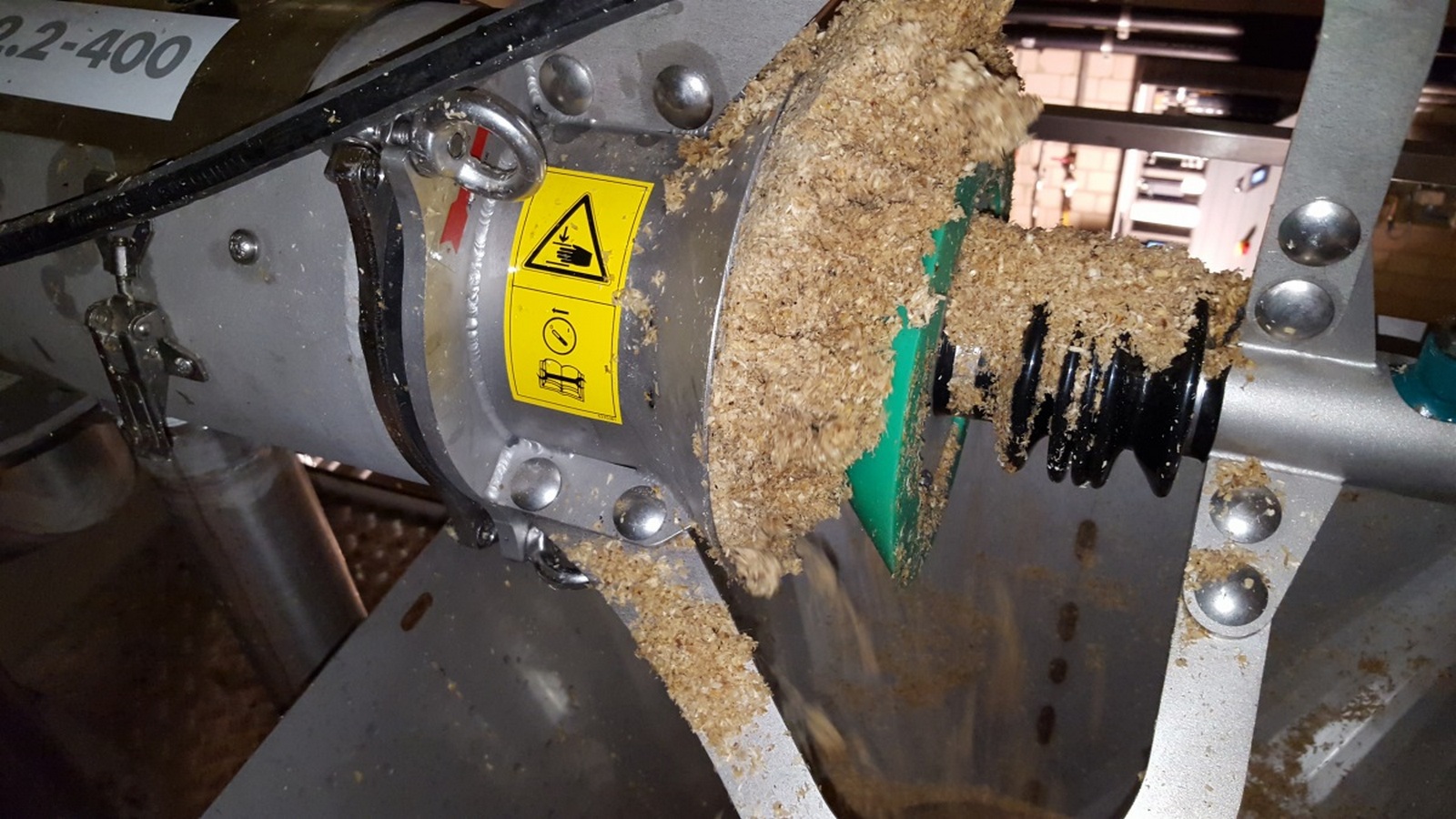

  • Small machine PSS 2.2-400
  • Stainless steel separator
  • Press screw right-and double-standard stainless steel with tungsten carbide plated
  • Quicker operational readiness since the plug does not have to be established from foreign material
  • The degree of dry matter is effortlessly modified during operations, thanks to the manometer display

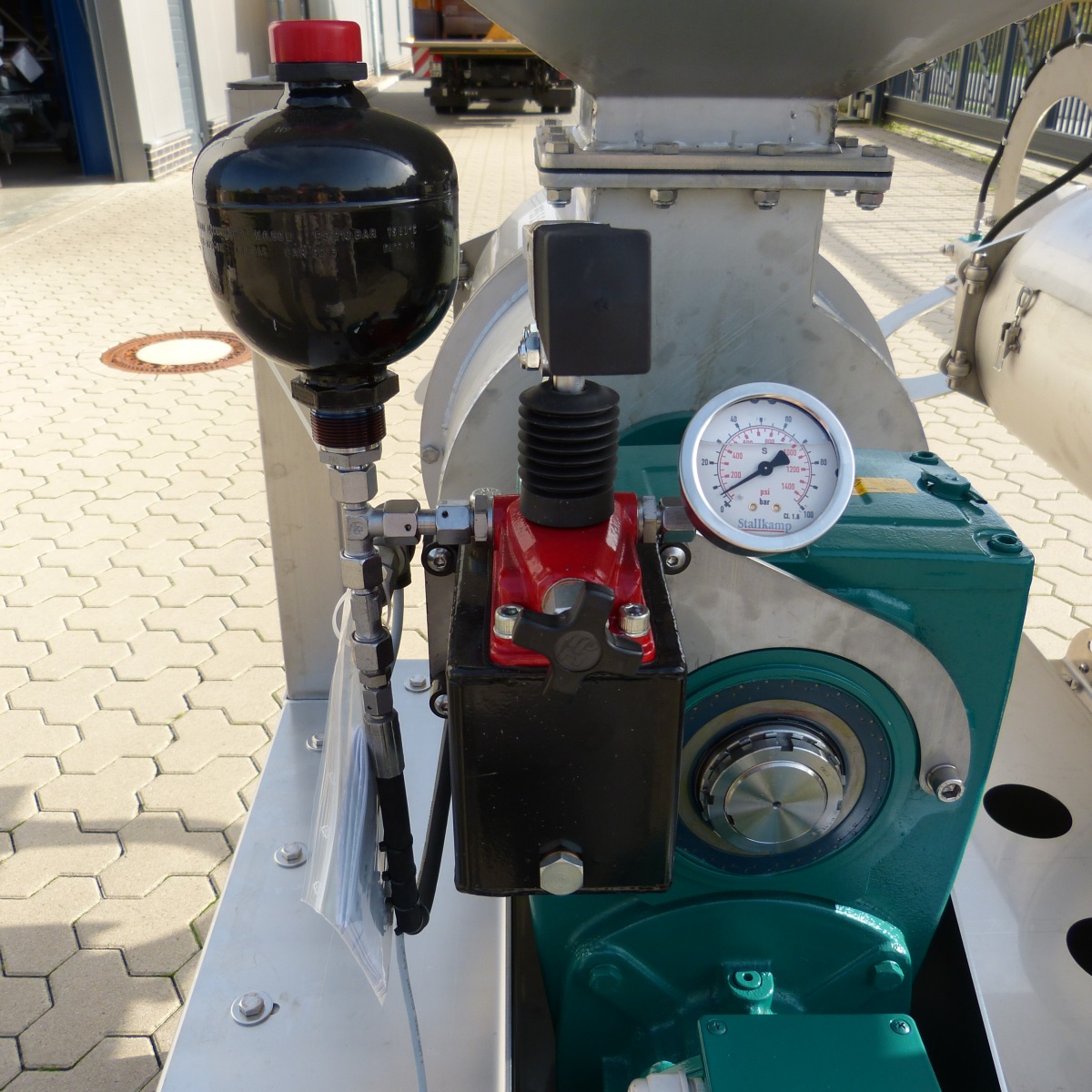

  • Manual hydraulic pump with diaphragm accumulator and manometer for cylinder head

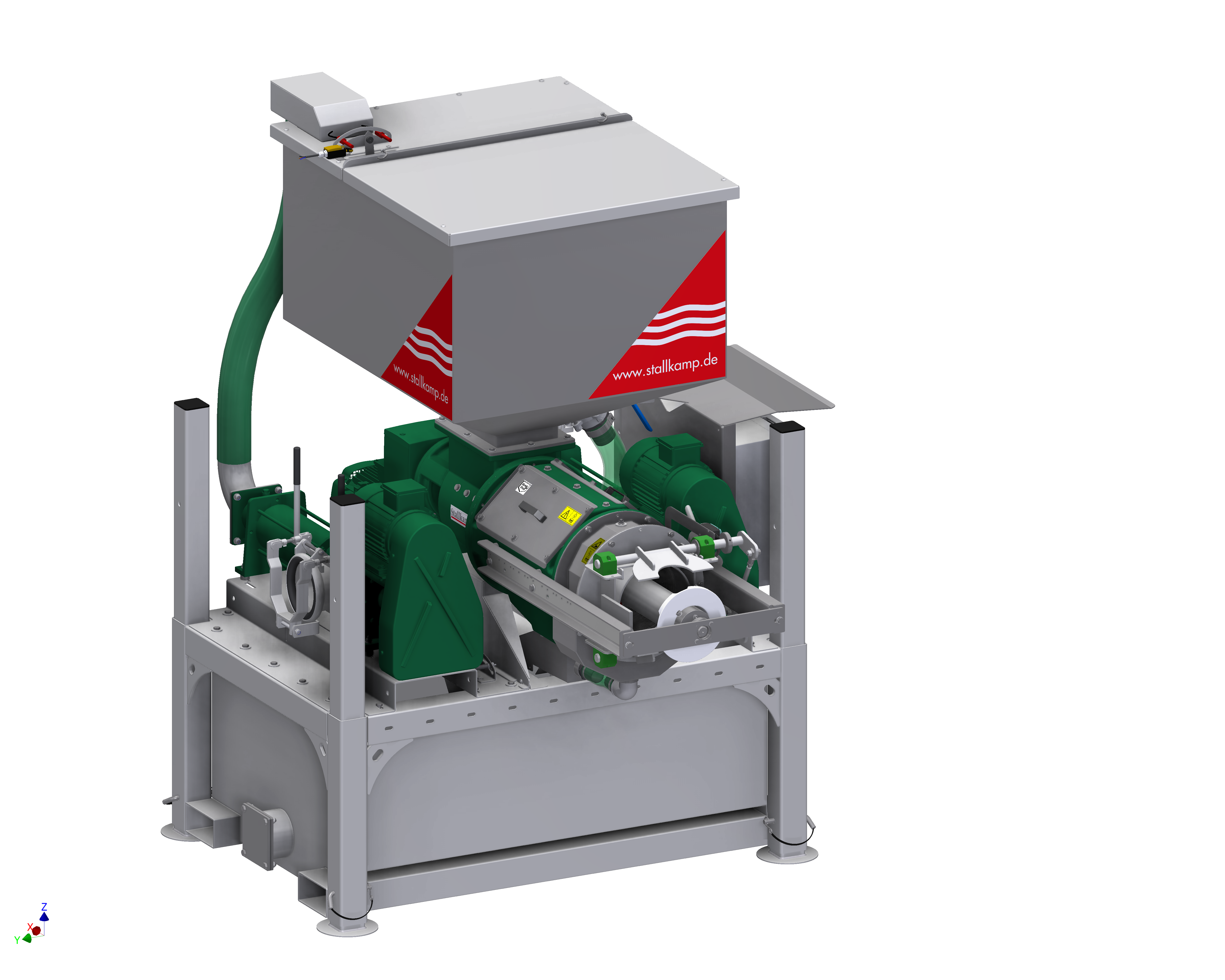

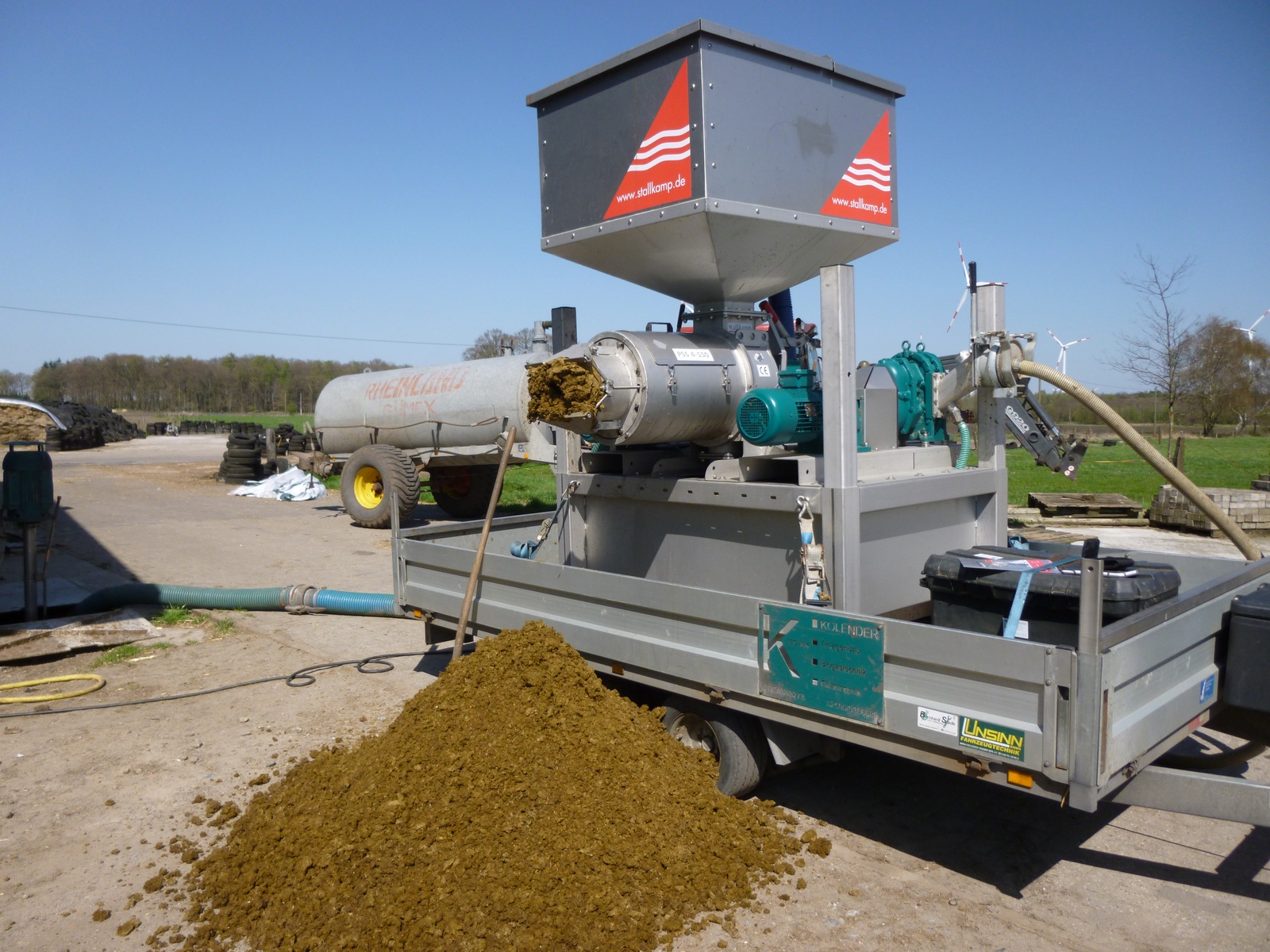

  • Mobile unit available

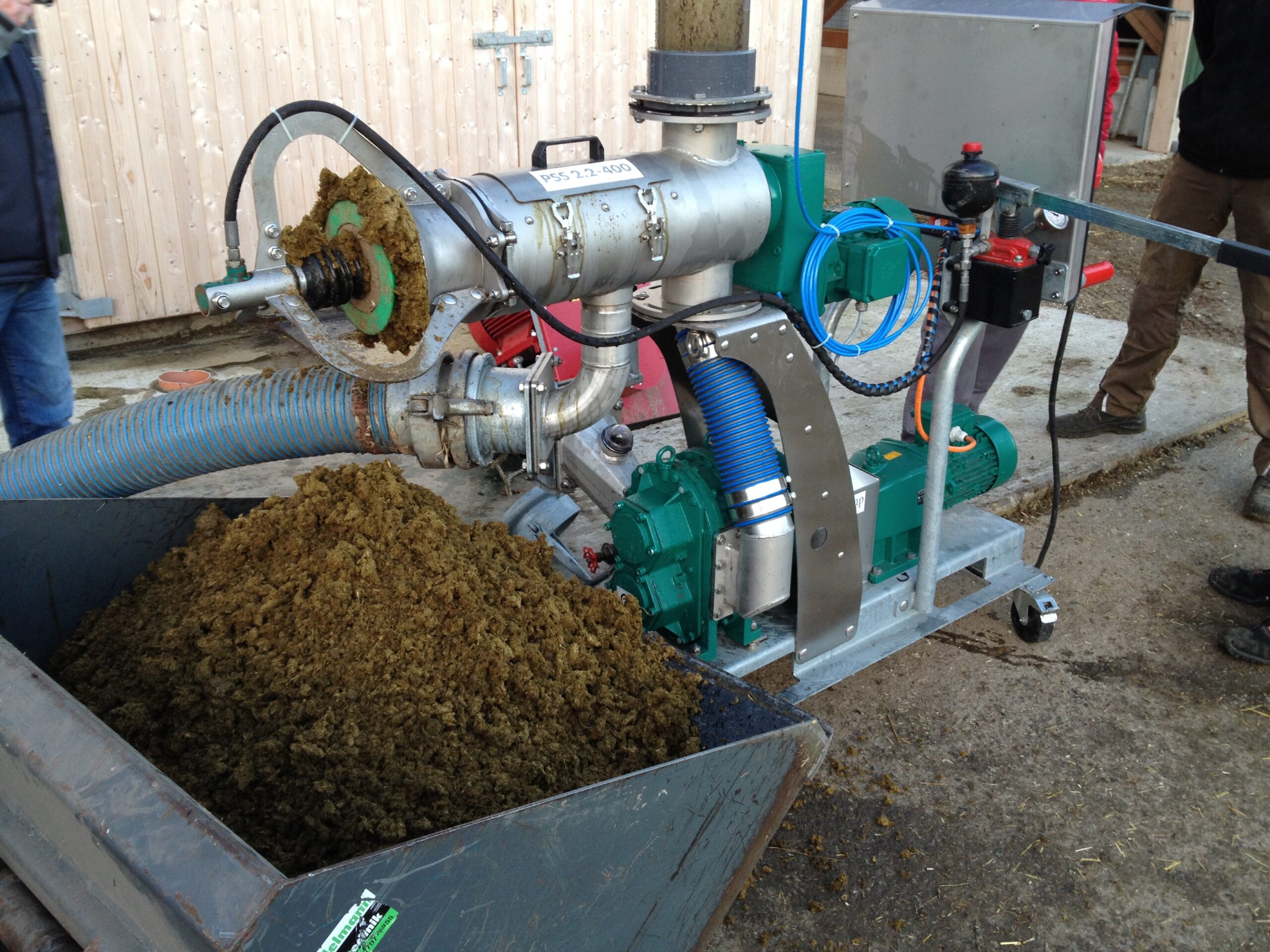

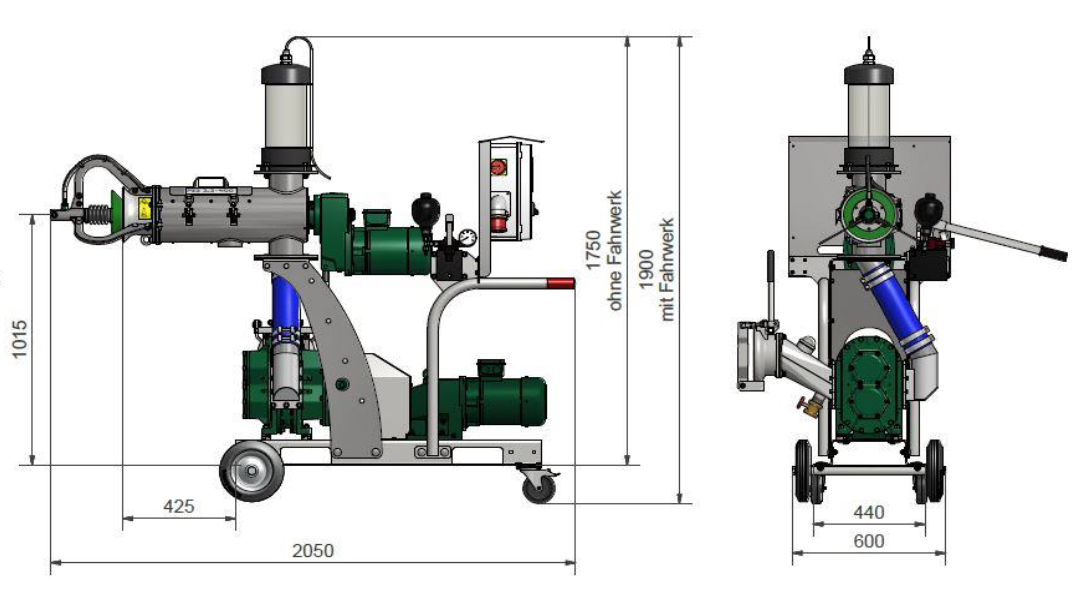

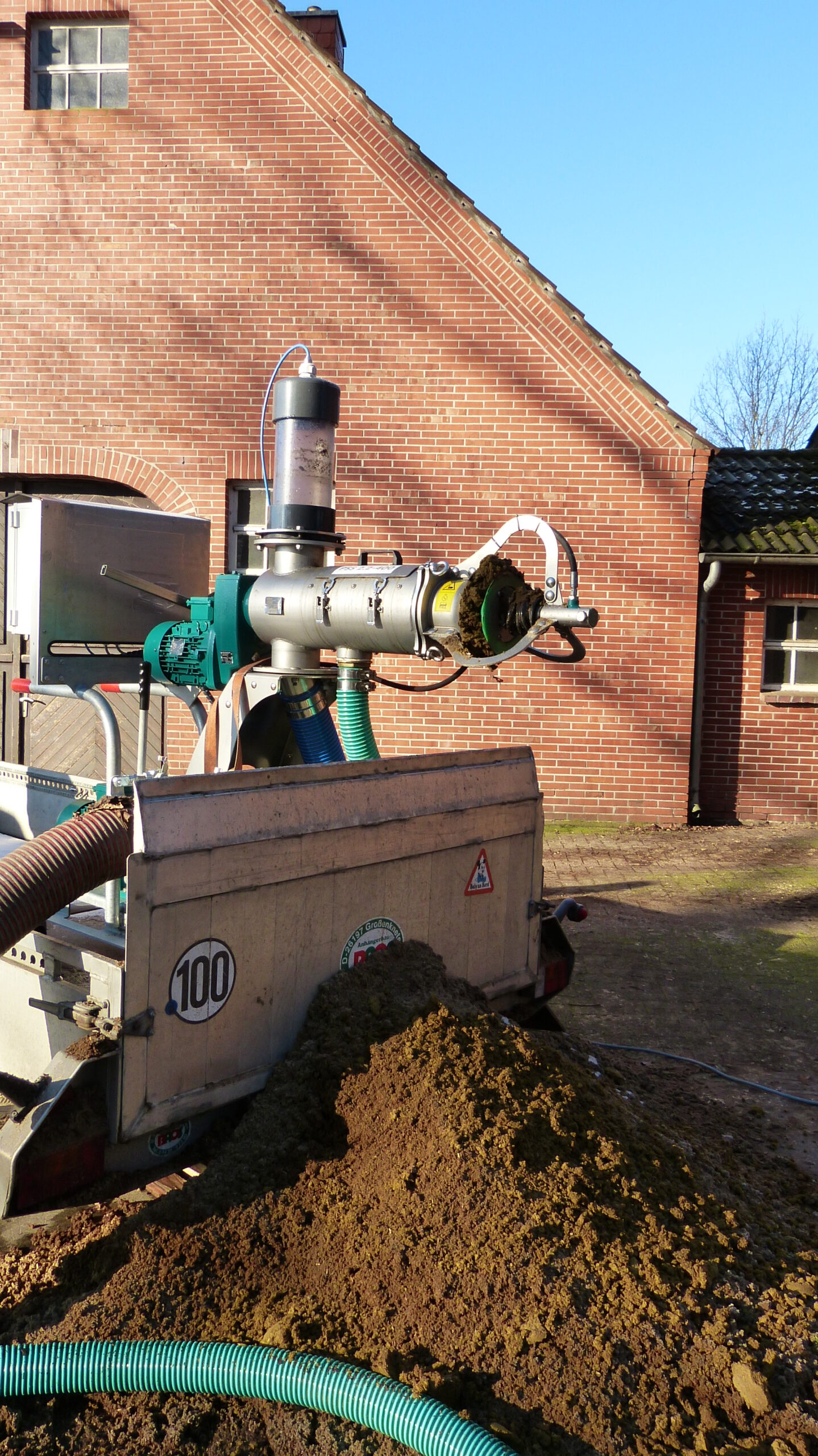

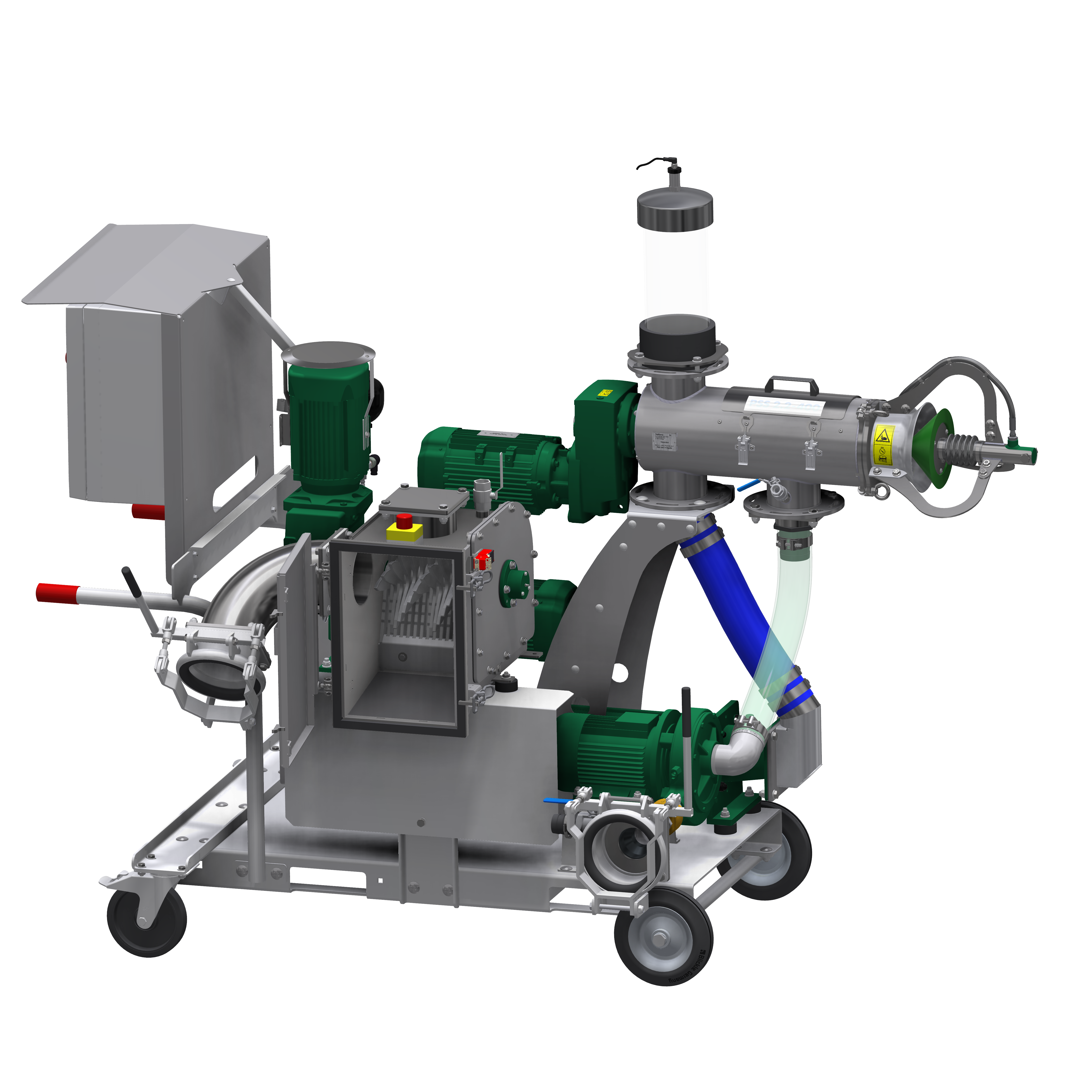

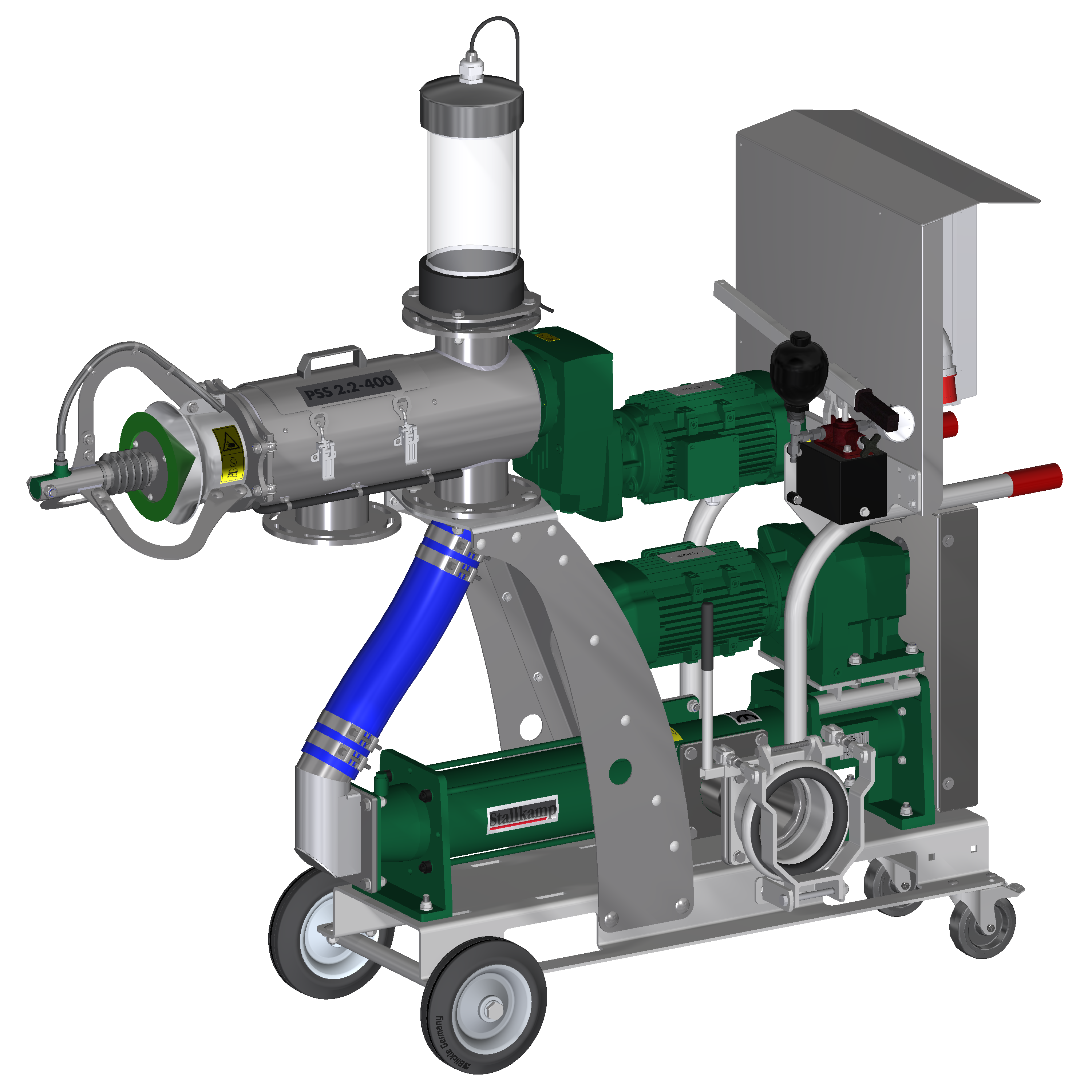

PSS ComPress

  • Specially designed for small separation quantities
  • Very good price/performance ratio
  • Compact design for small separation quantities
  • Press screw separator 2.2 kw drive motor
  • Rotary lobe pump with 2.2kw drive motor
  • Pressure measuring unit
  • electronic control system
  • Optional chassis, consisting of axle with wheels and two castors
