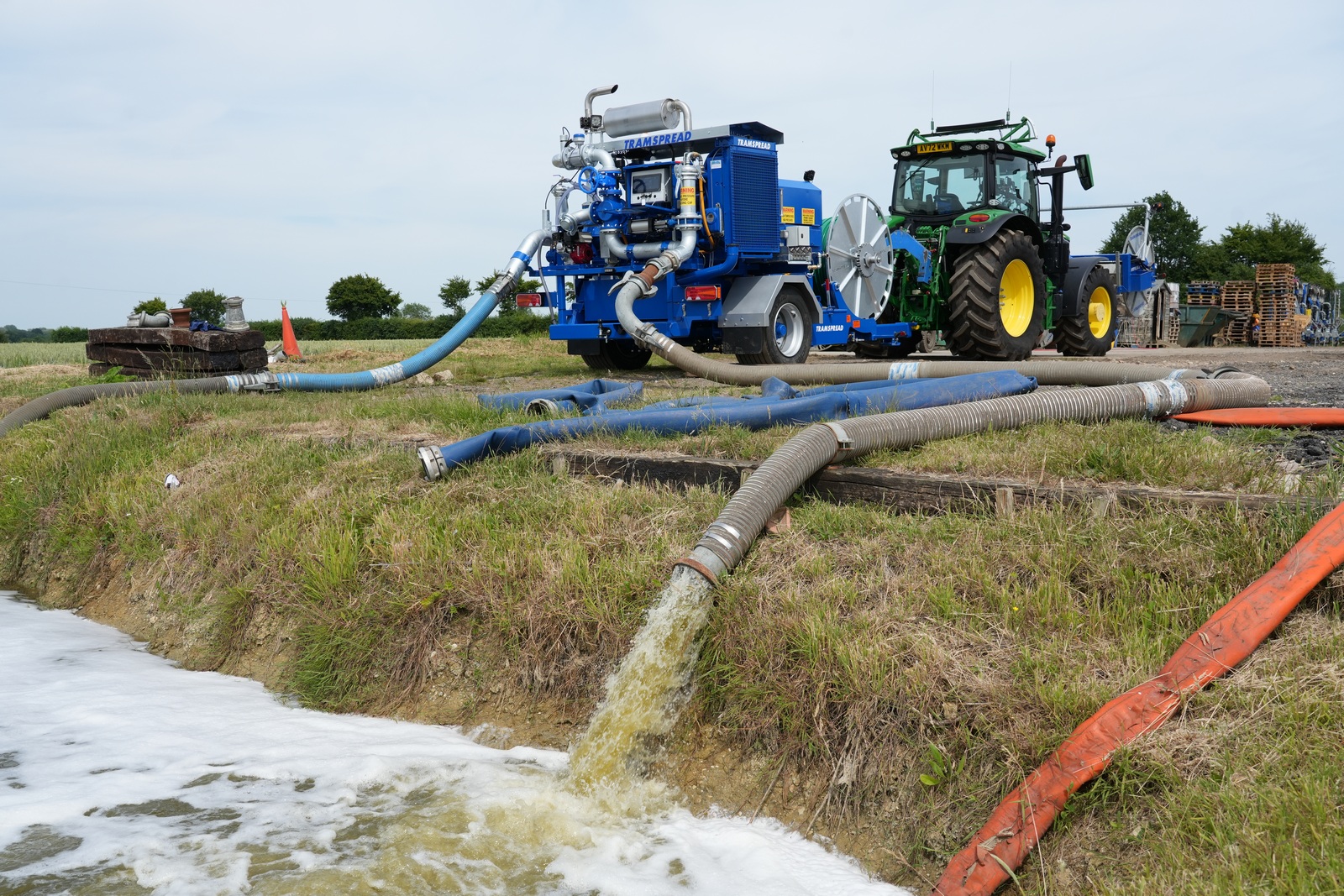

ENGINE DRIVEN PUMP UNITS
Tramspread engine driven pump units can be manufactured to individual requirement. Options include Bauer, Doda or Cri-man pumps, radio or GSM remote control, pressure sensing, return to store, flowmeters and sponge ball launcher plus painting in the customer’s chosen colour.

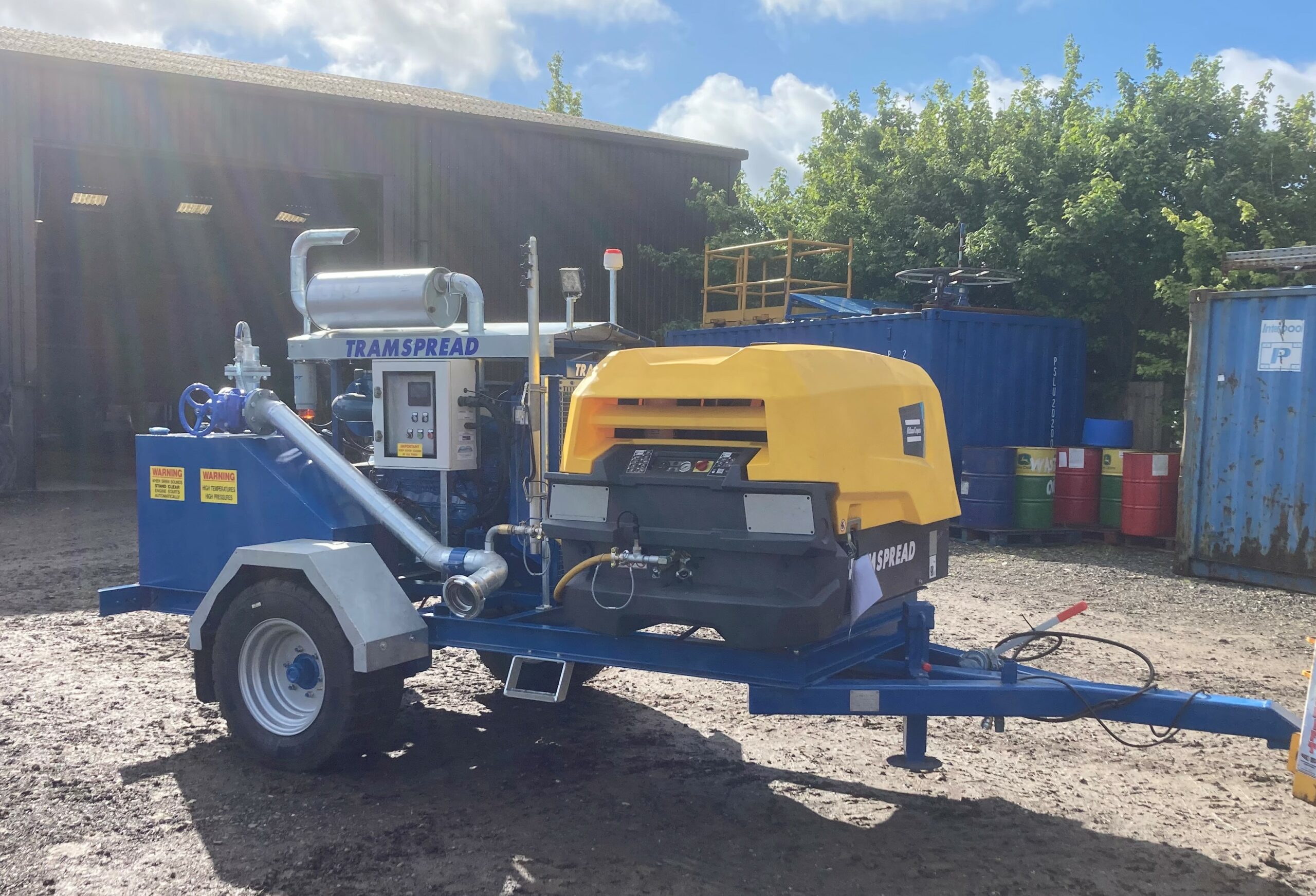

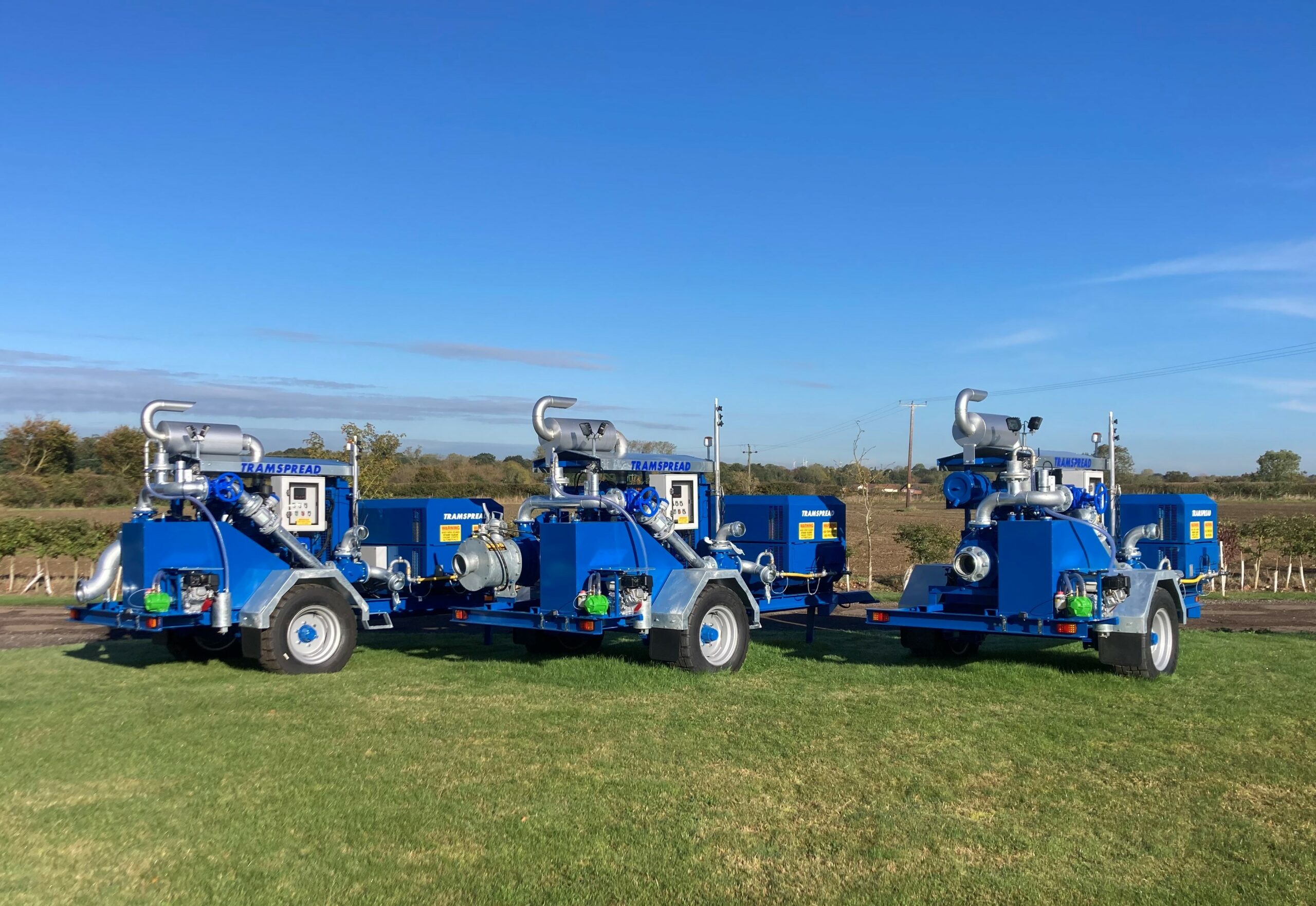

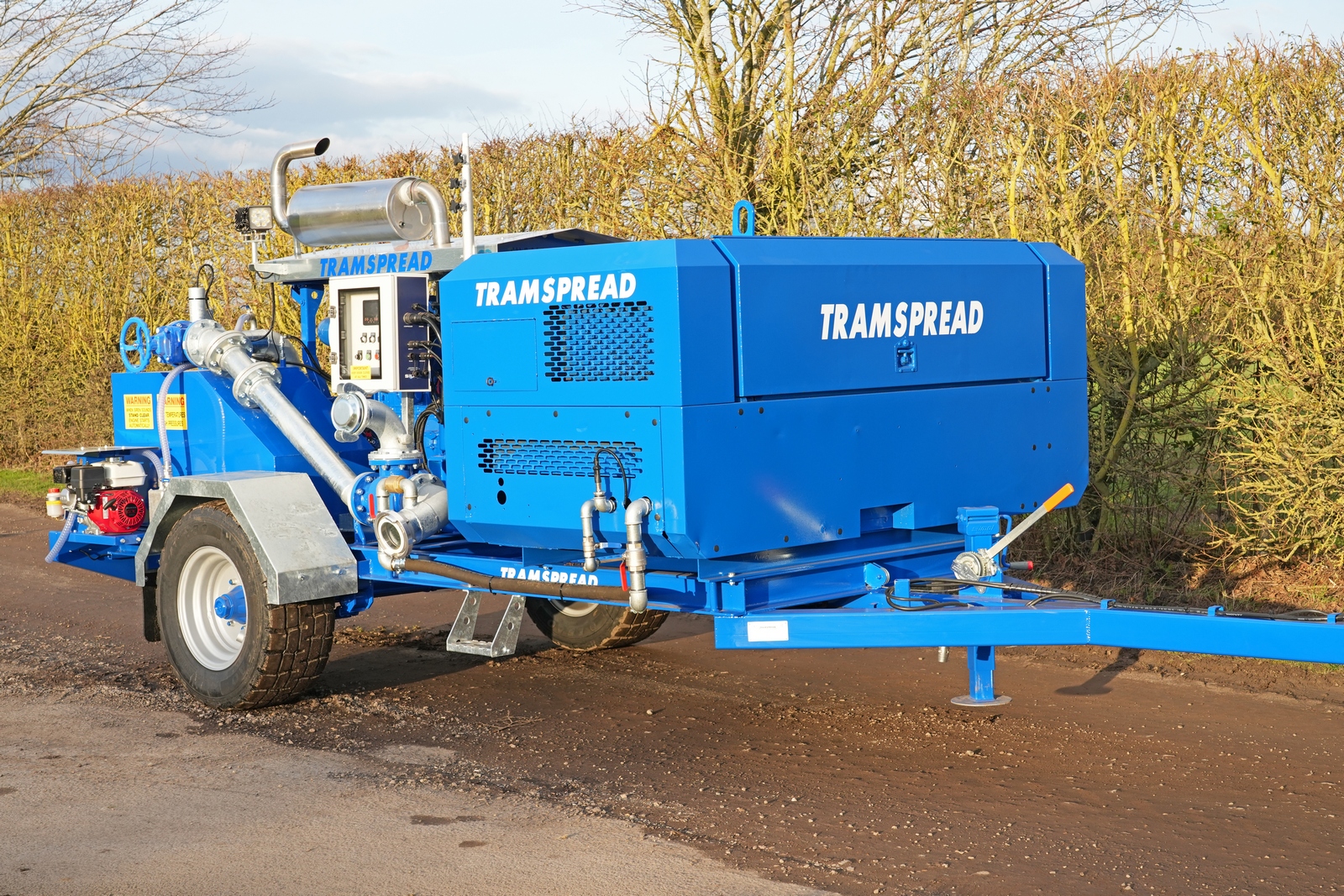

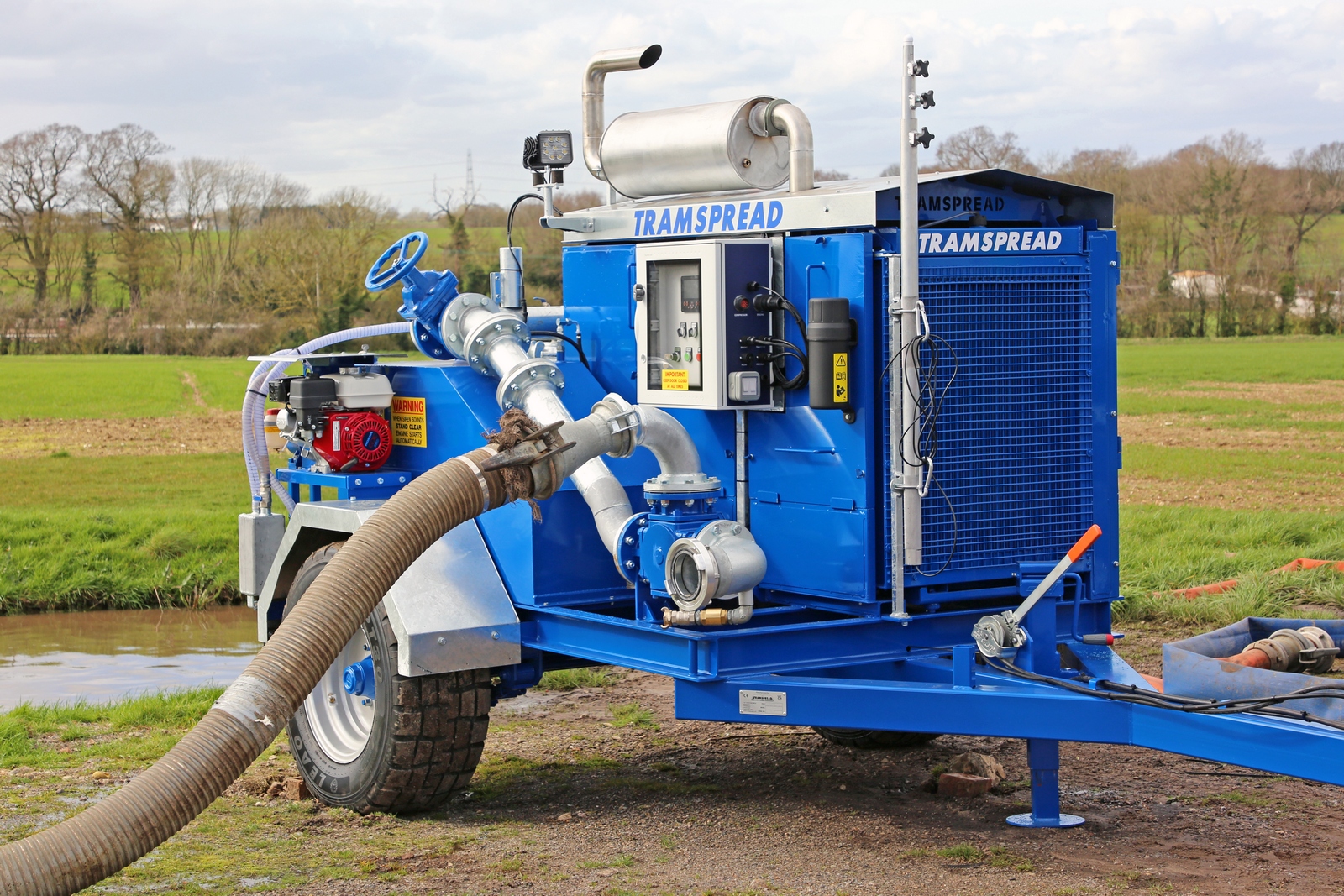

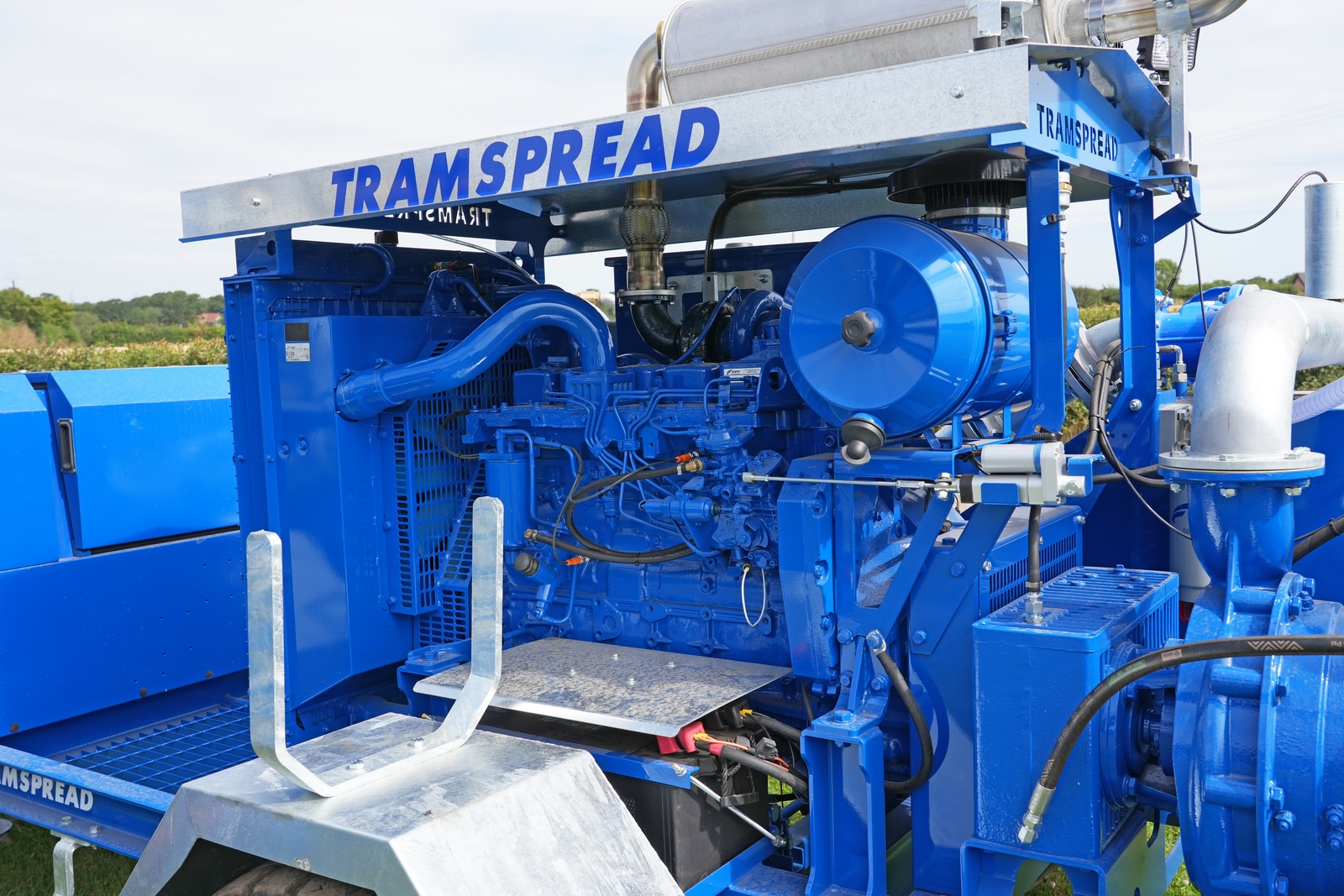

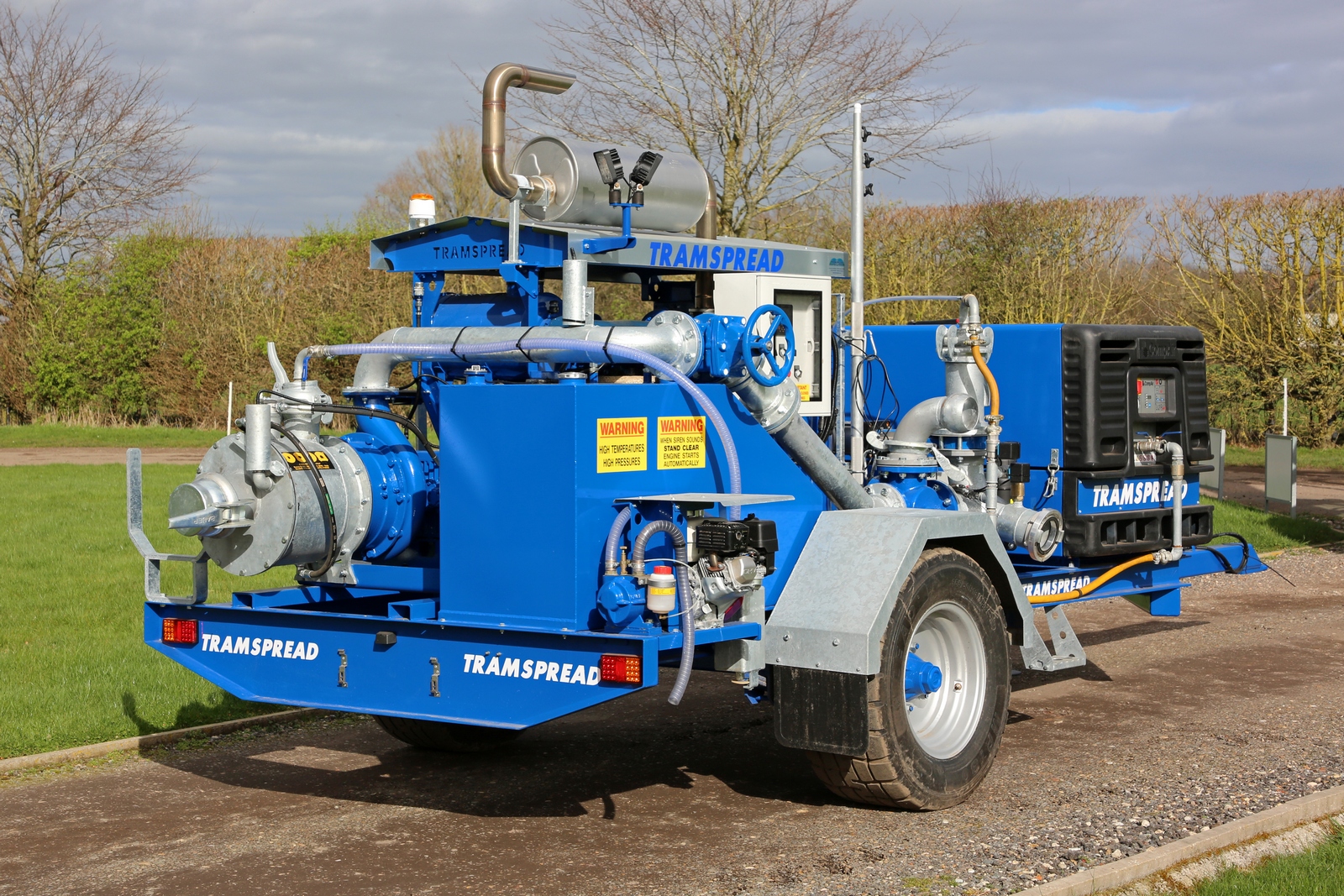

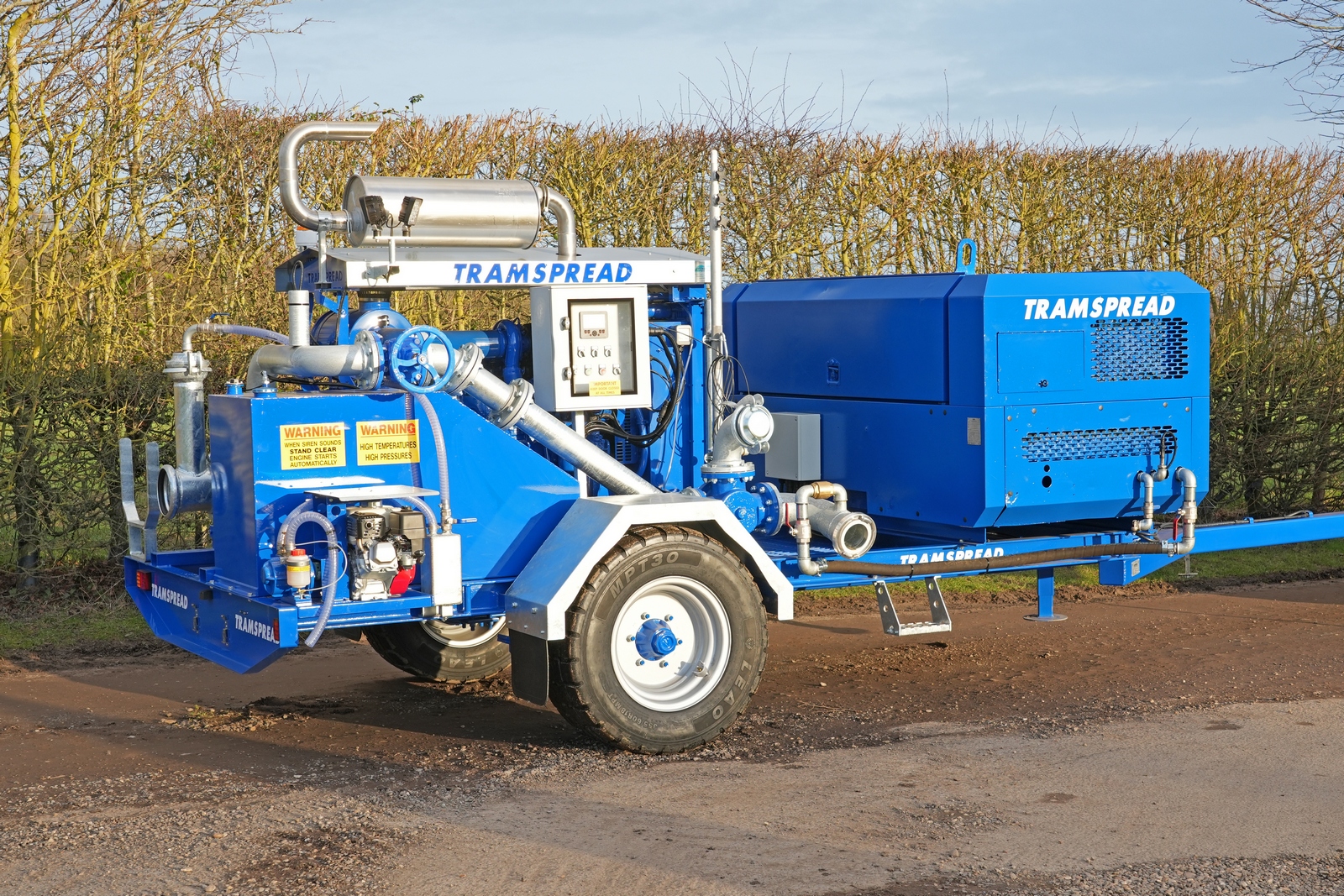

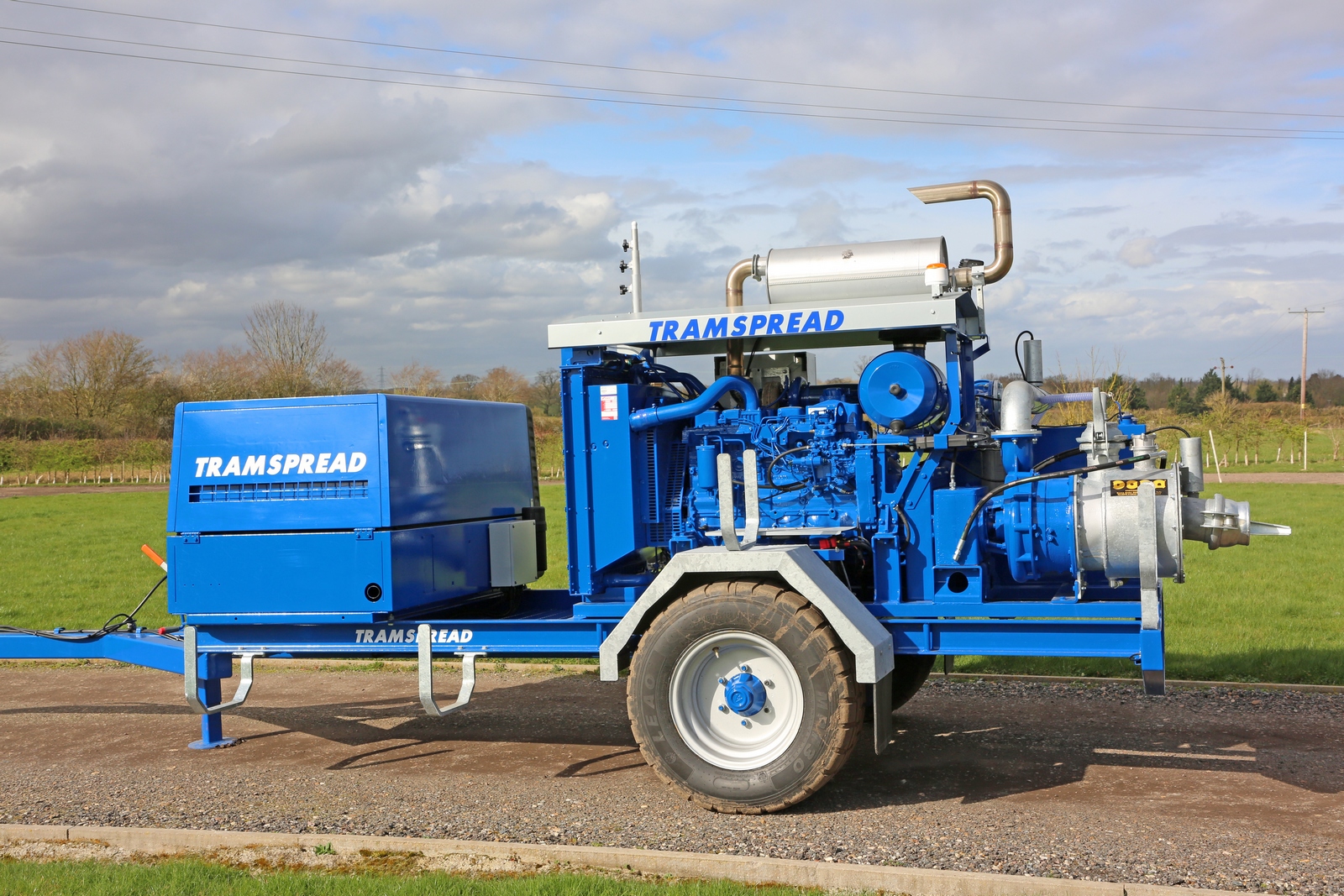

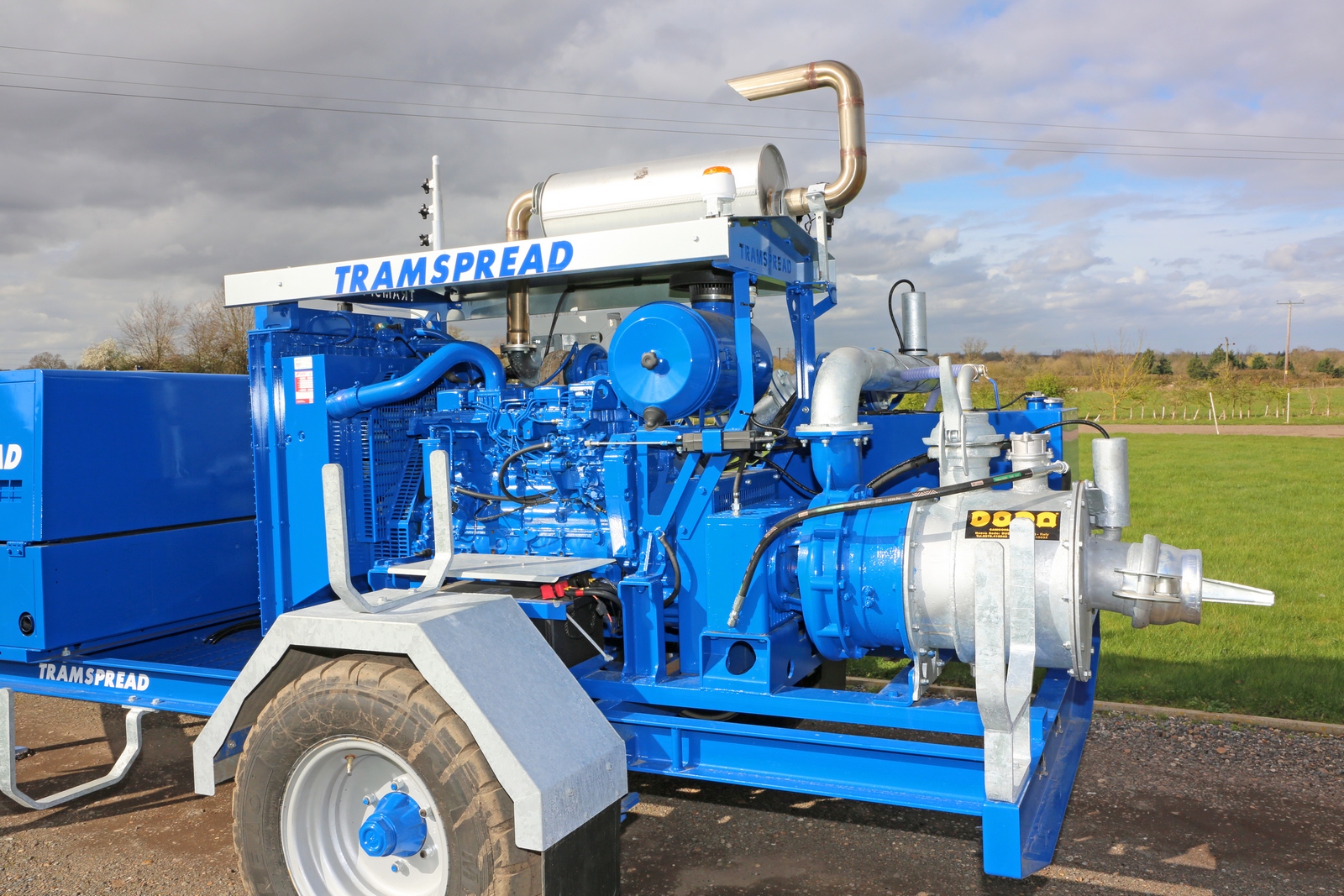

40k (25mph) EDPU with Compressor
This is the most popular model in the Tramspread EDPU range. It uses our 40k EDPU paired with a new or used compressor.
- 175hp six-cylinder F.P.T. engine with stainless steel exhaust.

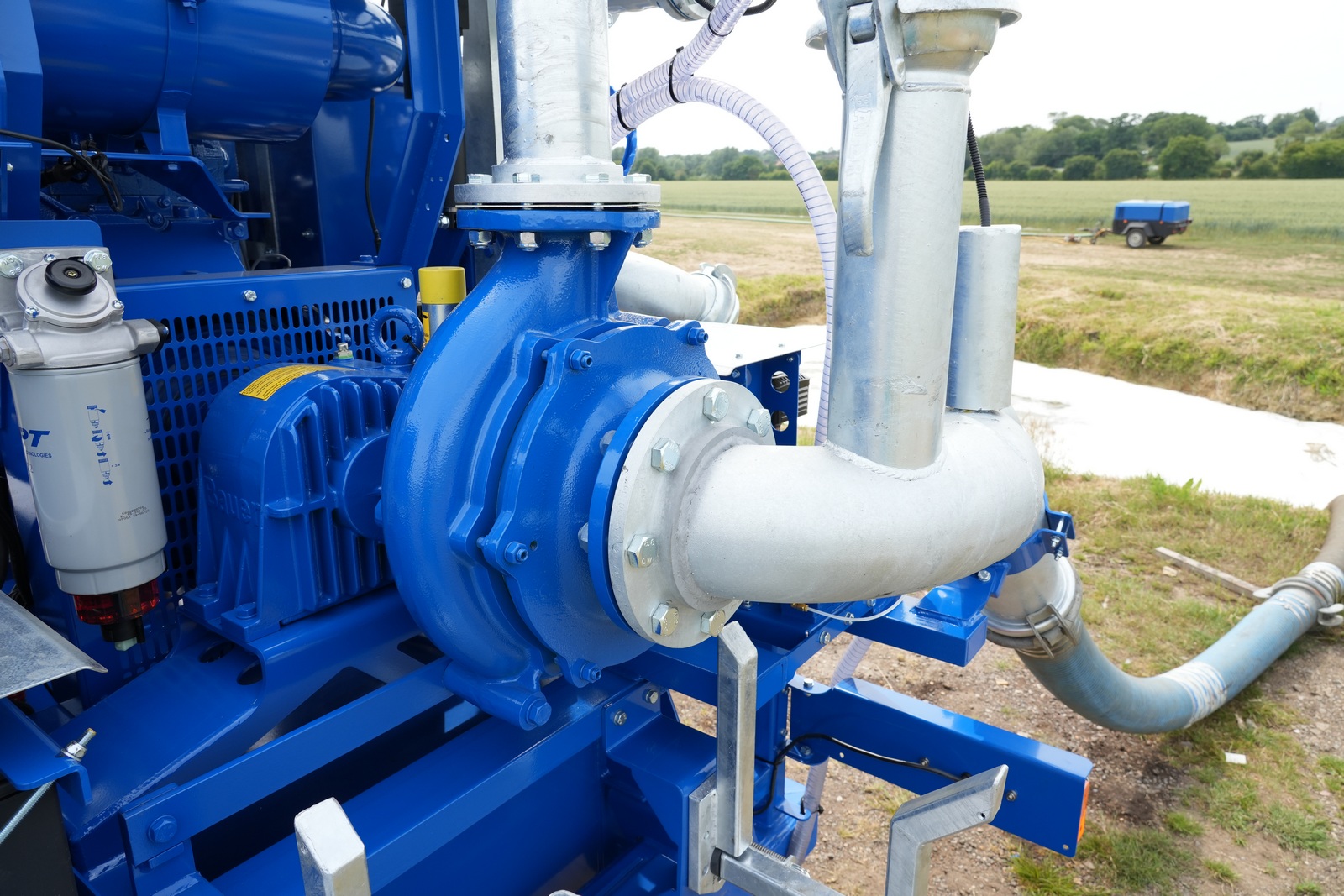

- Bauer Magnum SX2000 slurry pump.
- 6” inlet and 4” outlet terminating with the customer’s choice of coupling size/type.
- Honda driven Bauer priming unit.
- 140, 180 or 260CFM compressor.
- 500-litre fuel tank

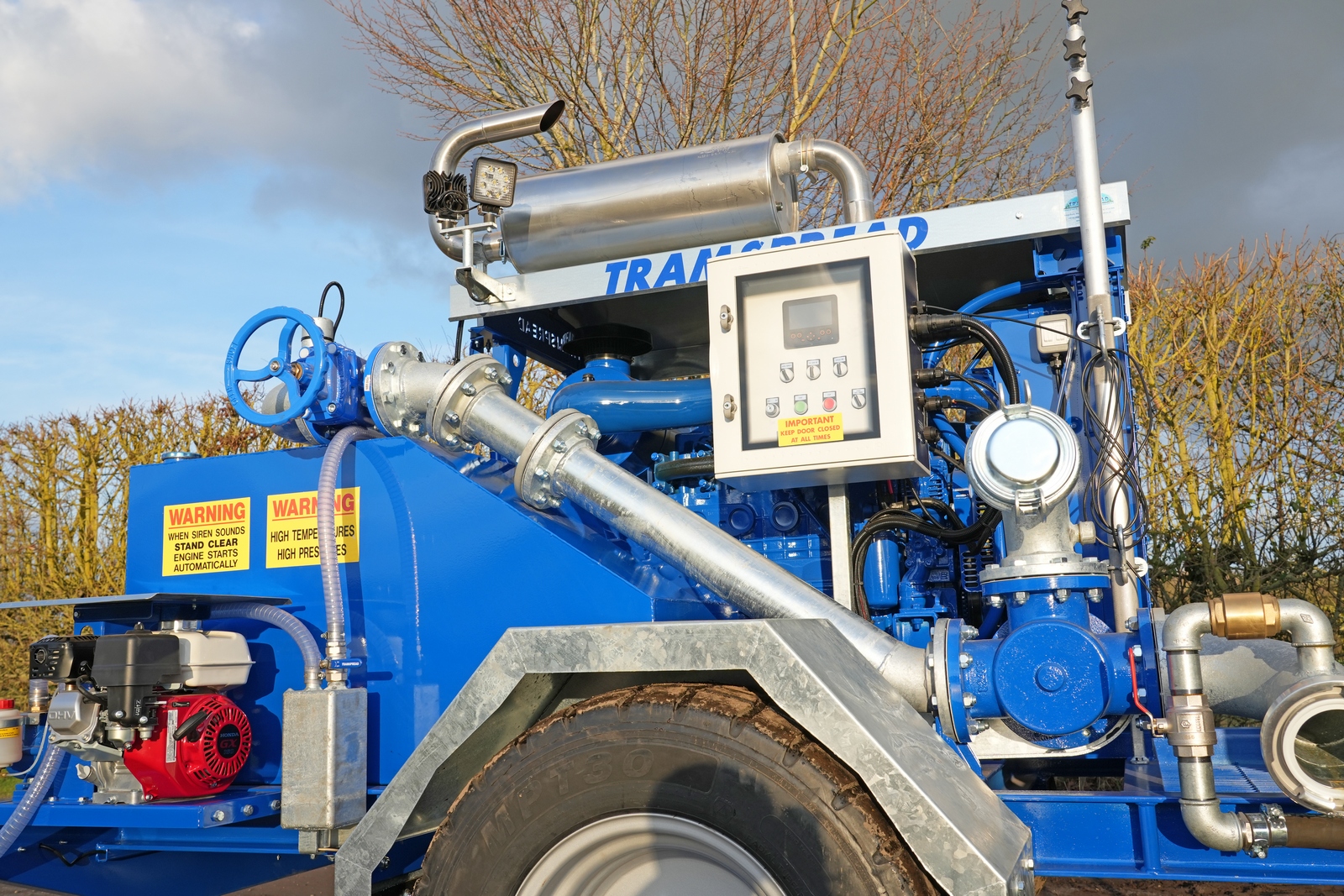

- Standard engine control panel (can be upgraded, see below).
- Heavy duty chassis with galvanised mudguards.
- Hydraulic brakes.
- Sprung axle with 355/60R18 tyres.
- Road and work lights.
Options:
- 238hp six-cylinder F.P.T. engine.
- Doda HD35 or Cri-Man pump.
- Suction hose transport kit.
- Tramspread GSM or SIL remote control and monitoring unit for one-person operation.

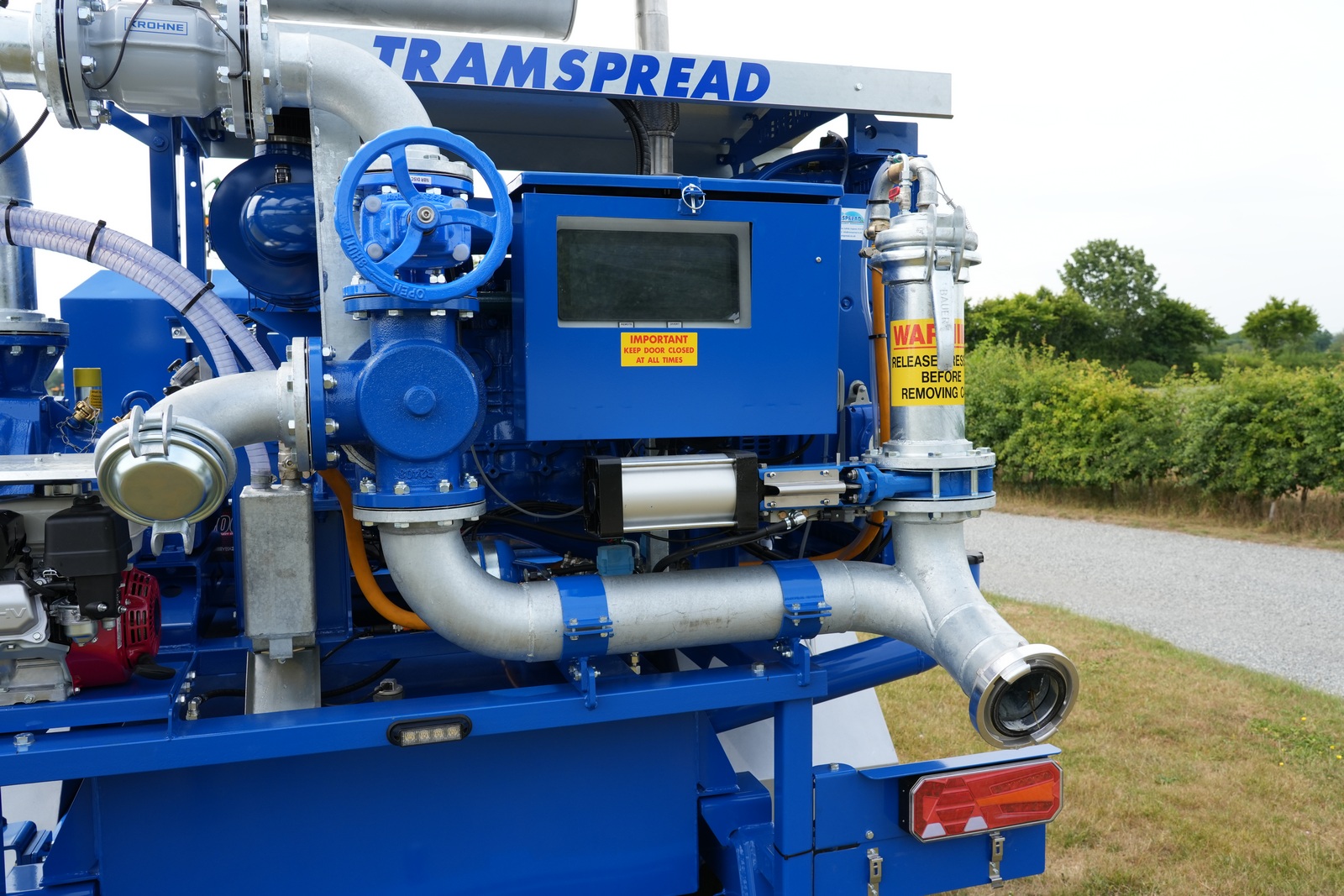

- Manual 4 or 5” pig (sponge ball) launcher.
- Remote controlled 4 or 5” pig (sponge ball) launcher.
- Other remote-control options: 360-degree video camera, flowmeter, fuel-level sensor, compressor remote control, pressure sensing and nurse tank level sensor.

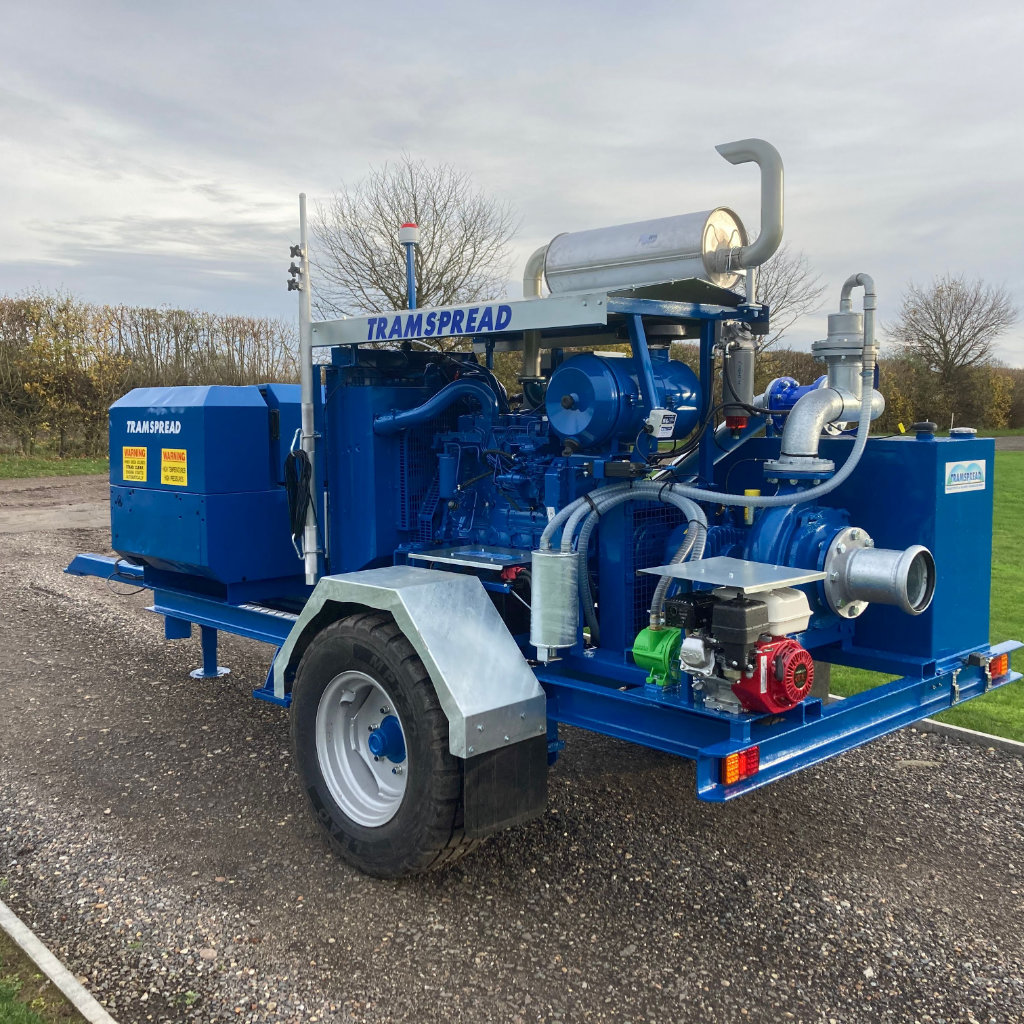

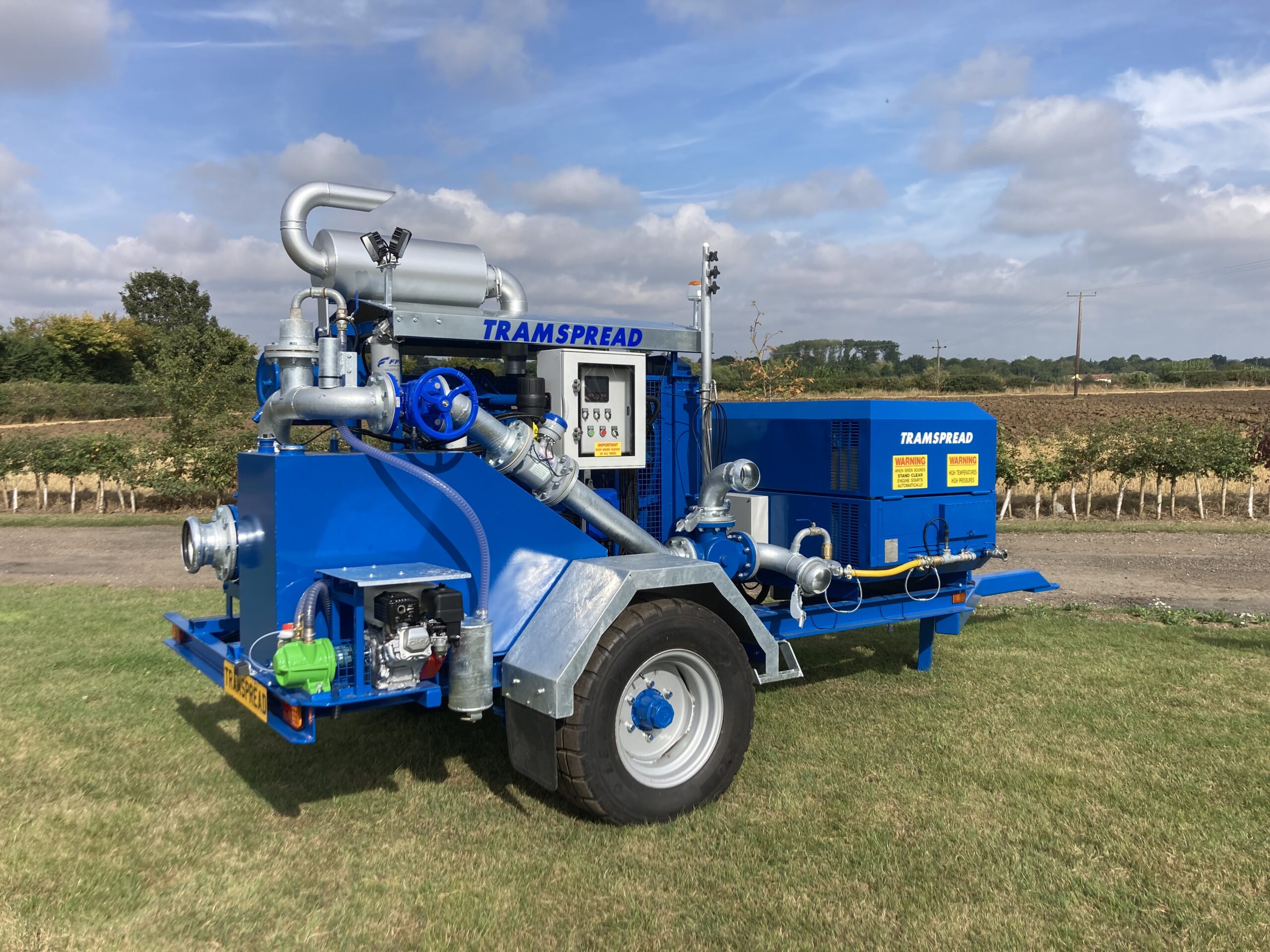

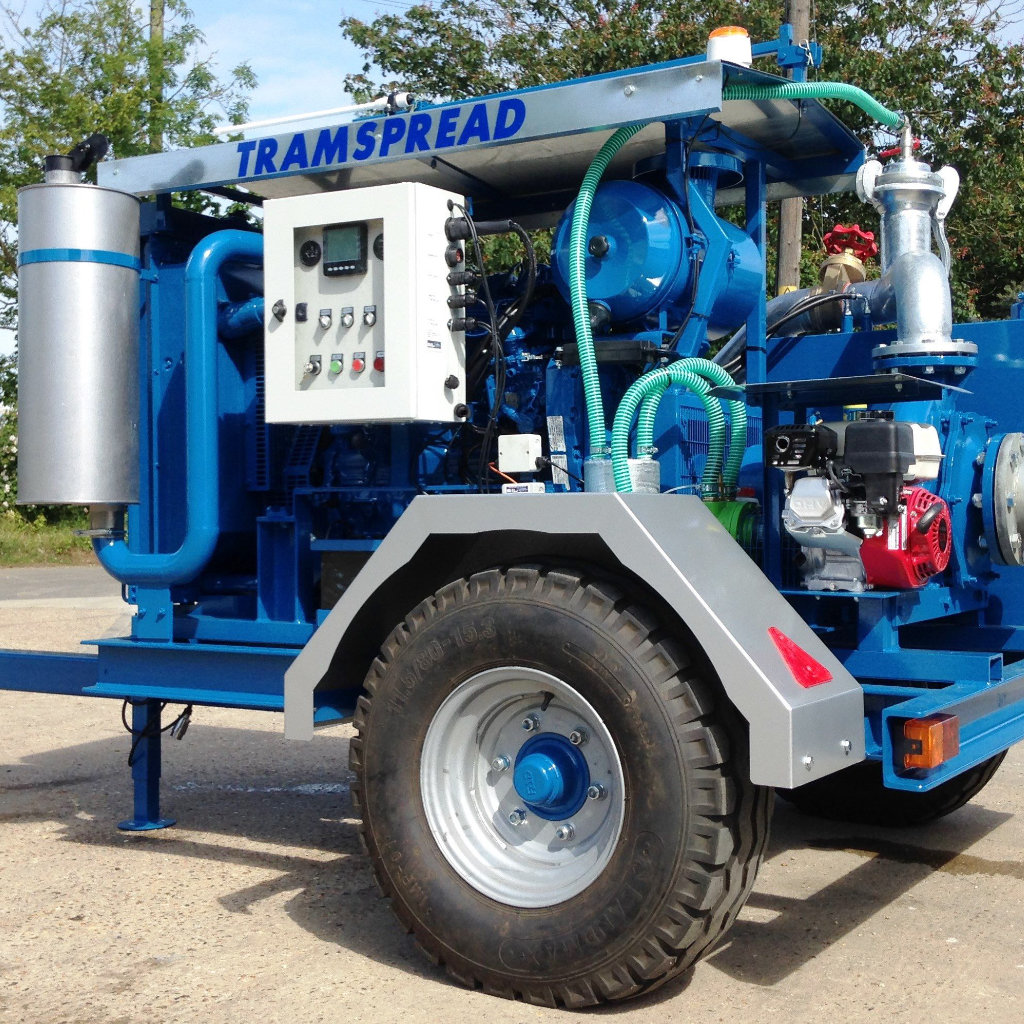

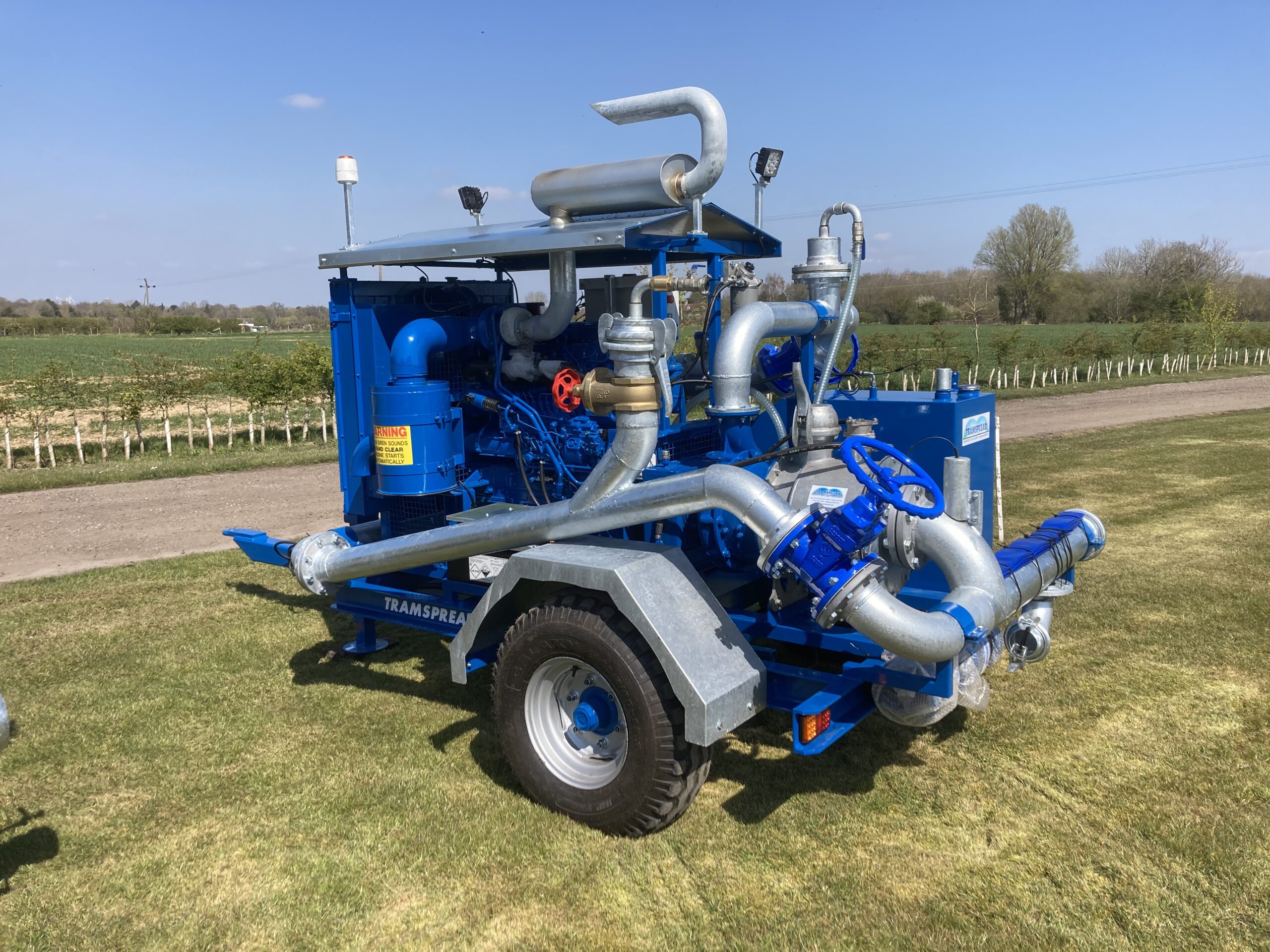

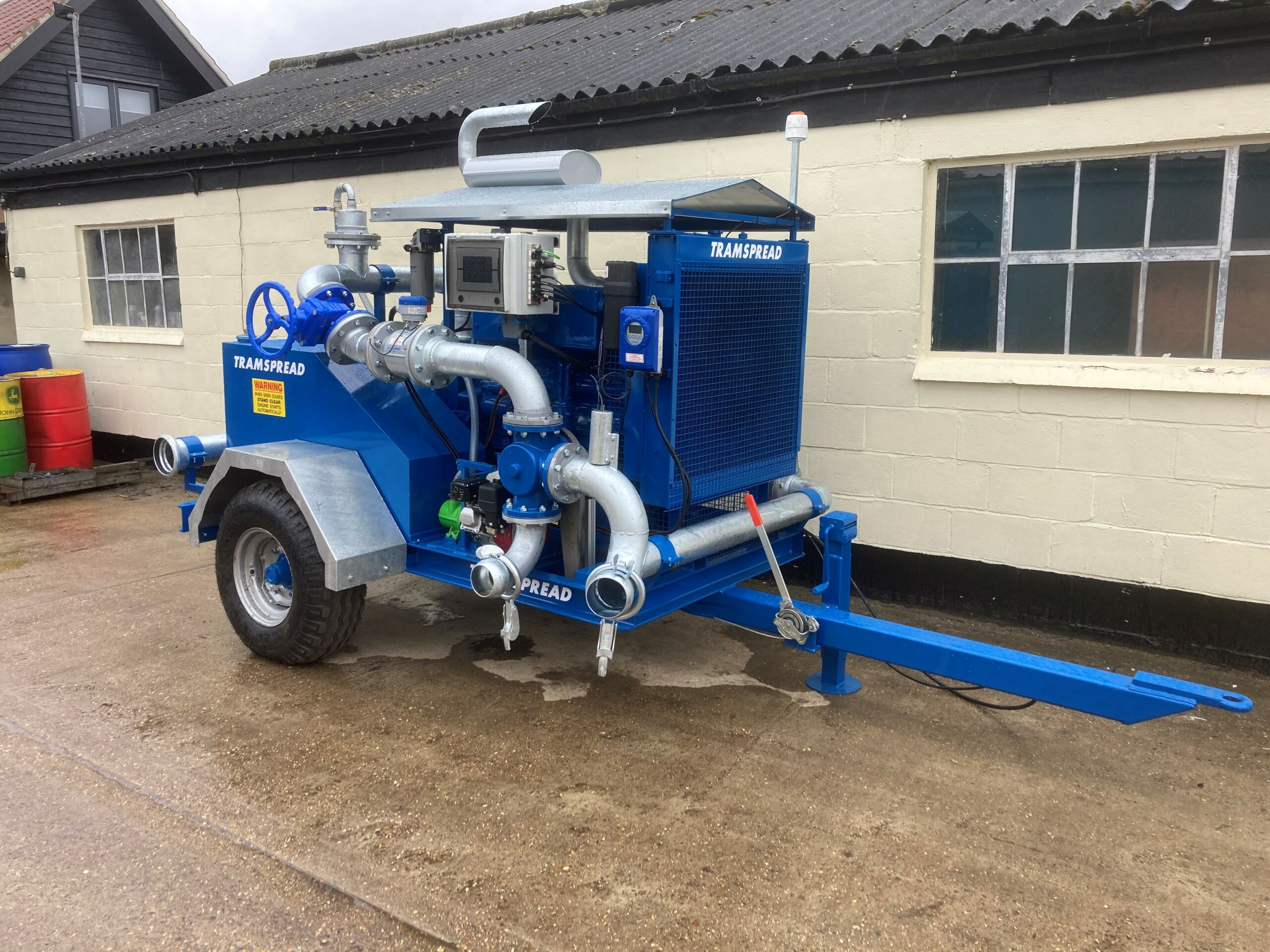

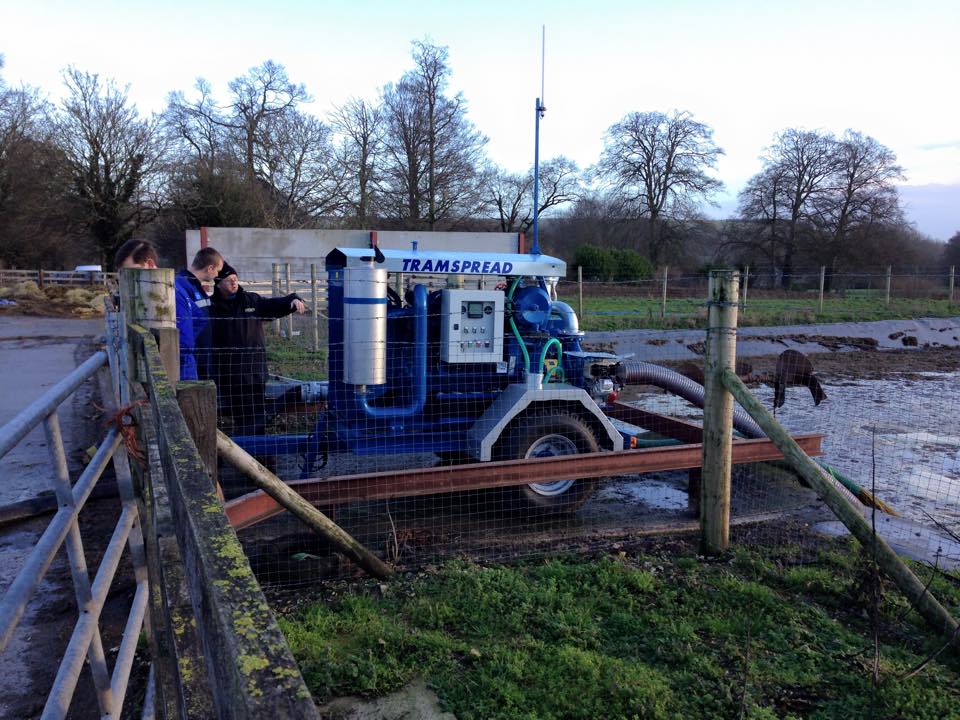

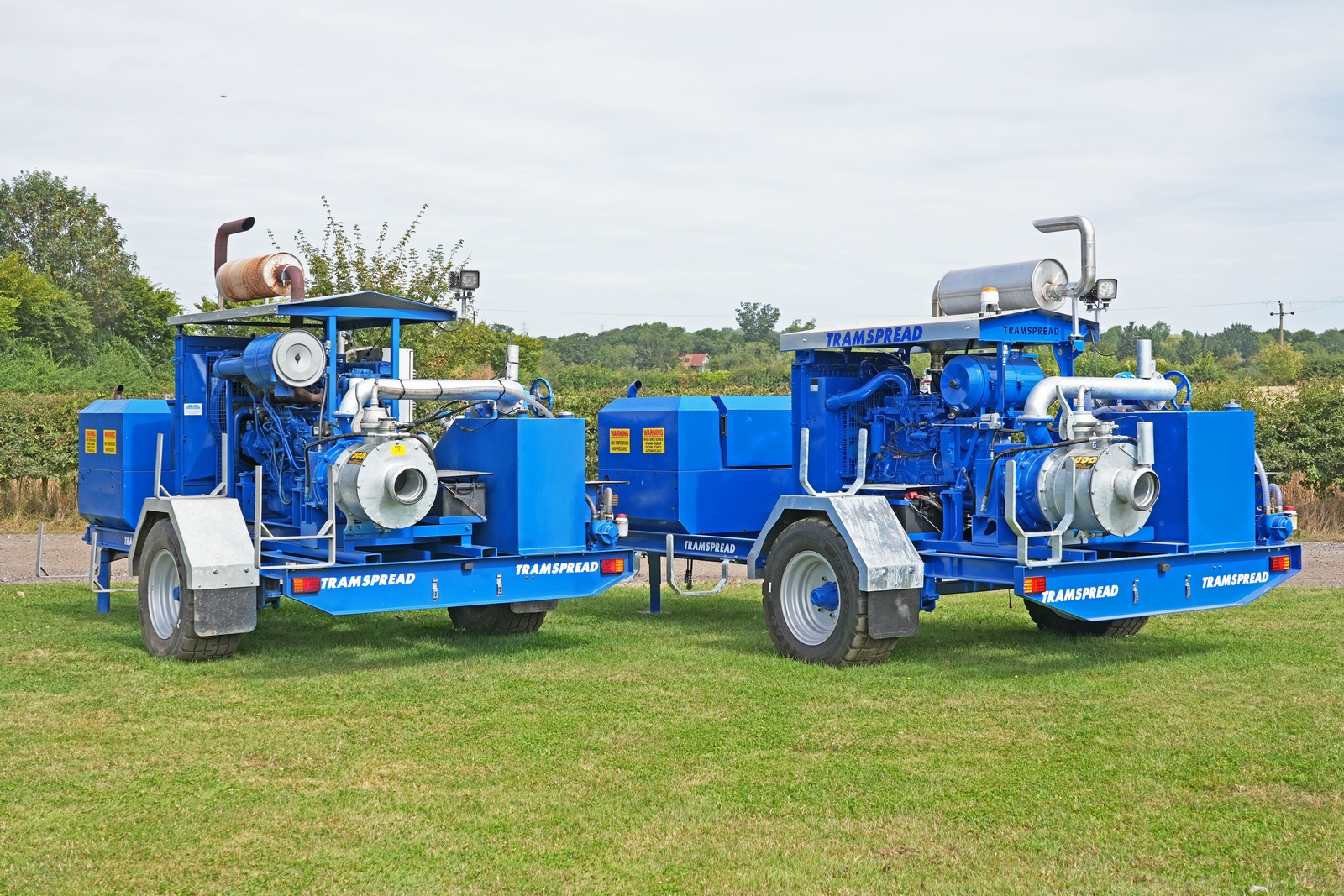

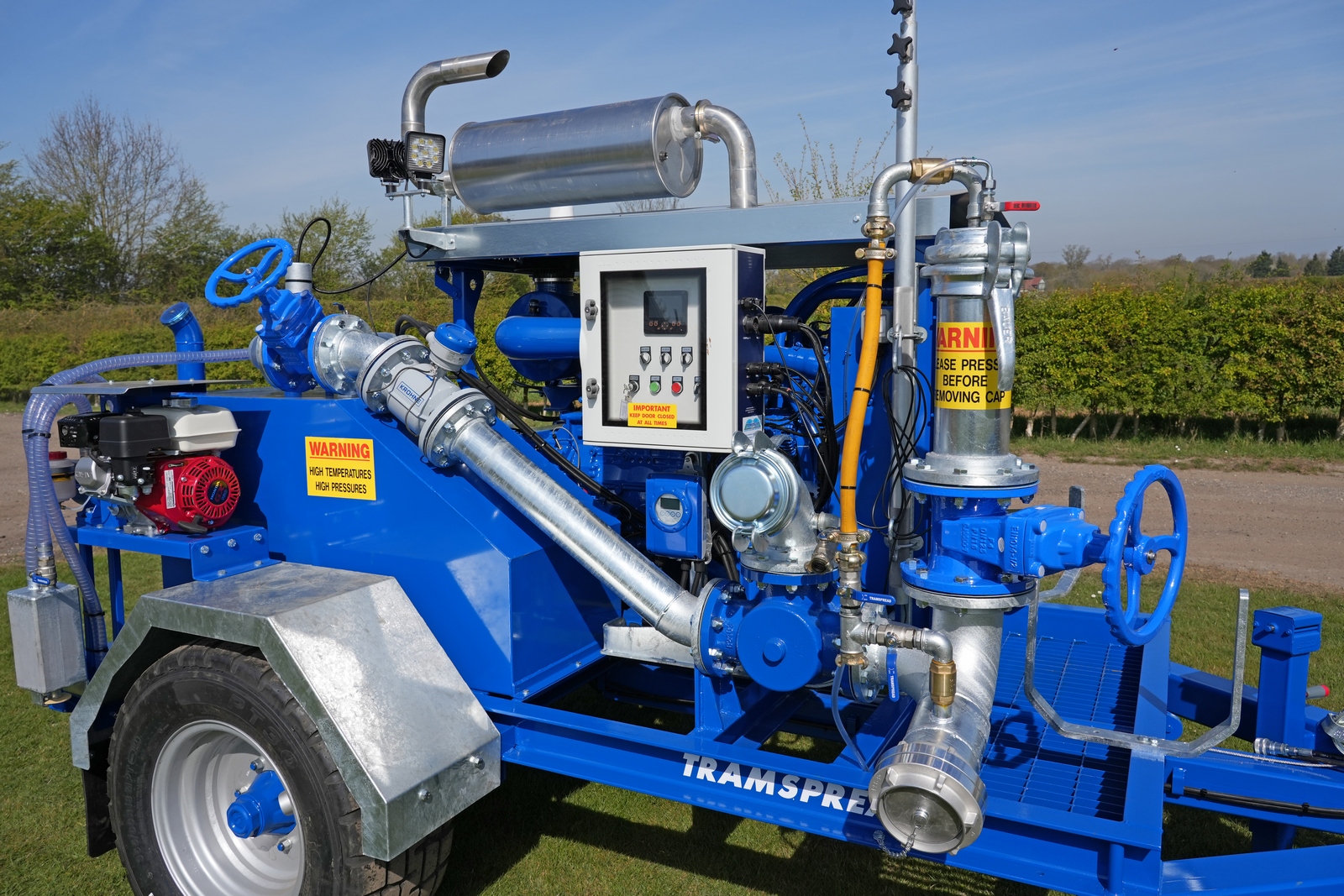

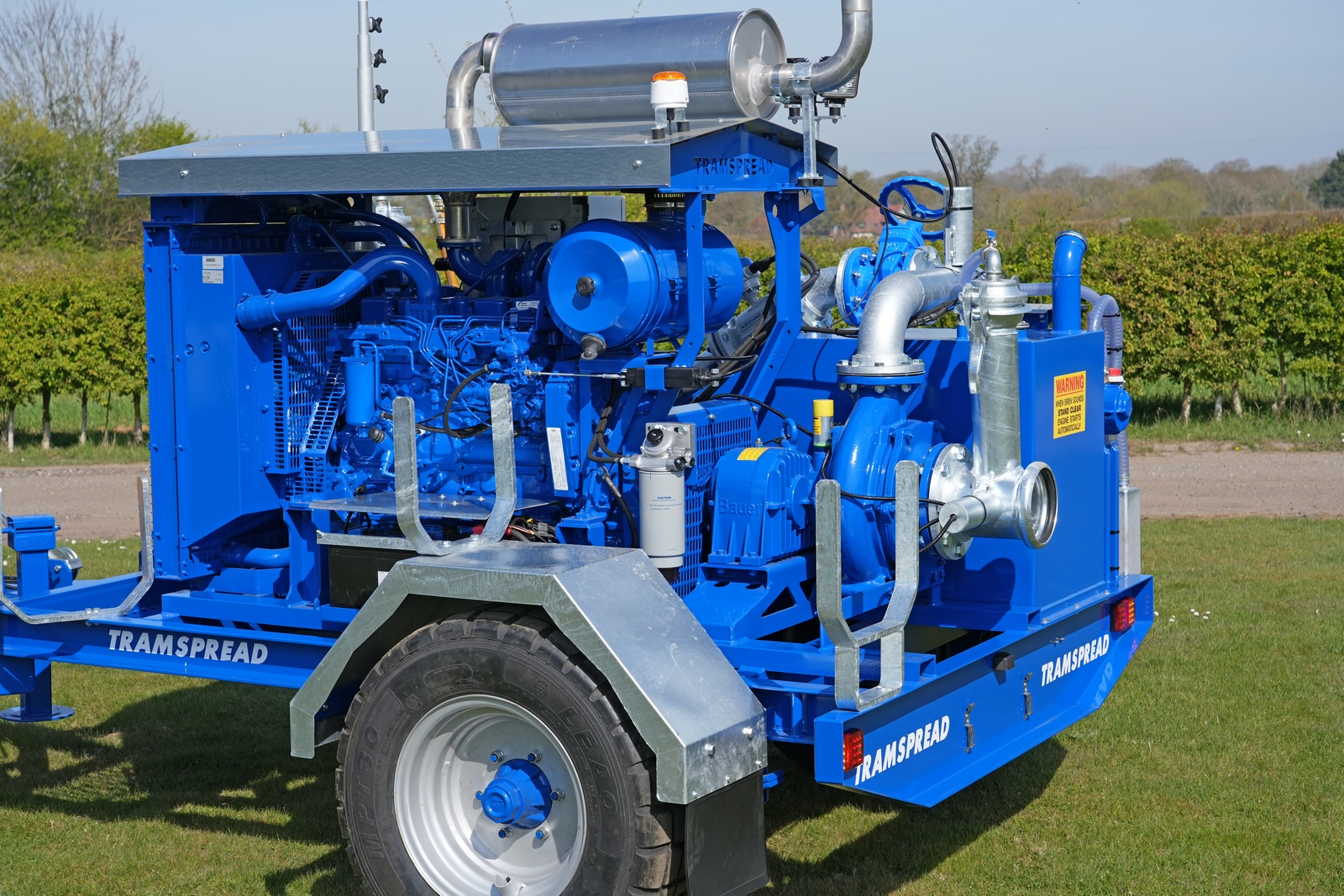

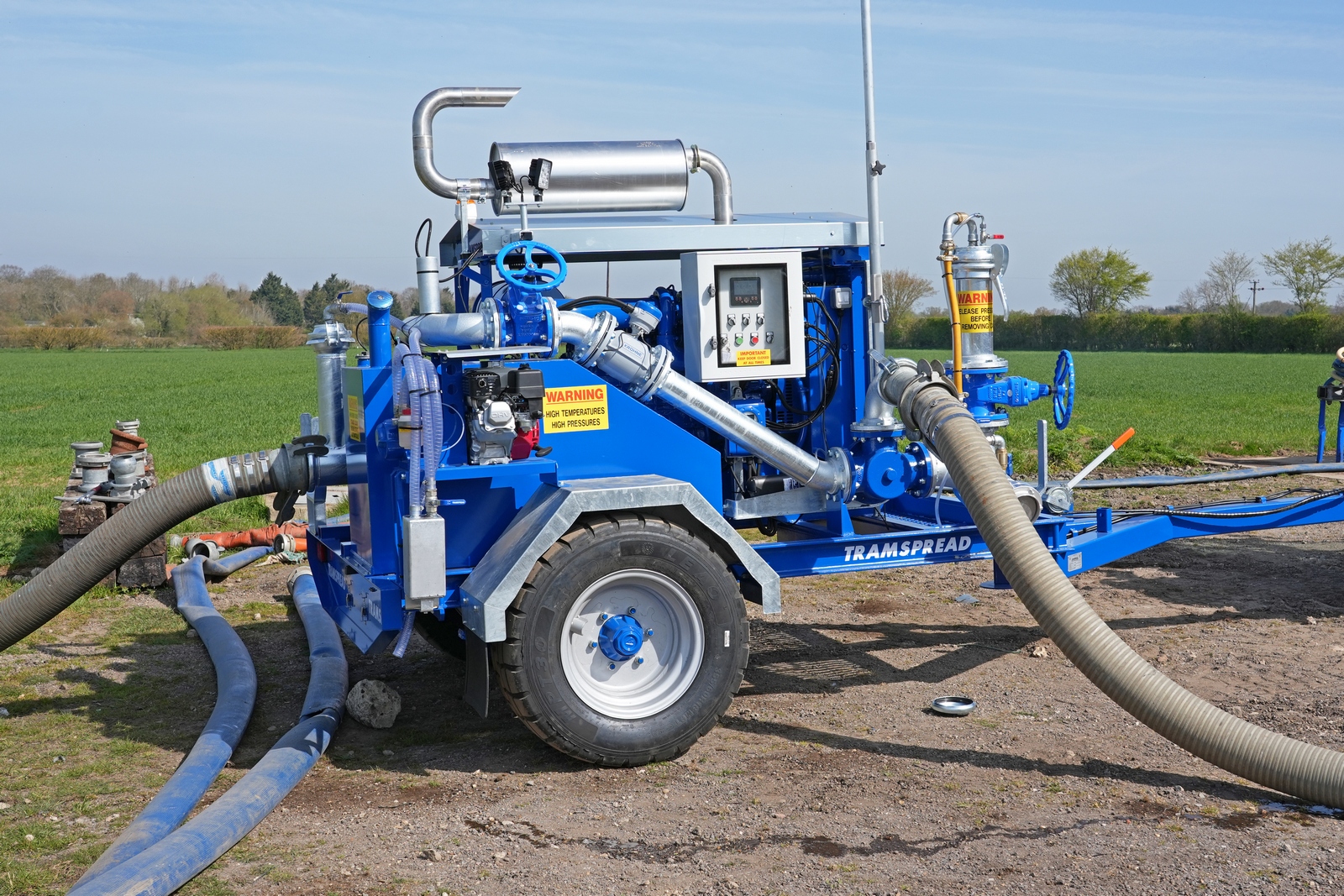

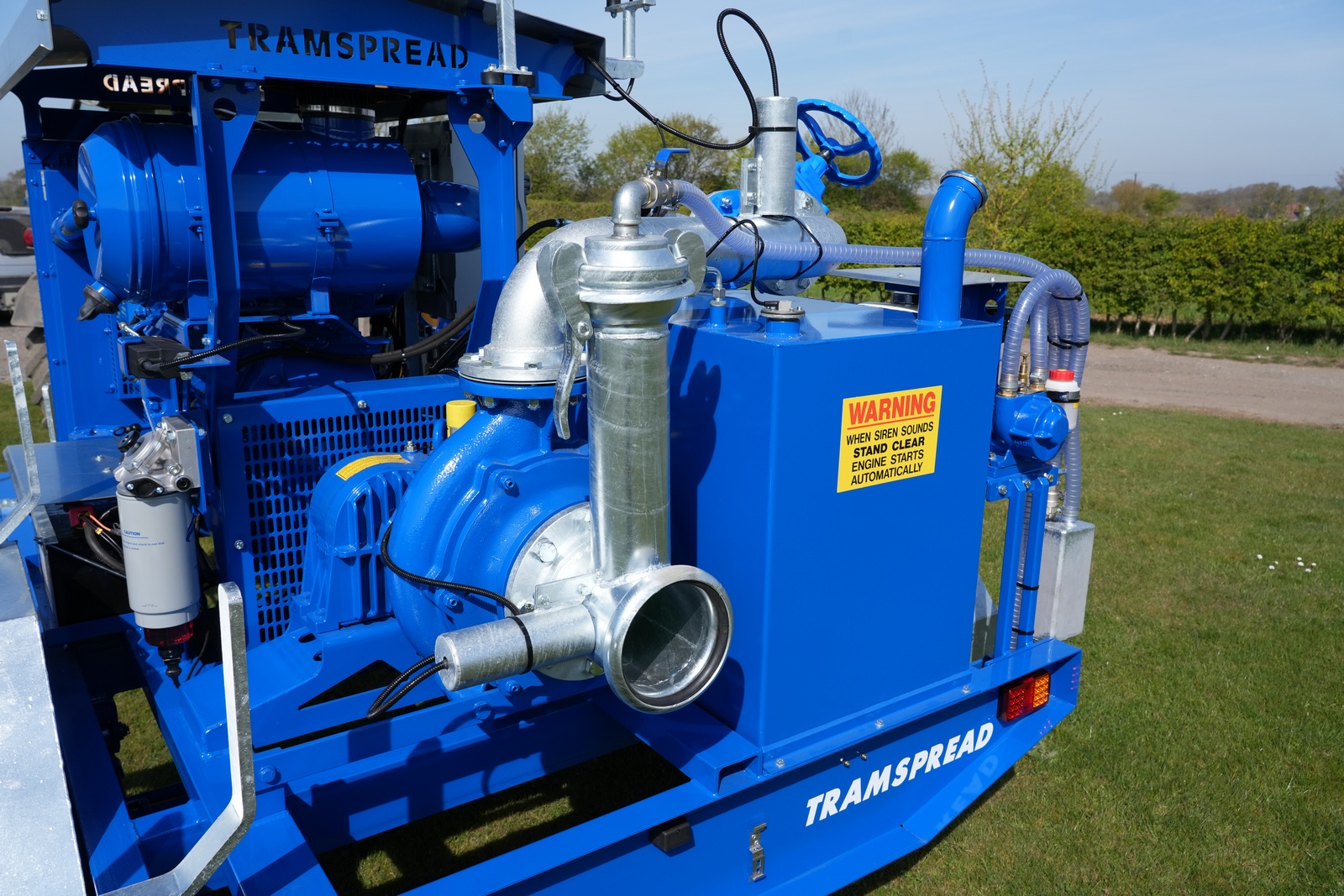

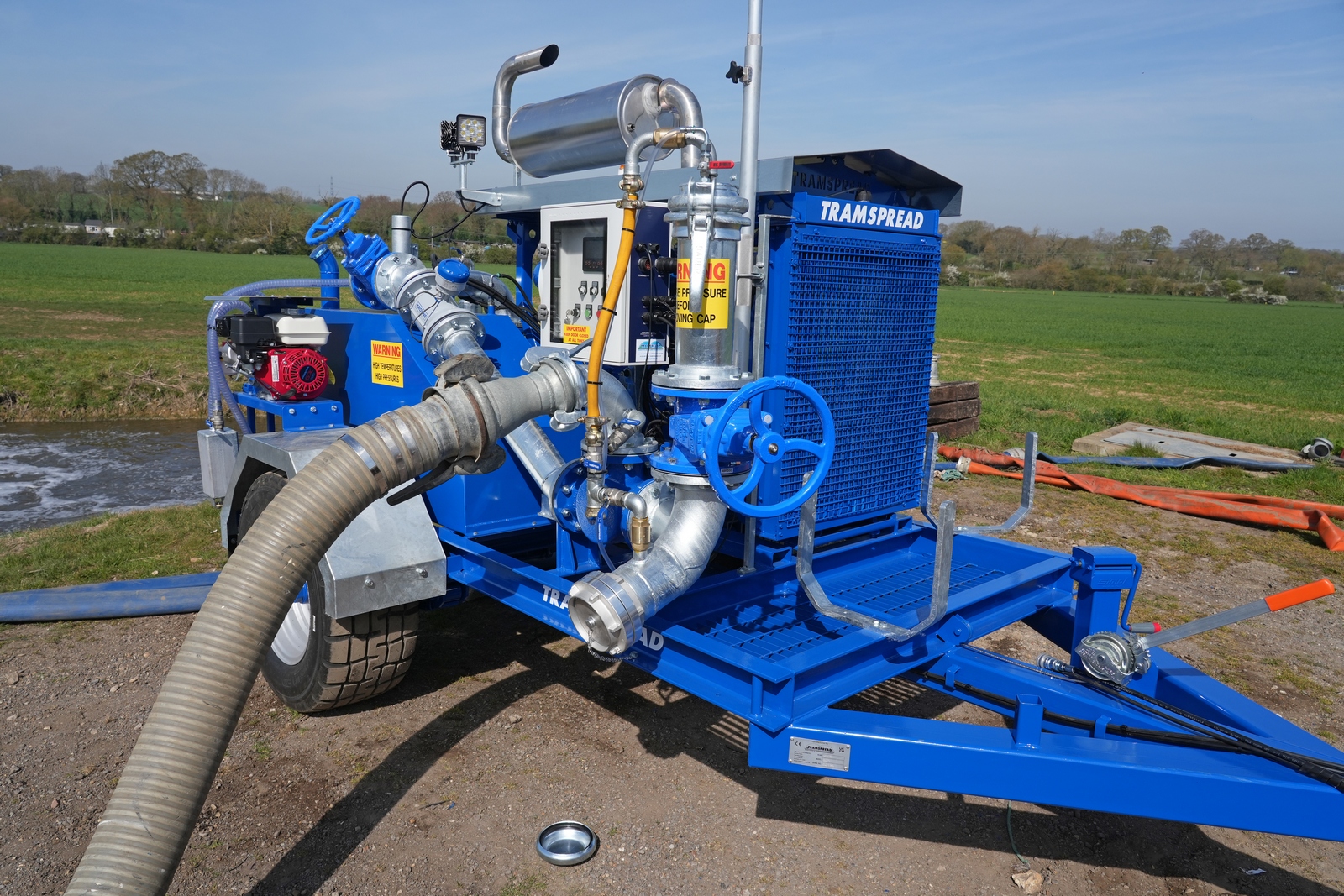

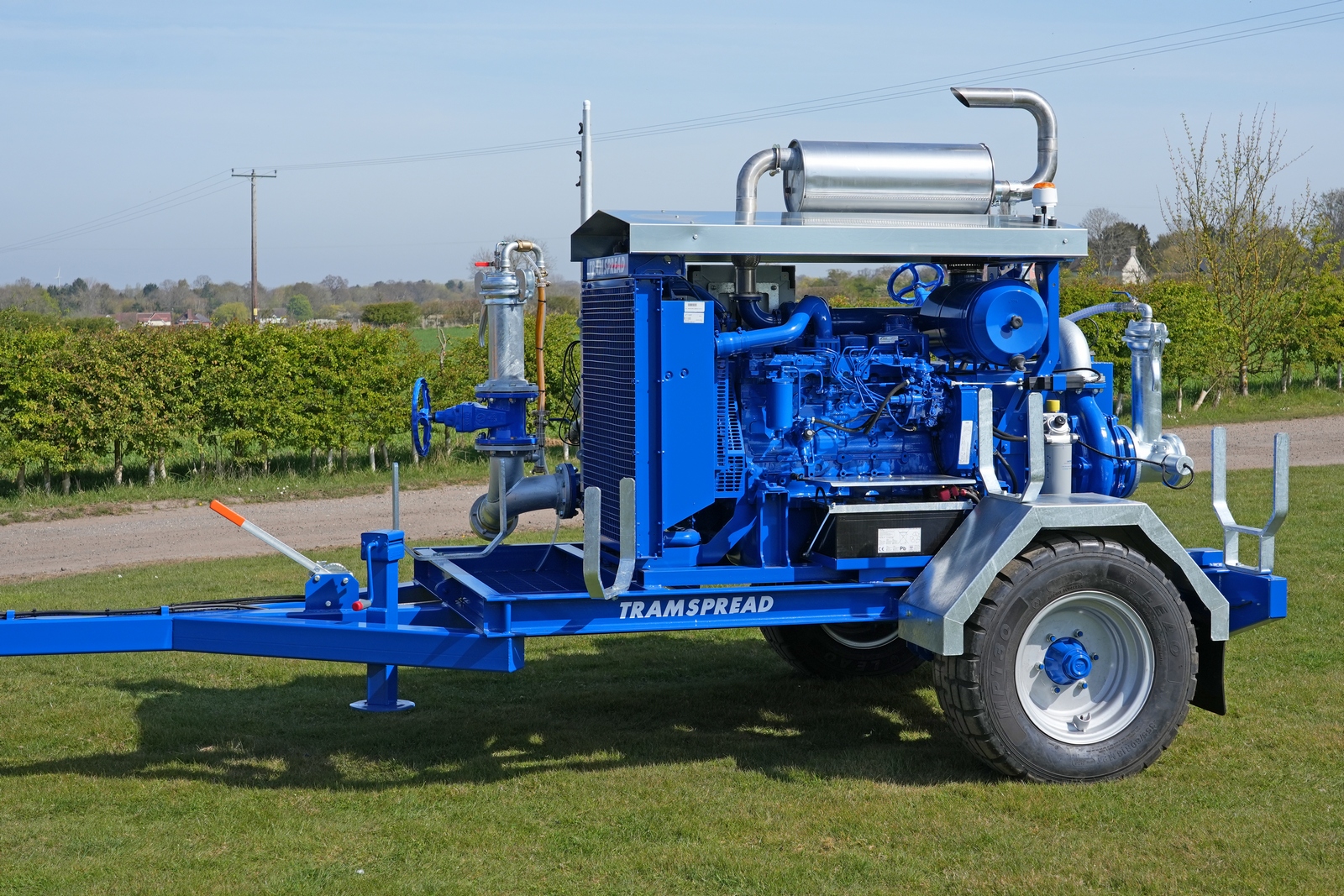

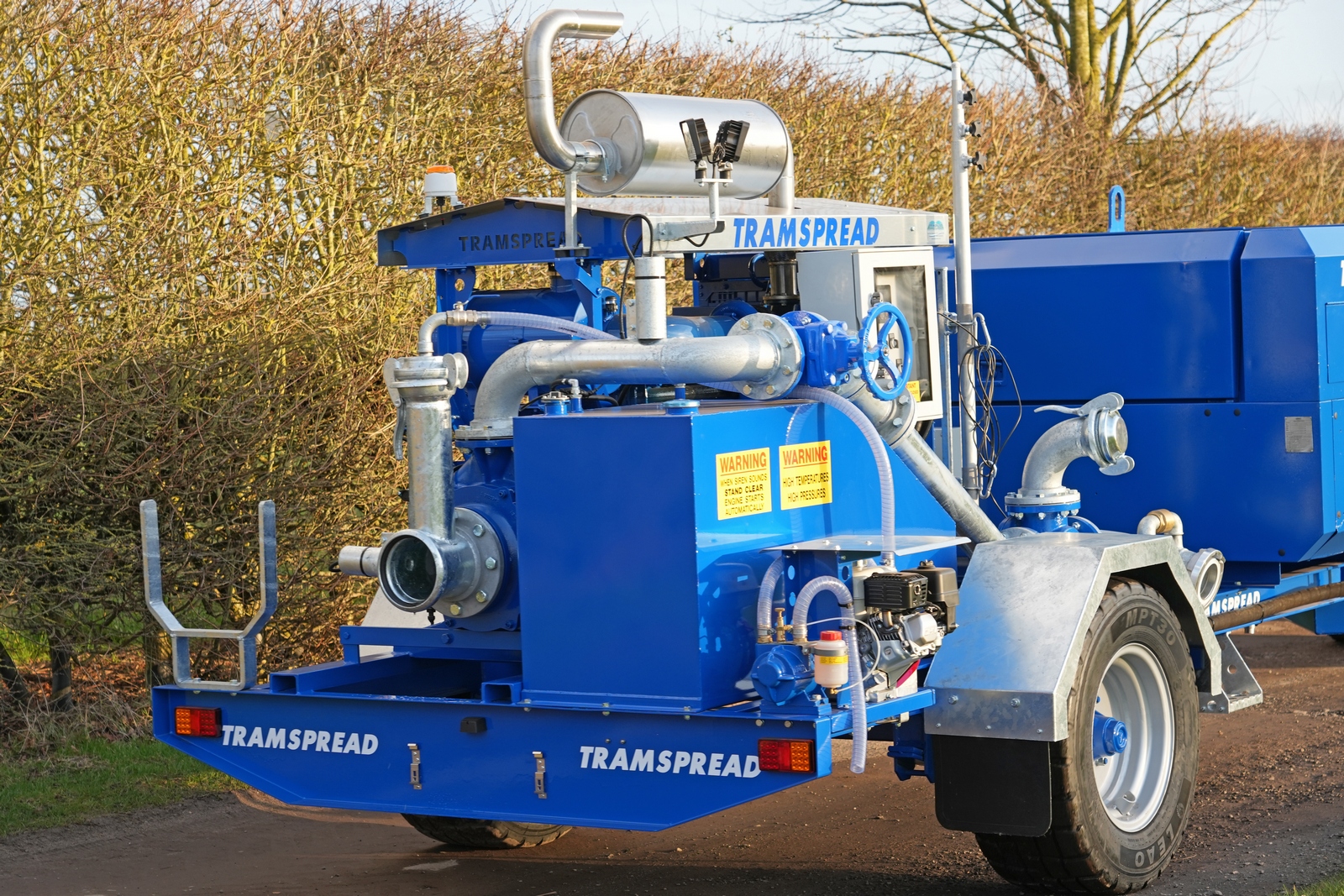

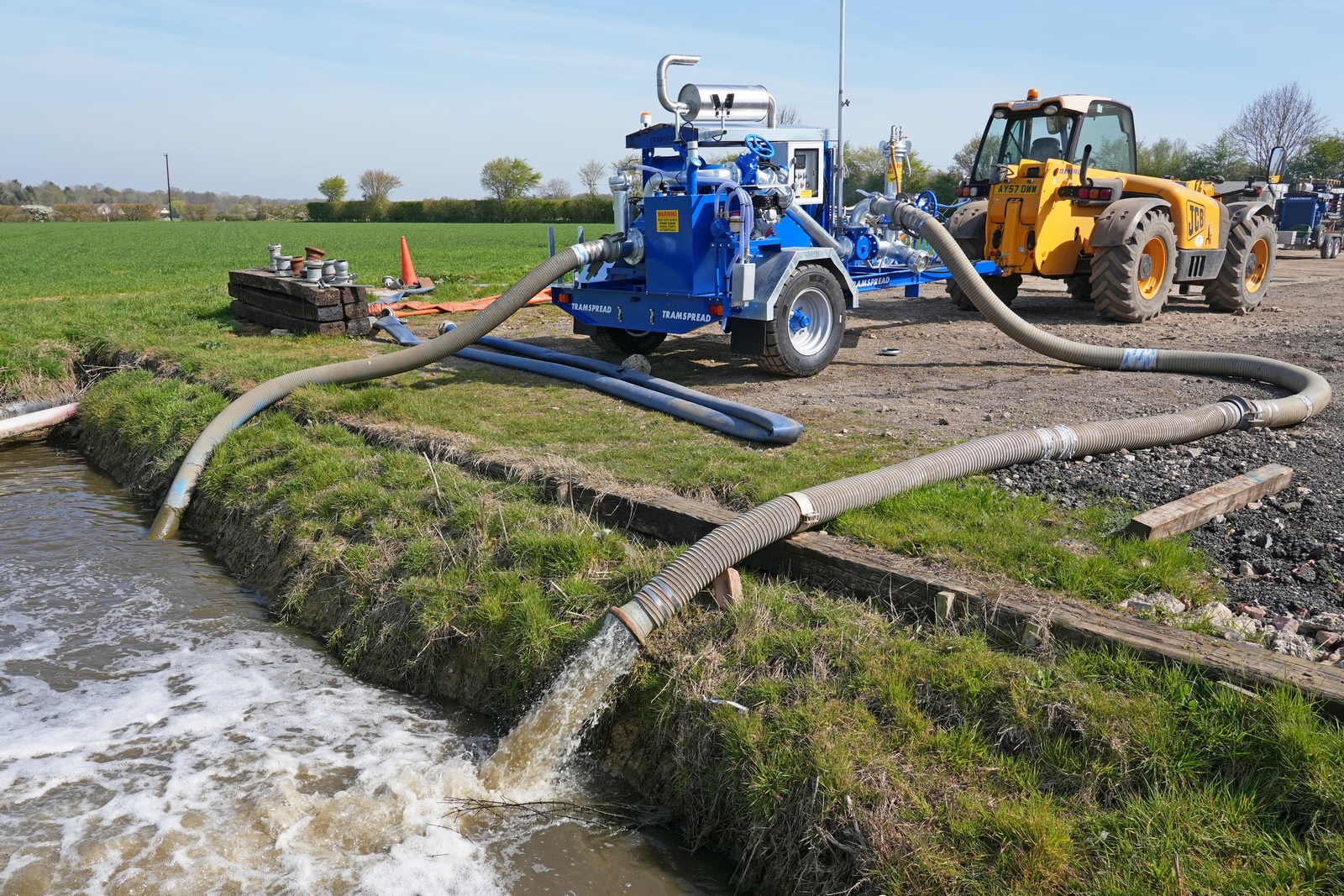

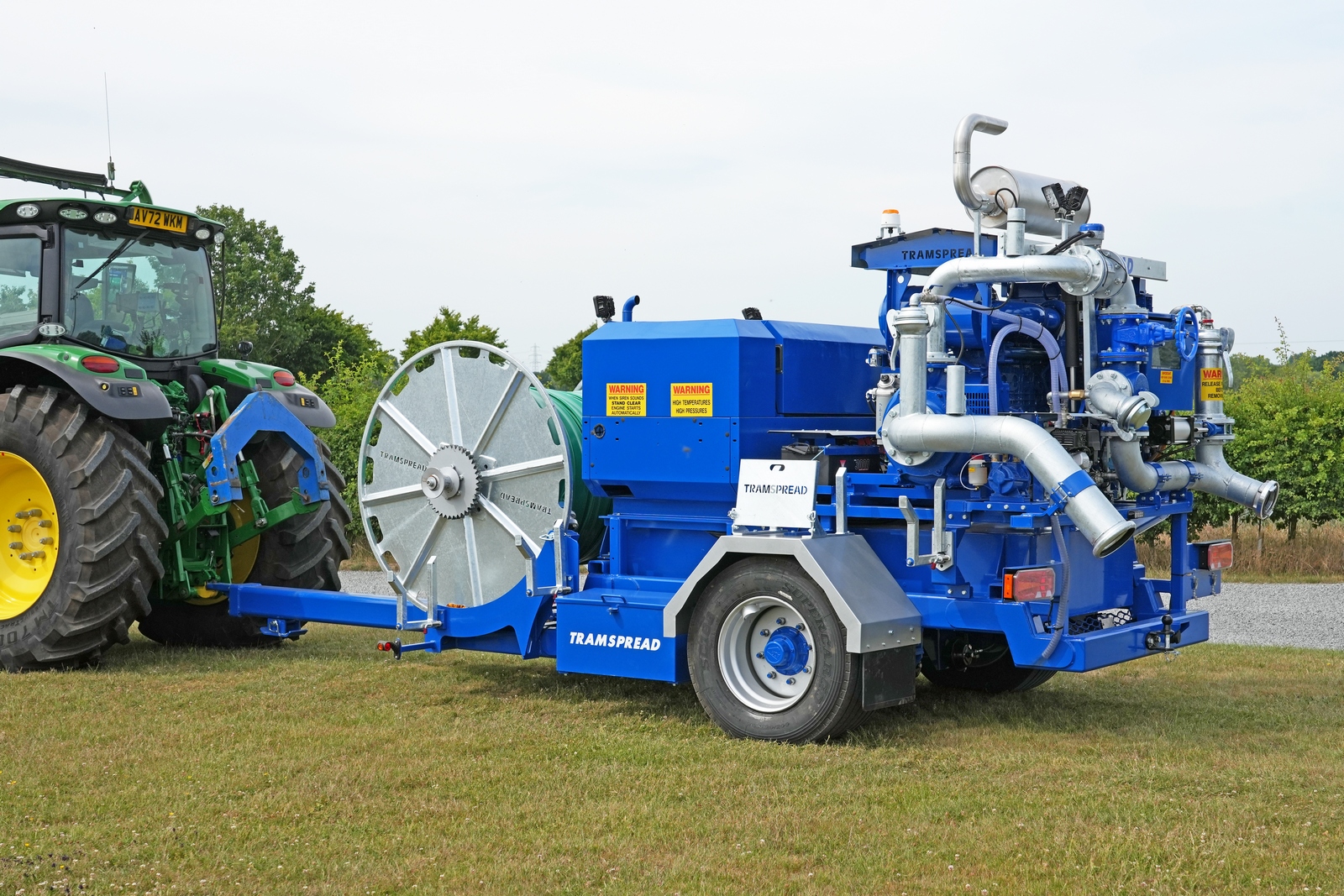

40k (25mph) EDPU
This outfit uses a power pack and pump unit with a 500-litre fuel tank mounted on a heavy-duty chassis.
- 175hp six-cylinder F.P.T. engine with stainless steel exhaust.
- Bauer Magnum SX2000 slurry pump.
- 6” inlet and 4” outlet terminating with the customer’s choice of coupling size/type.
- Honda driven Bauer priming unit.
- 500-litre fuel tank
- Standard engine control panel (can be upgraded, see below).
- Heavy duty chassis with galvanised mudguards.
- Hydraulic brakes

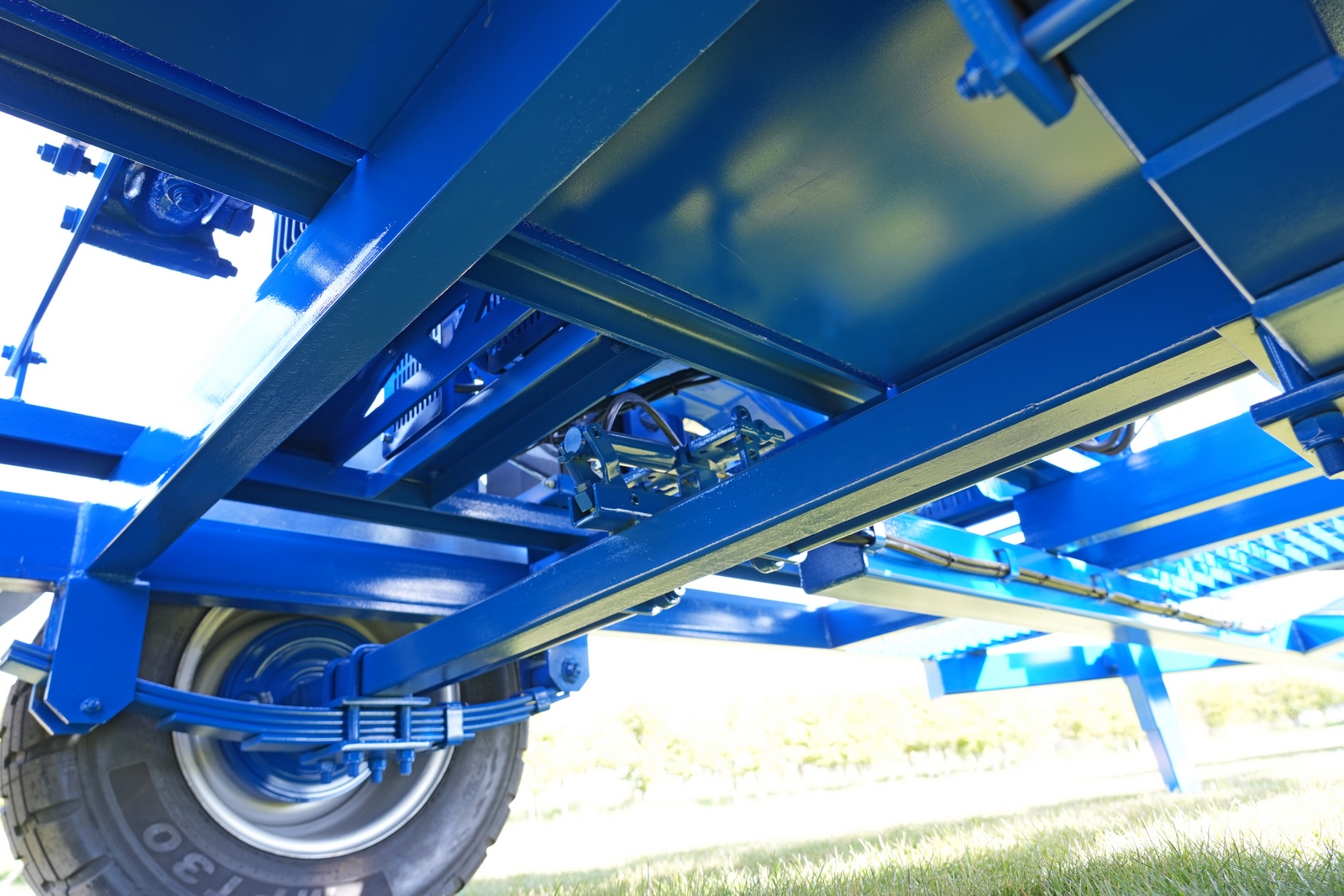

- Sprung axle with 355/60R18 tyres.
- Road and work lights.
Options:
- 238hp six-cylinder F.P.T. engine.
- Doda HD35 or Cri-Man pump.
- Suction hose transport kit.
- Tramspread GSM or SIL remote control and monitoring unit for one-person operation.
- Manual 4 or 5” pig (sponge ball) launcher.
- Remote controlled 4 or 5” pig (sponge ball) launcher.
- Other remote-control options: 360-degree video camera, flowmeter, fuel-level sensor, compressor remote control, pressure sensing and nurse tank level sensor.

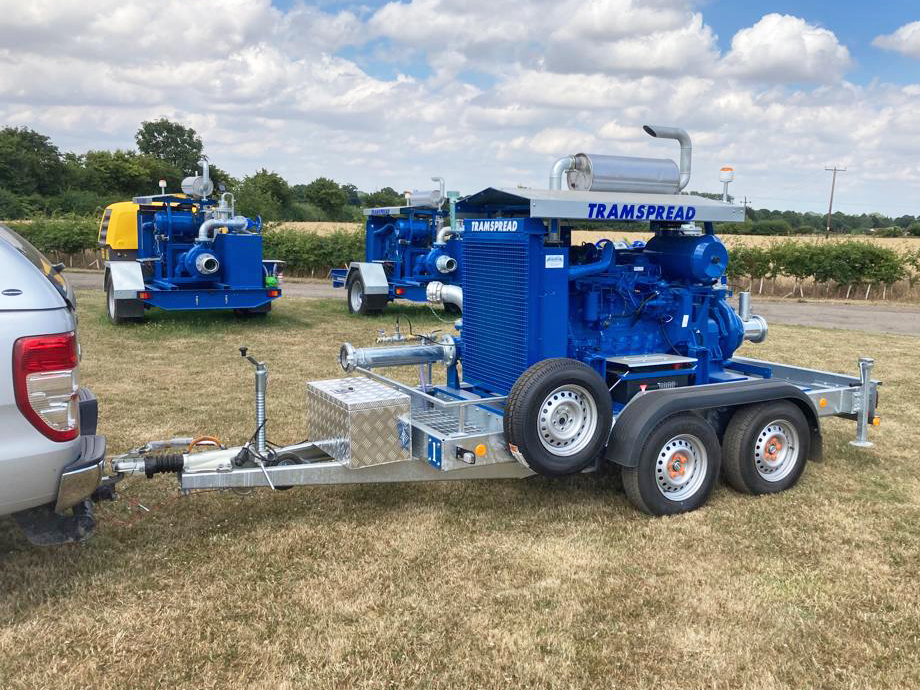

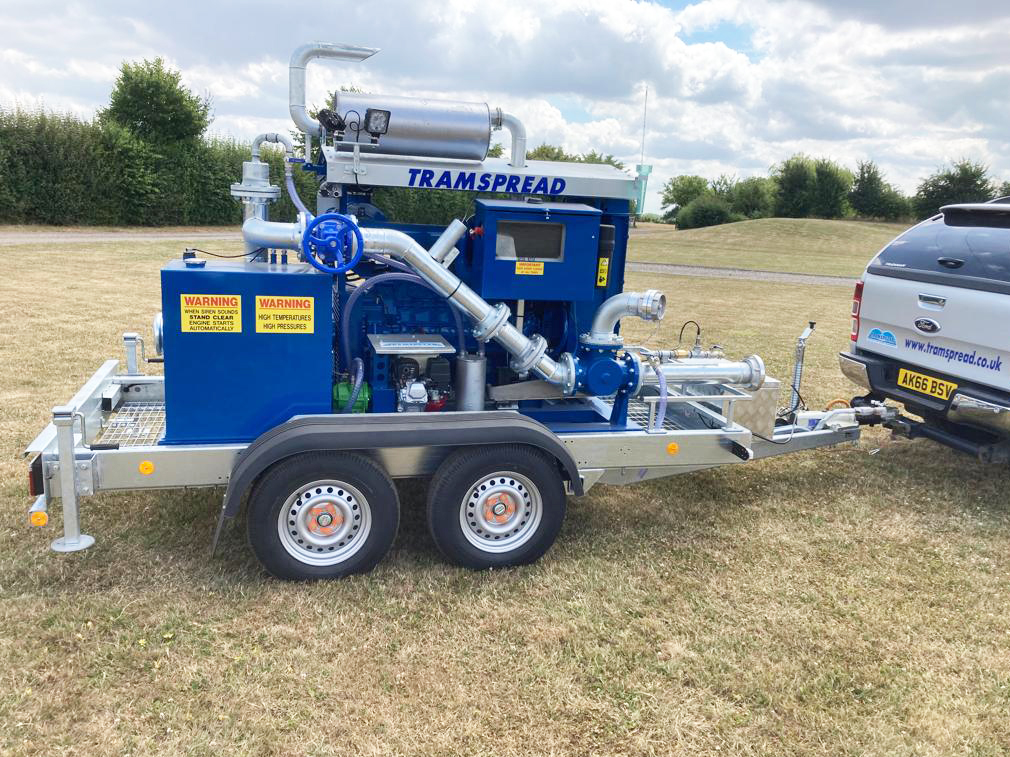

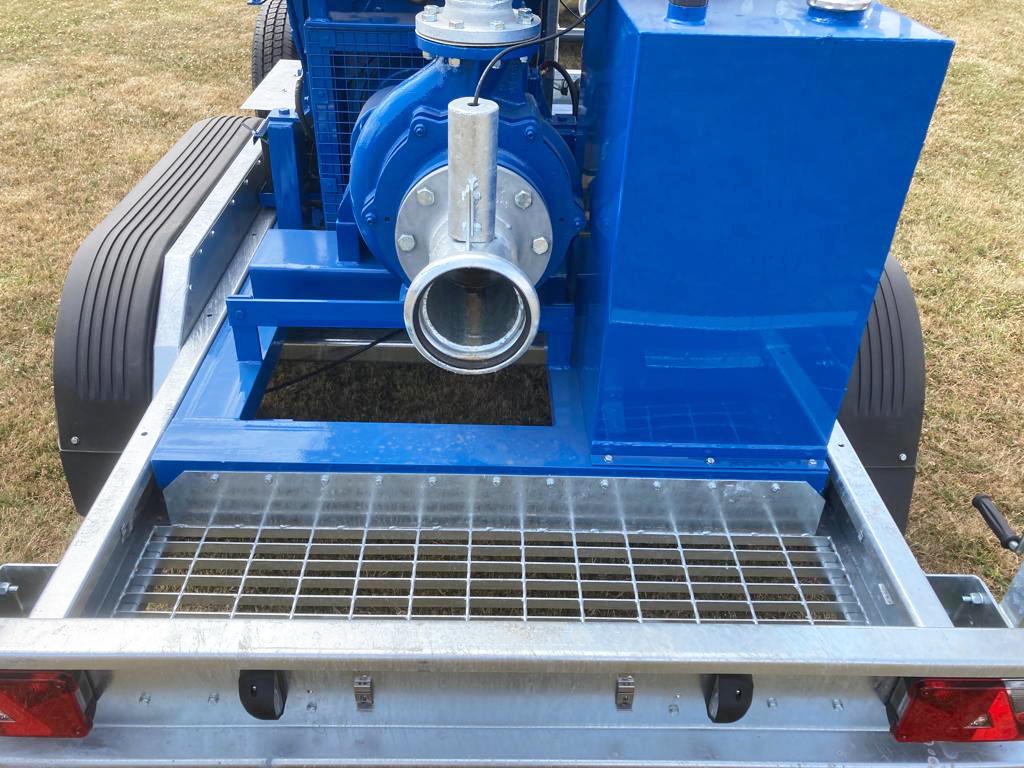

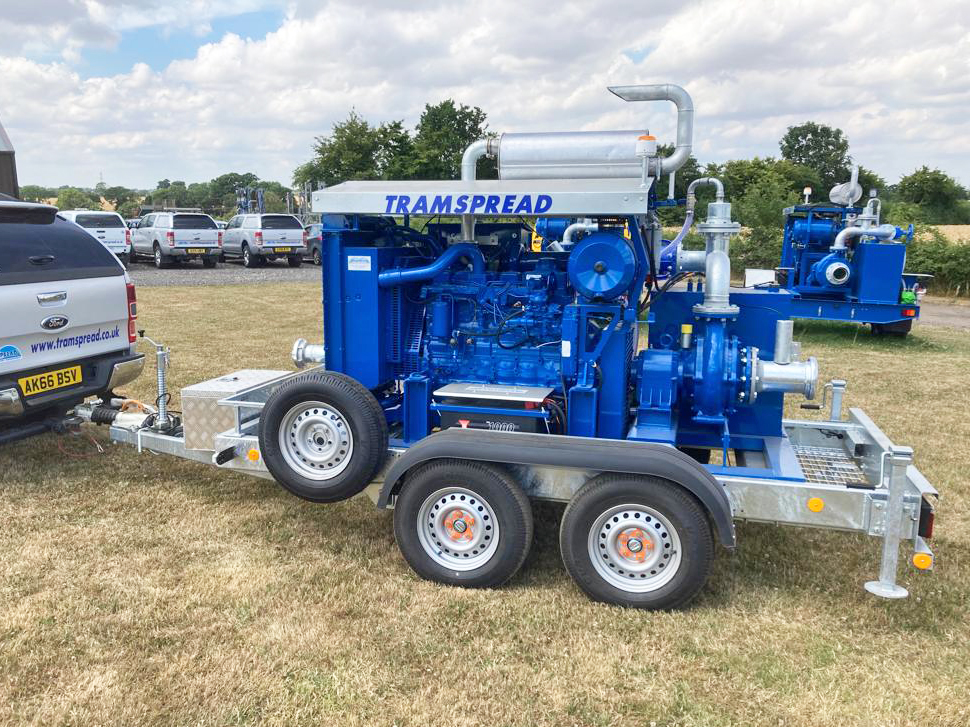

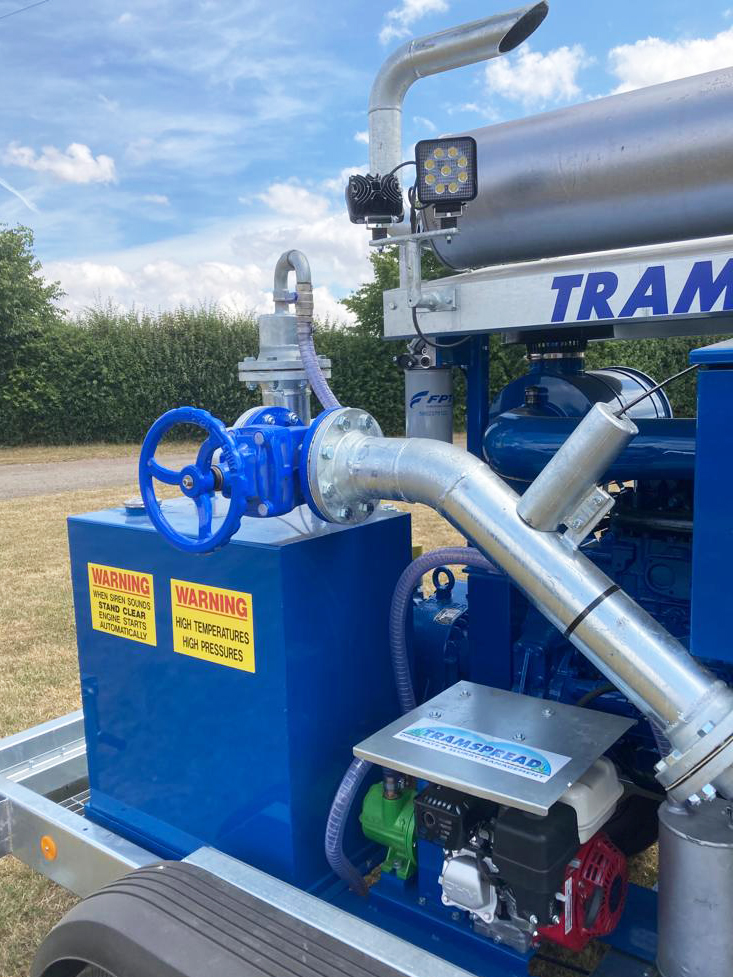

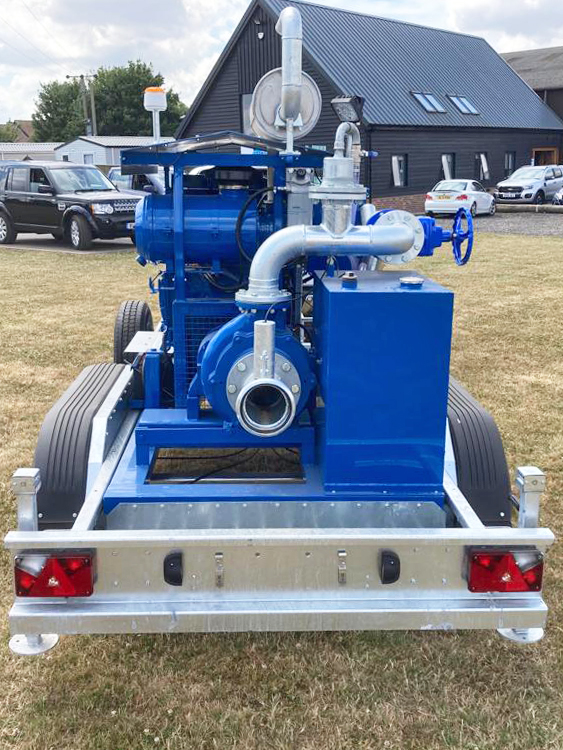

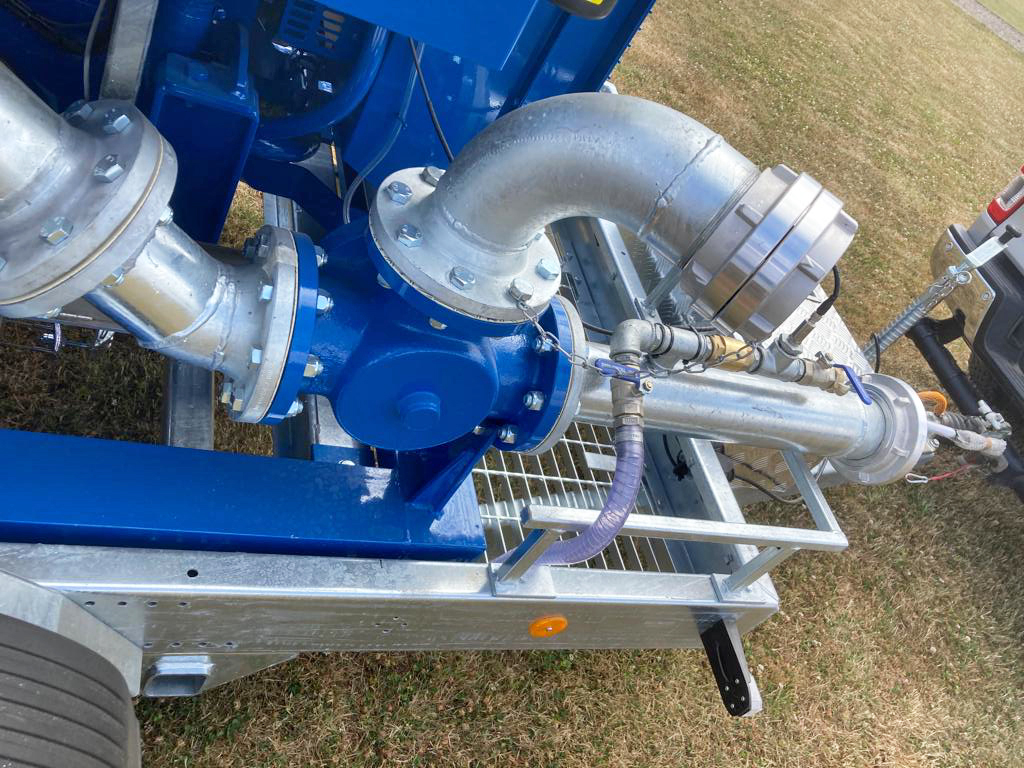

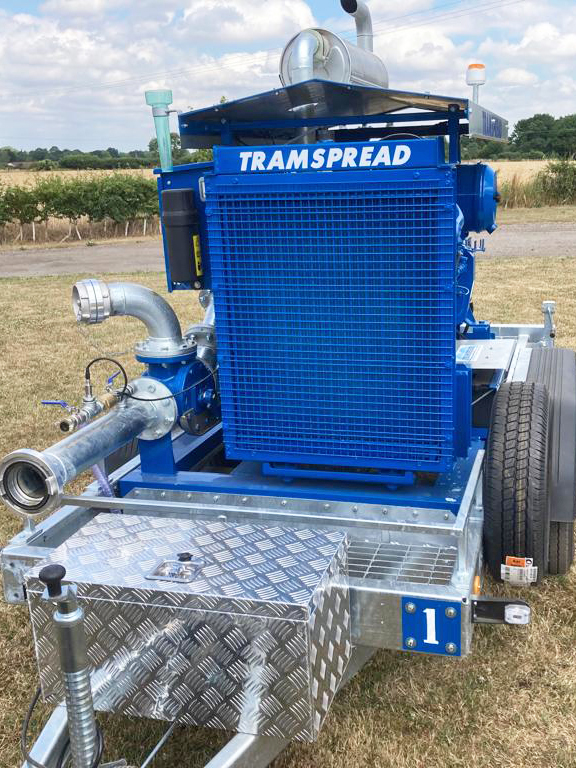

Fast-Tow EDPU (96k/60mph)
Using the same engine and pump combination as our other engine driven pump units mounted on a Knott-Avonride 3500kg galvanised twin axle chassis. This unit is ideal for users needing a boost pump or a fast response unit when travelling over longer distances.
- 175hp six-cylinder F.P.T. engine with stainless steel exhaust.
- Bauer Magnum SX2000 slurry pump.
- 6” inlet and 4” outlet terminating with the customer’s choice of coupling size/type.
- Honda driven Bauer priming unit.
- 200-litre fuel tank (to keep weight within 3500kg limit).
- Standard engine control panel (can be upgraded, see below).
- Galvanised chassis with mudguards.

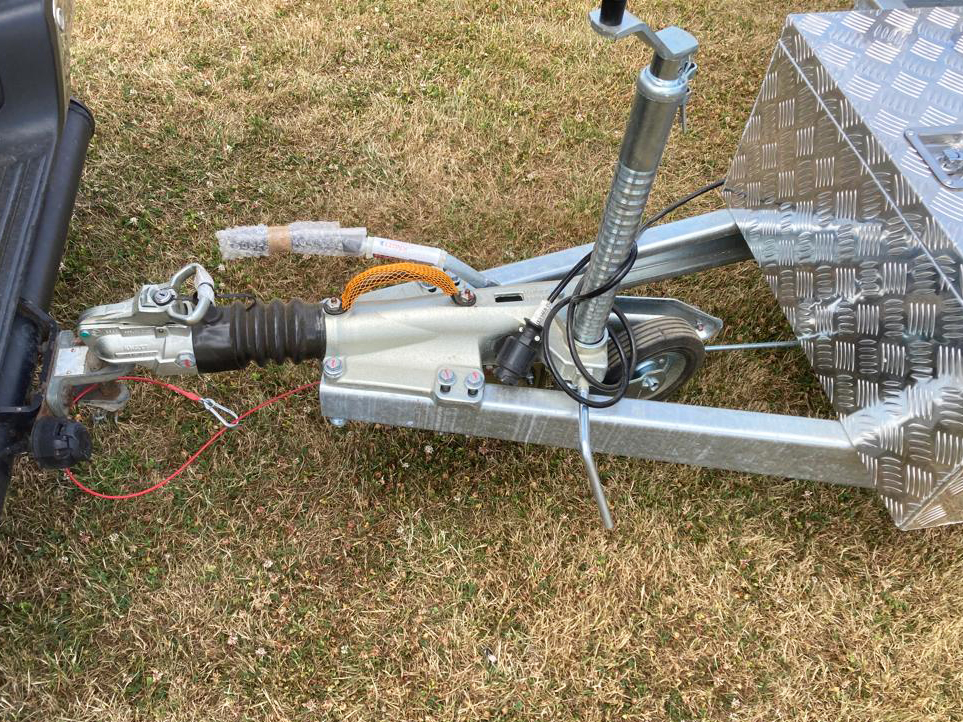

- Overrun brakes and 50mm lockable ball-hitch head.
- Twin high-speed axles with 185/80R14 tyres.
- C/w rear jacks and a spare wheel.
- Road and work lights.
Options:
- 238hp six-cylinder F.P.T. engine.
- Doda HD35 or Cri-Man pump.
- Tramspread GSM or SIL remote control and monitoring unit for one-person operation.
- Manual 4 or 5” pig (sponge ball) launcher.
- Remote controlled 4 or 5” pig (sponge ball) launcher.
- Other remote-control options: 360-degree video camera, flowmeter, fuel-level sensor, compressor remote control, pressure sensing and nurse tank level sensor.

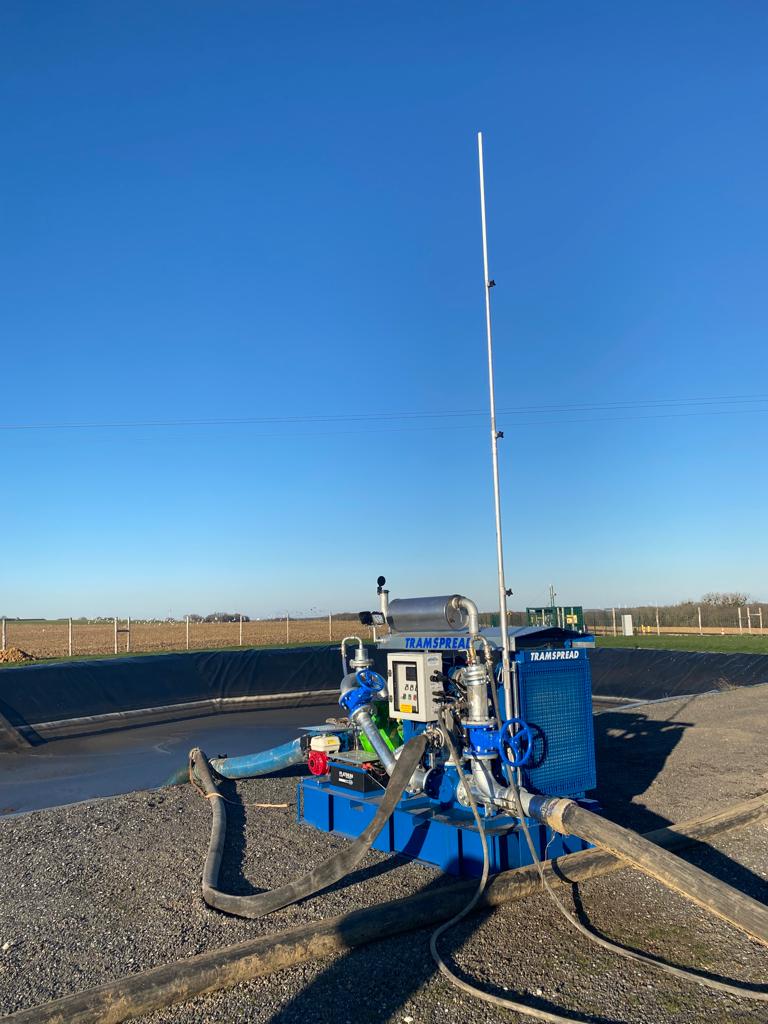

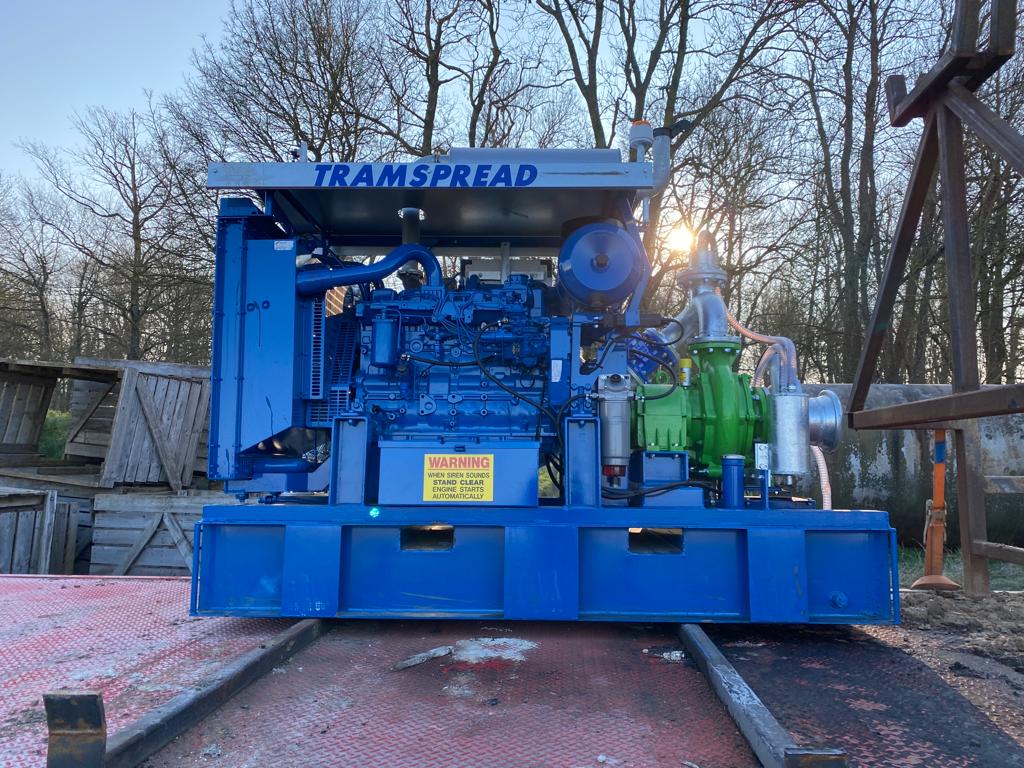

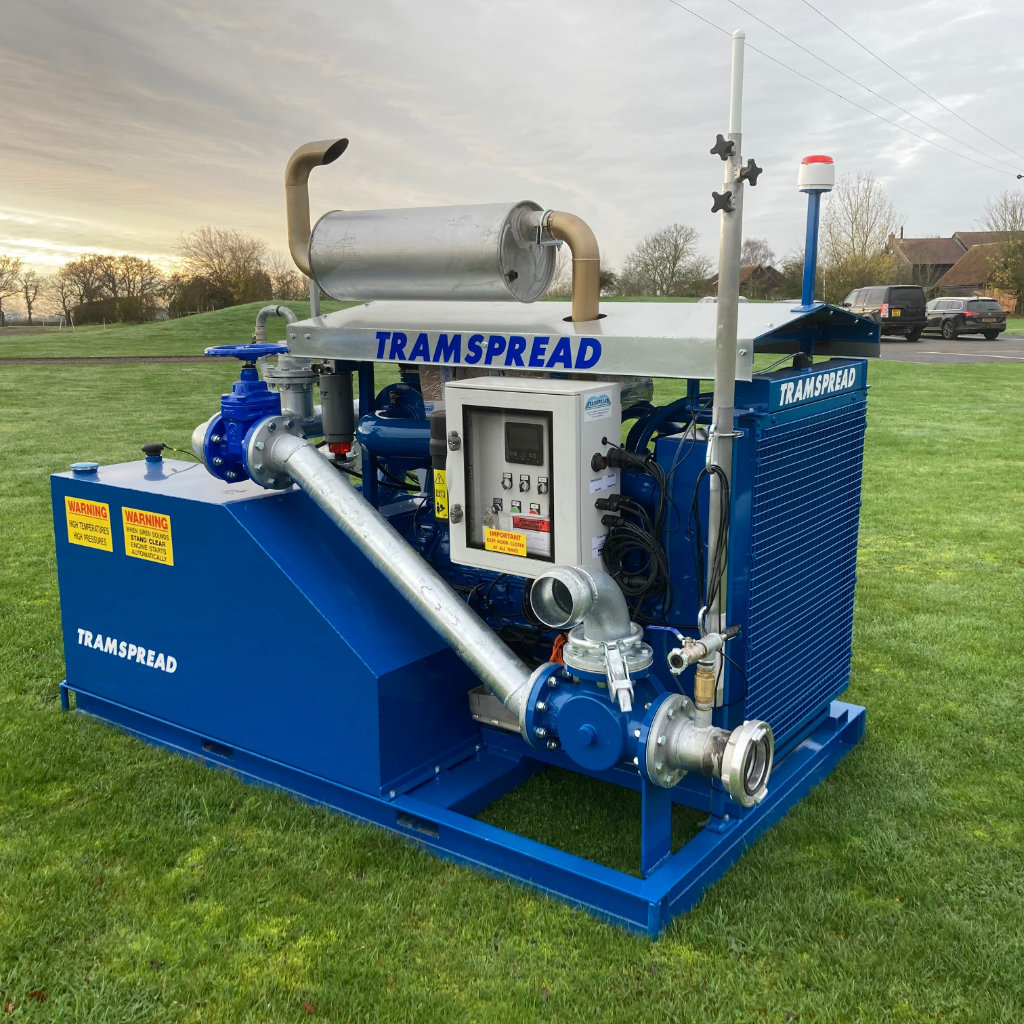

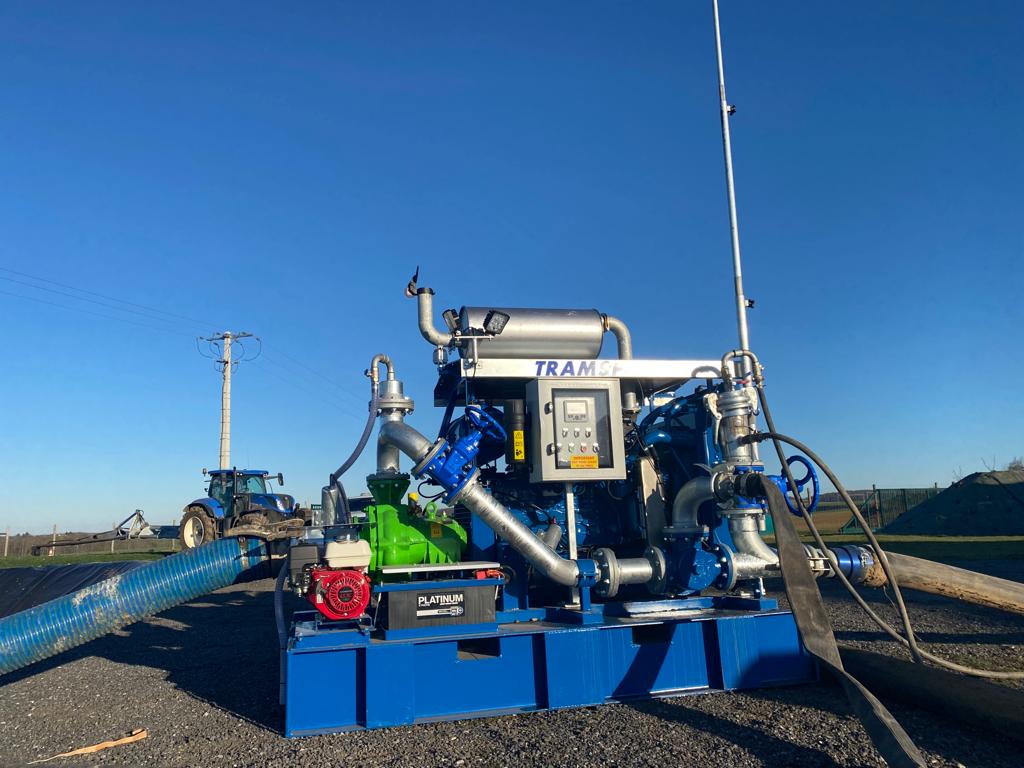

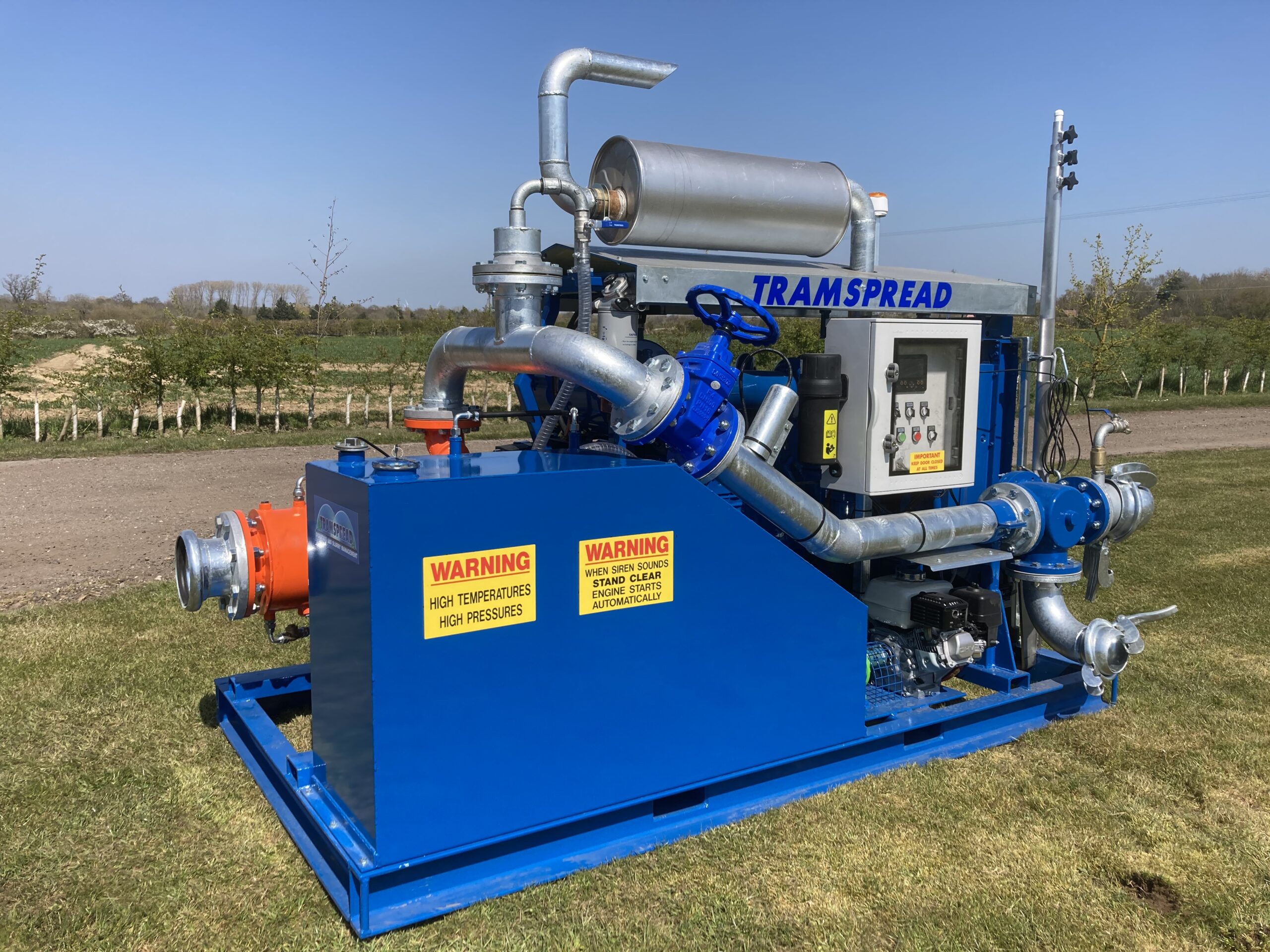

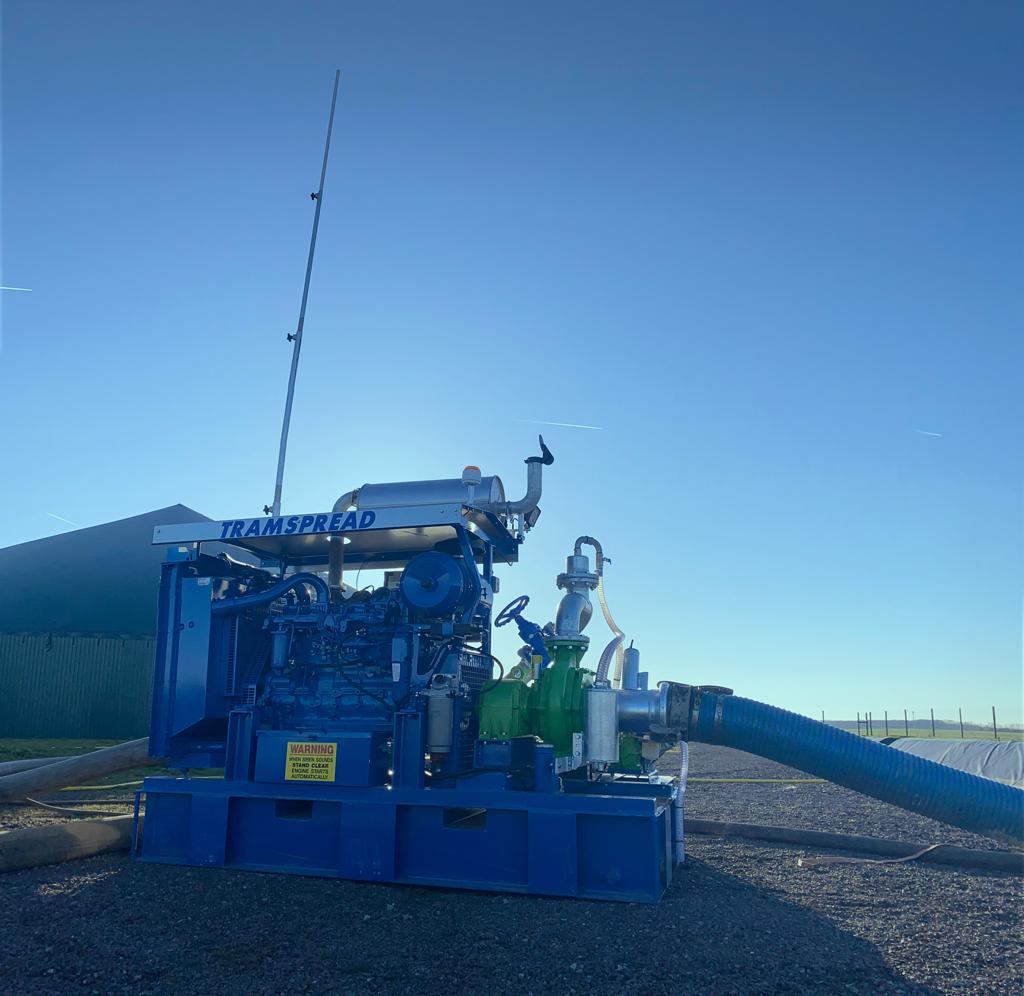

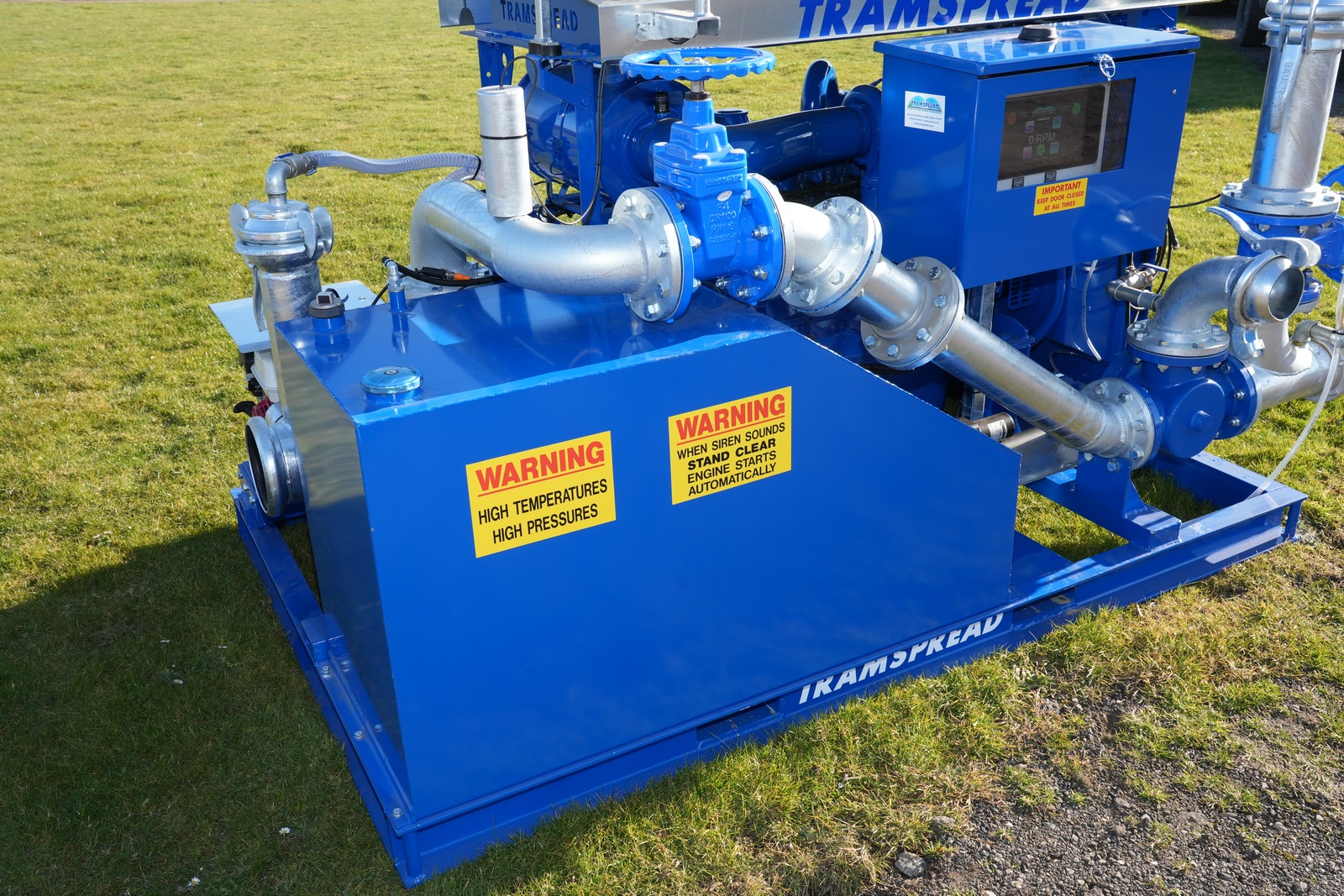

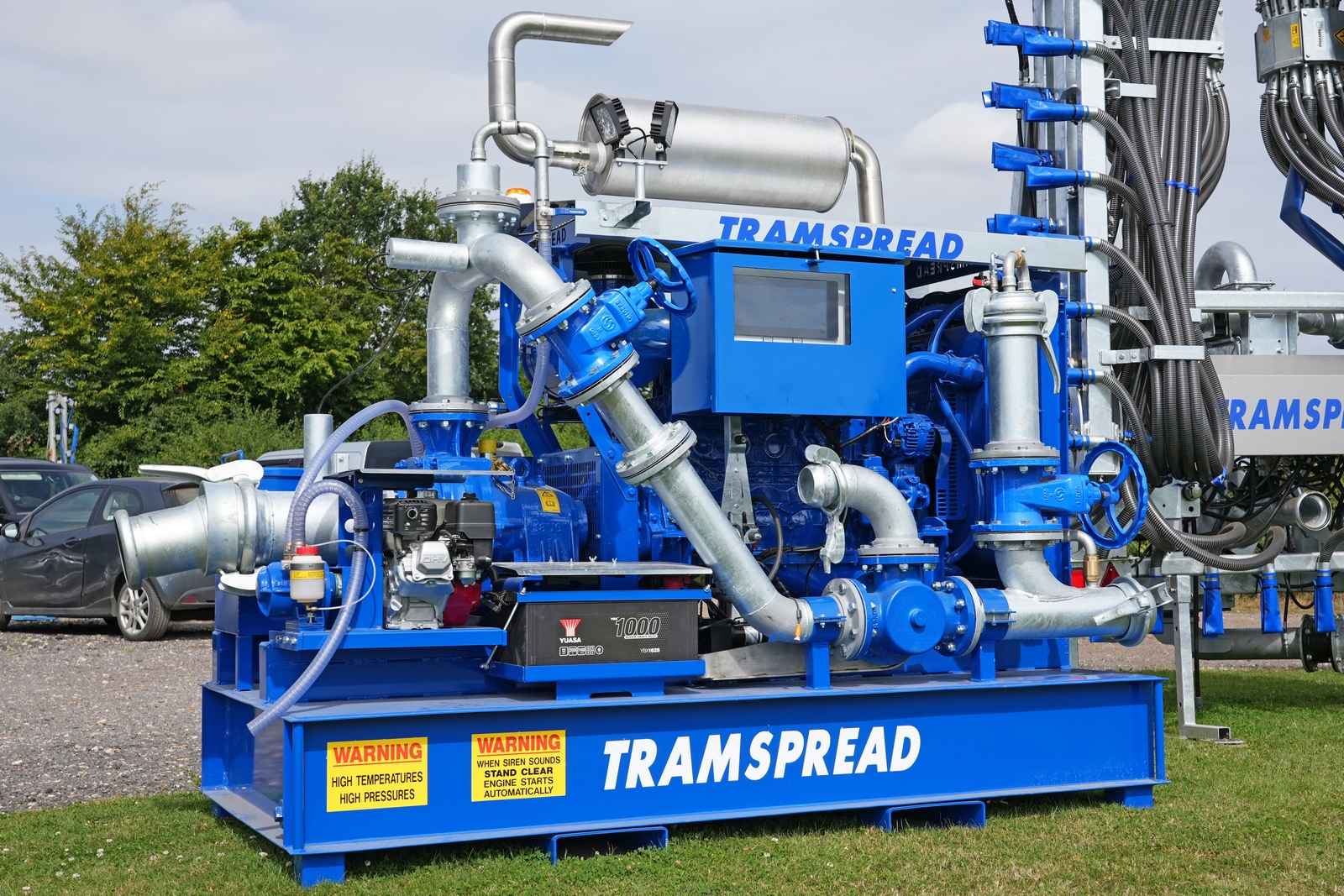

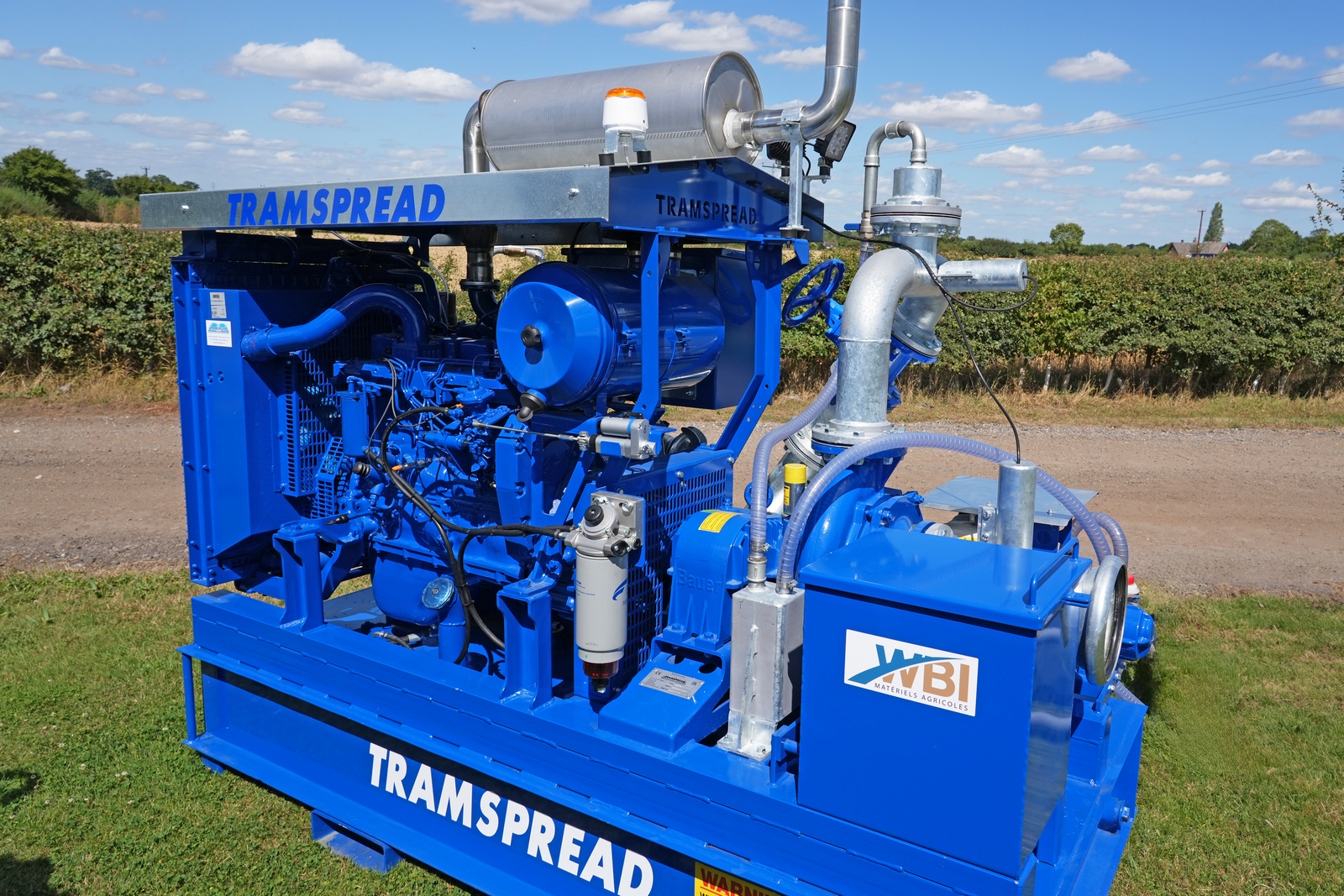

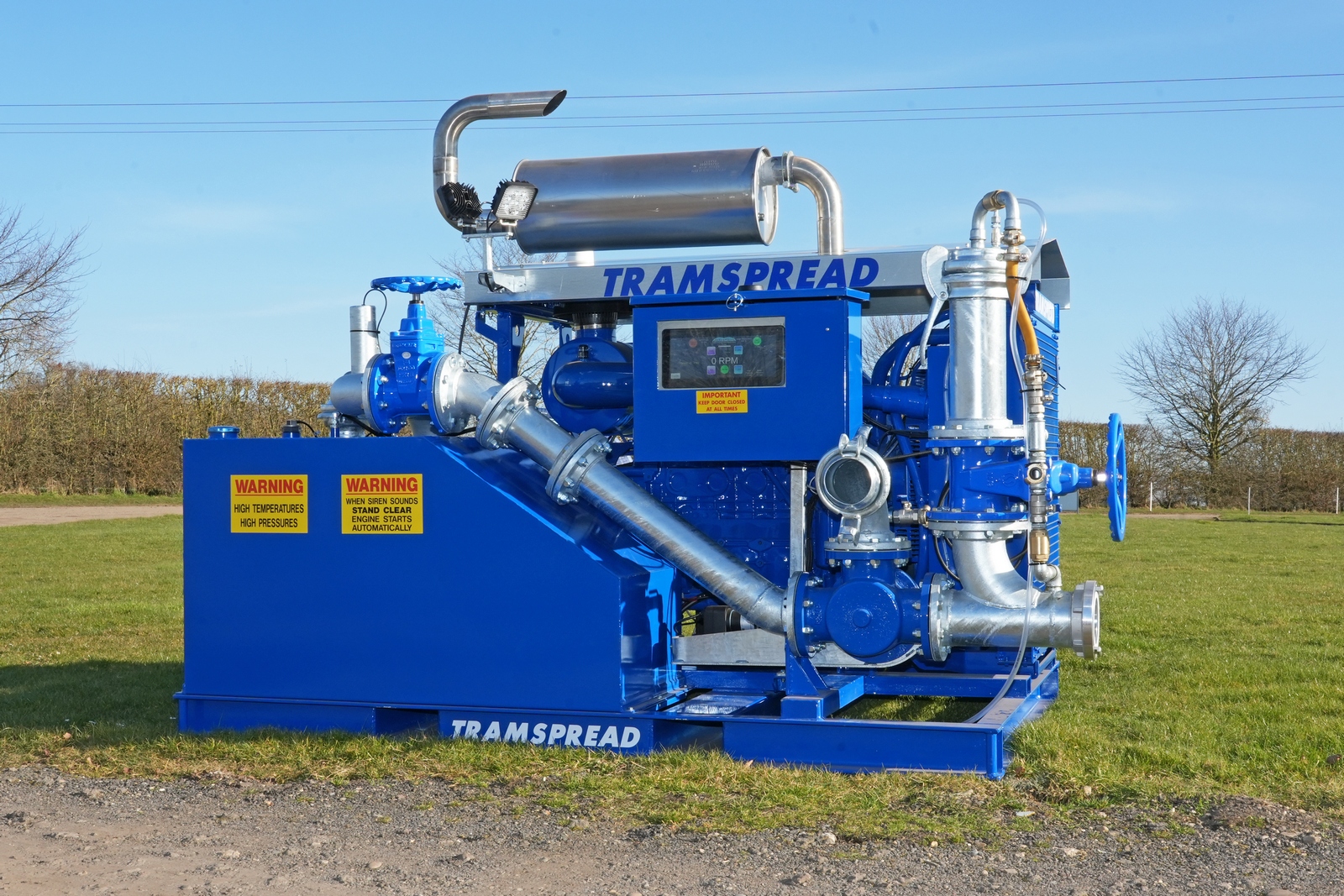

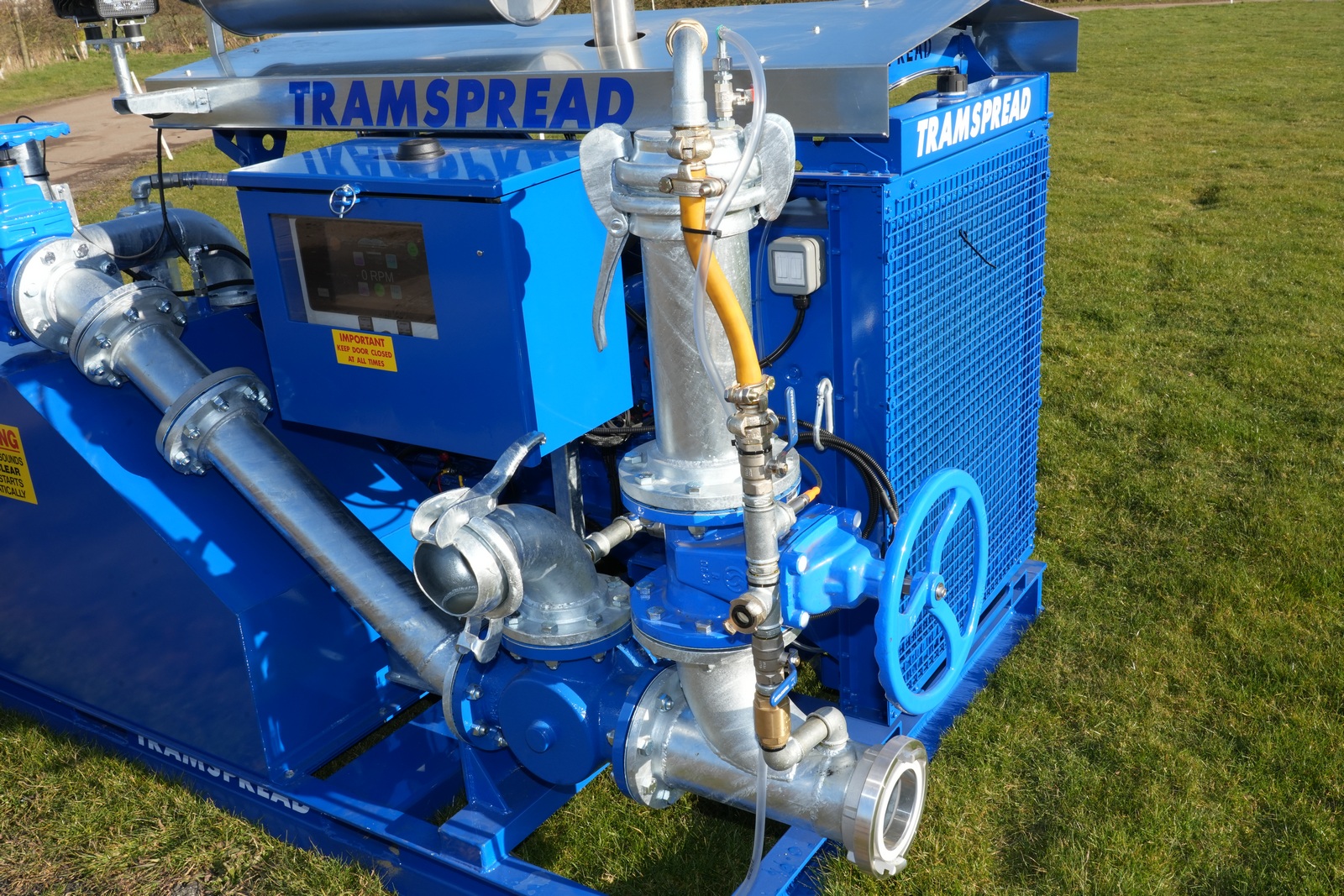

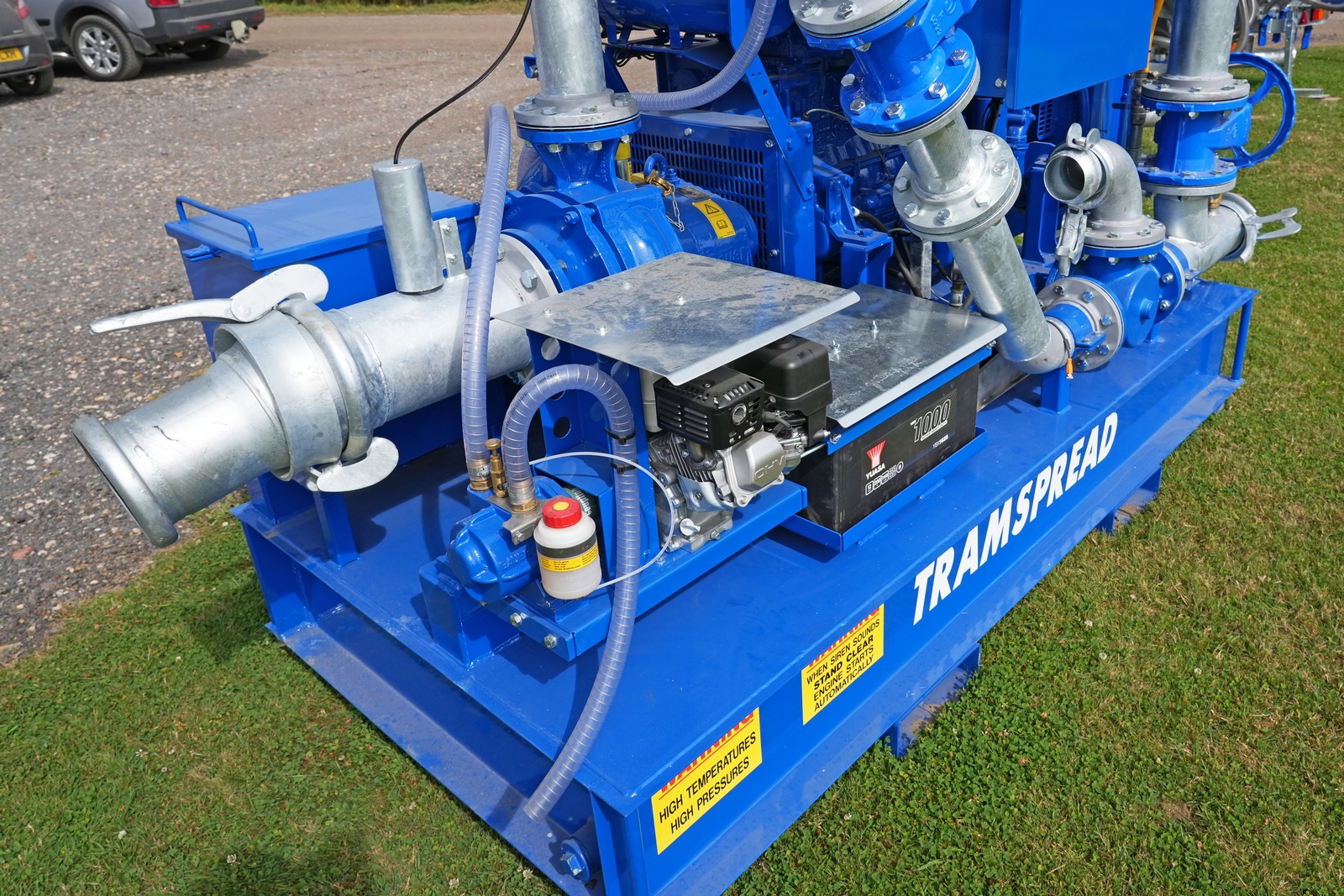

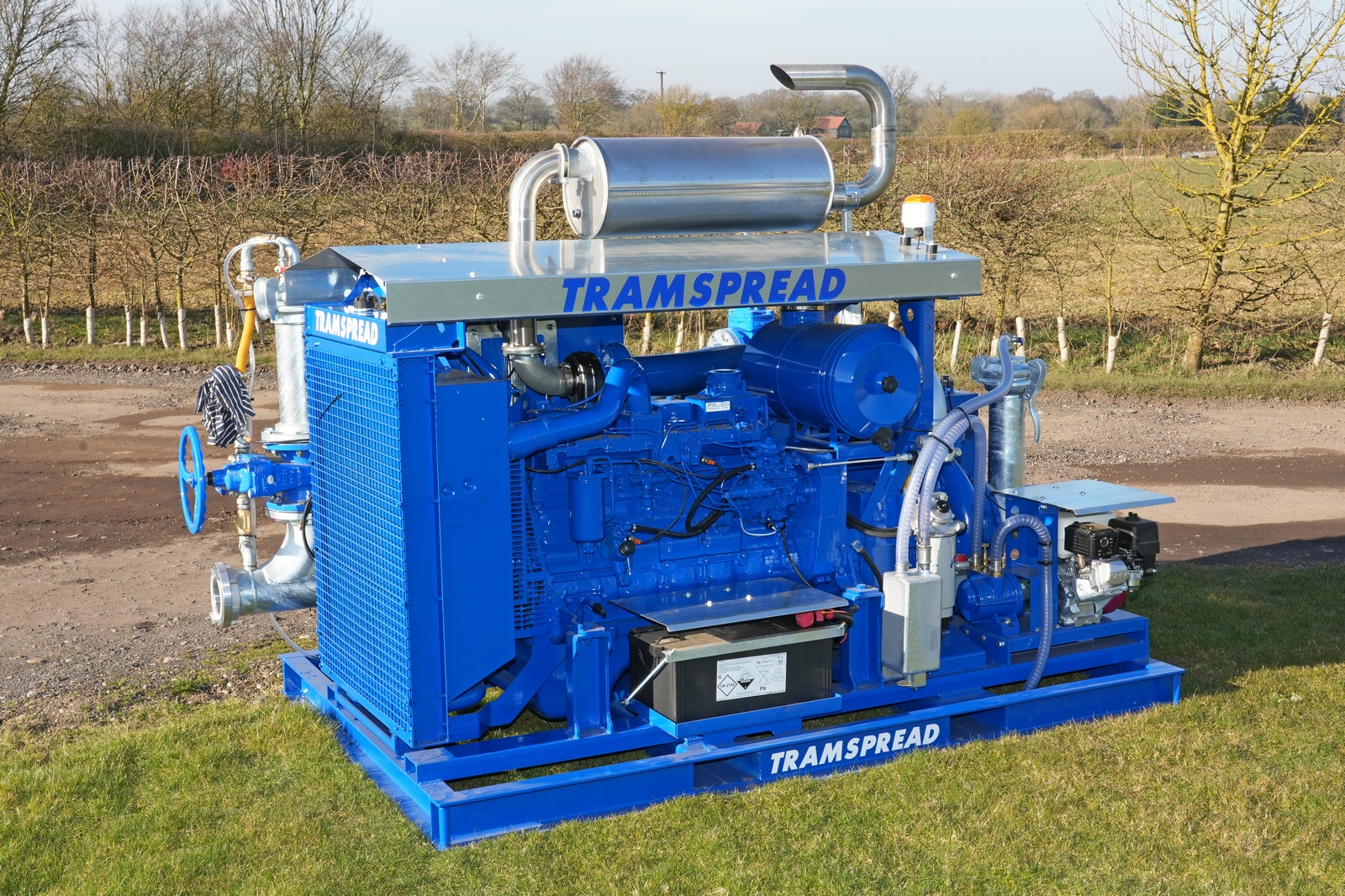

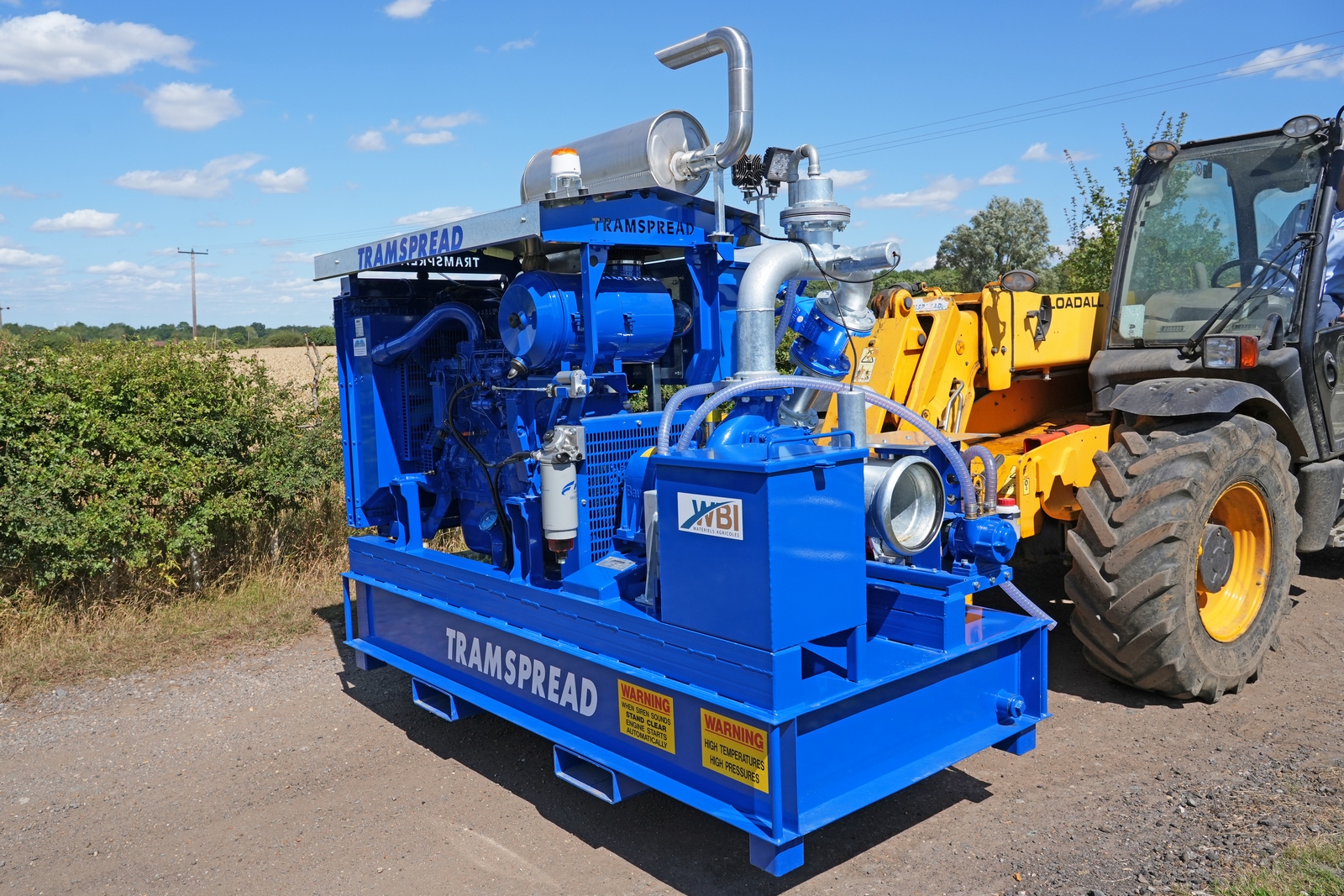

Skid Mounted EDPU
- 175hp six-cylinder F.P.T. engine with stainless steel exhaust.
- Bauer Magnum SX2000 slurry pump.
- 6” inlet and 4” outlet terminating with the customer’s choice of coupling size/type.
- Honda driven Bauer priming unit.

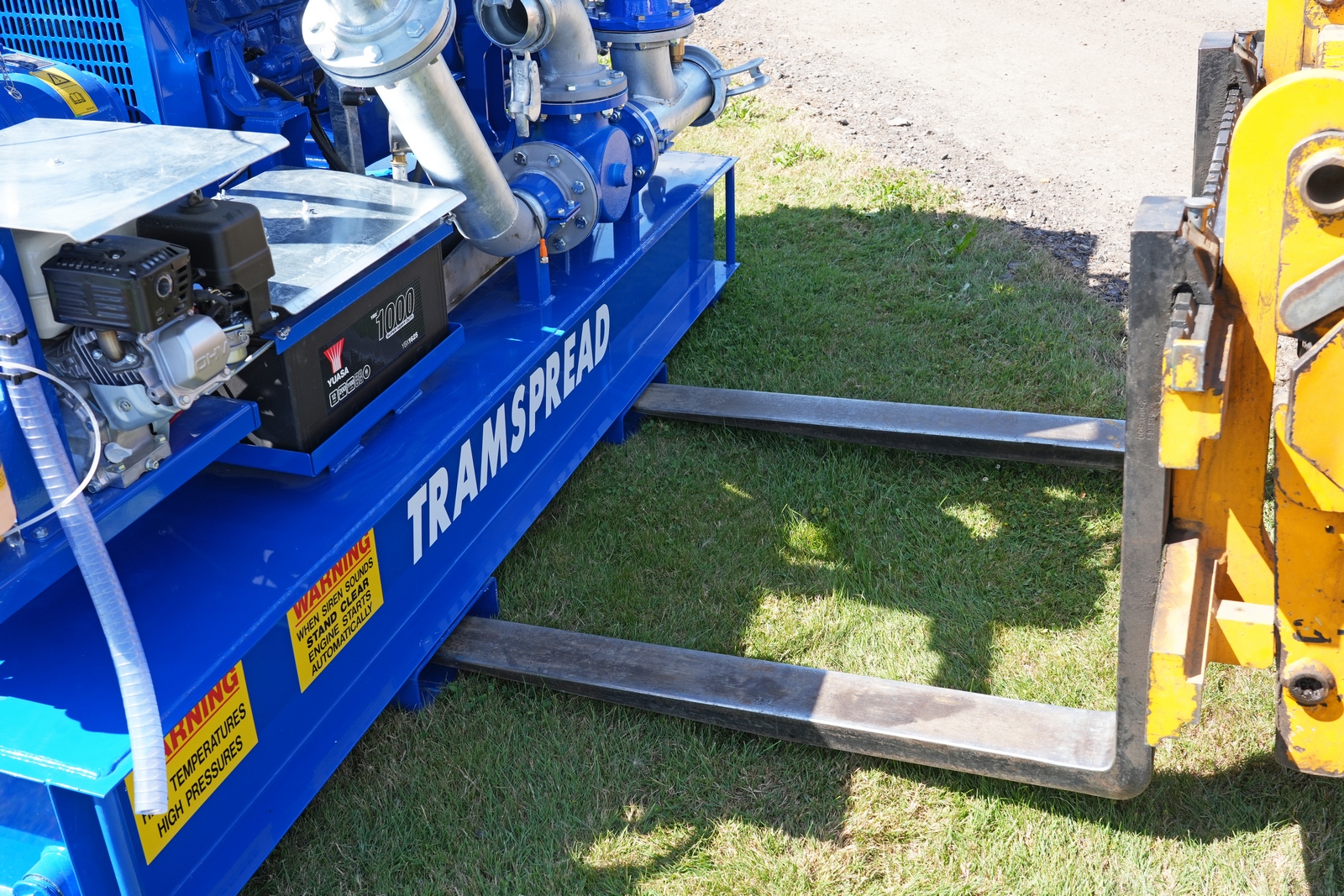

- 675-litre fuel tank base with integral fork-tine sockets.
- Standard engine control panel (can be upgraded, see below).
- Full LED work-lights.
Options:
- 238hp six-cylinder F.P.T. engine.
- Doda HD35 or Cri-Man pump.
- Tramspread GSM or SIL remote control and monitoring unit for one-person operation.
- Smaller 500 litre fuel tank (side-mounted) and heavy-duty skid frame with fork tine sockets in place of fuel tank base.
- Manual 4/5” pig (sponge ball) launcher.
- Remote controlled 4/5” pig (sponge ball) launcher.
- Other remote-control options: 360-degree video camera, flowmeter, fuel-level sensor, compressor remote control, pressure sensing and nurse tank level sensor.

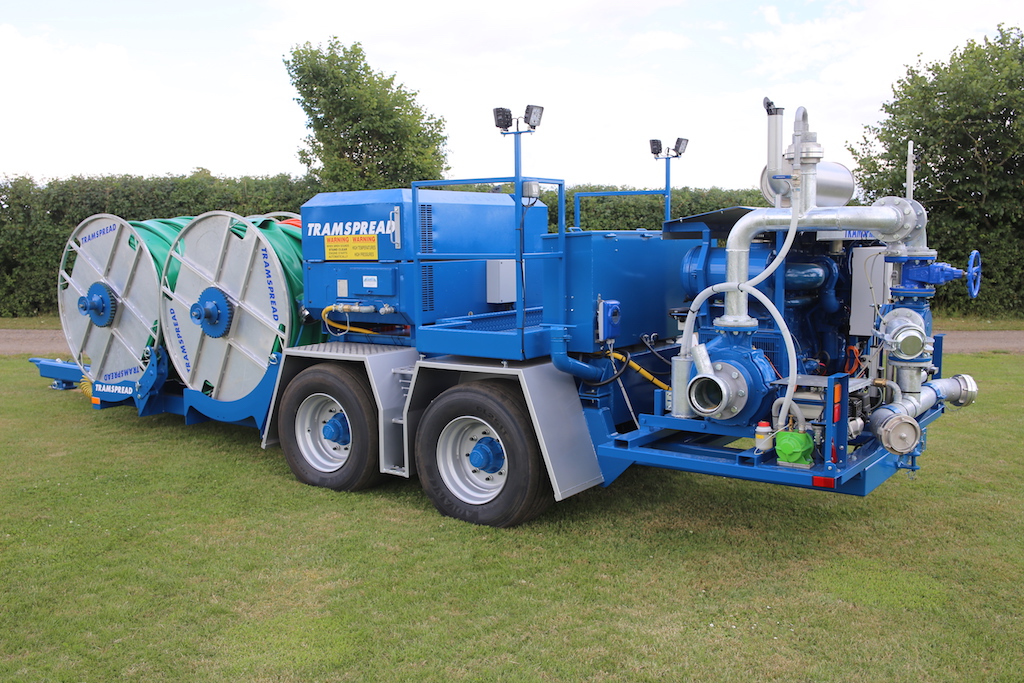

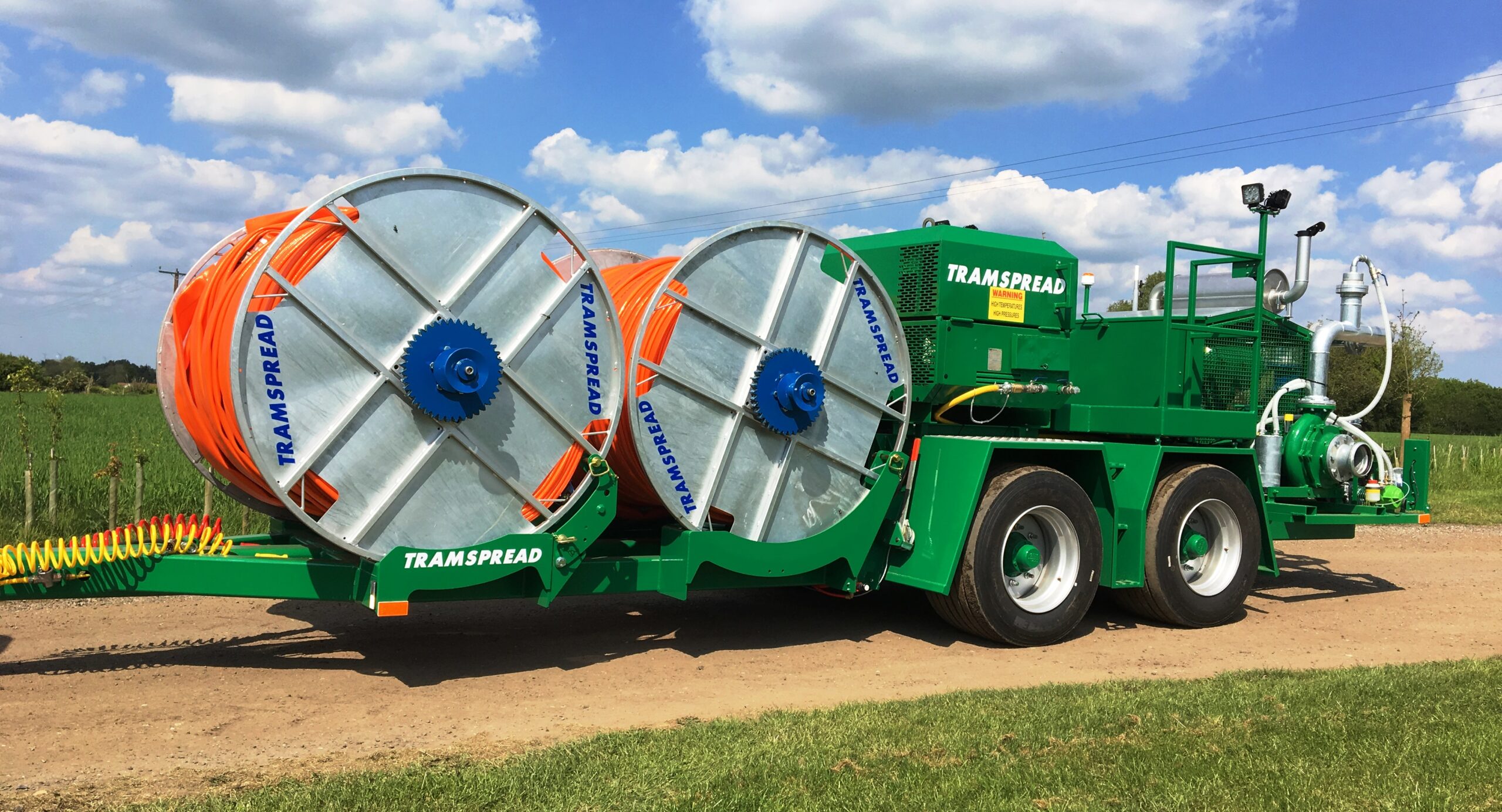

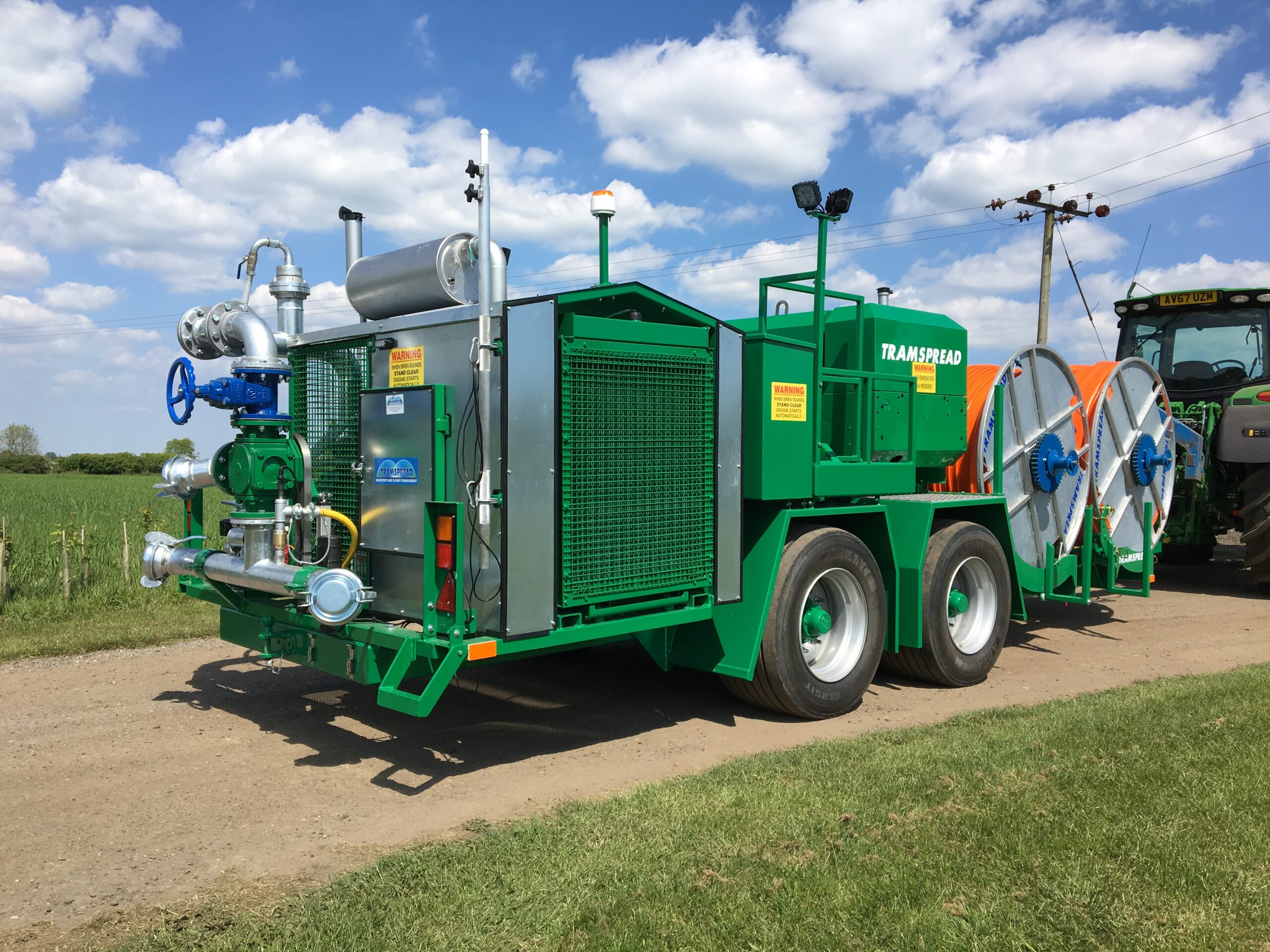

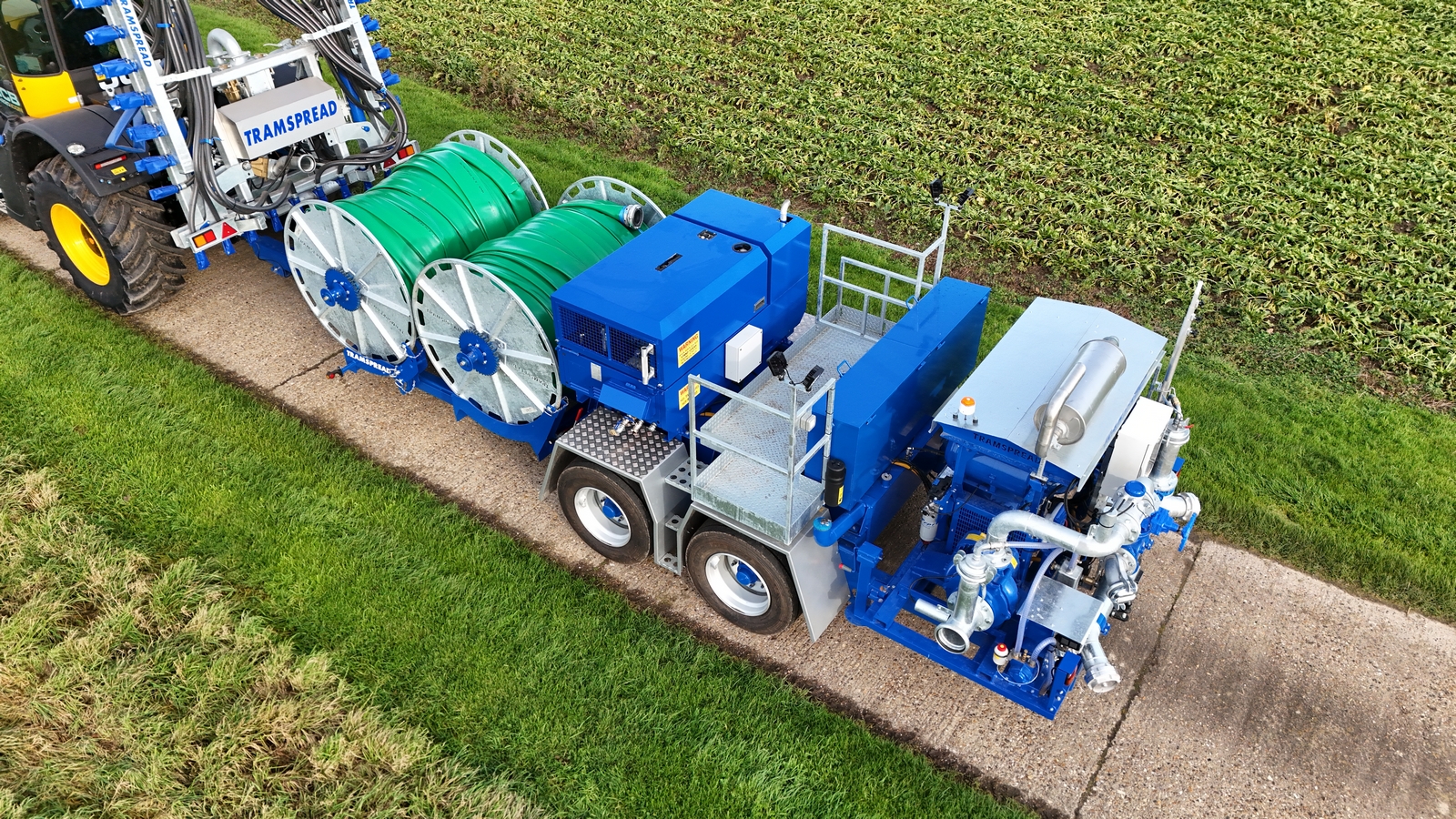

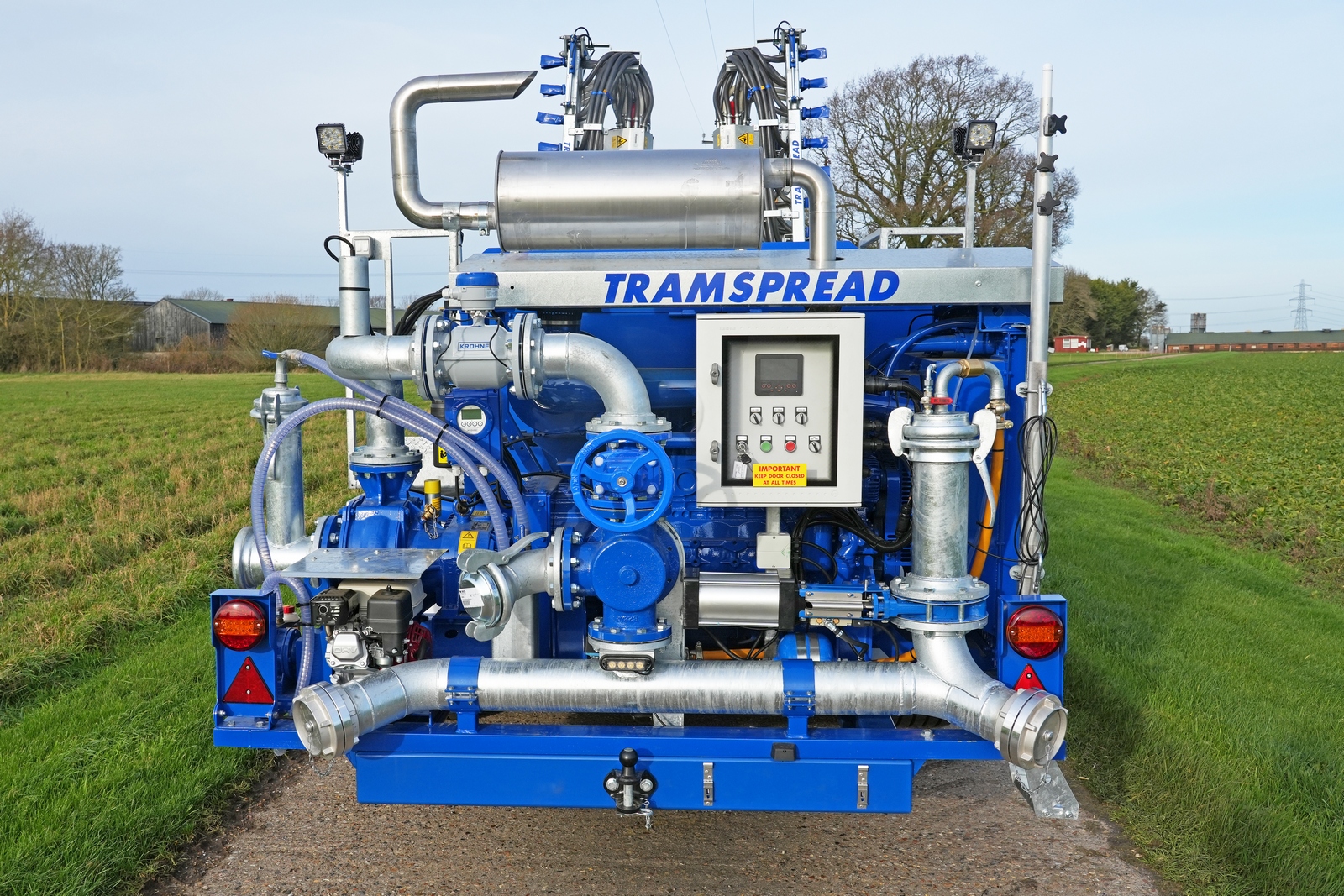

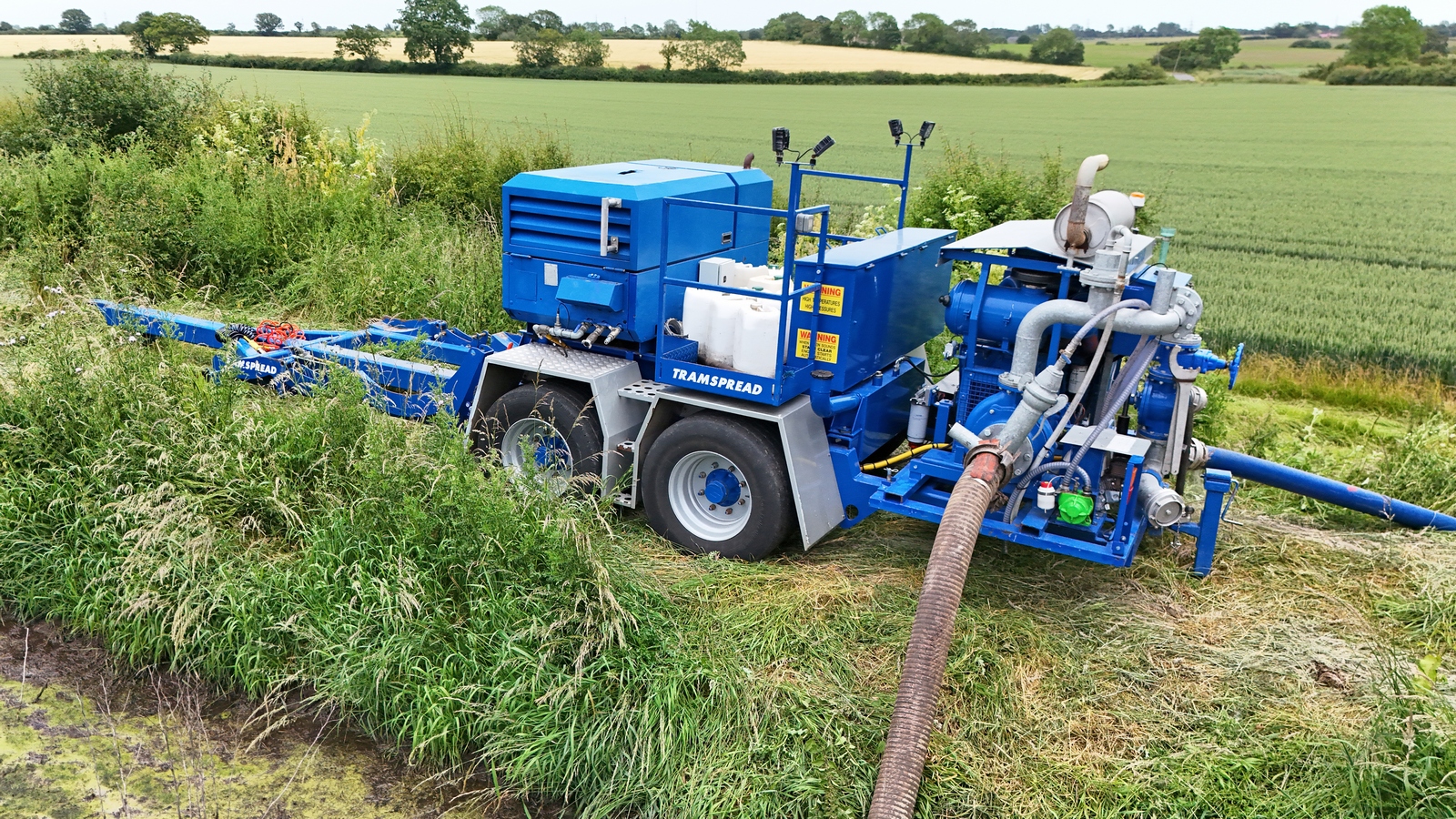

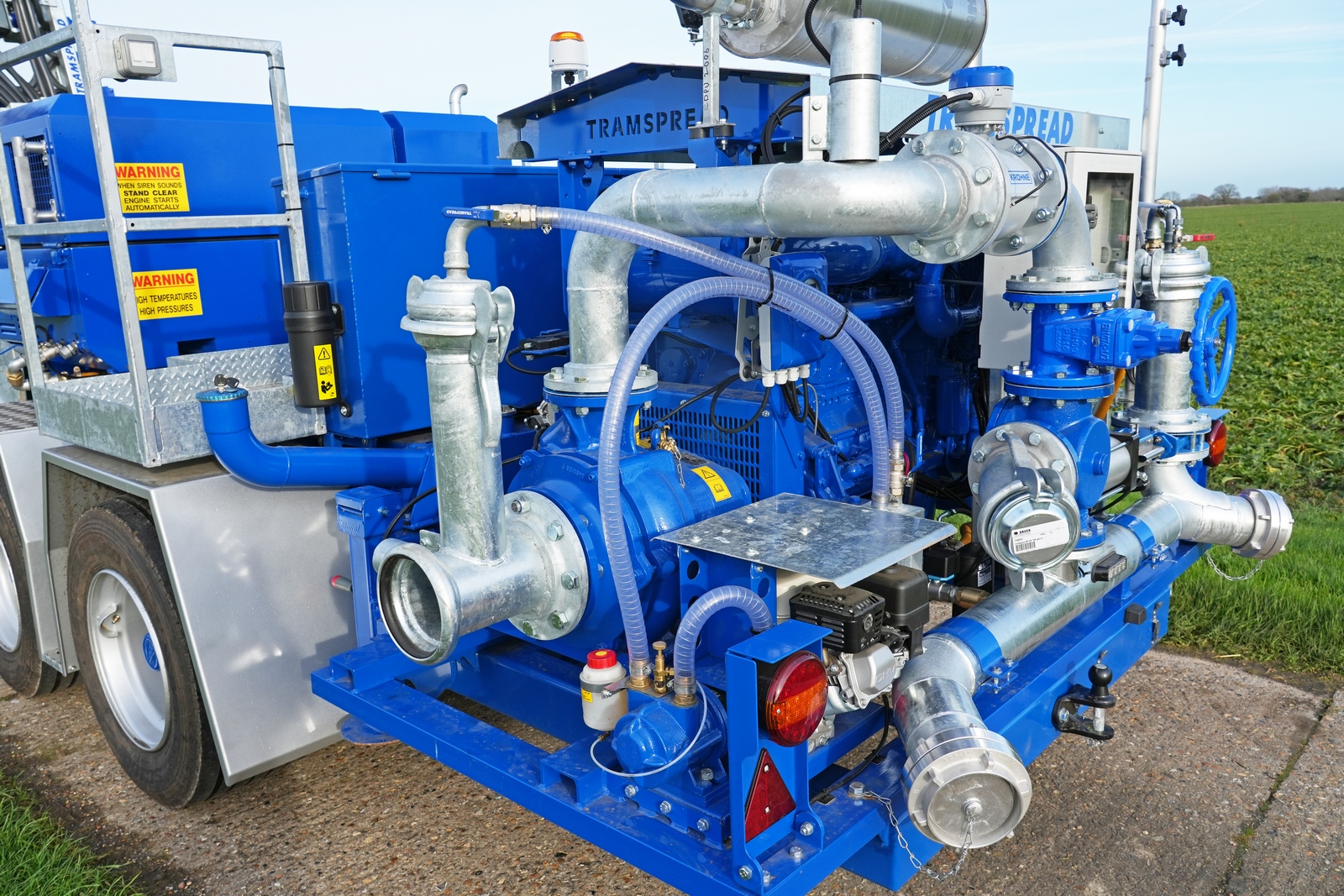

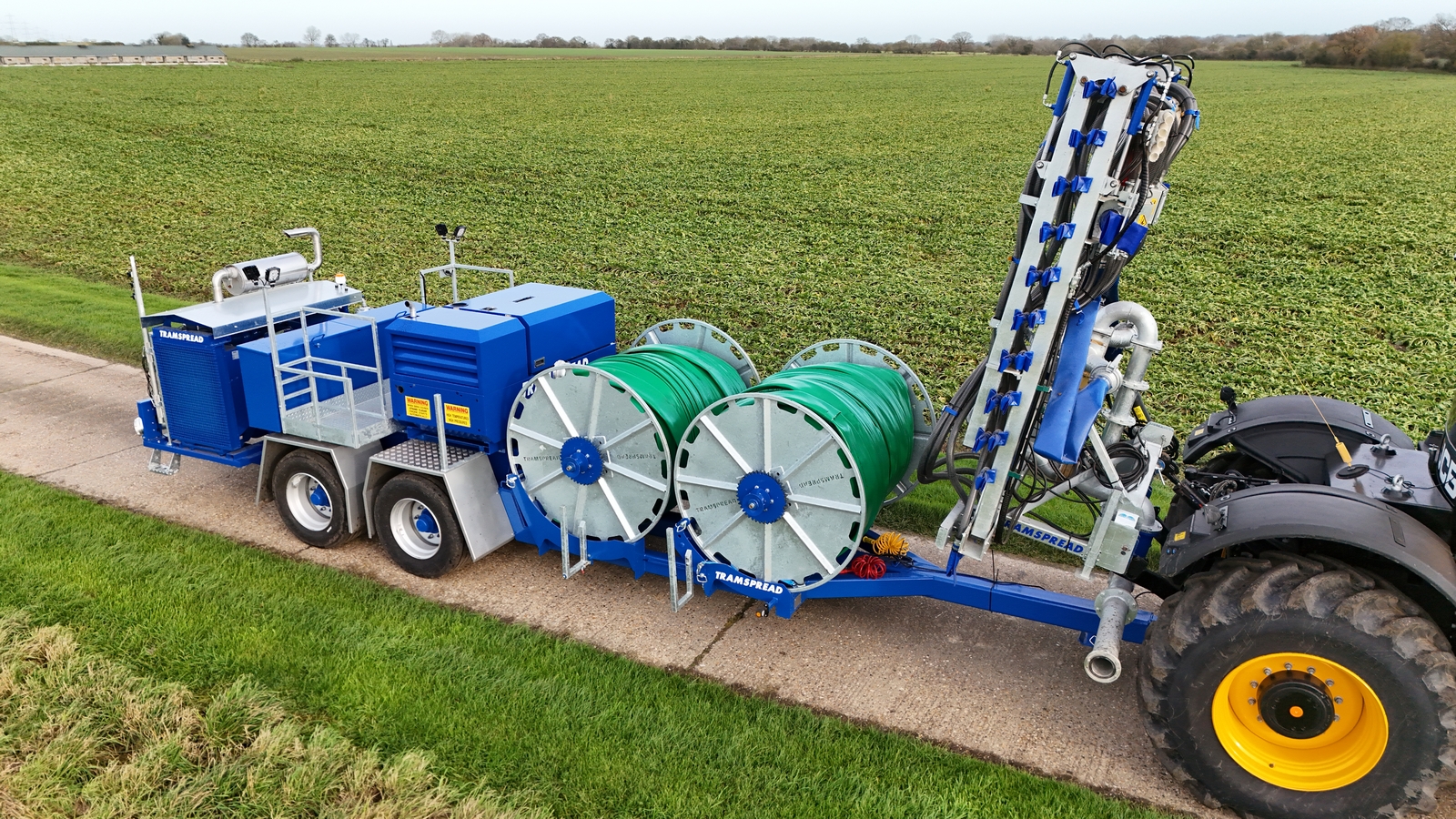

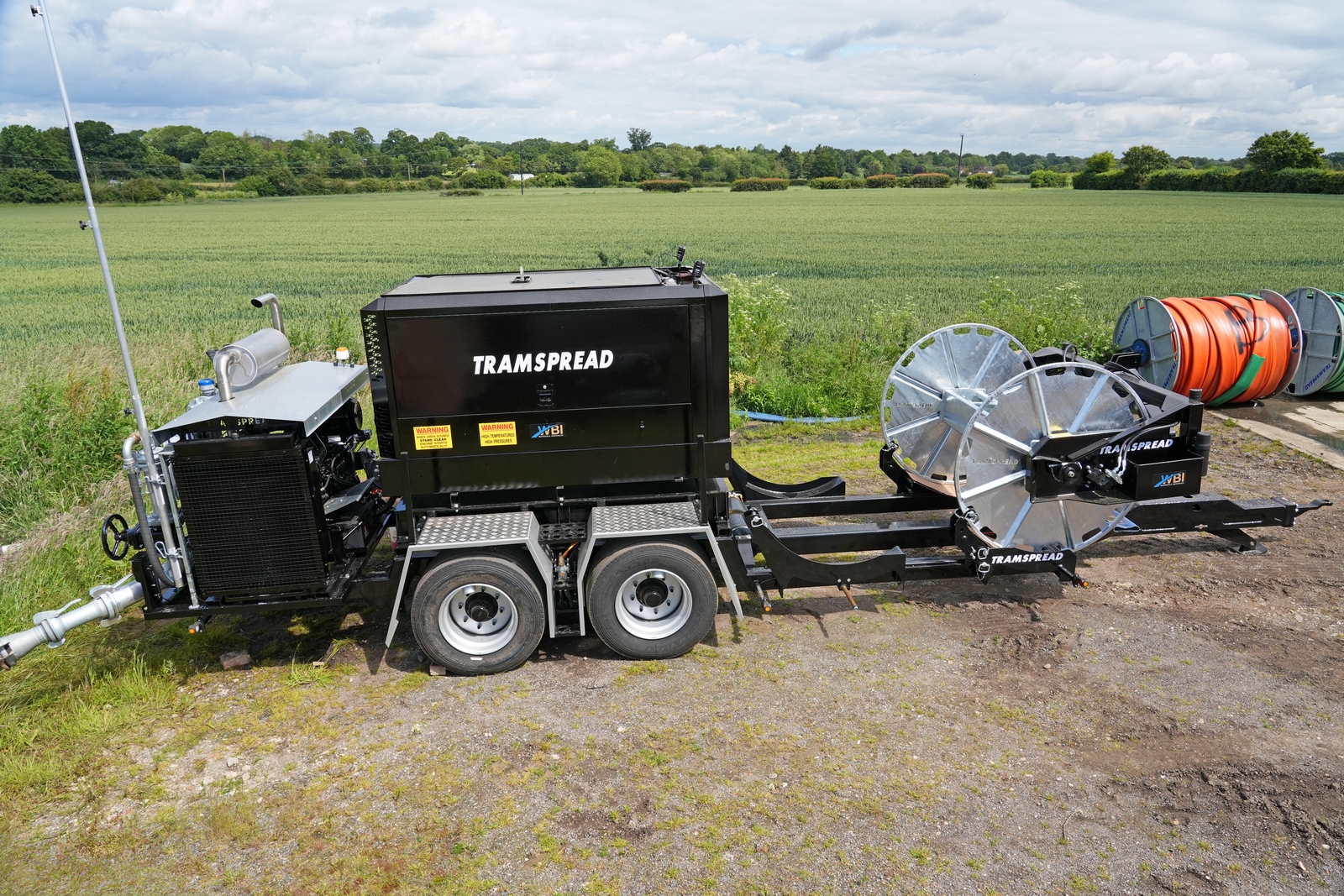

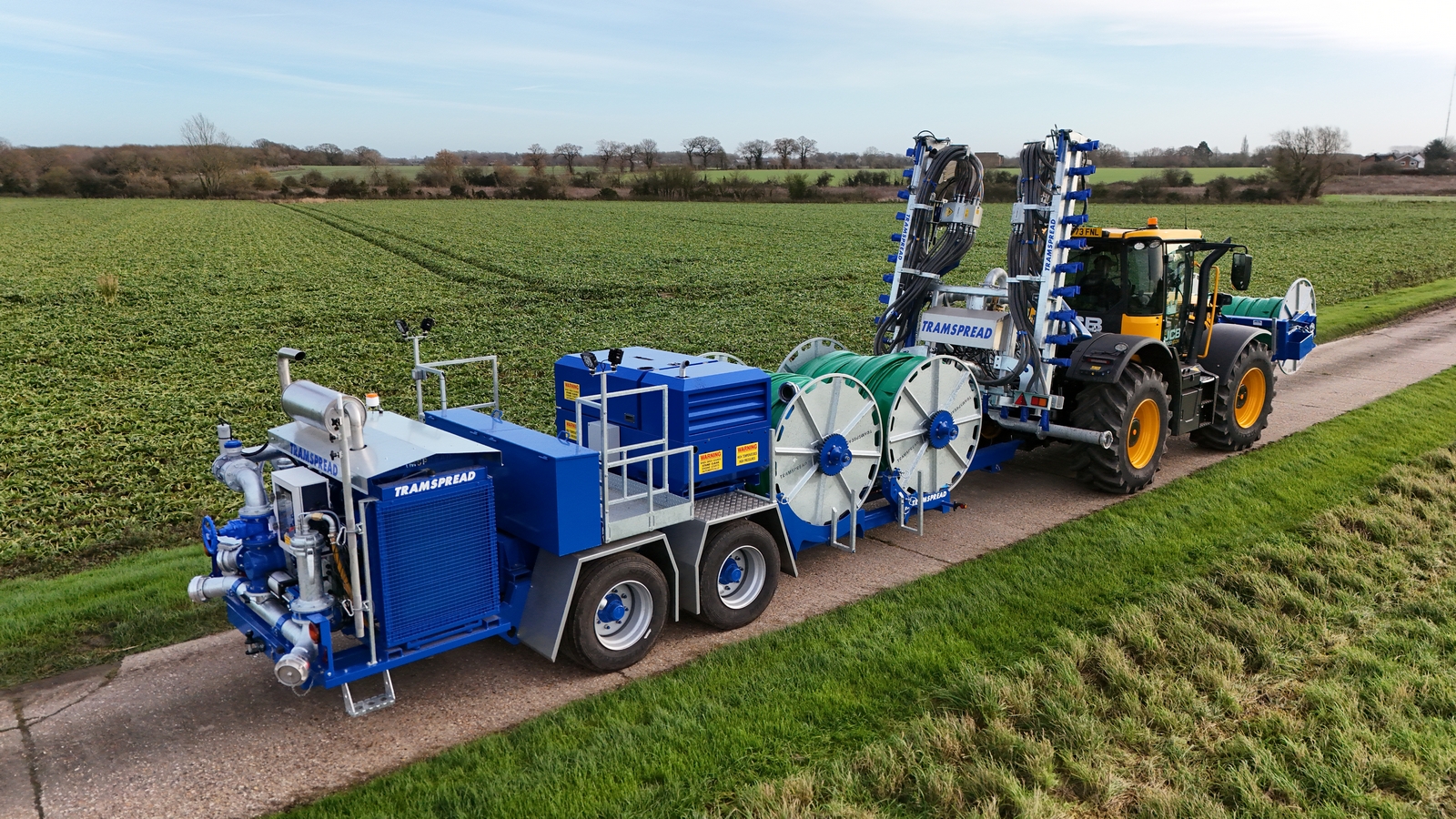

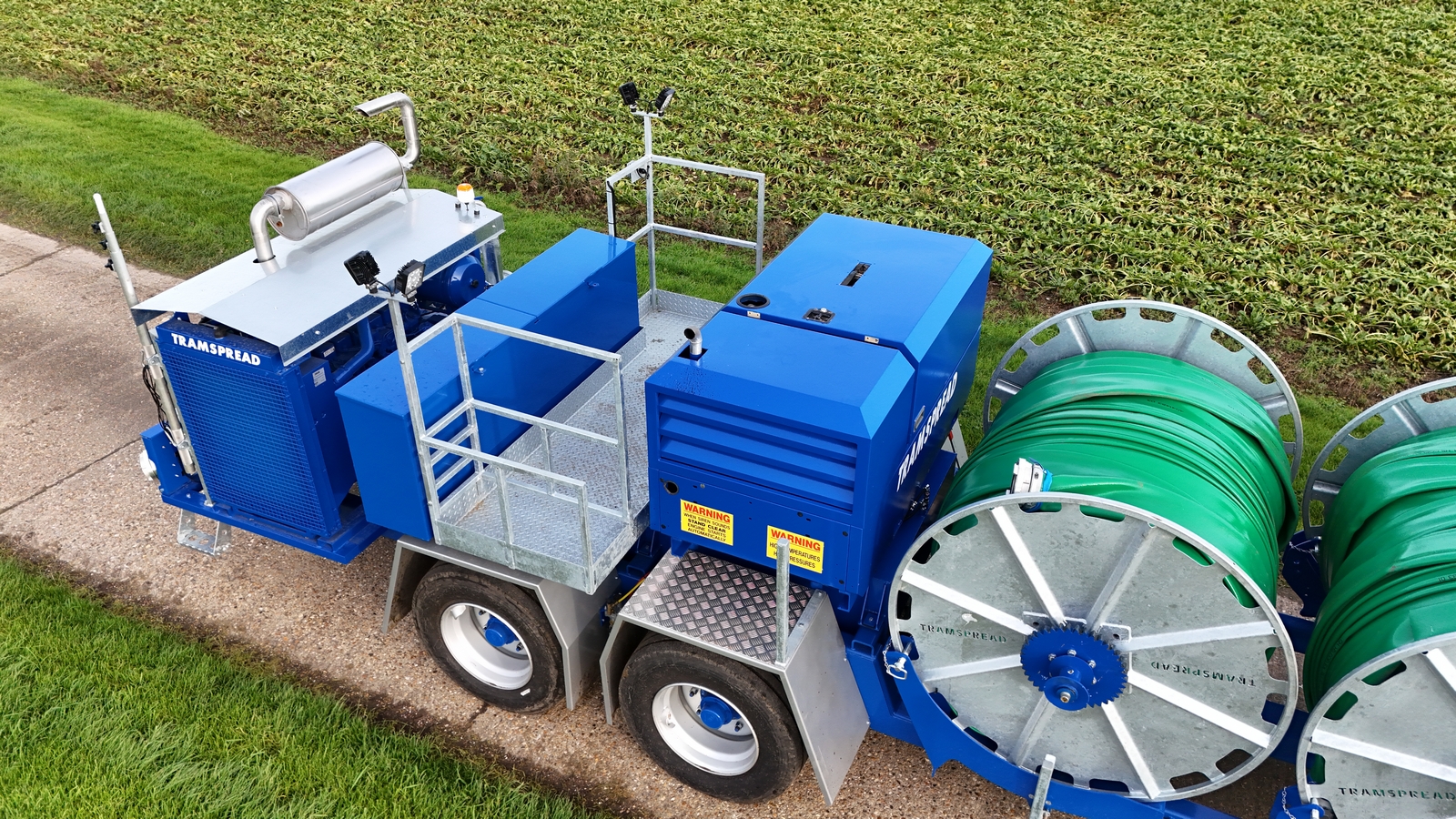

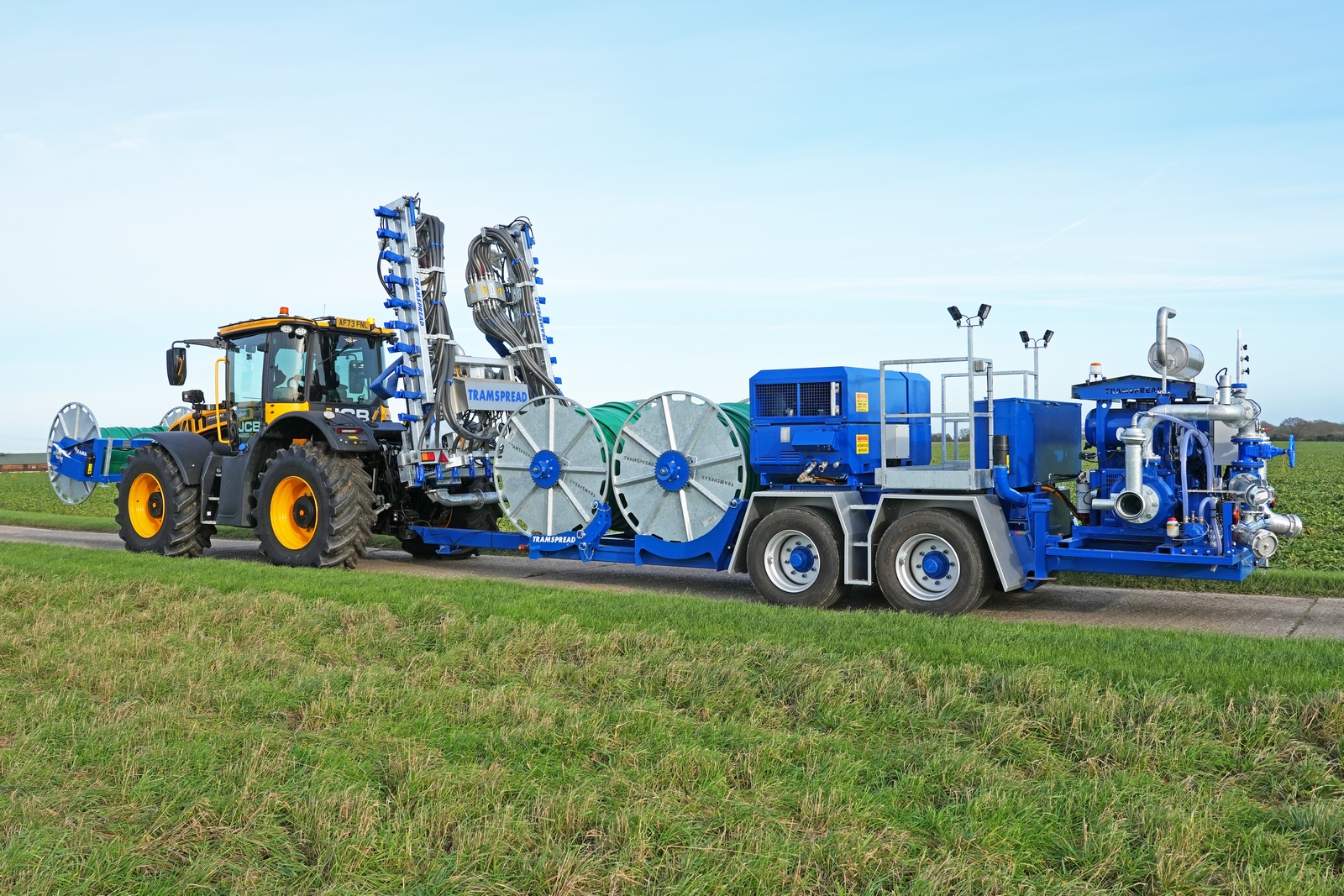

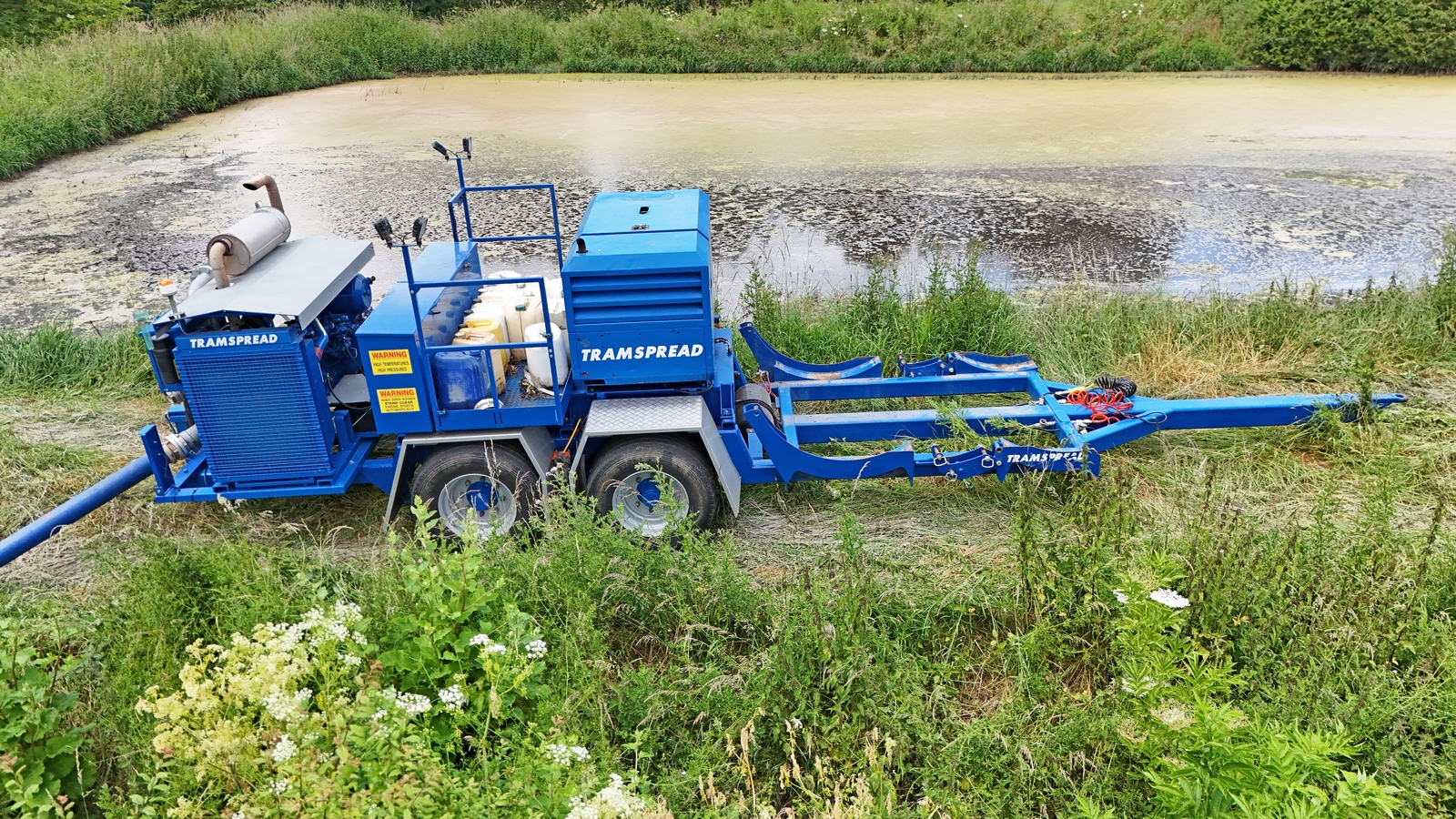

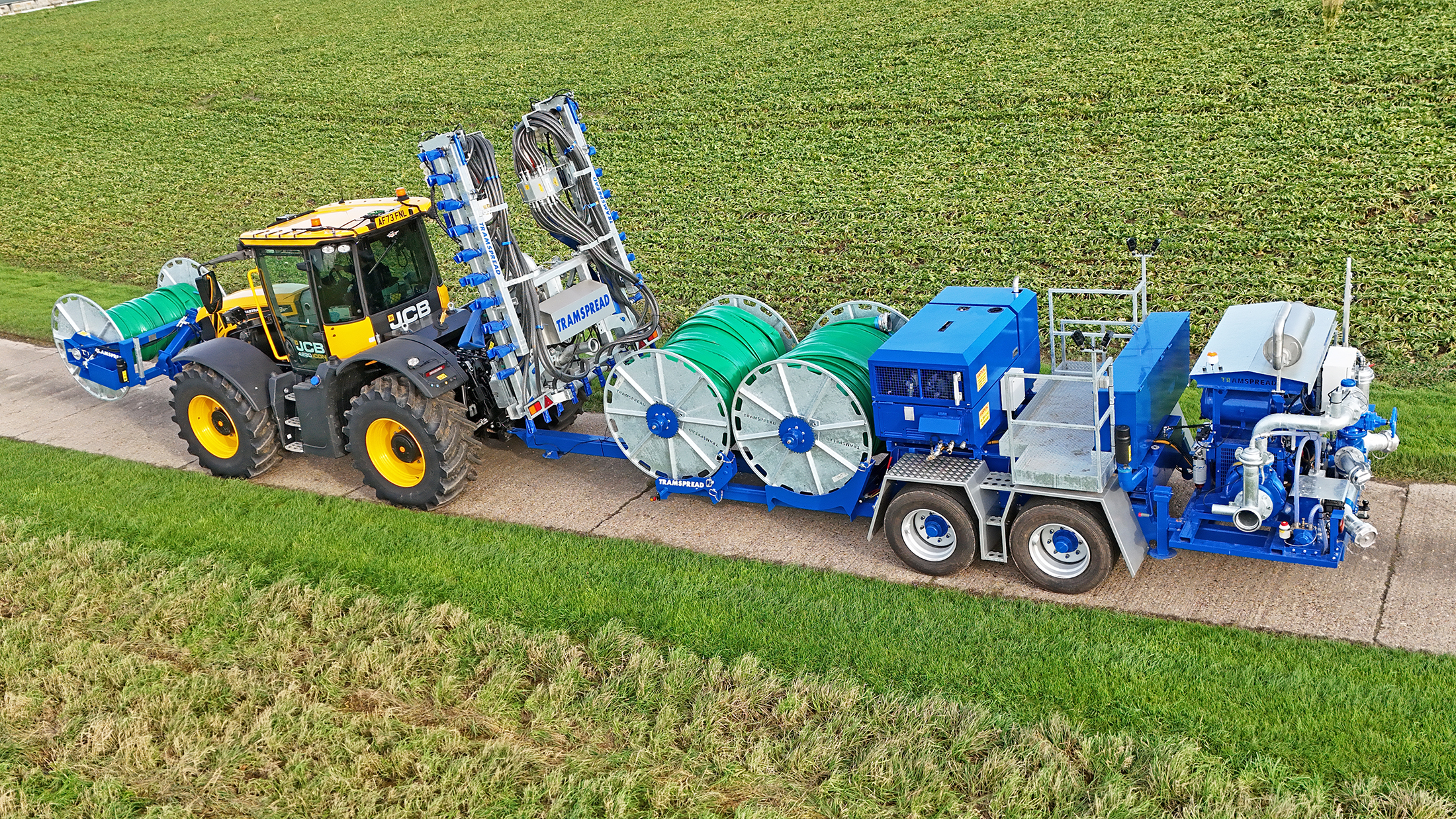

Contractor Trailer (twin-axle 50k/31mph)
The purpose-built Contractor Trailer EDPU is designed with the operator in mind. The pump unit is mounted low down to make it easy to connect the suction and delivery hoses.

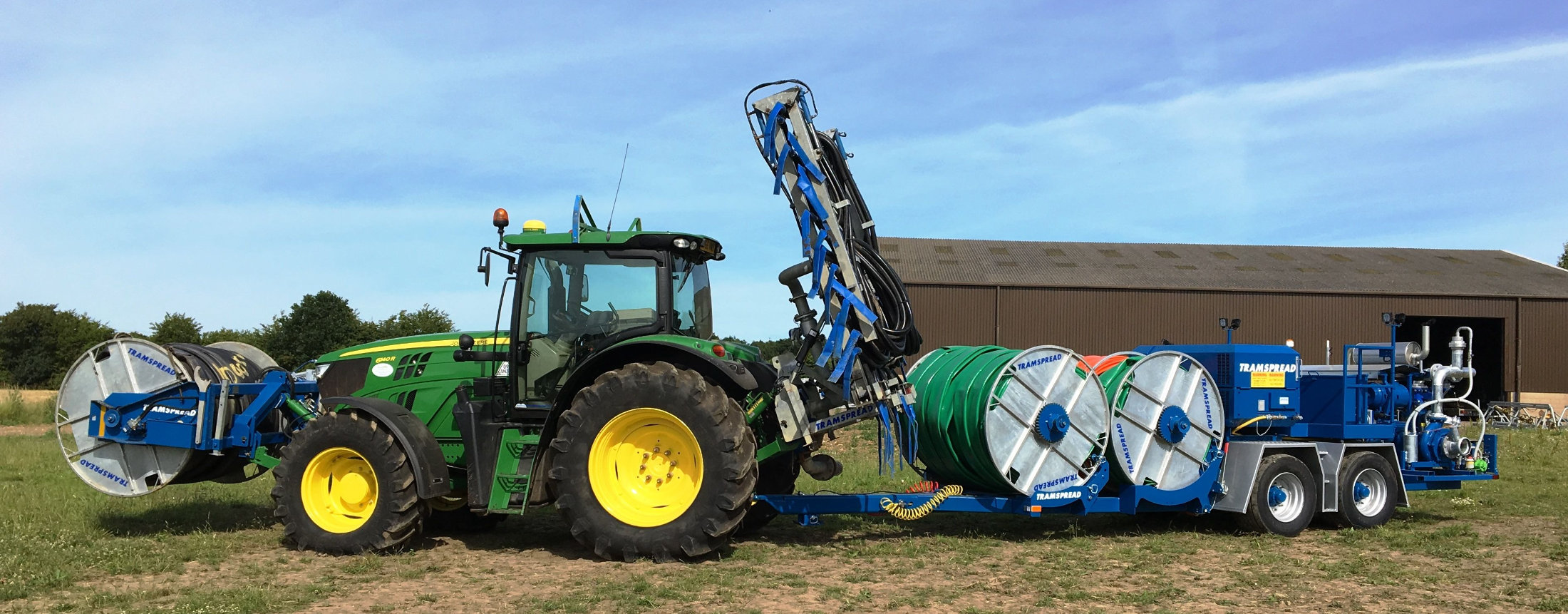

The front is designed to carry two Tramspread 1000m spools which are easily loaded into cradles using a front linkage mounted hose reeler. They are held in place with securing pins, needing NO straps, making loading quick, easy and efficient.
- 175hp six-cylinder F.P.T. engine with stainless steel exhaust.
- Bauer Magnum SX2000 slurry pump
- 6” inlet and 4” outlet terminating with the customer’s choice of coupling size/type.
- Honda driven Bauer priming unit
- 140, 180, 260 or 425 CFM compressor
- 900-litre fuel tank

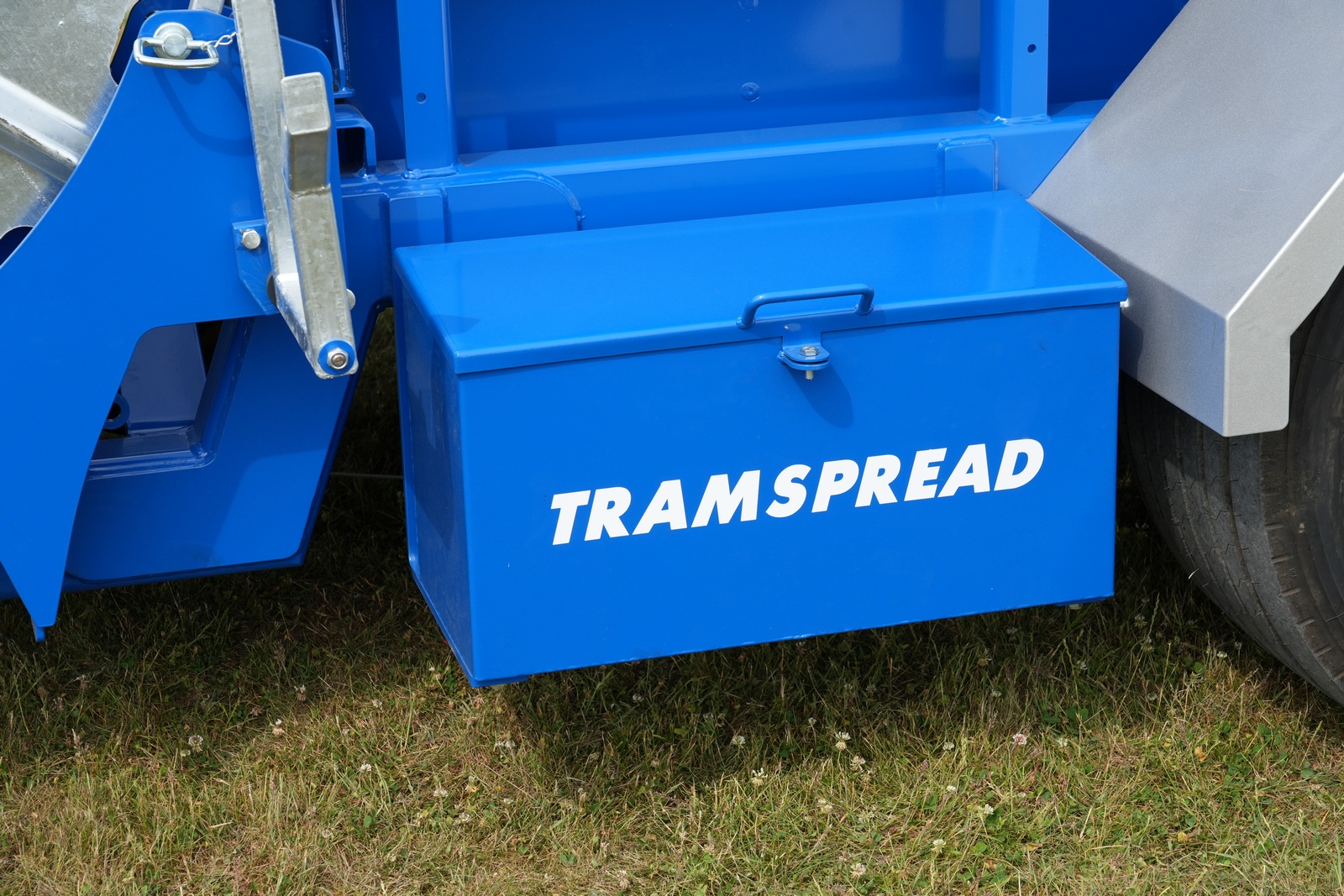

- Work/load area with two large tool boxes.
- Standard engine control panel (can be upgraded, see below).
- Carrying capacity for 2000m of hose
- Air brakes
- Twin sprung high-speed axles with 435/50R19.5 tyres
- Road and work lights
- 9.1m long x 2.48m wide.
Options:
- 238hp six-cylinder F.P.T. engine.
- Doda HD35 or Cri-Man pump.
- Suction hose transport kit.
- Tramspread GSM or SIL remote control and monitoring unit for one-person operation.
- Manual 4 or 5” pig (sponge ball) launcher.
- Remote controlled 4 or 5” pig (sponge ball) launcher.
- Other remote-control options: 360-degree video camera, flowmeter, fuel-level sensor, compressor remote control, pressure sensing and nurse tank level sensor.
