PTO DRIVEN PUMPS

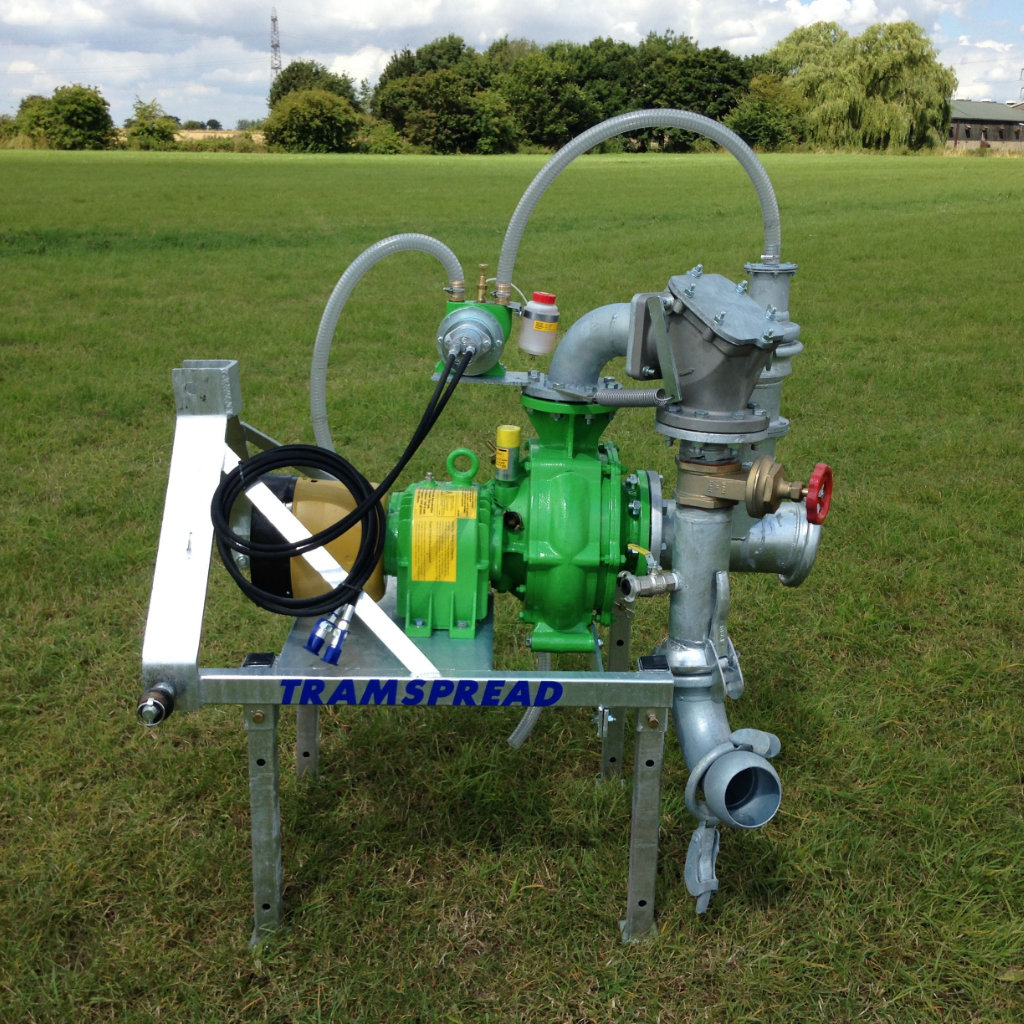

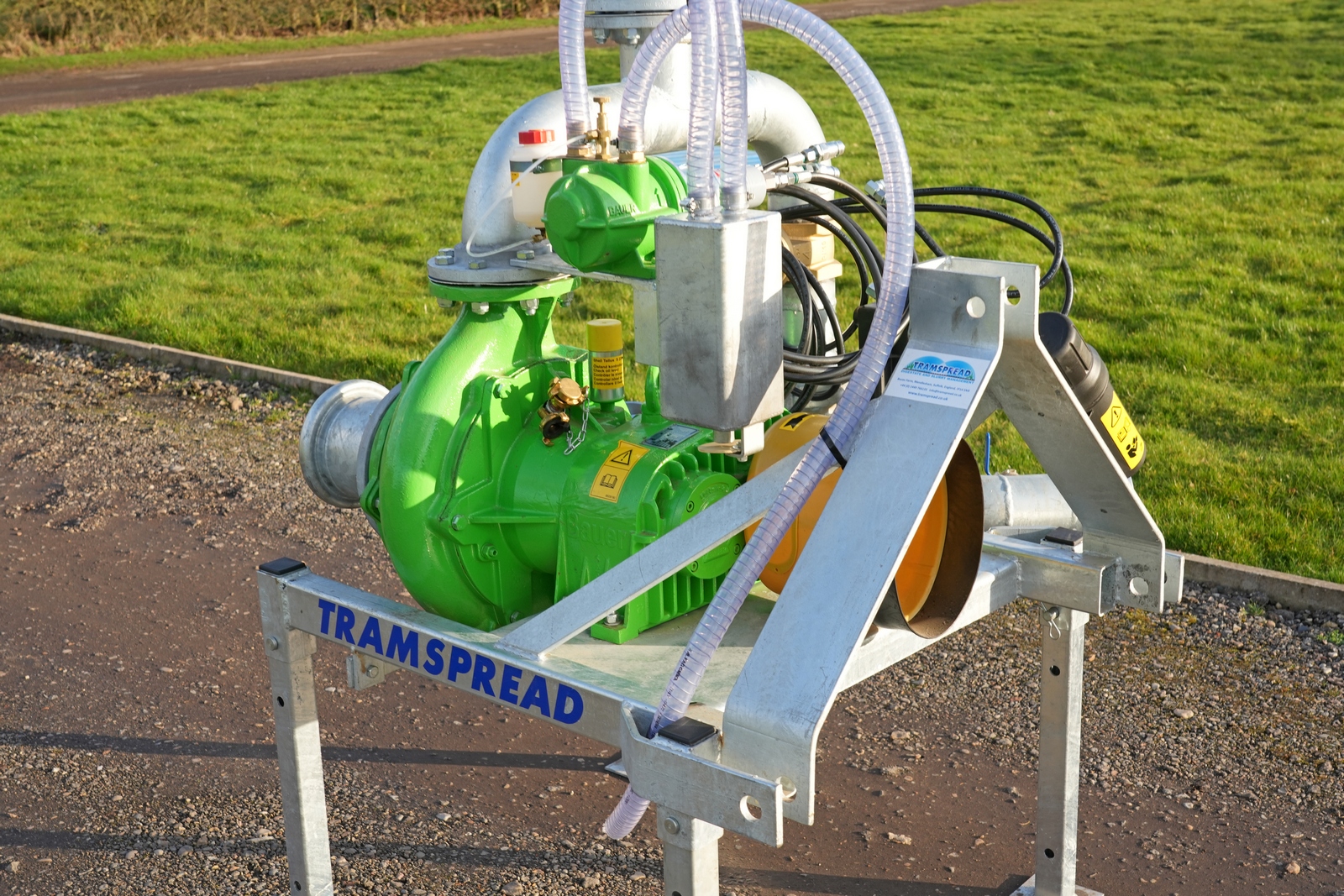

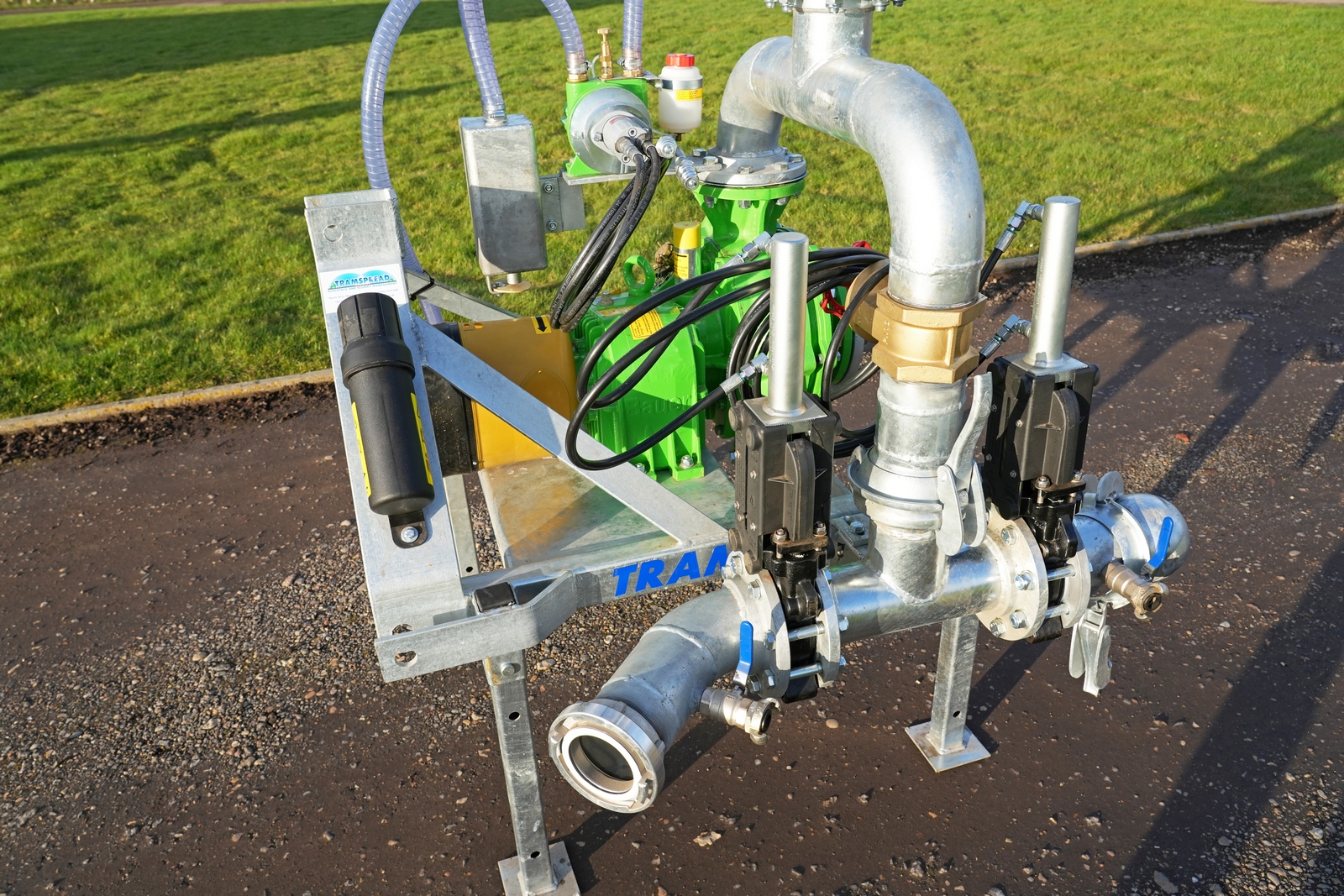

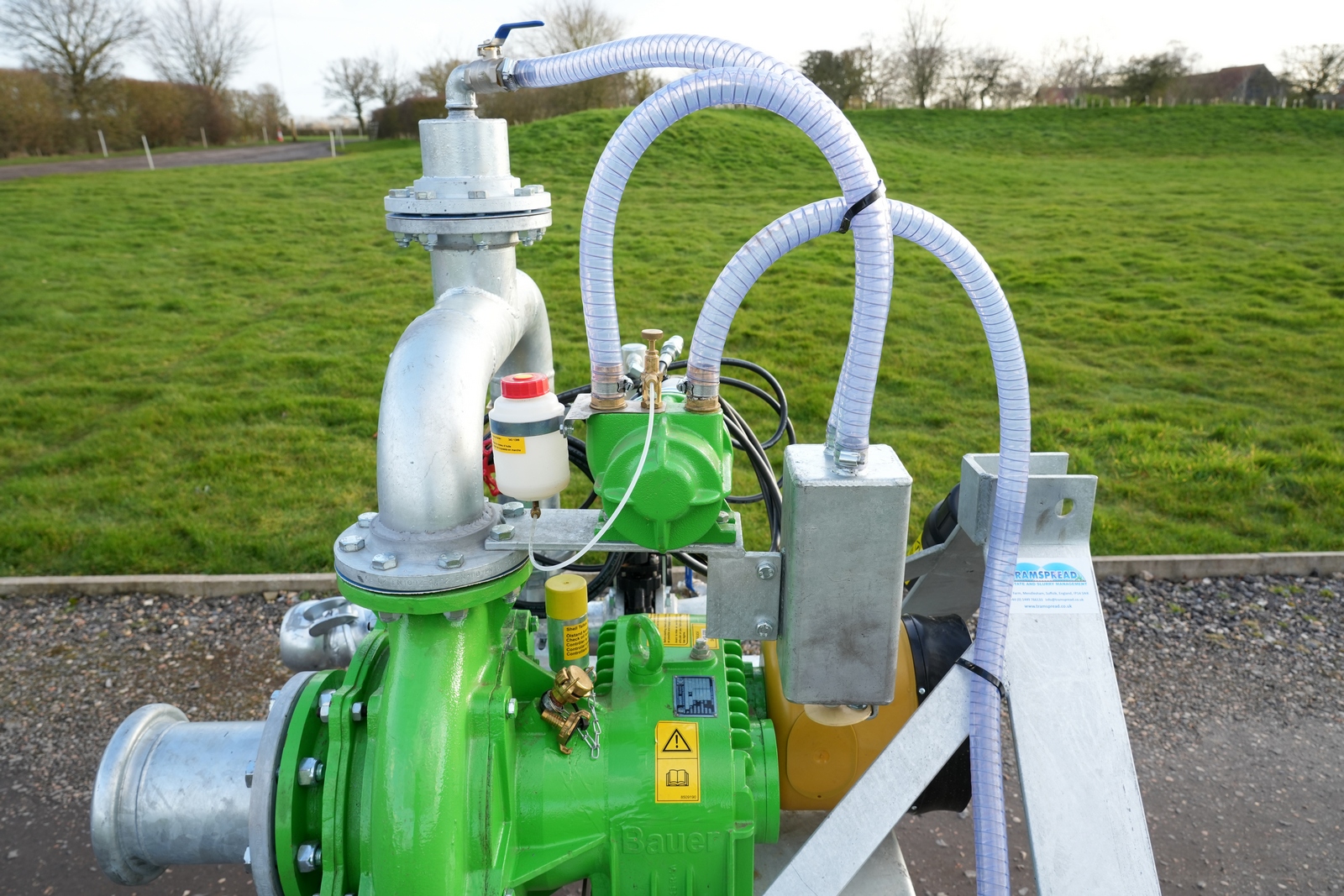

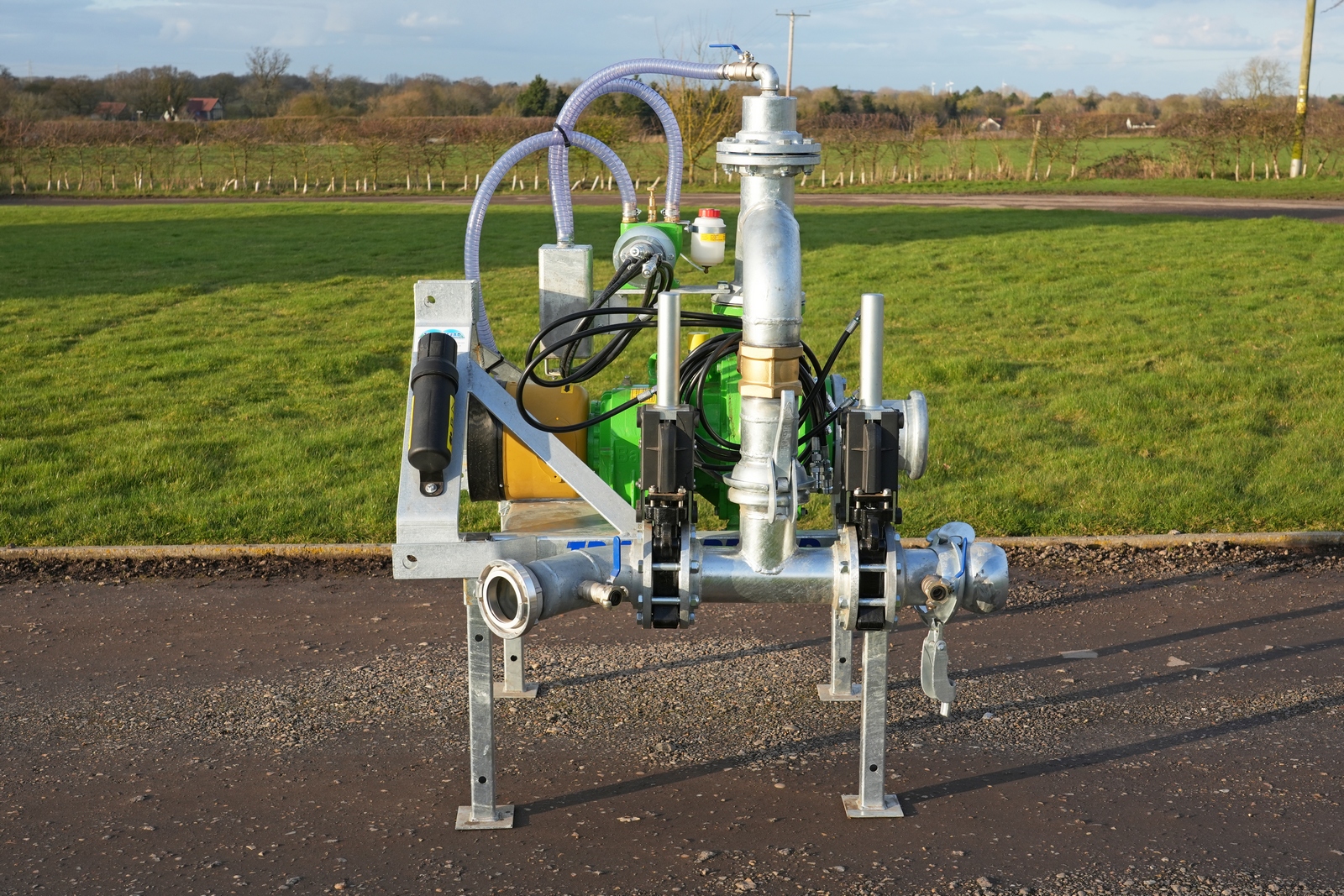

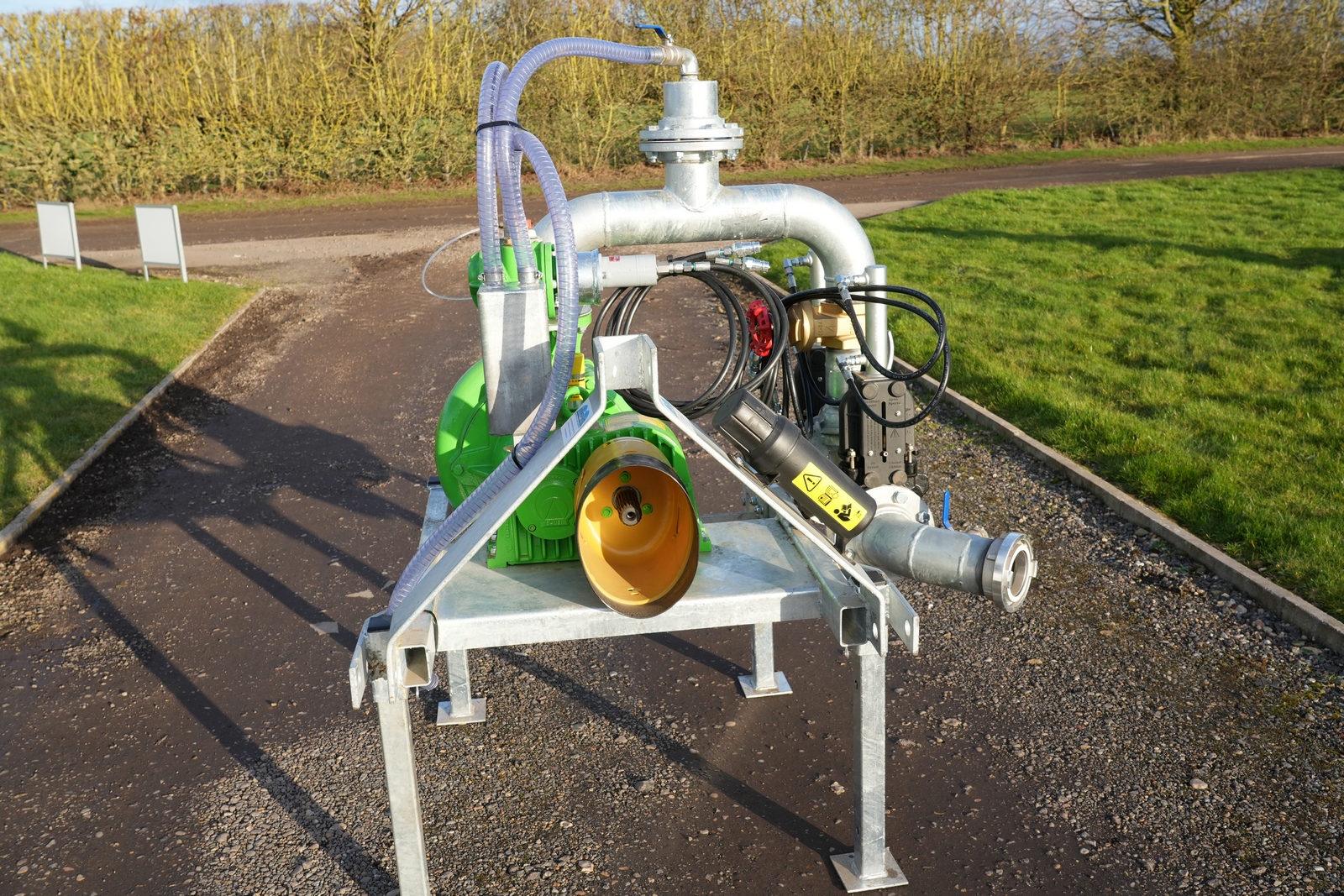

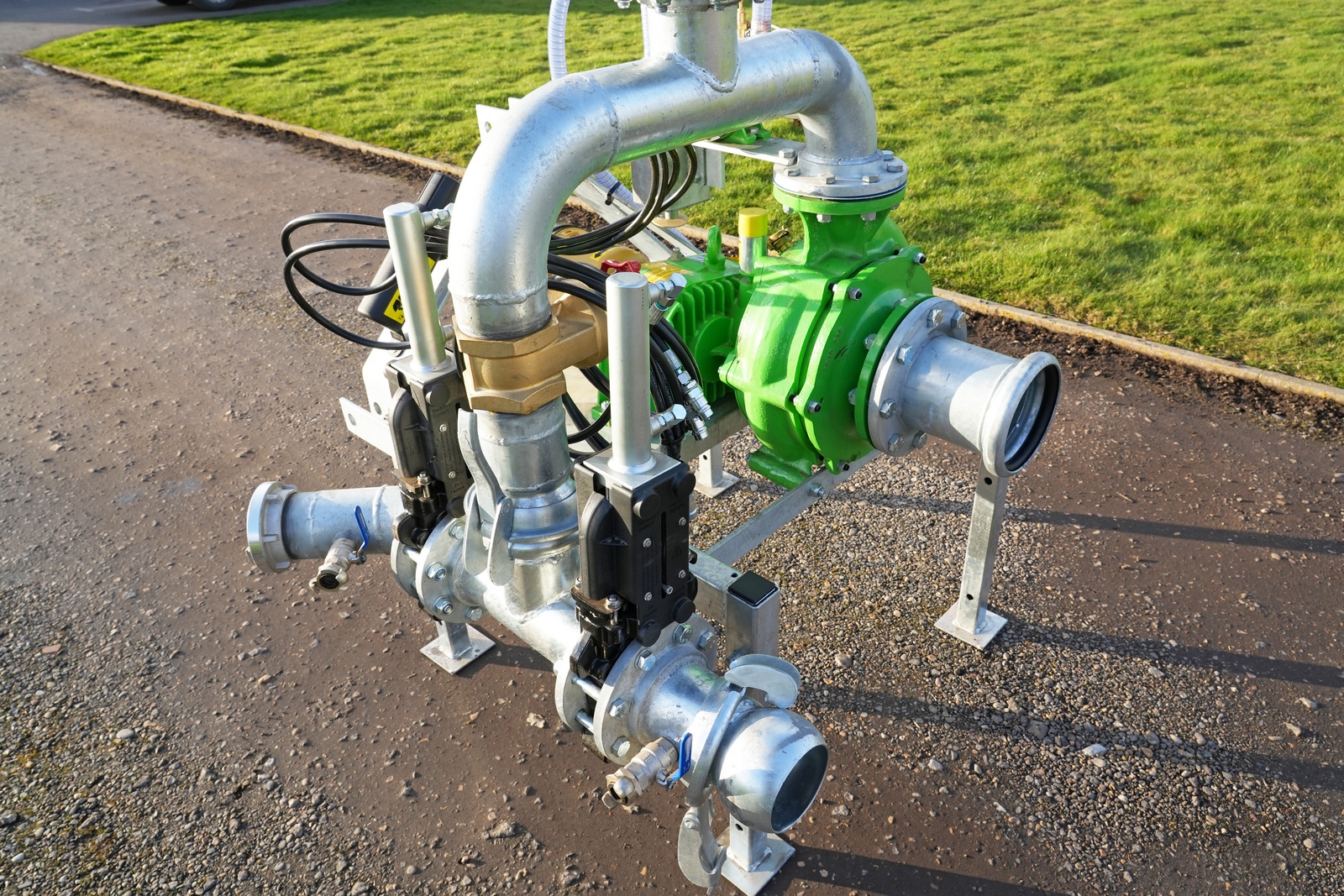

Bauer Magnum SX1000

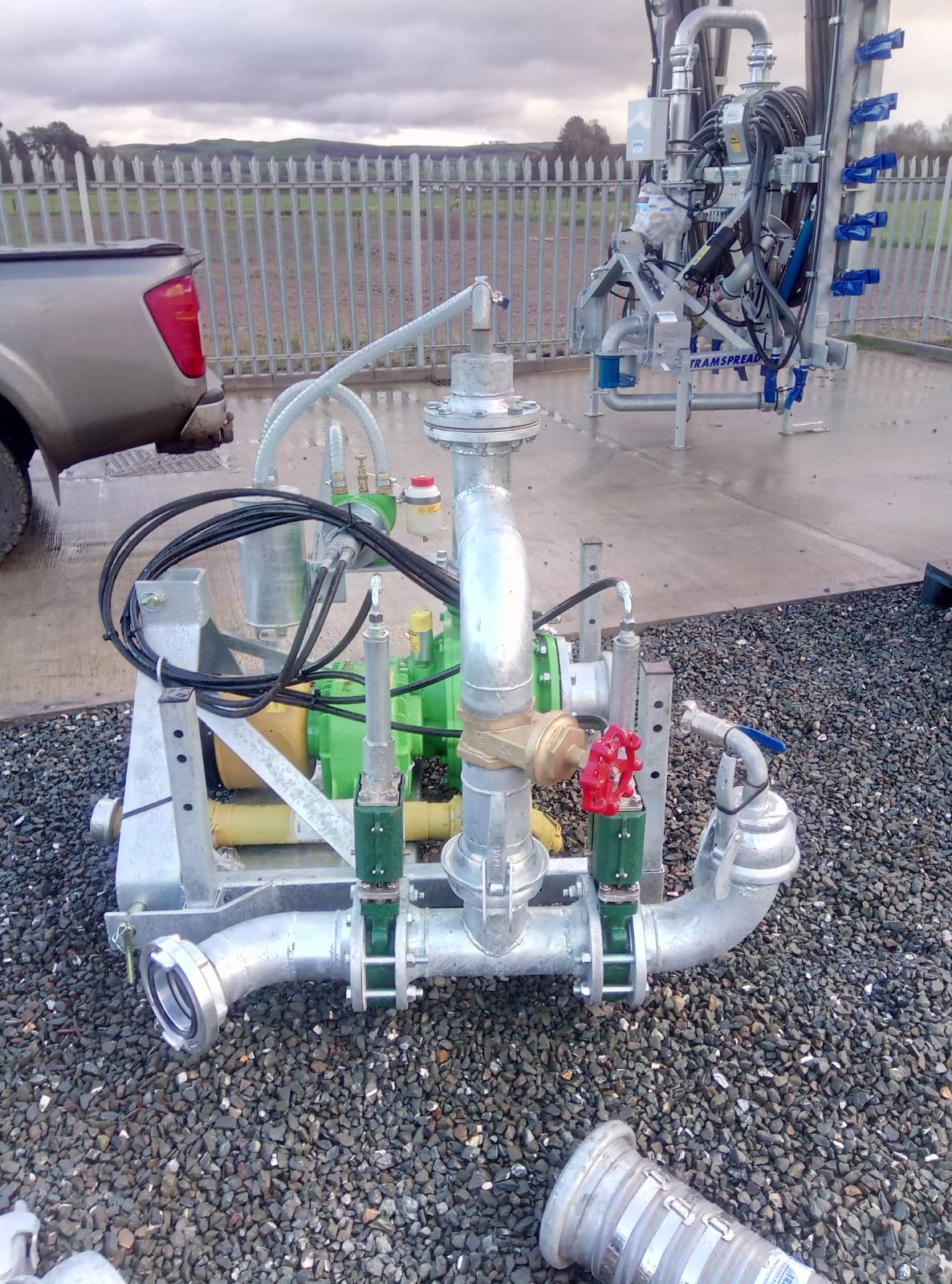

The Bauer Magnum SX1000 tractor-driven slurry pump is suitable for famers and contractors requiring a high-performance slurry pump to supply today’s longer umbilical systems. It has a minimum power requirement of 150hp and is supplied on a heavy duty three-point linkage frame with hydraulic primer, 6” suction inlet and 4” delivery pipework with gate valve and compressor coupling, plus return to store and sponge ball launcher incorporating two hydraulic sluice valves. PTO shaft supplied. (Download leaflet for performance curves)
- Easily handles up to 12% solids
- Capacity of up to 300 m3 /hour
- Manometric head of up to 140m
- High cutting performance
- Engineered for long life
- Efficient and economical
- Low operating costs
- Easy maintenance
- PTO input 1000rpm
- Self-primer (optional equipment)
- Bespoke delivery pipework arranged on customer request (optional)
Magnum slurry pumps are designed with a special chopper on the suction side. This chopper guarantees trouble-free operation even if the slurry contains solids like straw, fibrous material and clots or sludge up to not more than 12%.

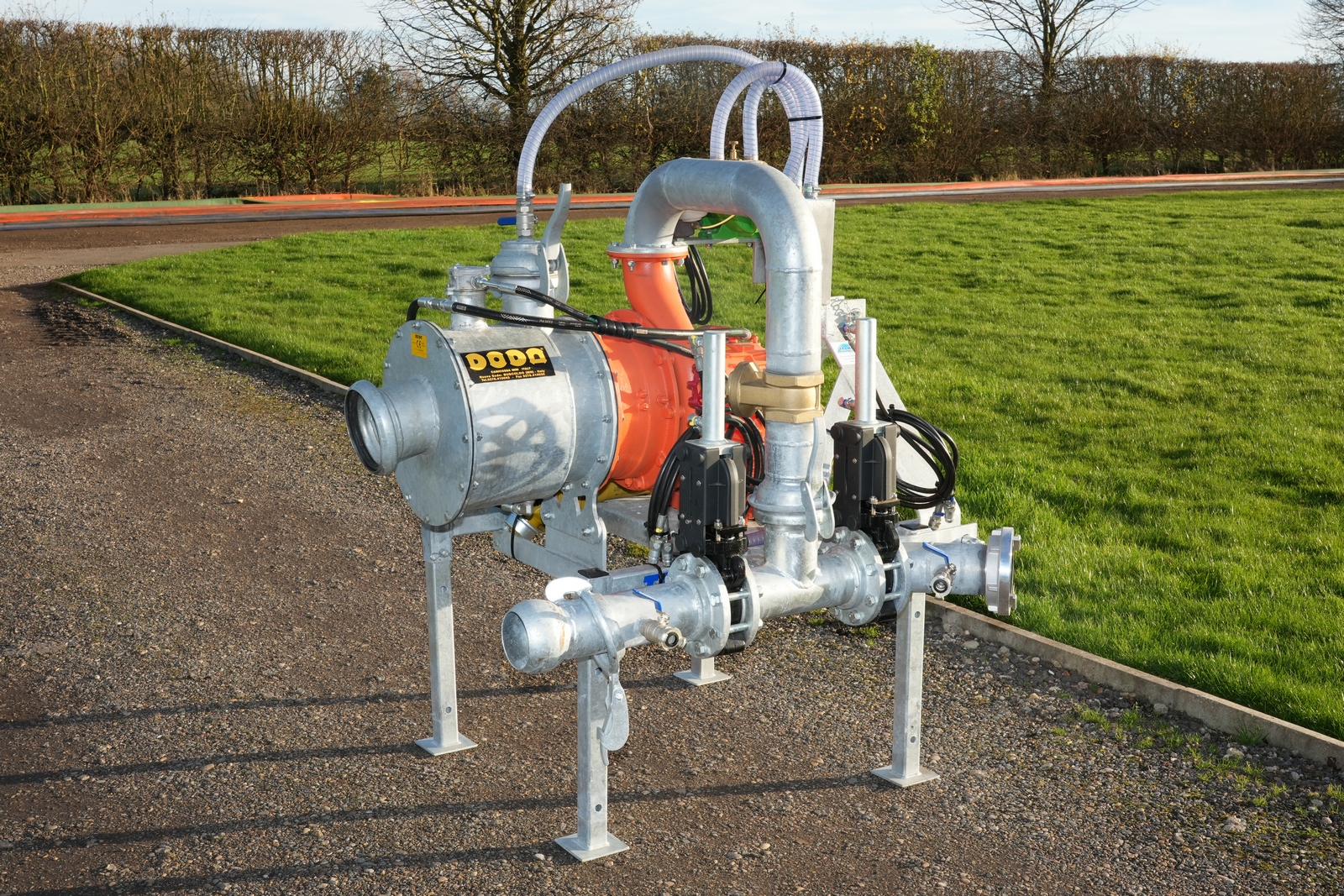

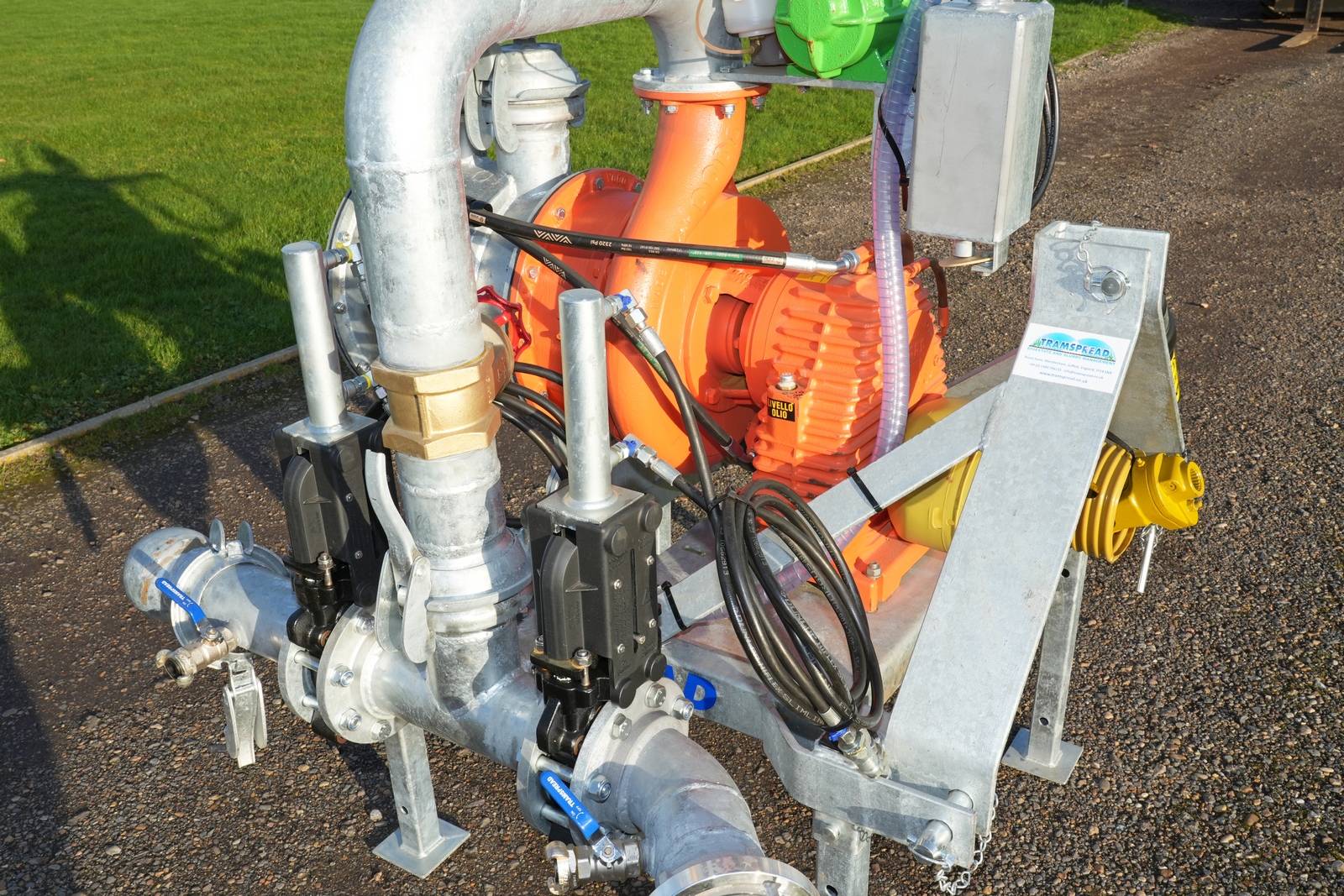

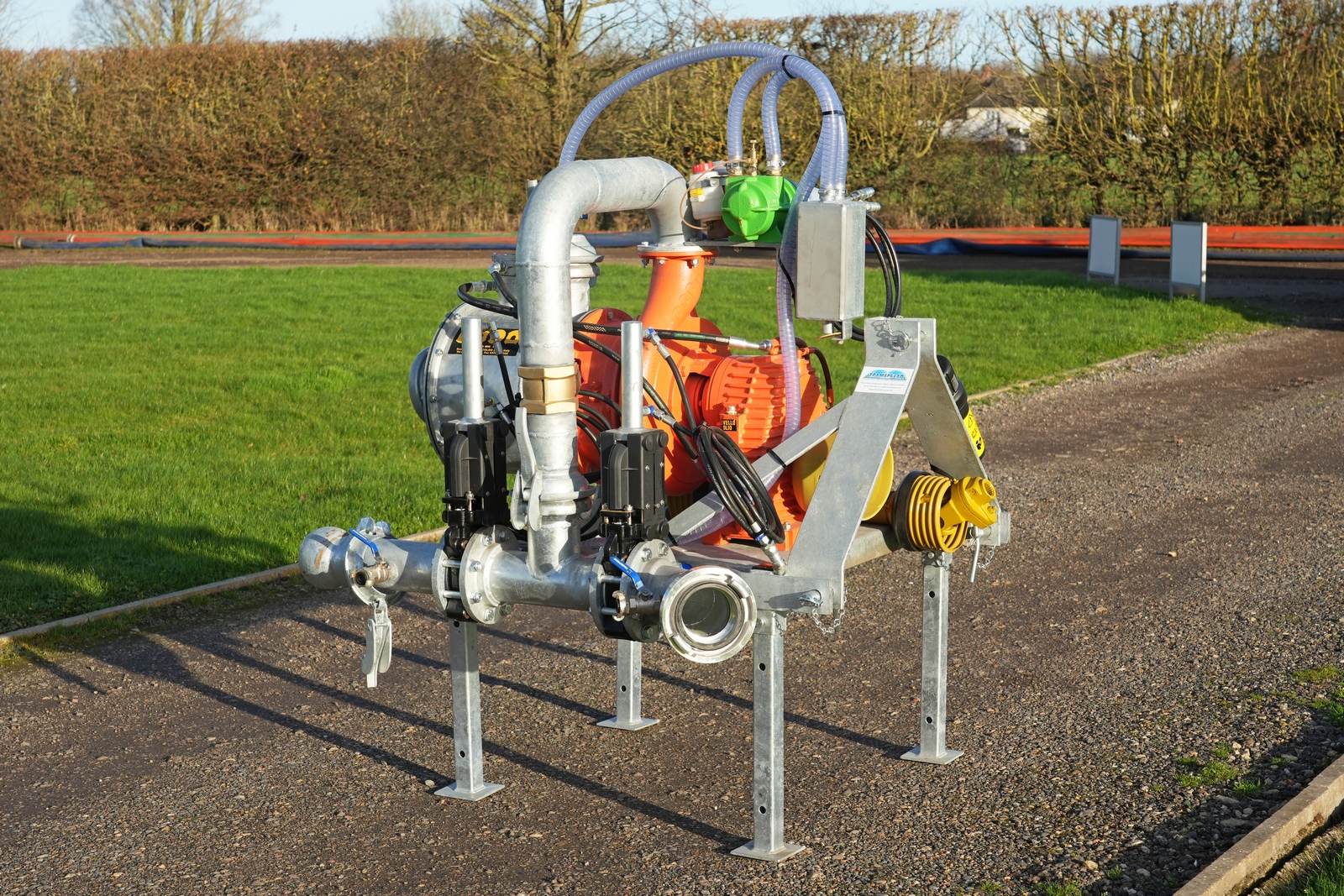

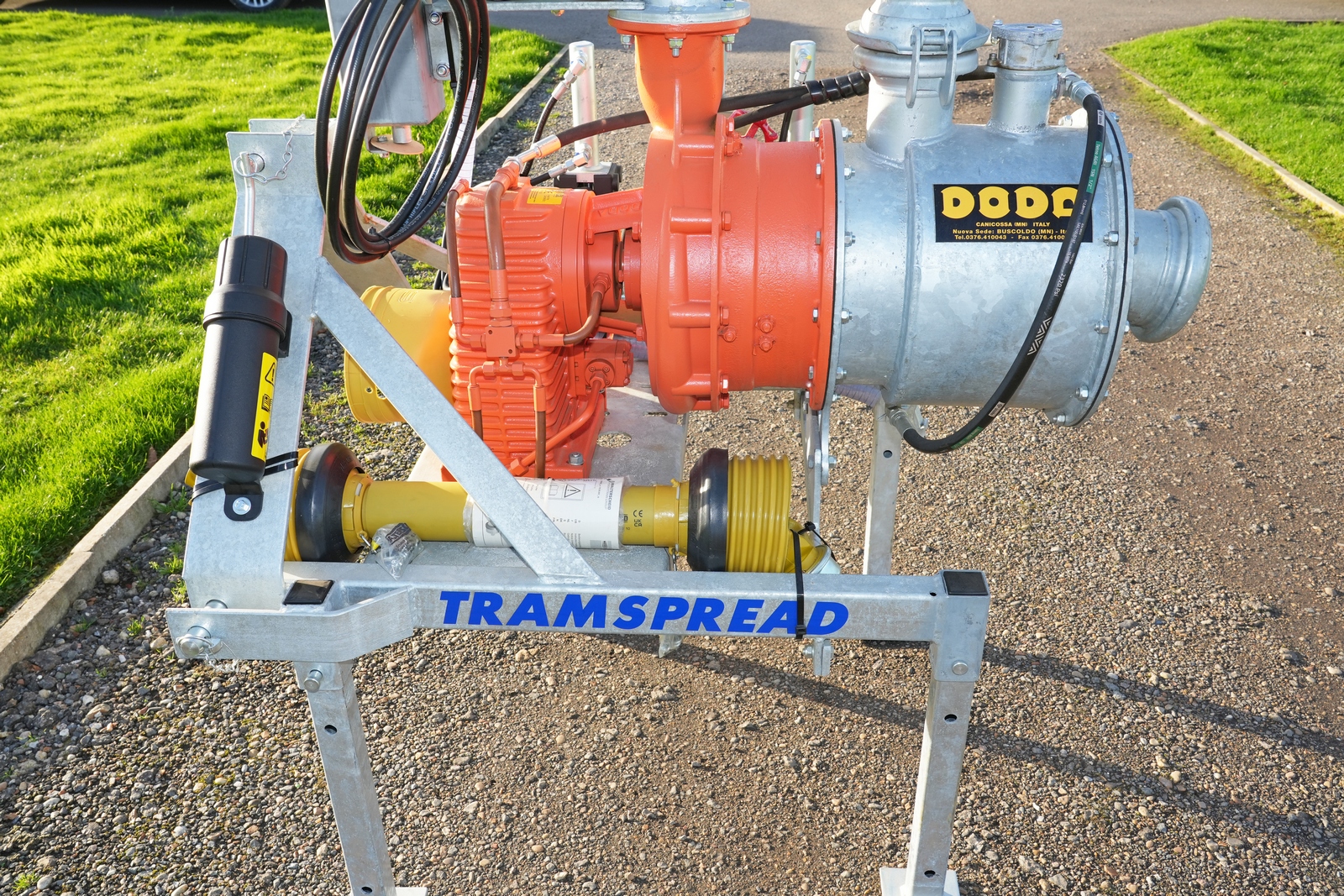

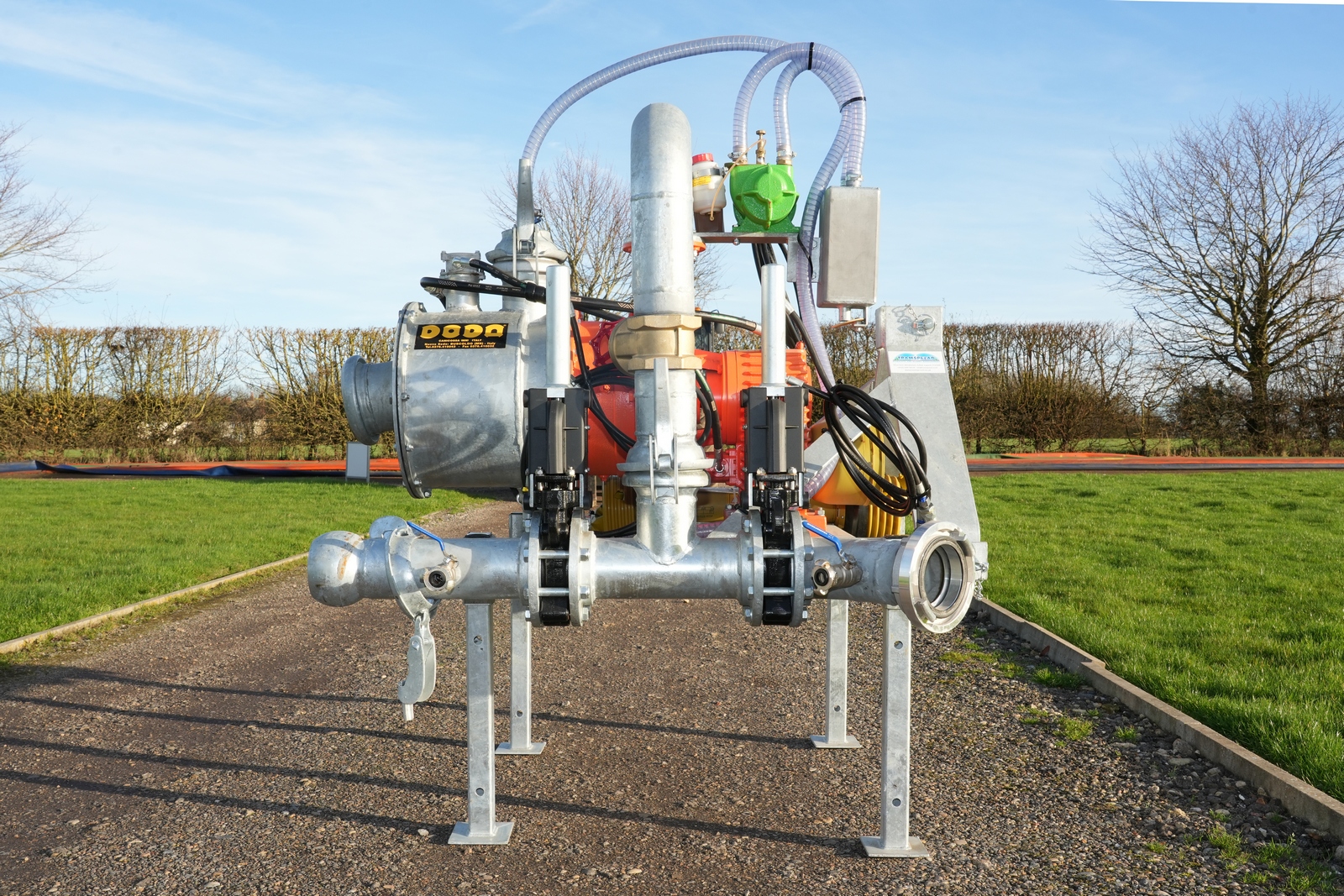

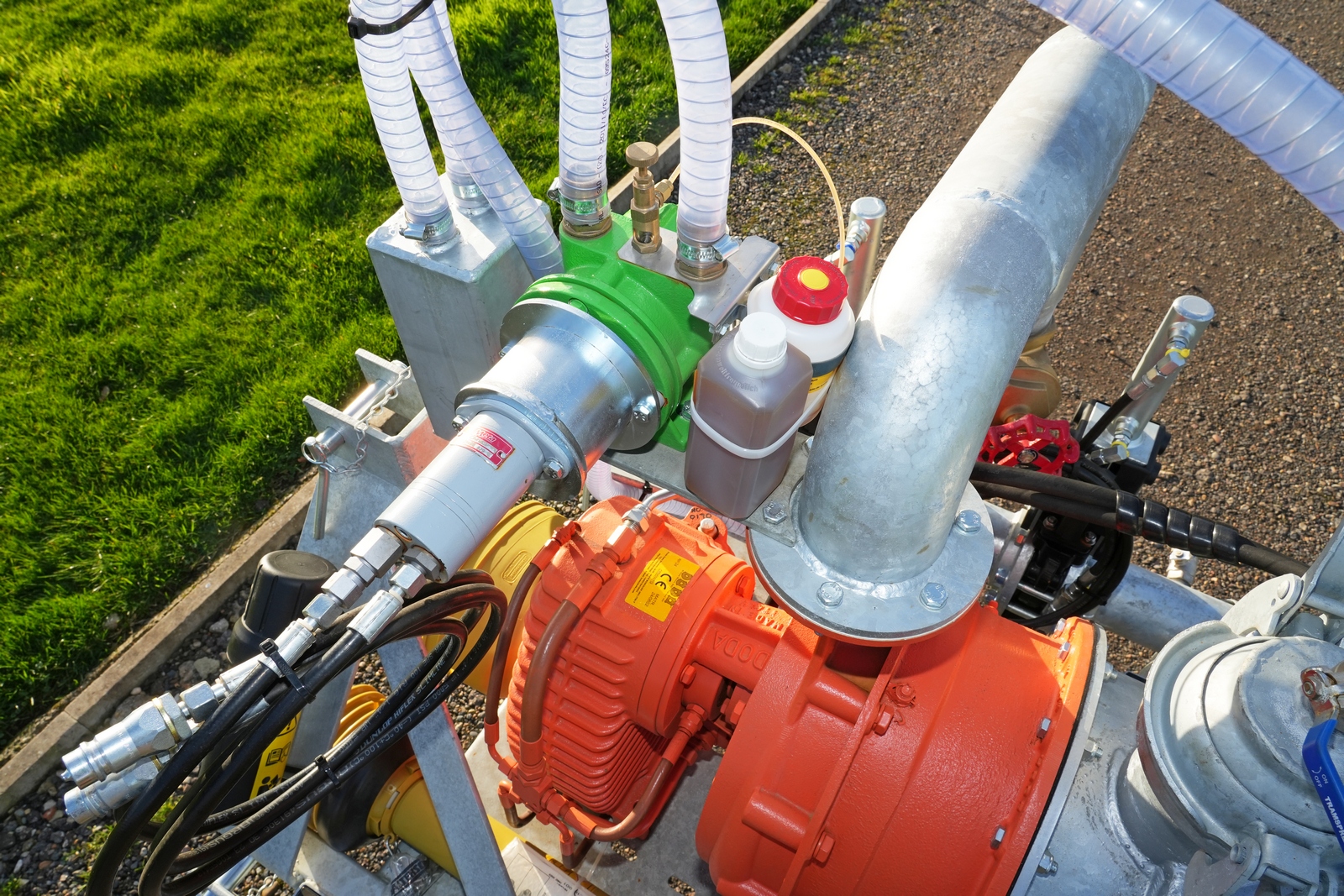

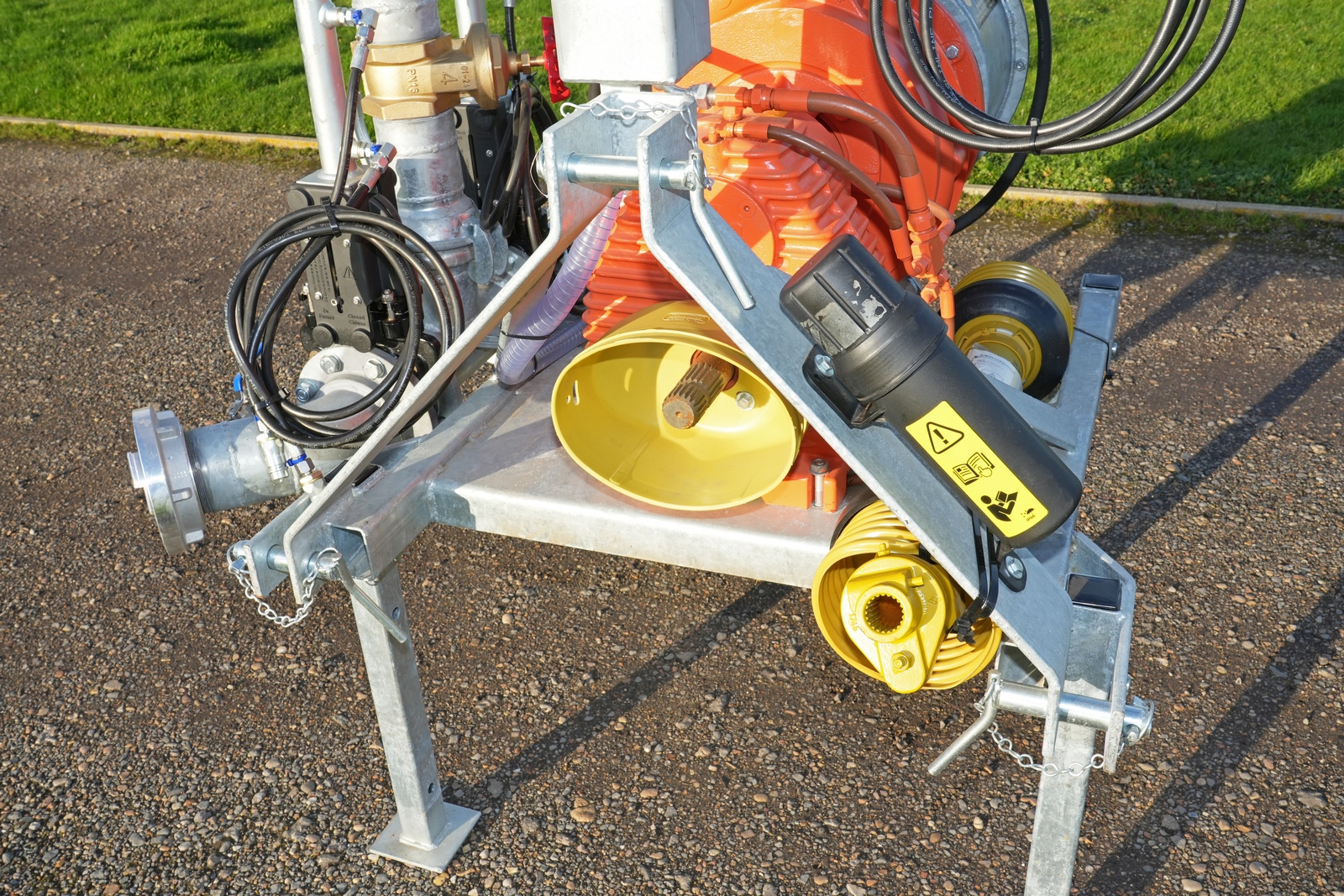

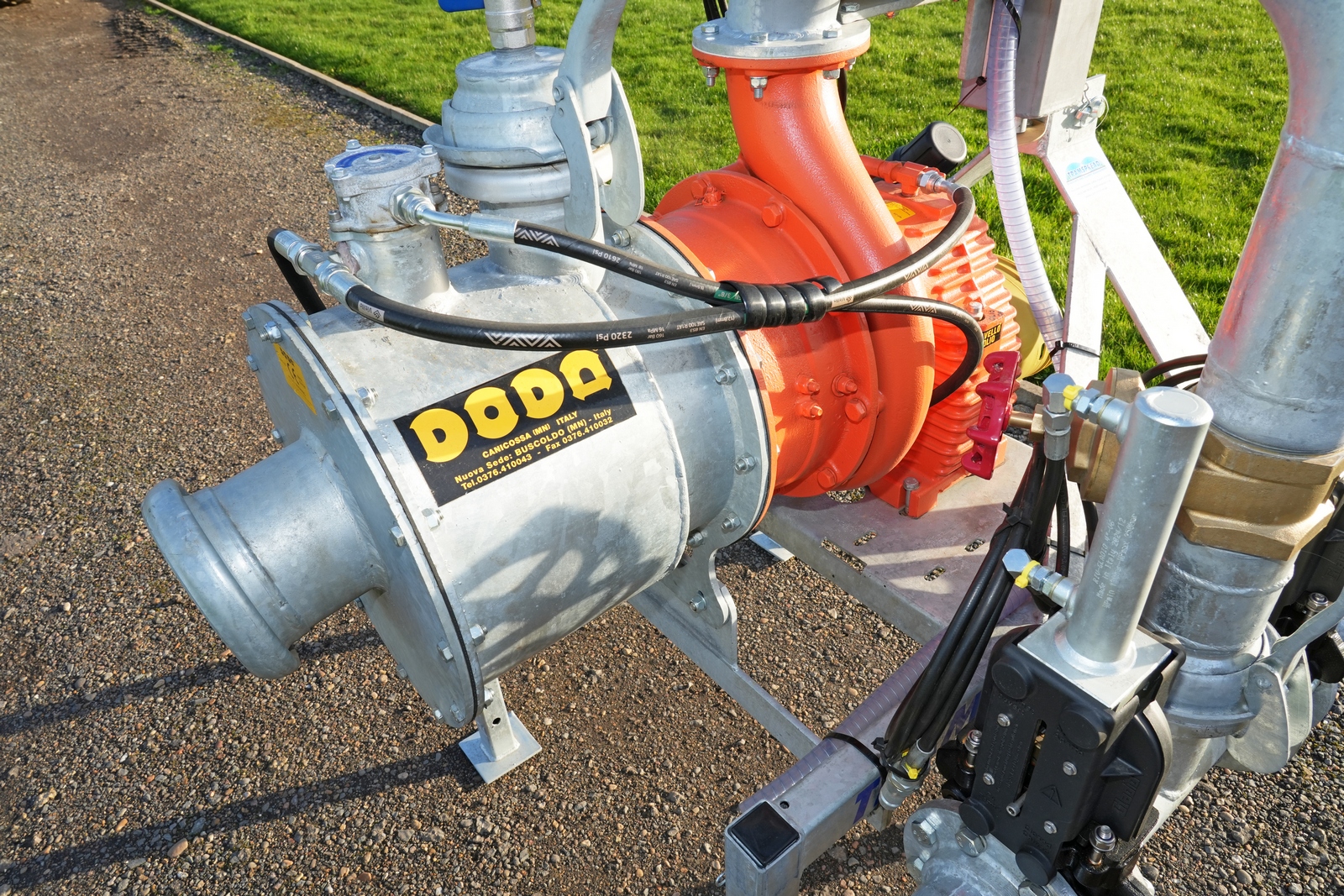

Doda L35 HD 1:2.73
The Doda L35 HD 1:2.73 tractor driven slurry pump is suitable for farmers and contractors requiring a high-performance slurry pump to supply today’s longer umbilical systems. It has a minimum power requirement of 155hp and is supplied with a hydraulic primer, 6” inlet, 4” delivery pipework with gate valve and compressor coupling plus return to store and sponge ball launcher incorporating two hydraulic sluice valves. PTO shaft supplied.
- Capacity of up to 350 m3 /hour
- Manometric head of up to 170m
- High cutting performance
- Easy maintenance
- PTO input 1000rpm
- Bespoke delivery pipework arranged on customer request (optional)
Bauer Magnum SM540
The SM540 tractor driven slurry pump is a cost-effective option and is suited to transfer work and small umbilical systems. It has similar characteristics as the SX1000 but lower output and power requirement whilst retaining the same engineering quality.
For more information on Bauer pumps please contact us.
