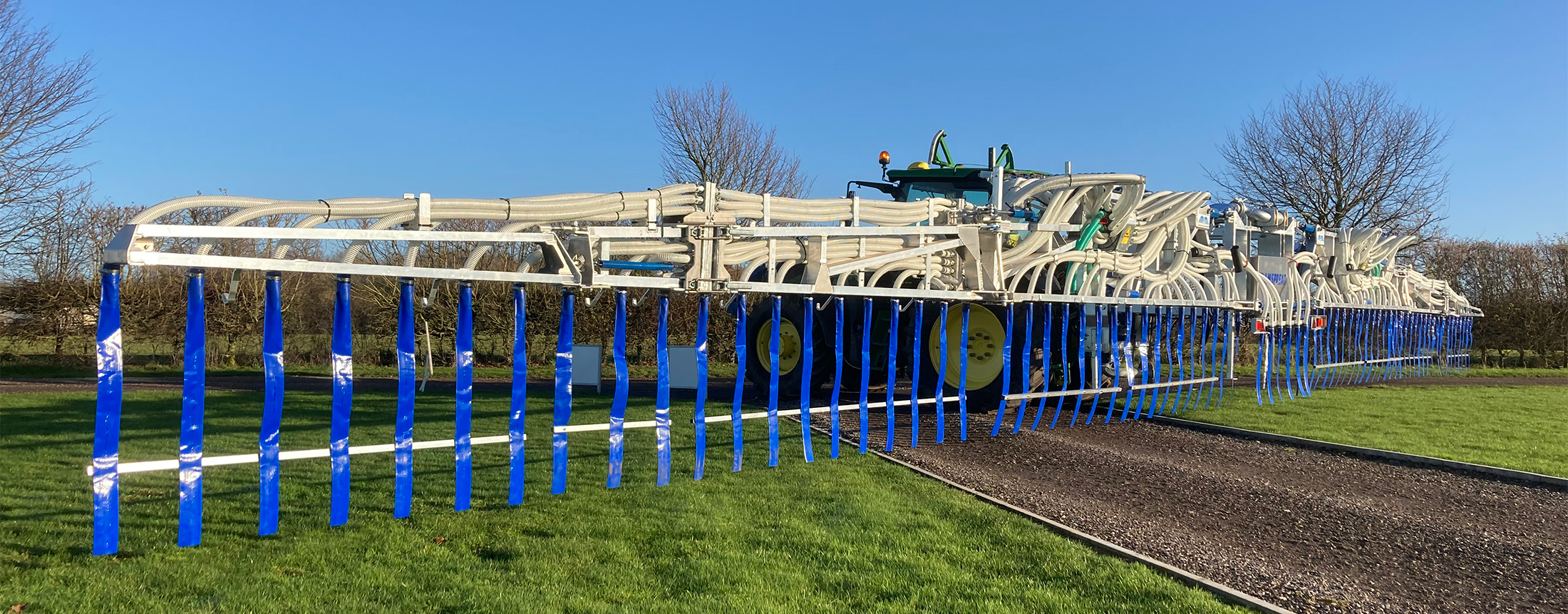

SUFFOLK DRIBBLE BARS
All Tramspread Dribble Bars are designed to accept a flowmeter and NIR manure sensor.

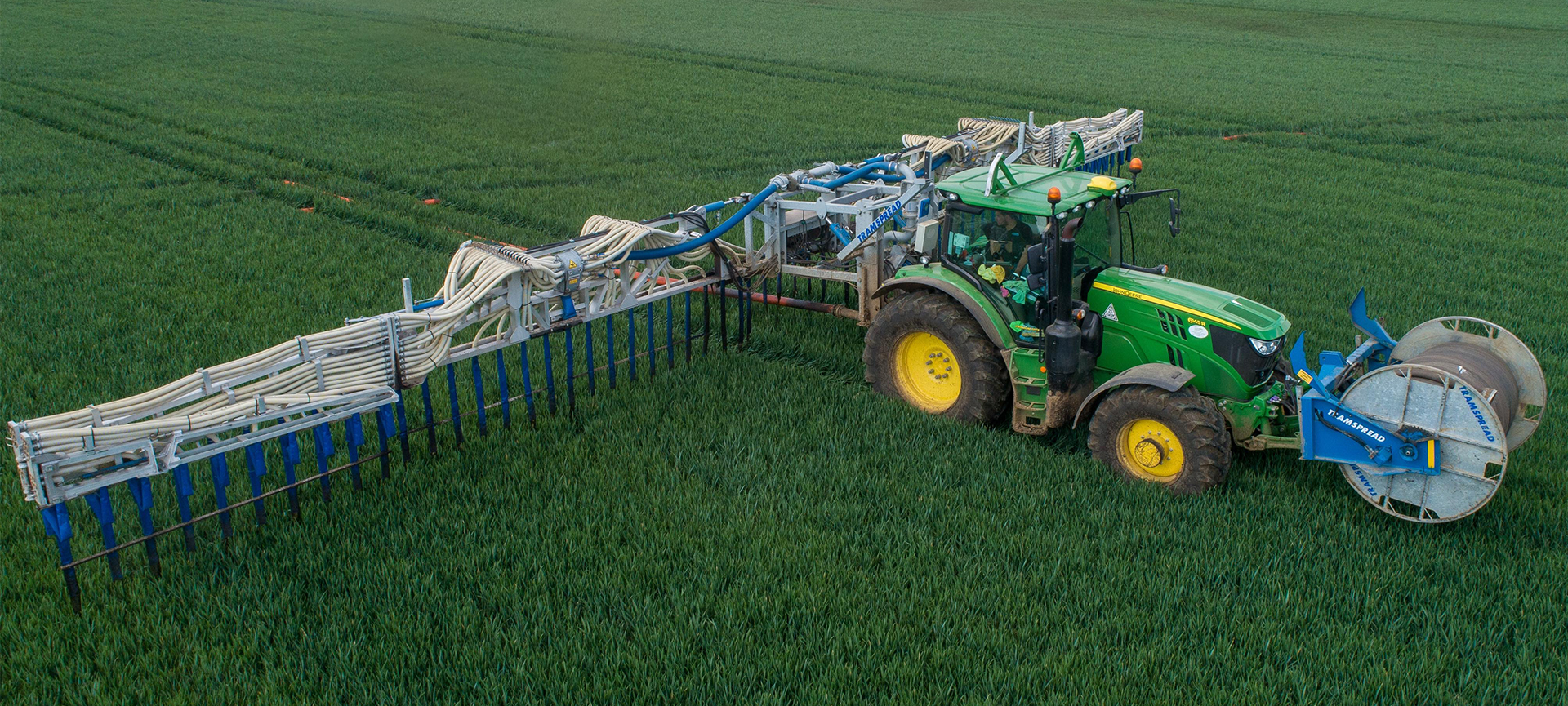

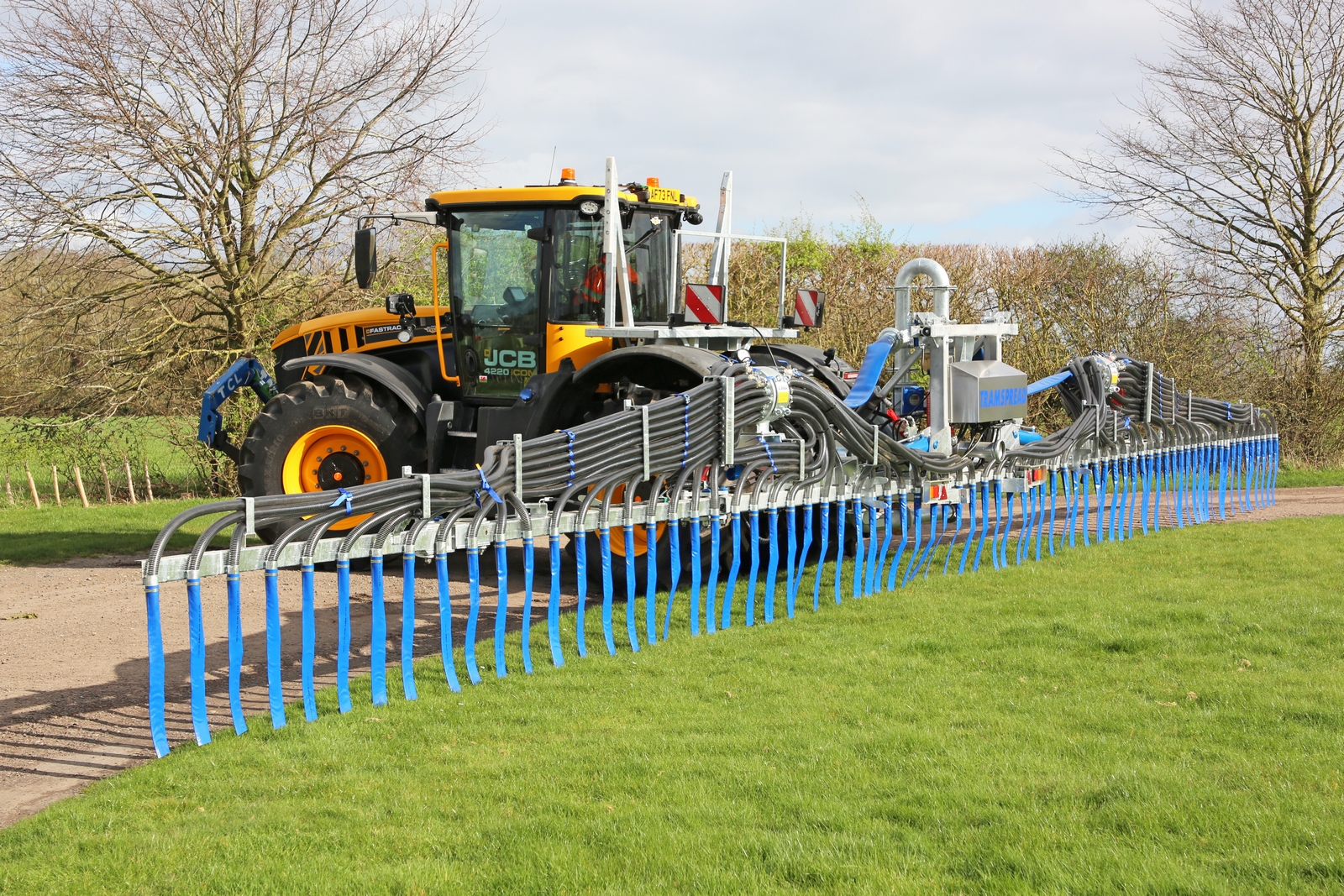

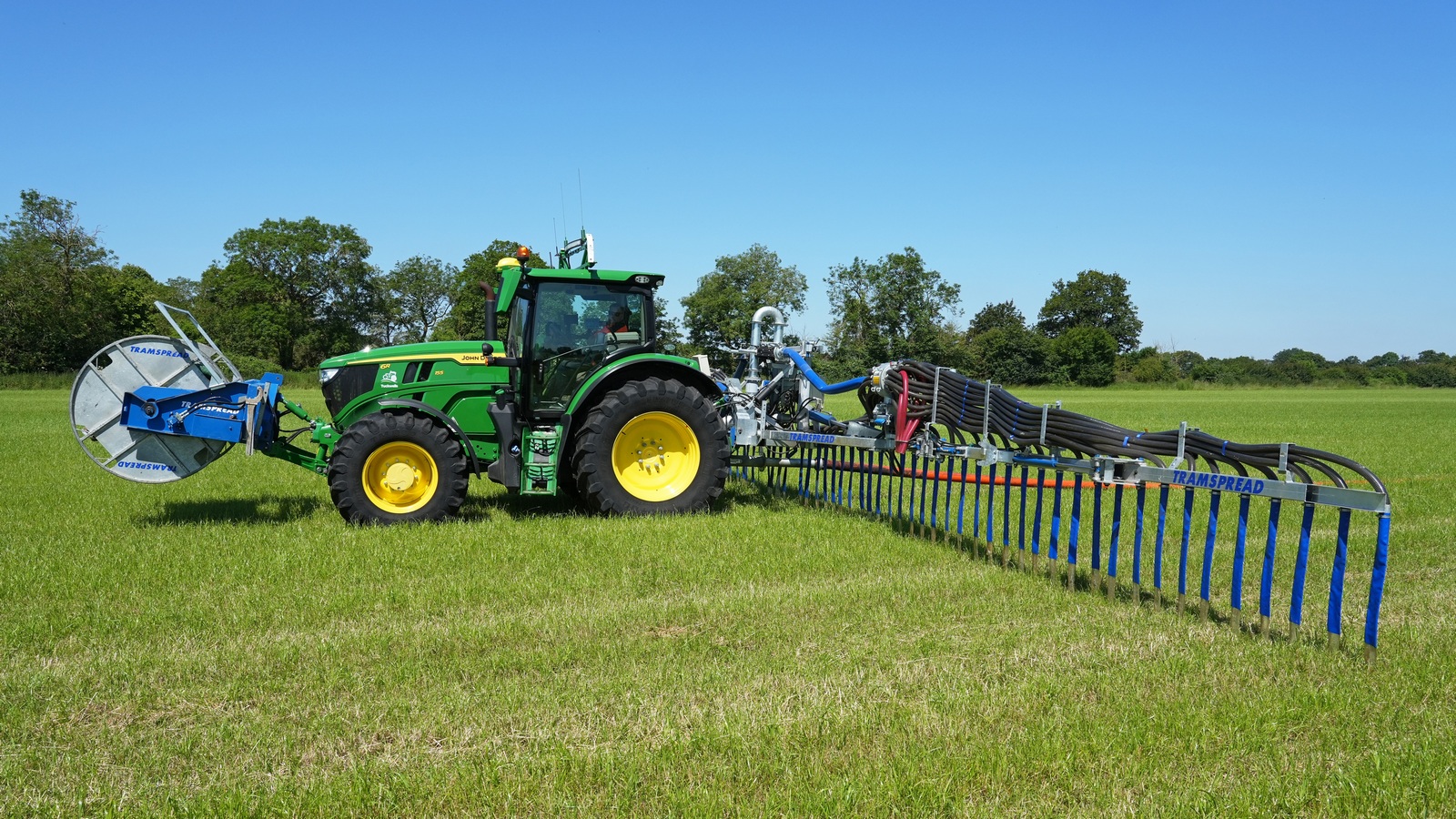

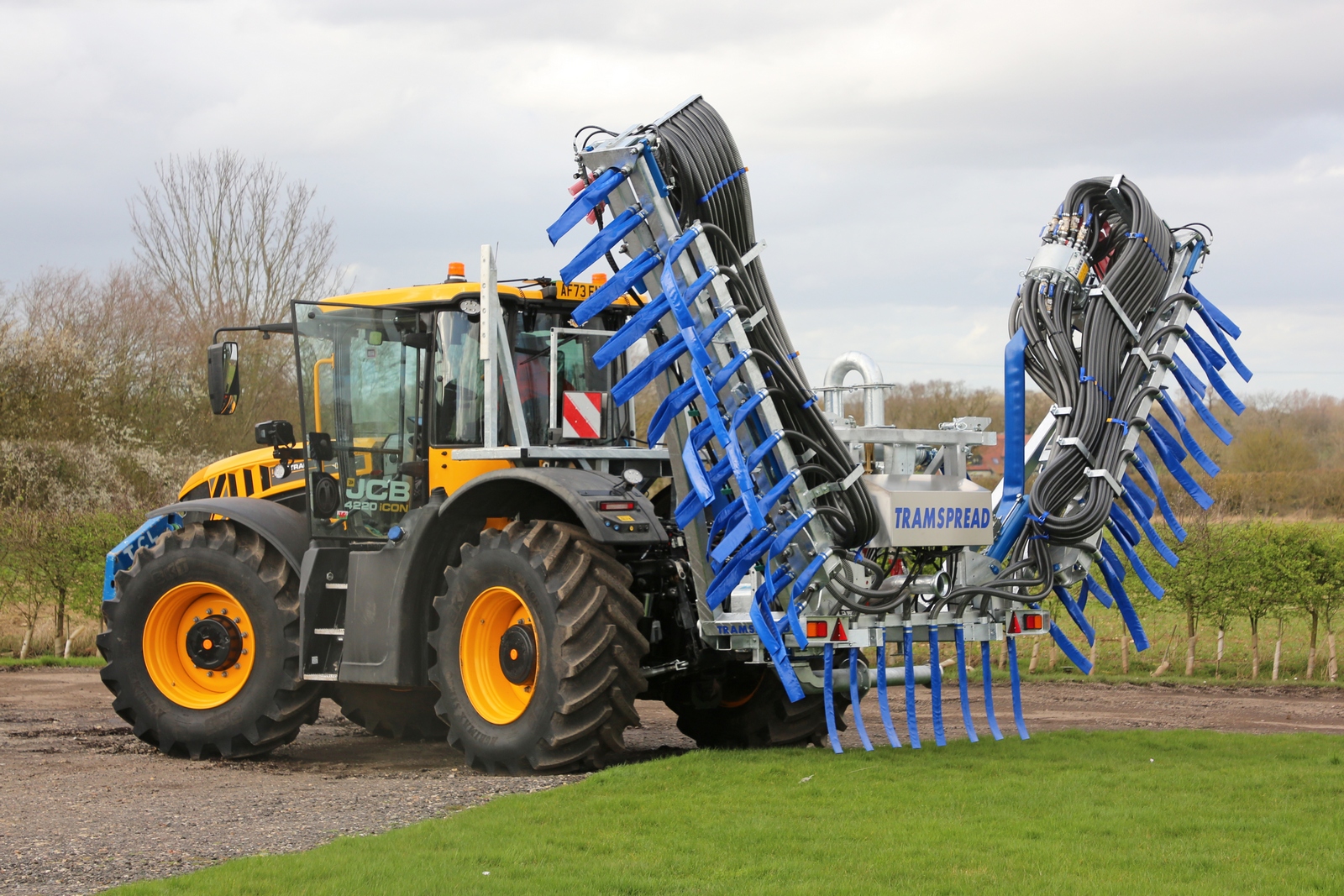

18 / 24m Twin Macerator Suffolk Dribble Bar
- Folds to 18m working width

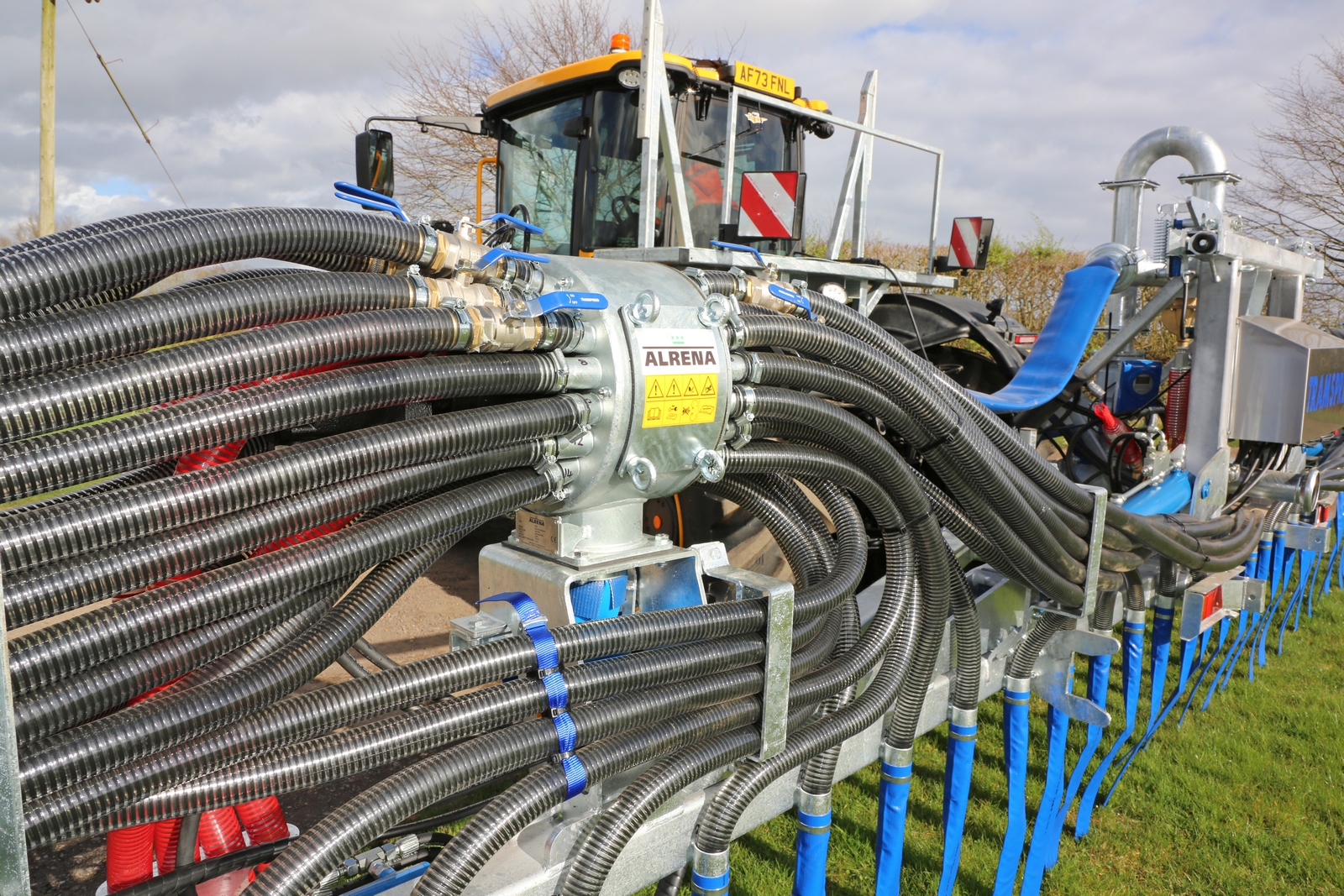

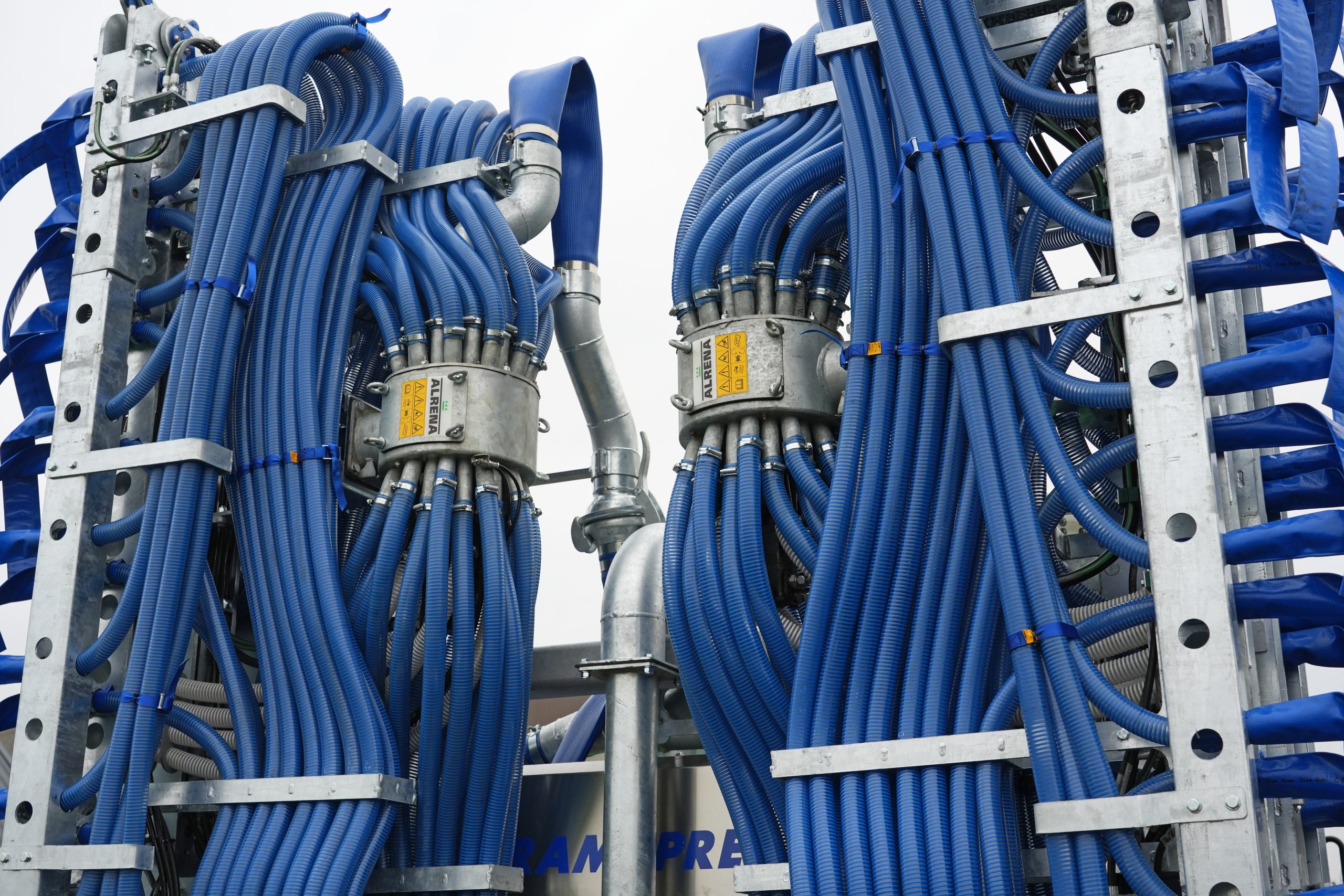

- 2 x Vogelsang ECQ or Alrena distributors/macerators
- Dribble outlets 300mm apart

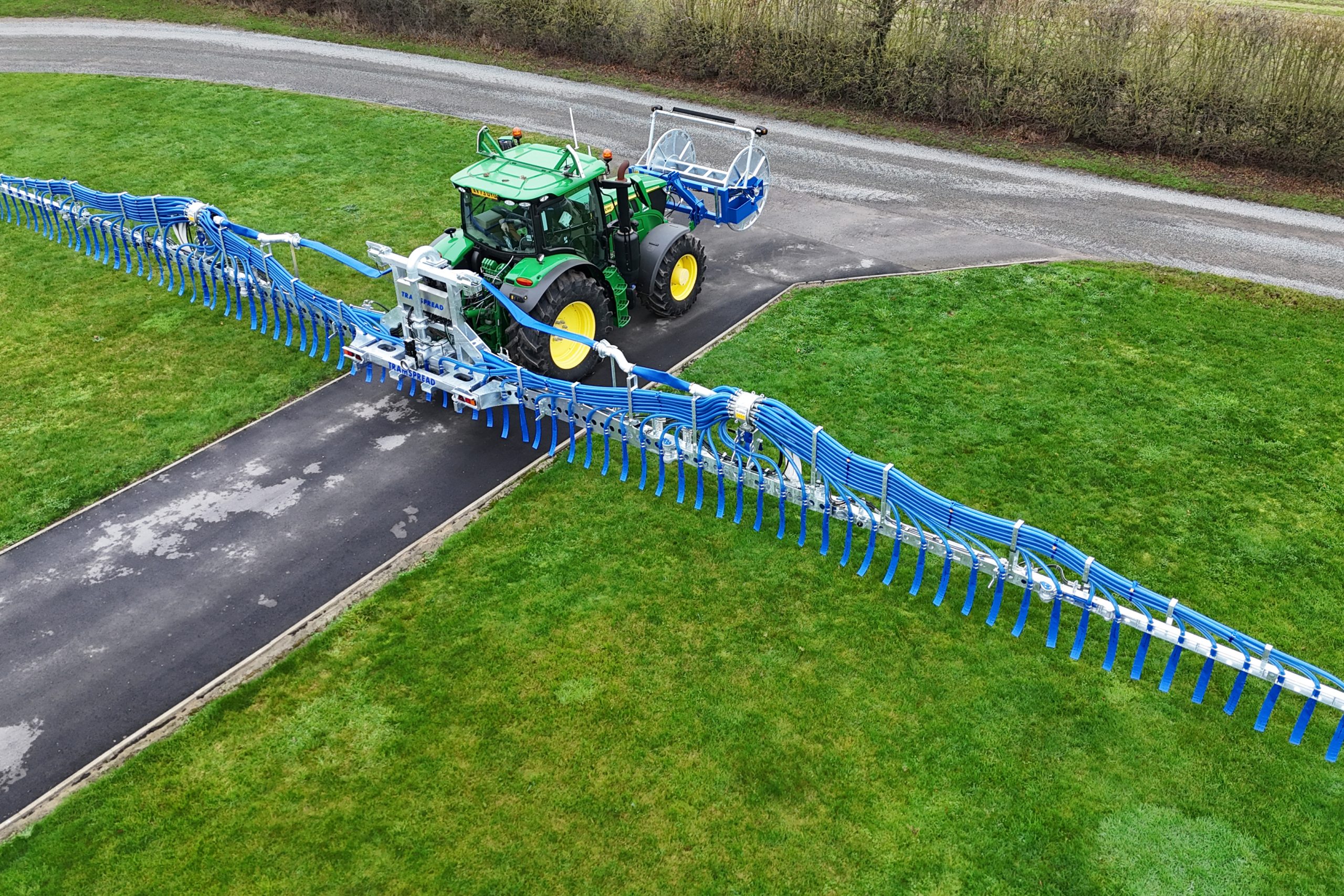

- Aluminium booms with left and right geometric control
- Full electro-hydraulic control via in-cab control box

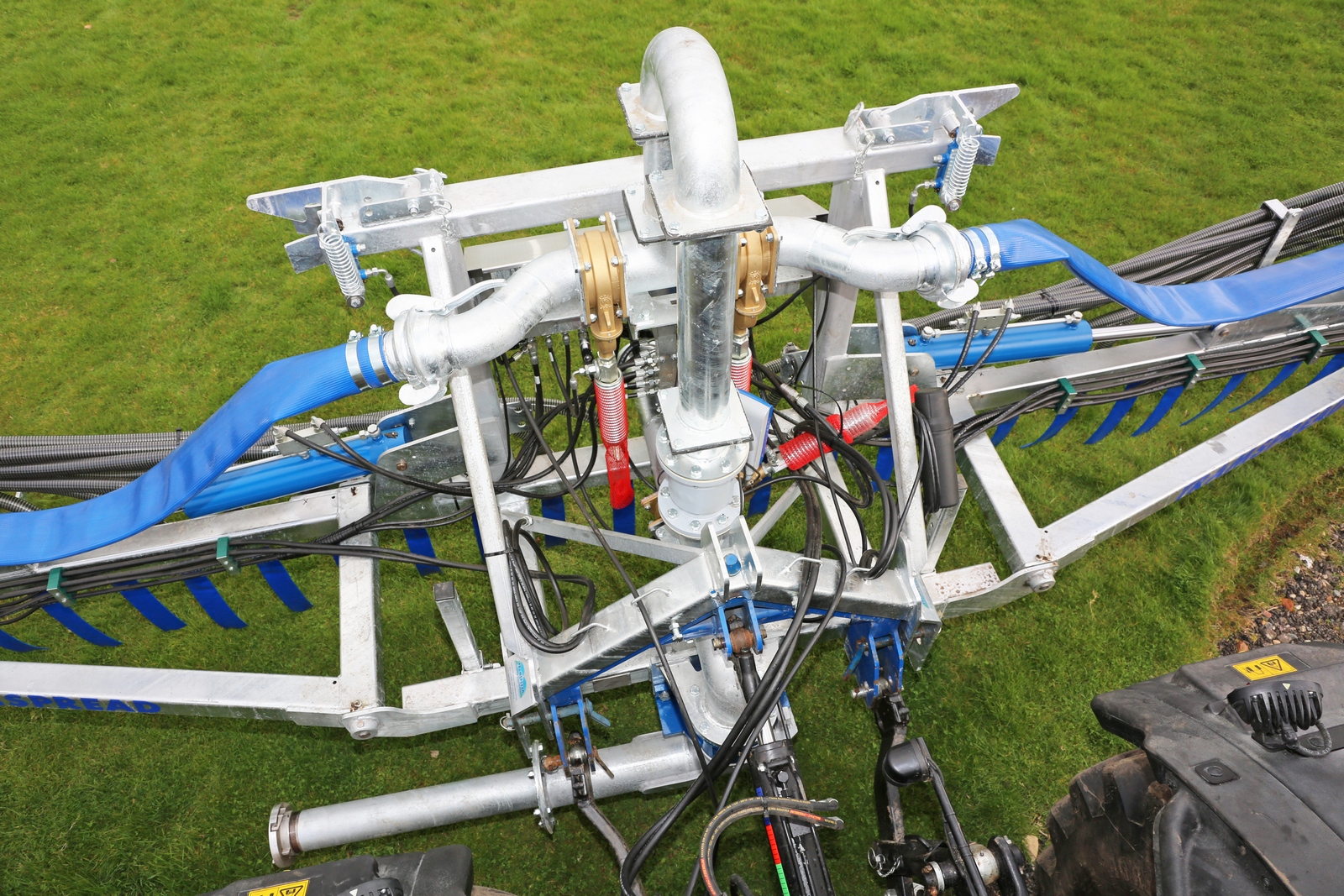

- Galvanised centre frame with parallelogram allows spread height control independent of tractor 3-point linkage
- Designed to accept flowmeter and manure sensor
- 3-point linkage with female A-frame

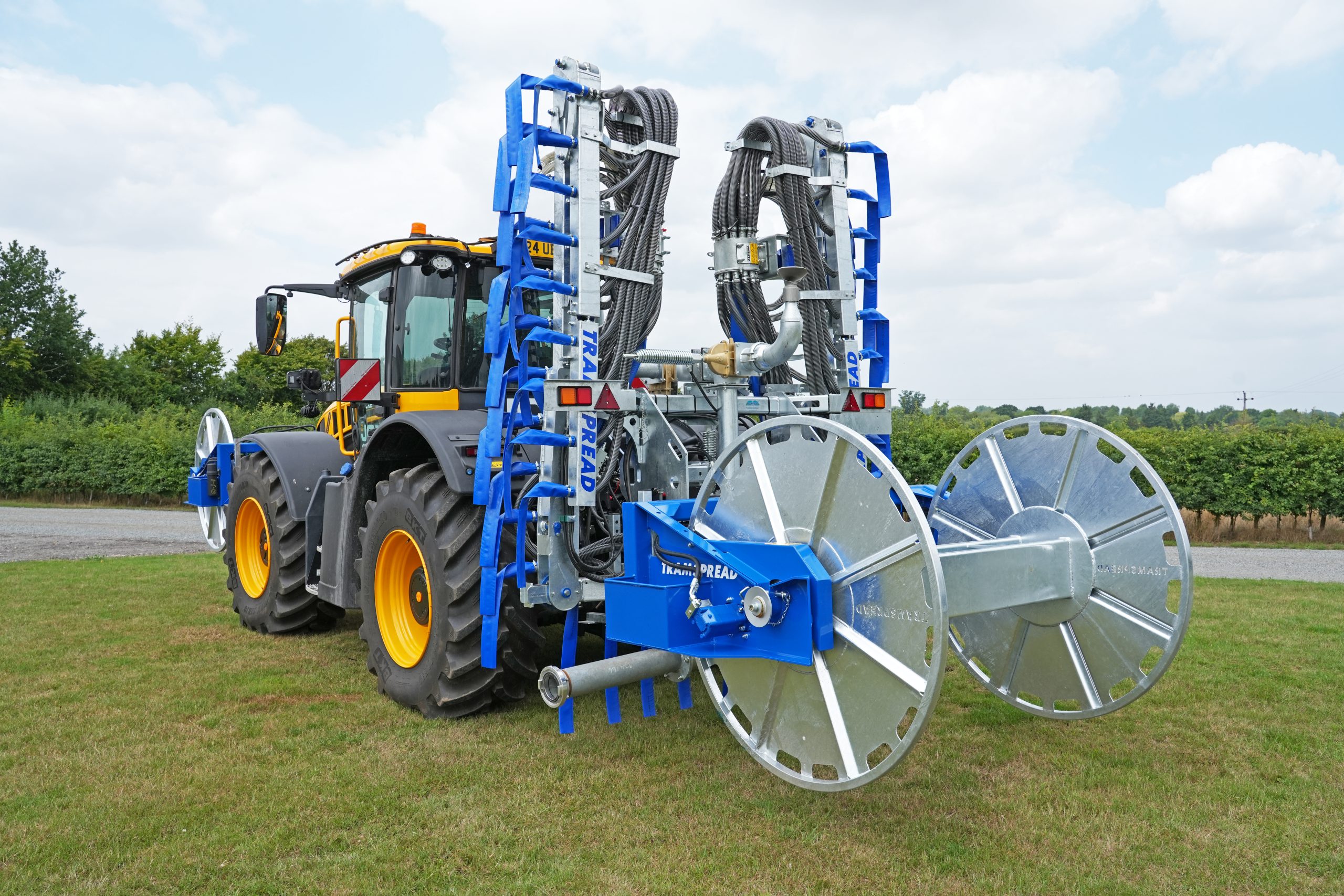

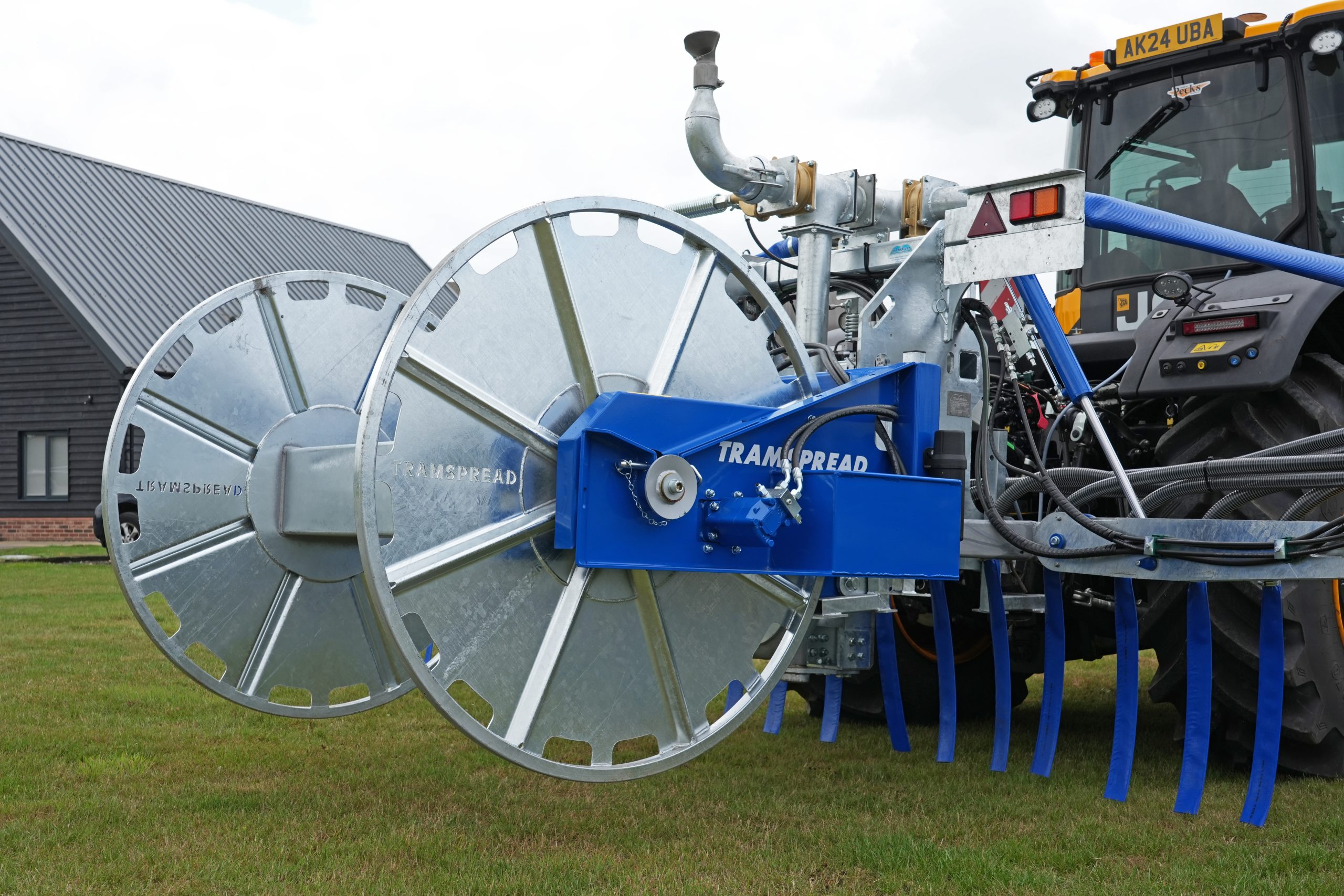

- Front mounted 5″ swinging arm permits U-turn
- Built-in boom transport rests

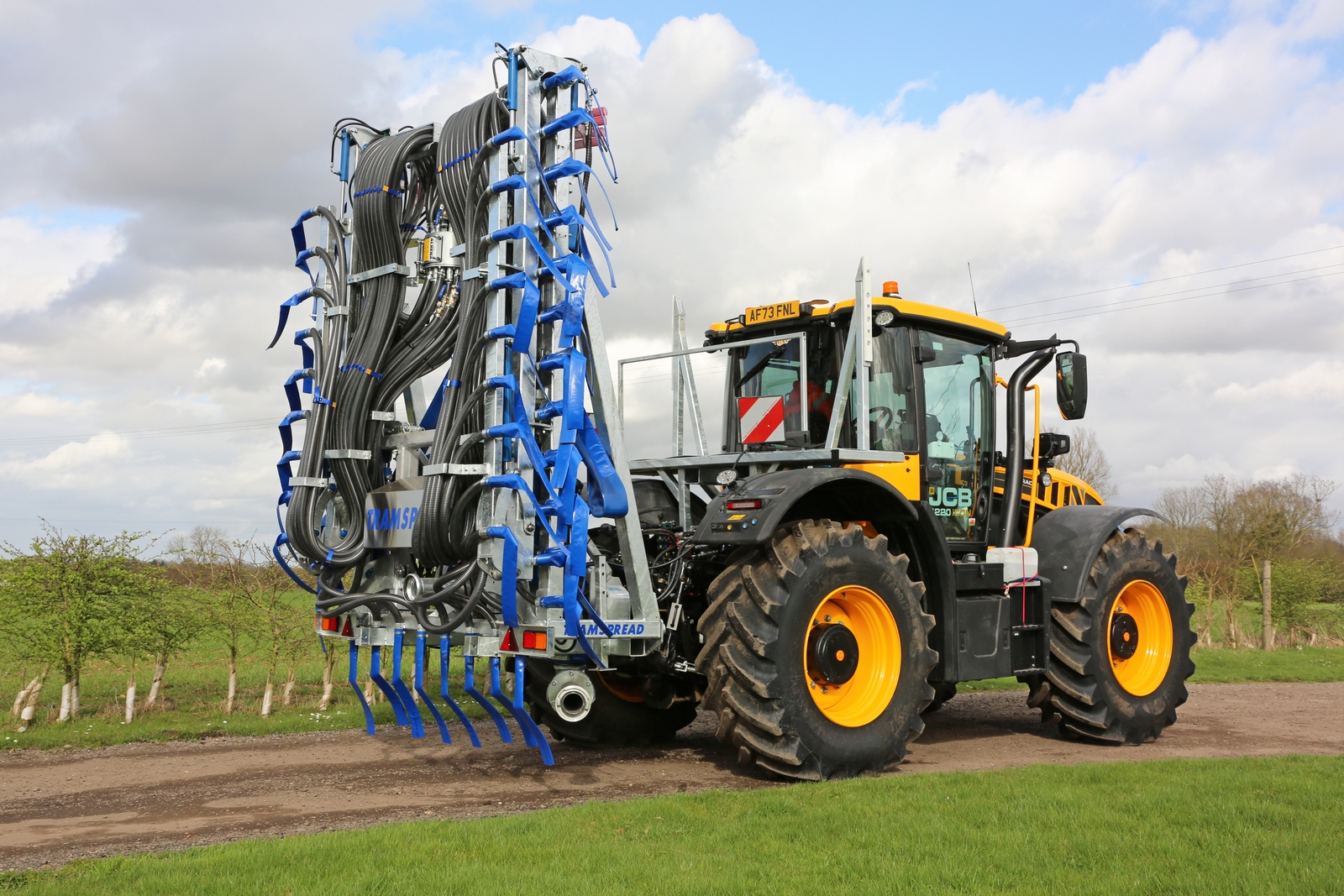

- Transport position allows use of tractor pick-up hitch and does not obstruct cab doors

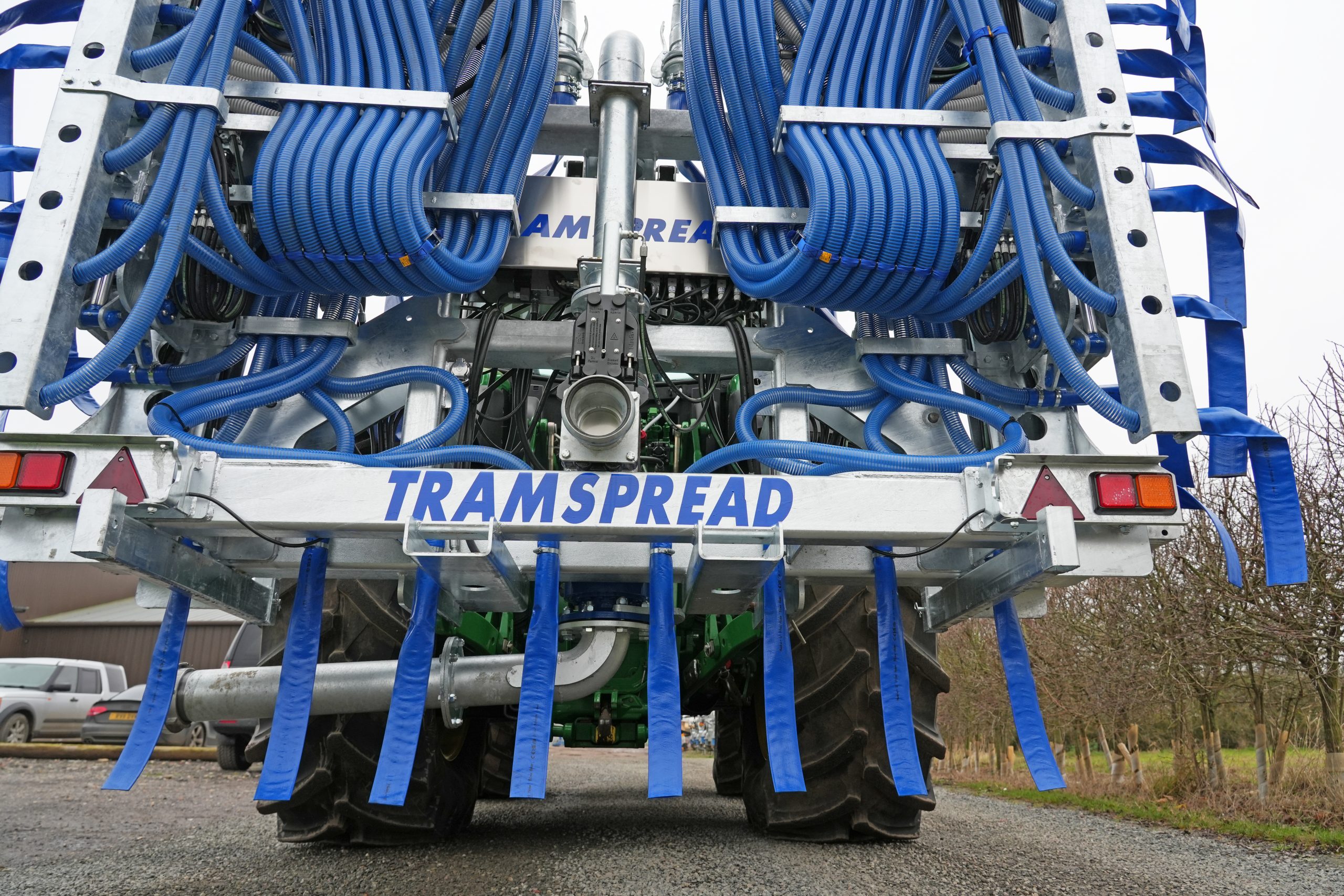

- Purge outlet with spread nozzle (optional)
- Power beyond hydraulics (optional)
- Valves to decrease spread width (optional)
- Valves to shut off tramlines (optional)

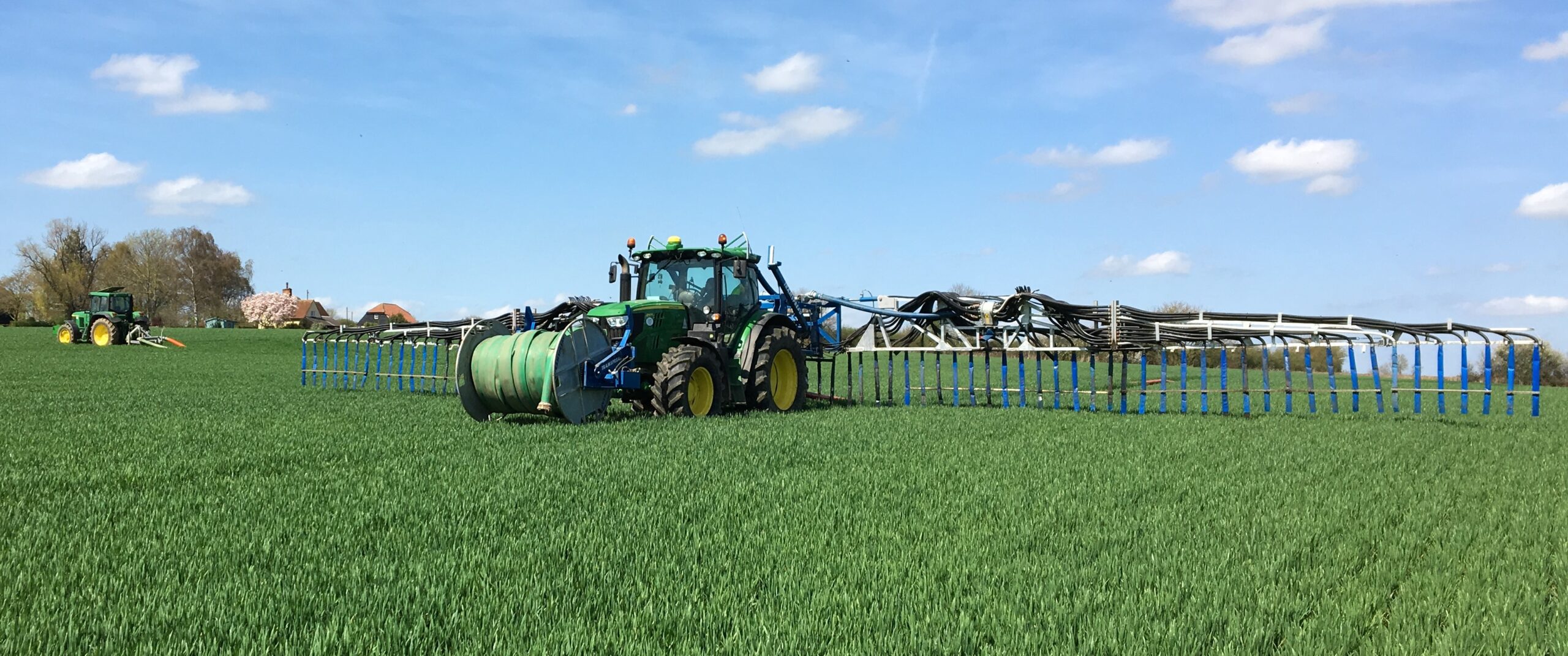

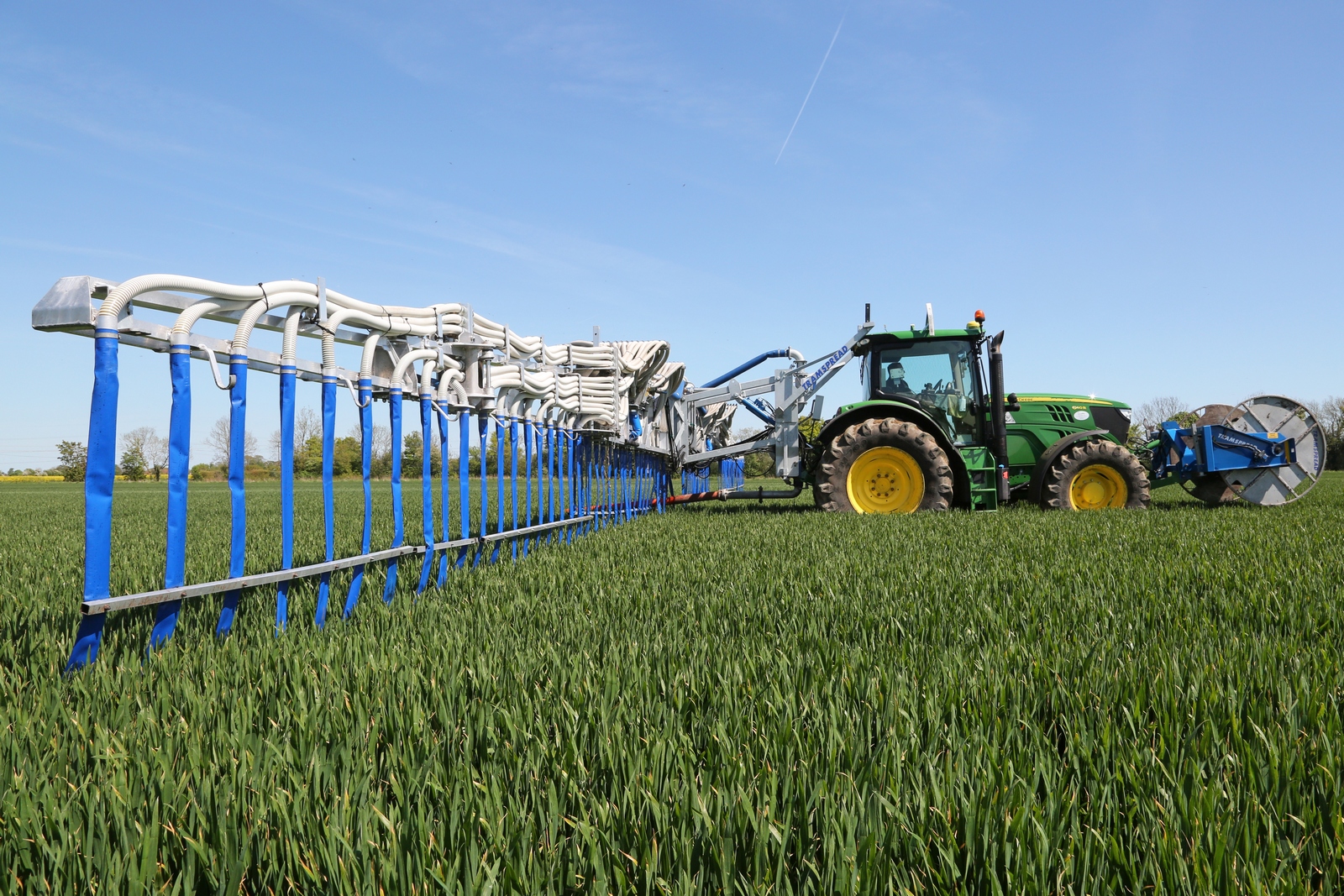

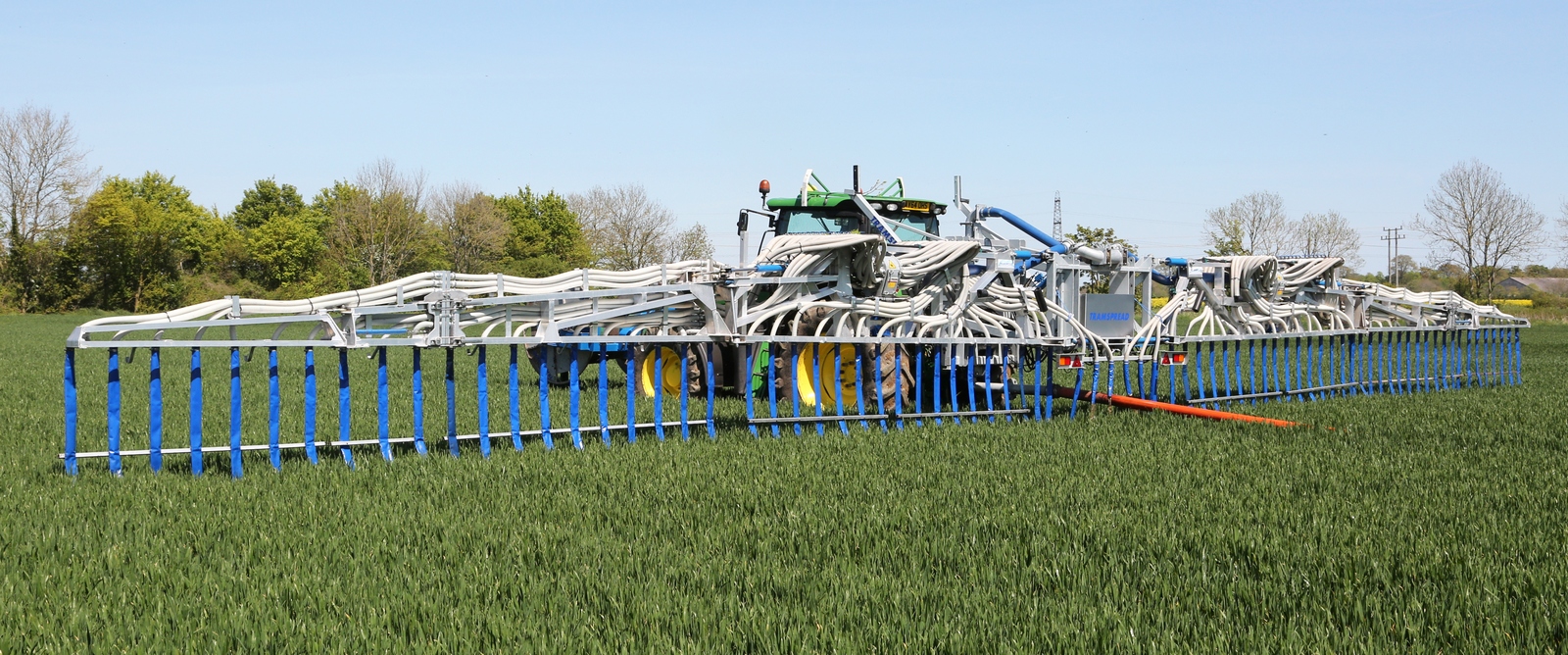

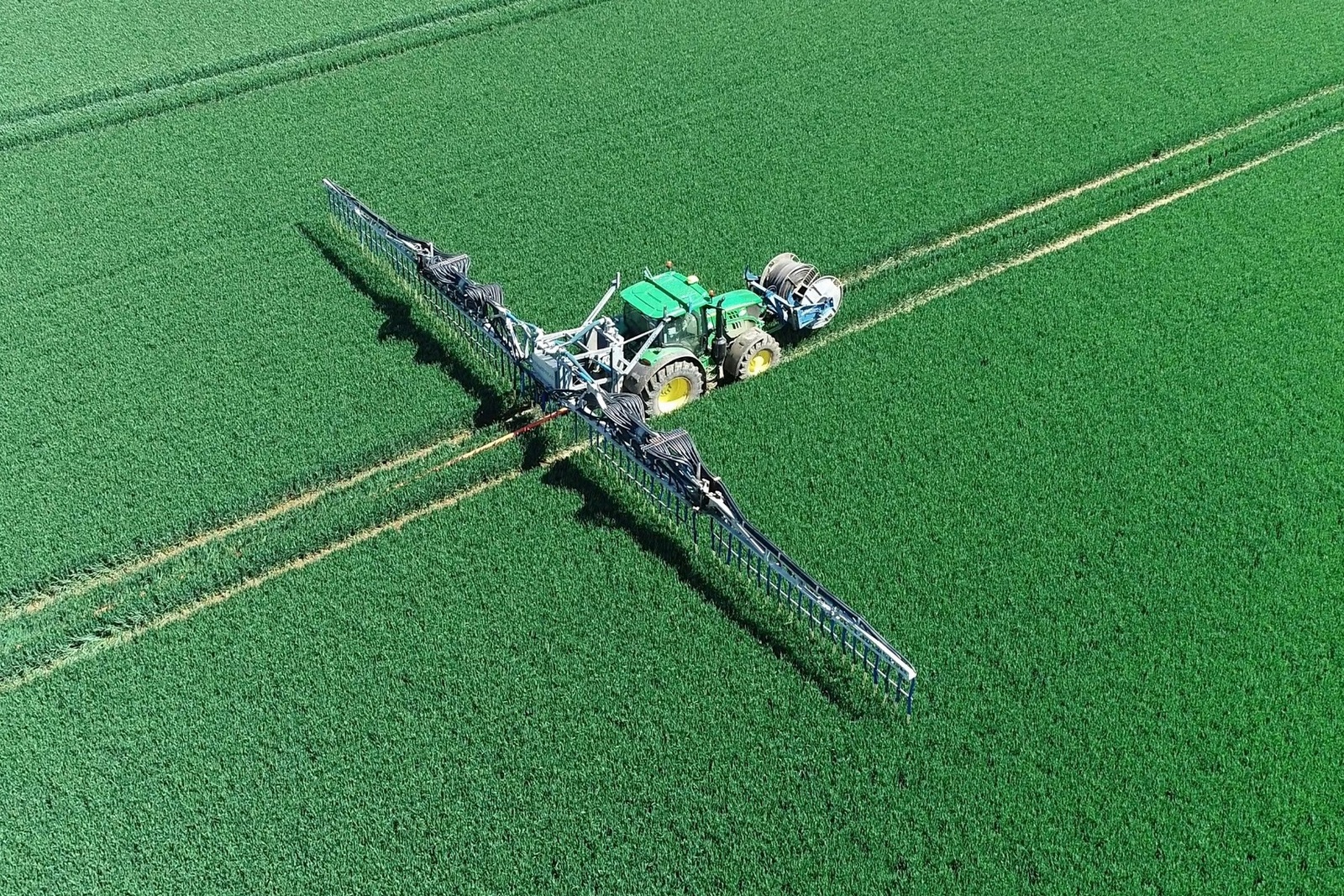

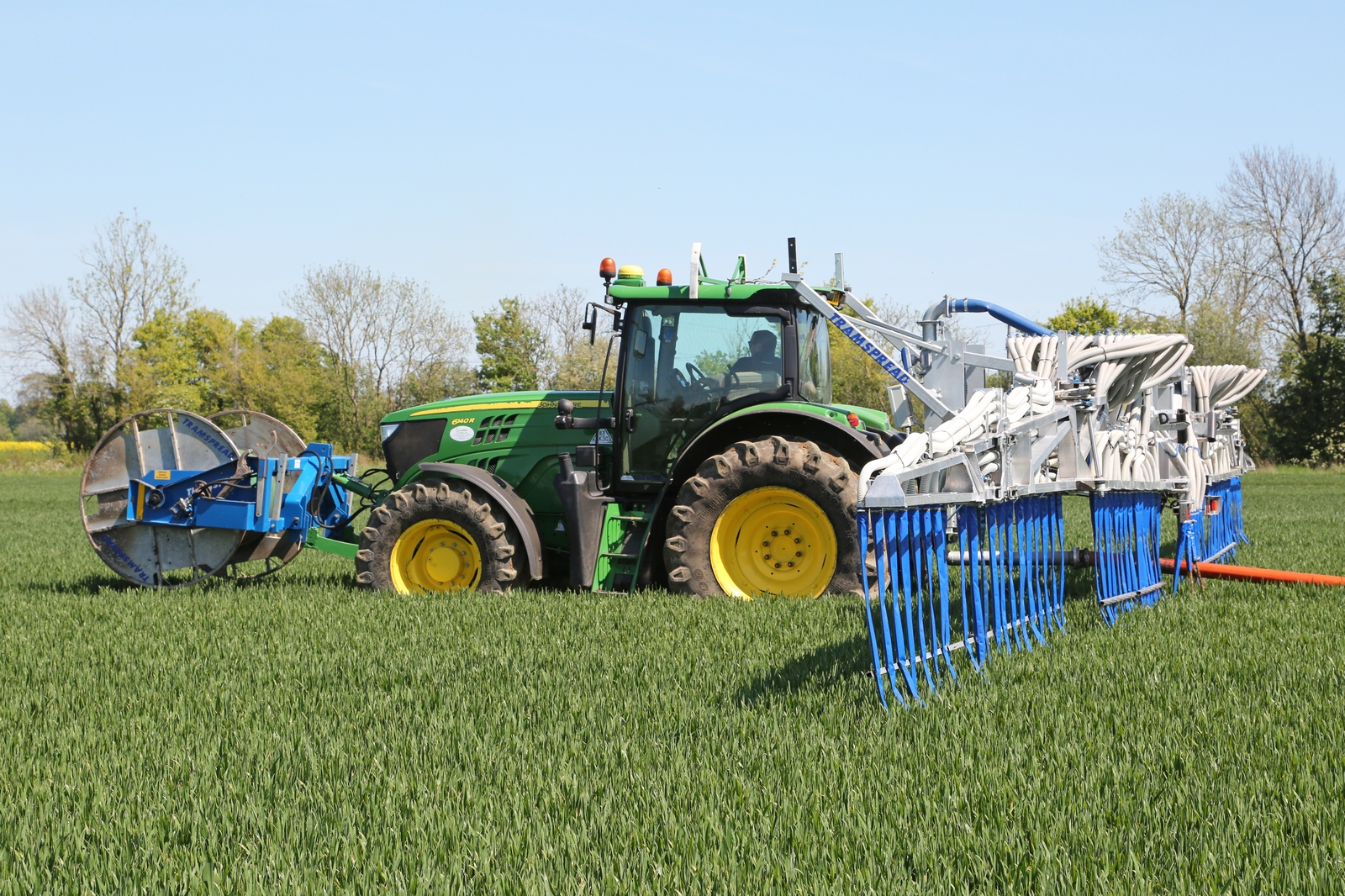

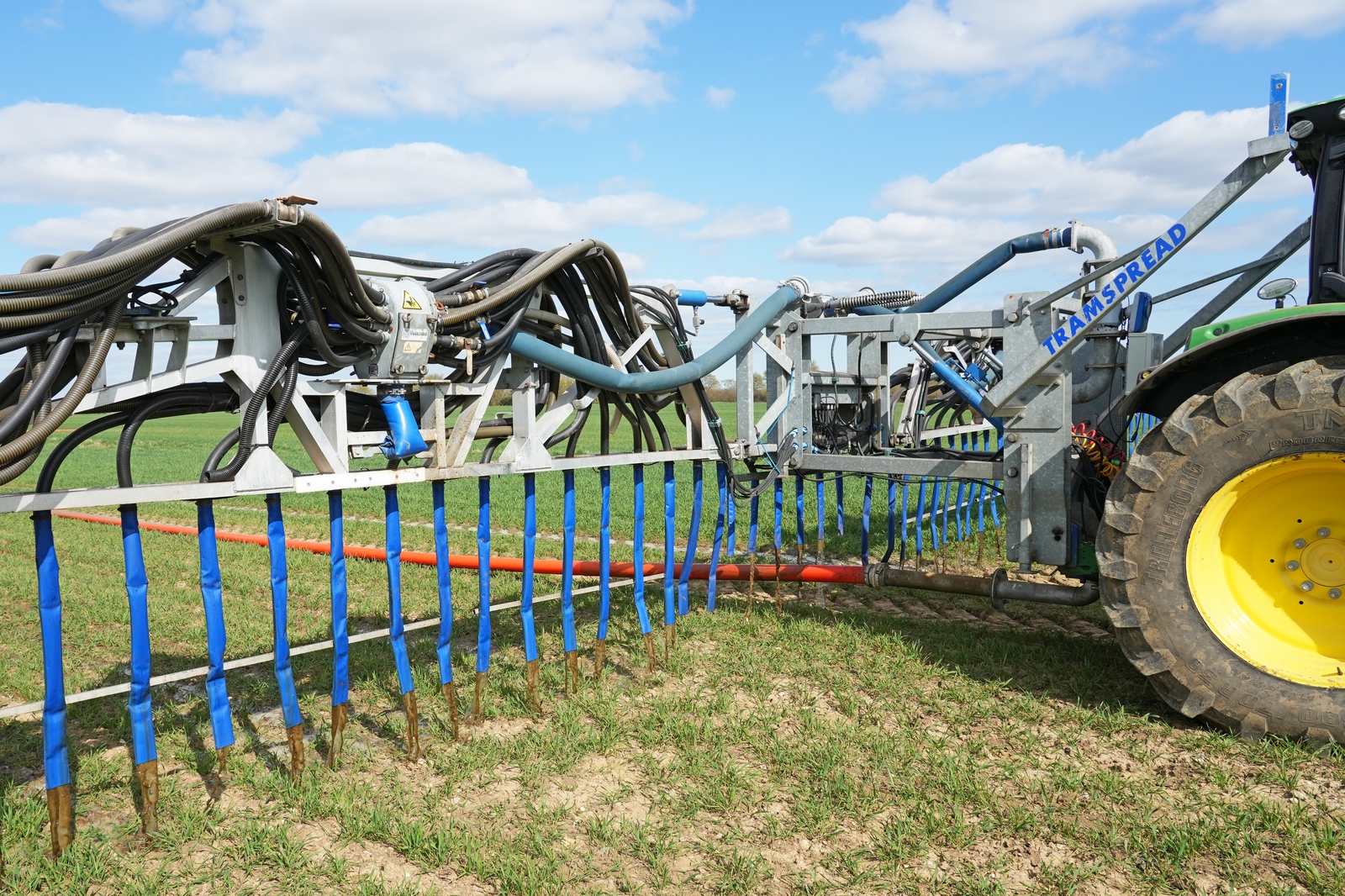

24m Twin Macerator Suffolk Dribble Bar
- 2 x Vogelsang ECQ or Alrena distributors/ macerators
- Dribble outlets 300mm apart
- Aluminium booms with left and right geometric control
- Full electro-hydraulic control via in-cab control box
- Galvanised centre frame with parallelogram allows spread height control independent of tractor 3-point linkage
- Designed to accept flowmeter and manure sensor
- 3-point linkage with female A-frame
- Front mounted 5″ swinging arm permits U-turn
- Built-in boom transport rests
- Transport position allows use of tractor pick-up hitch and does not obstruct cab doors
- Purge outlet with spread nozzle (optional)
- Power beyond hydraulics (optional)
- Valves to decrease spread width (optional)
- Valves to shut off tramlines (optional)

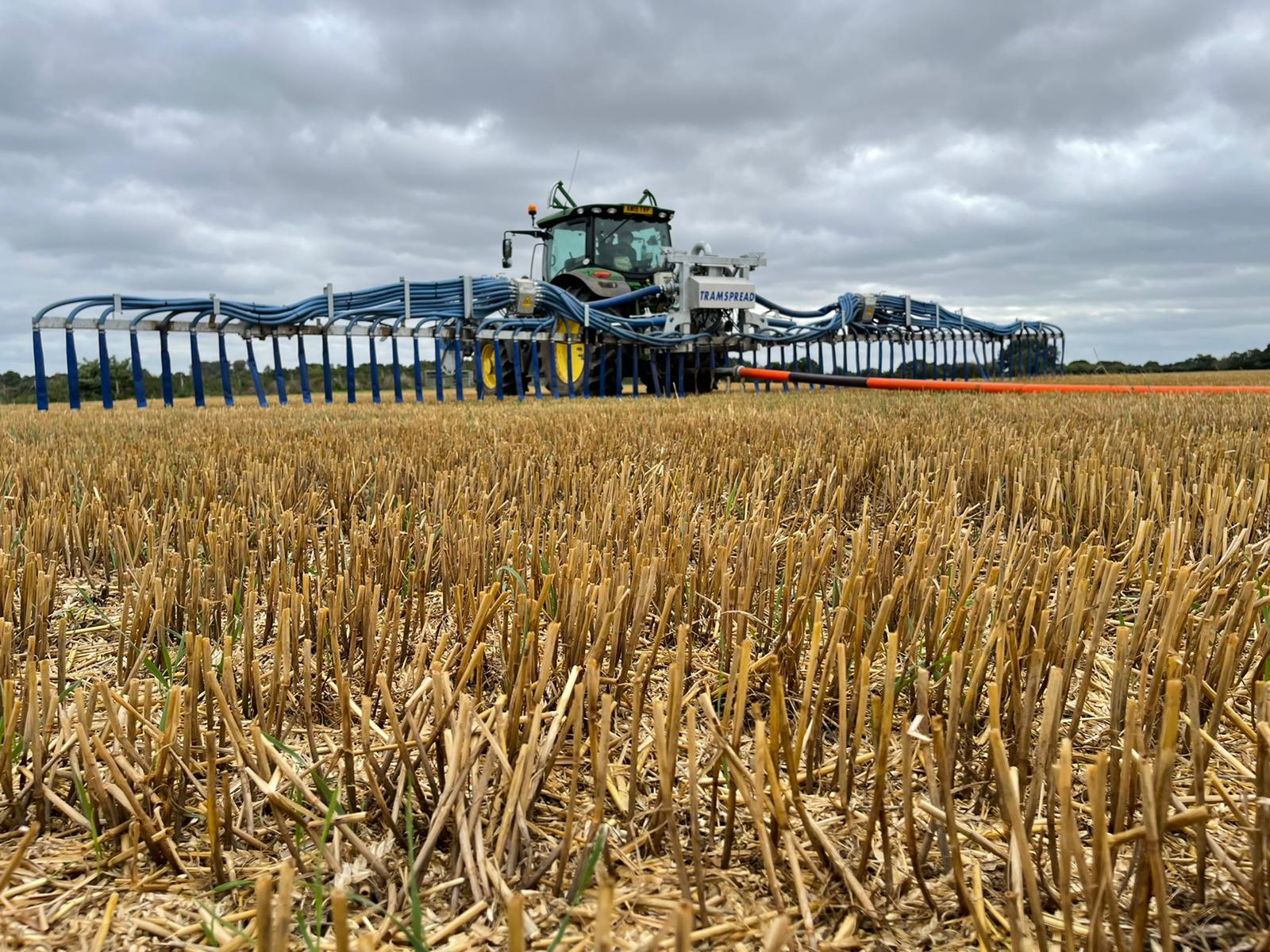

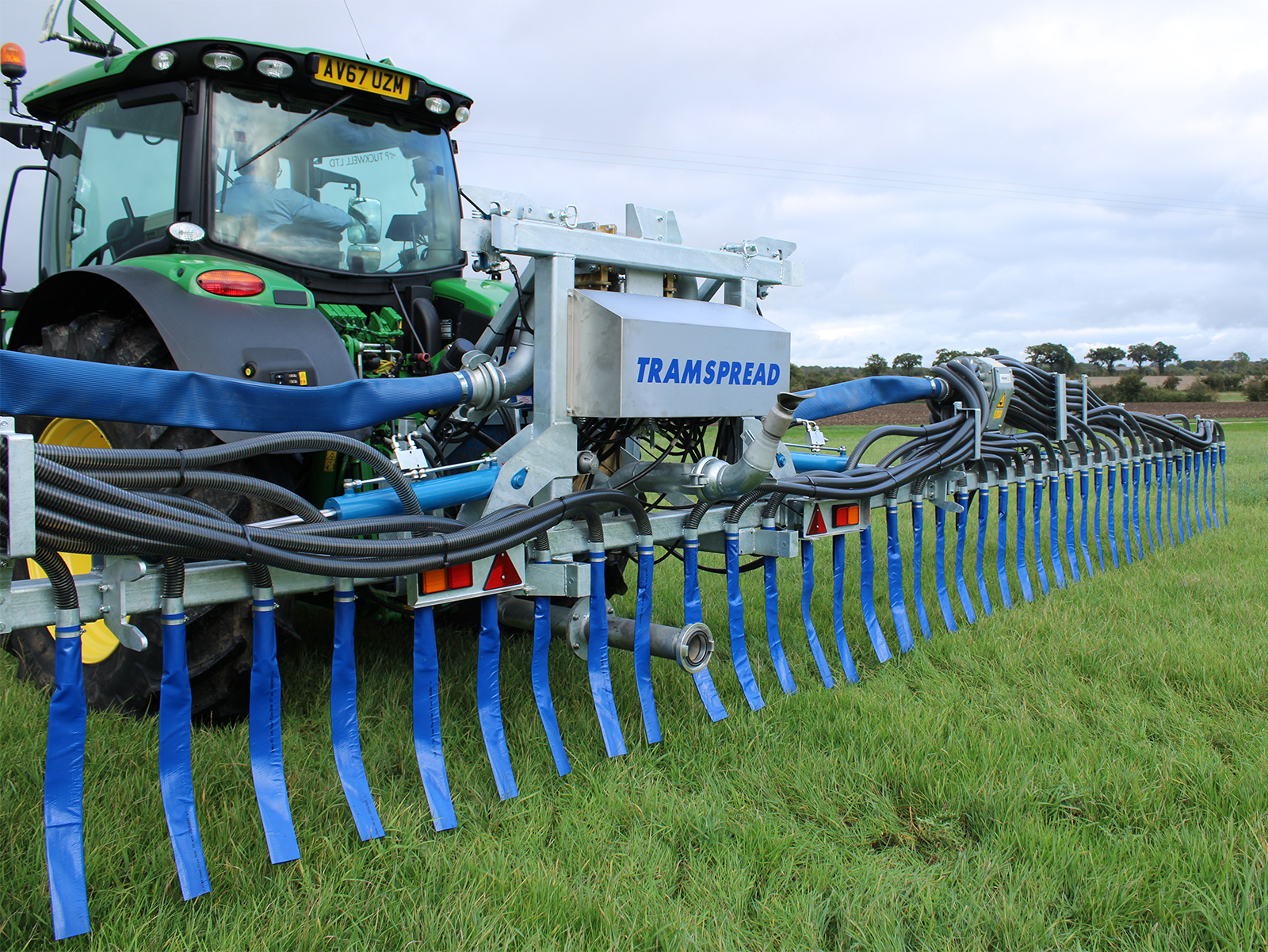

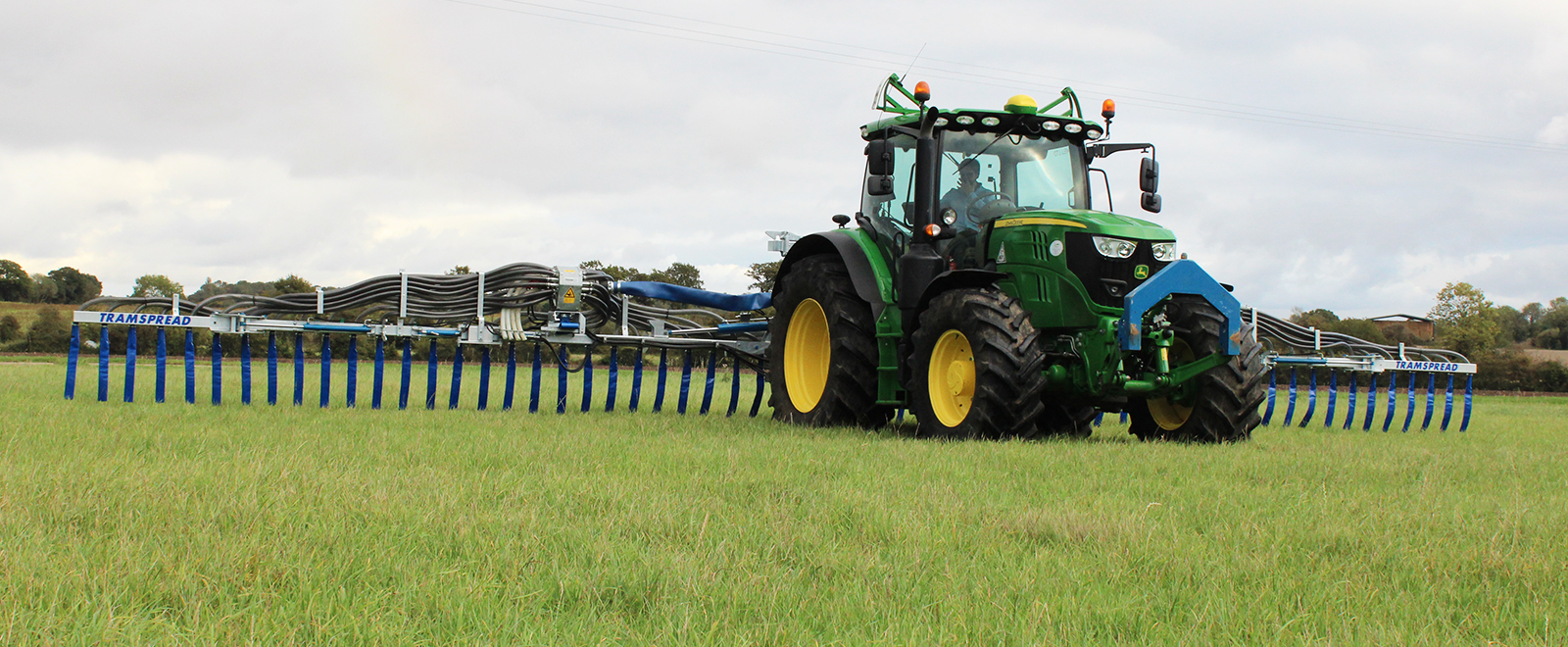

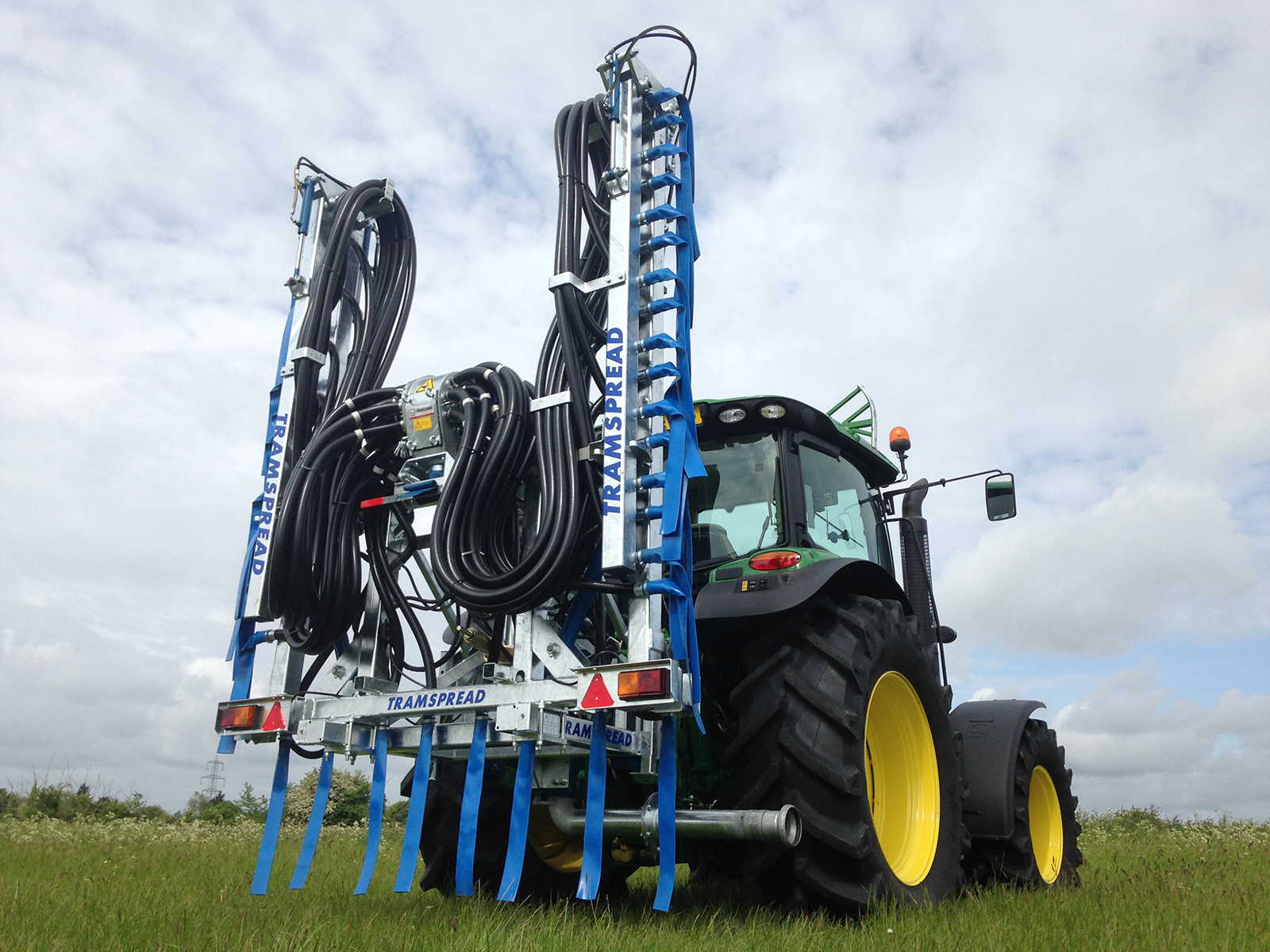

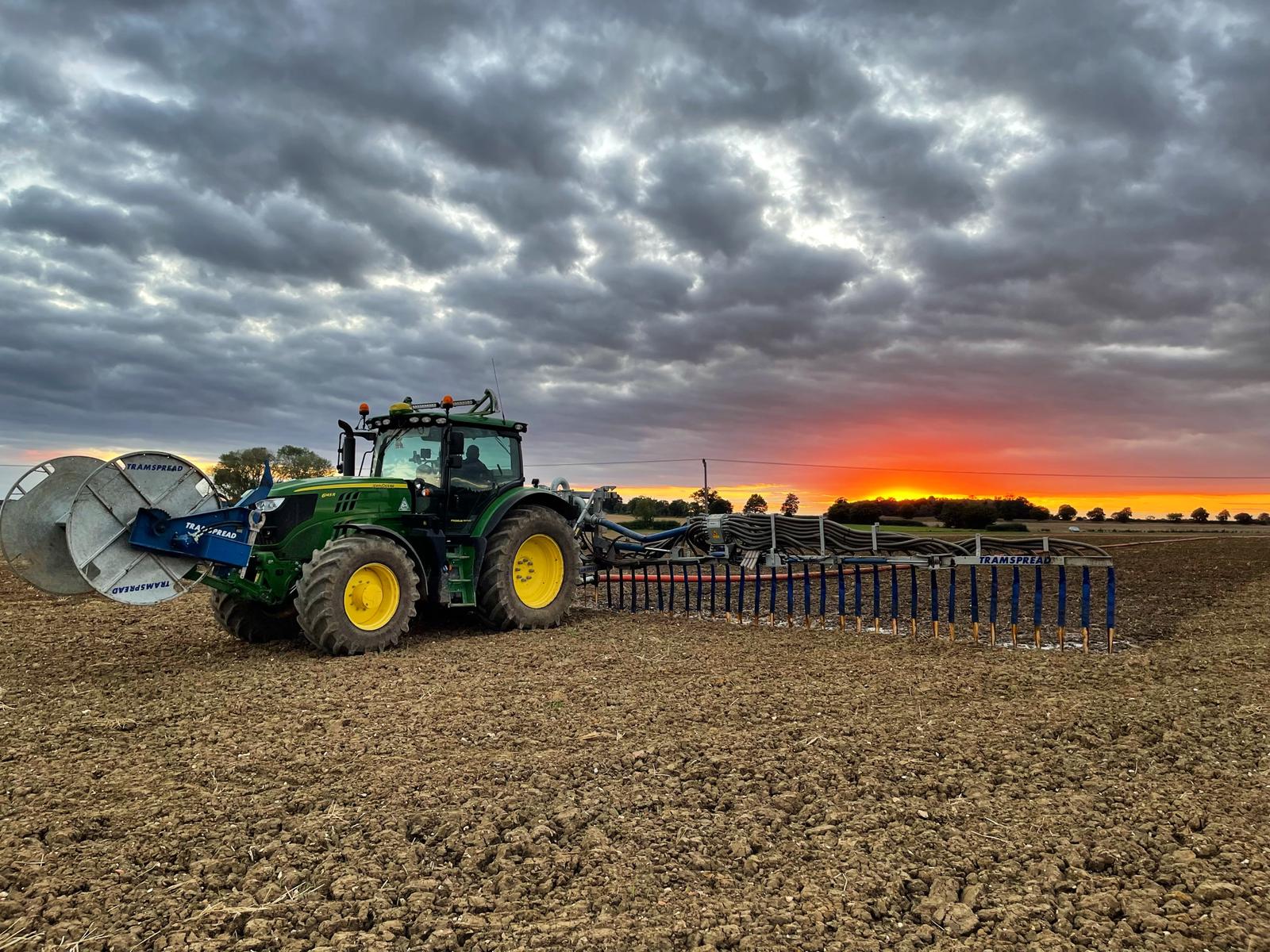

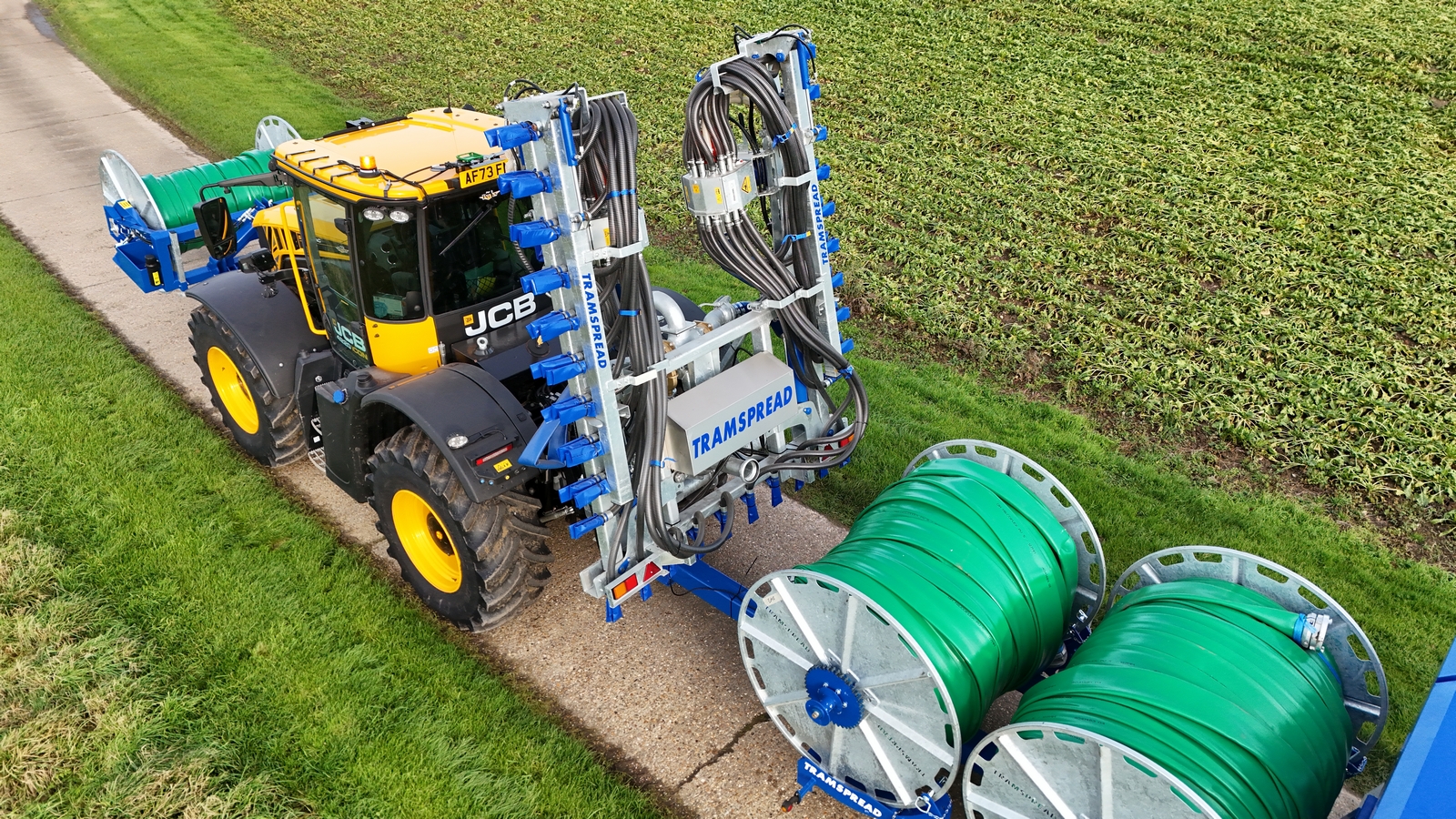

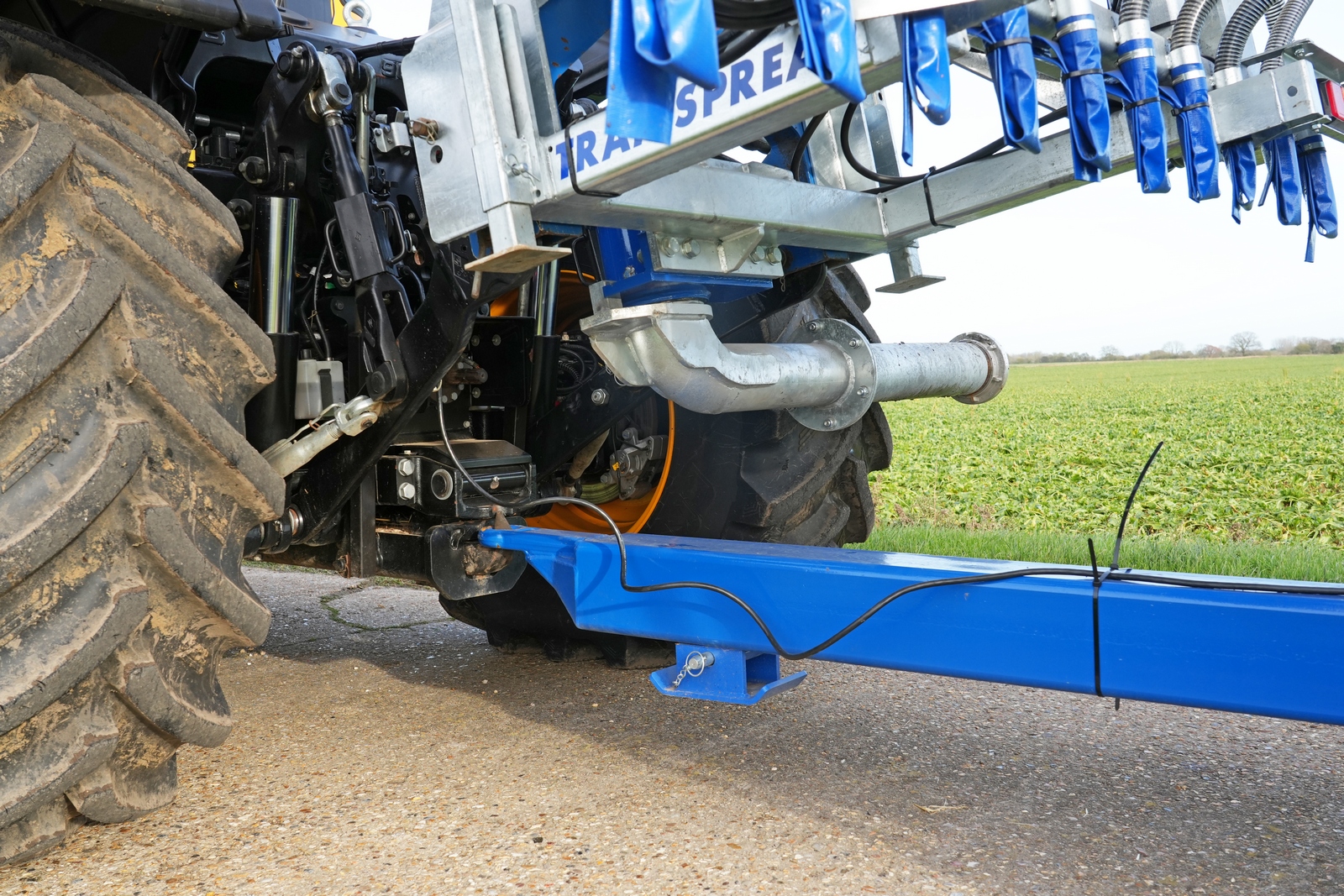

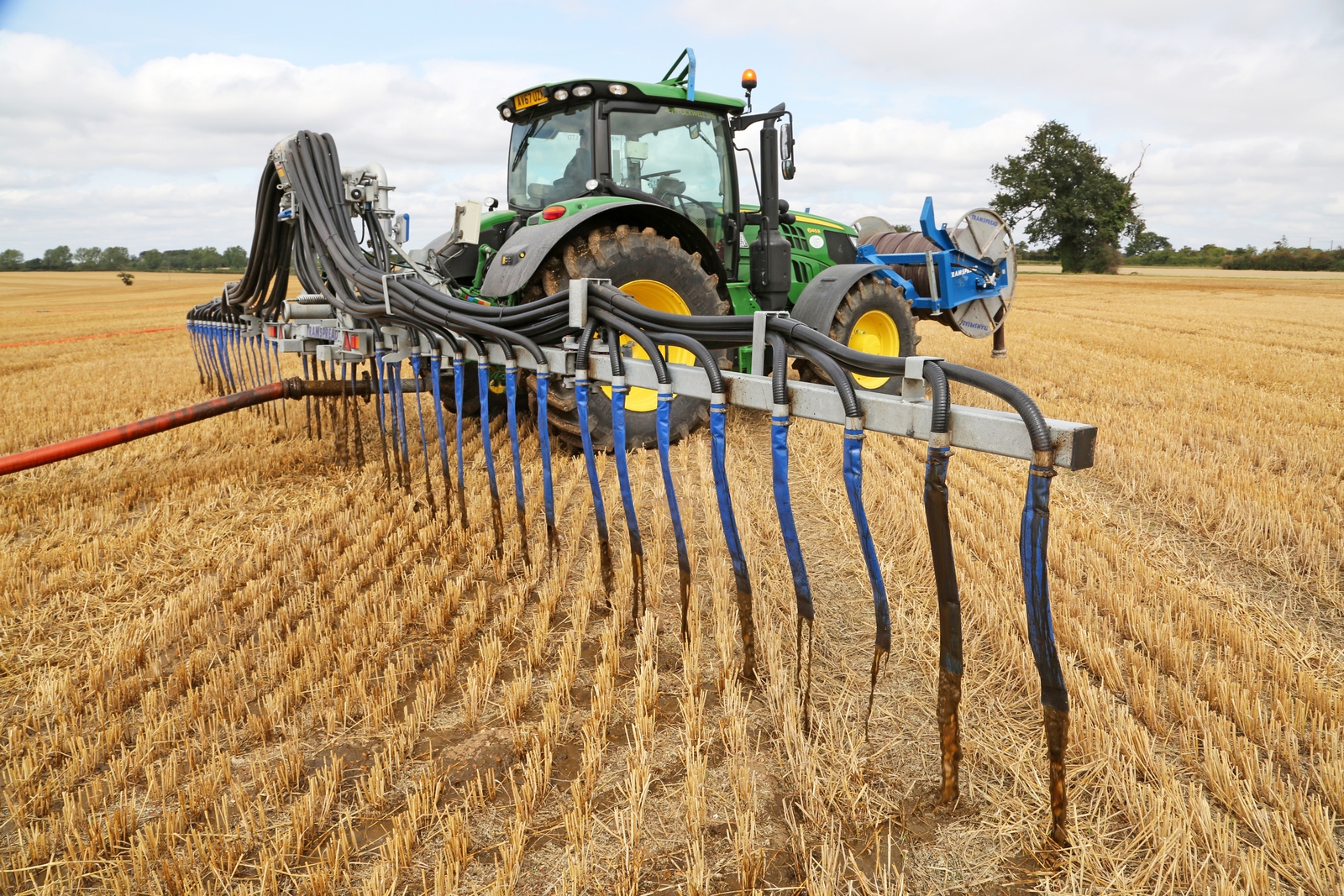

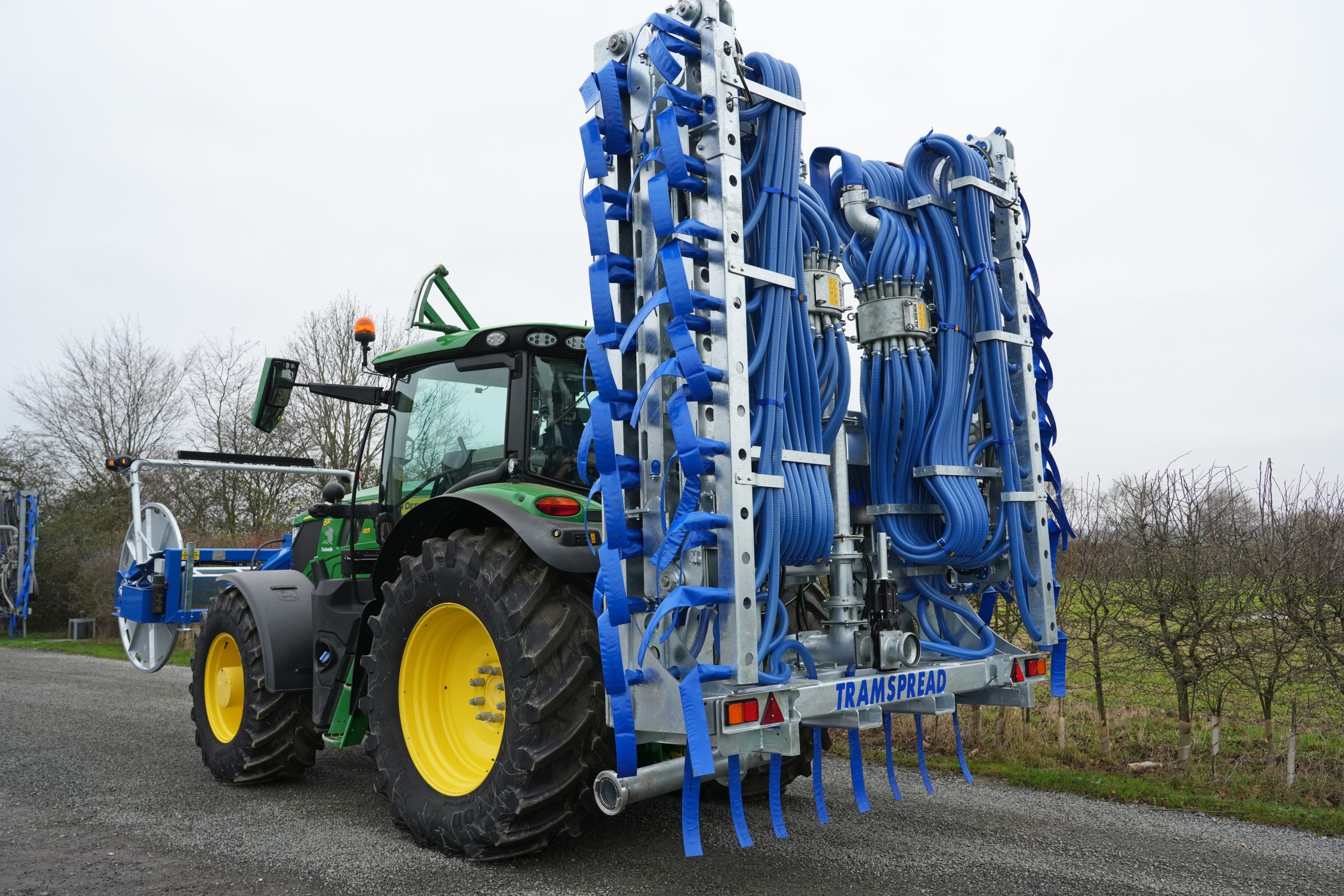

12m, 15m, 16m and 18m Twin Macerator Suffolk Dribble Bars
- 2 x Vogelsang ECQ or Arena distributors/ macerators
- Dribble outlets 250mm apart
- Left and right geometric control
- Full electro-hydraulic control via in-cab control box
- Galvanised, heavy-duty construction

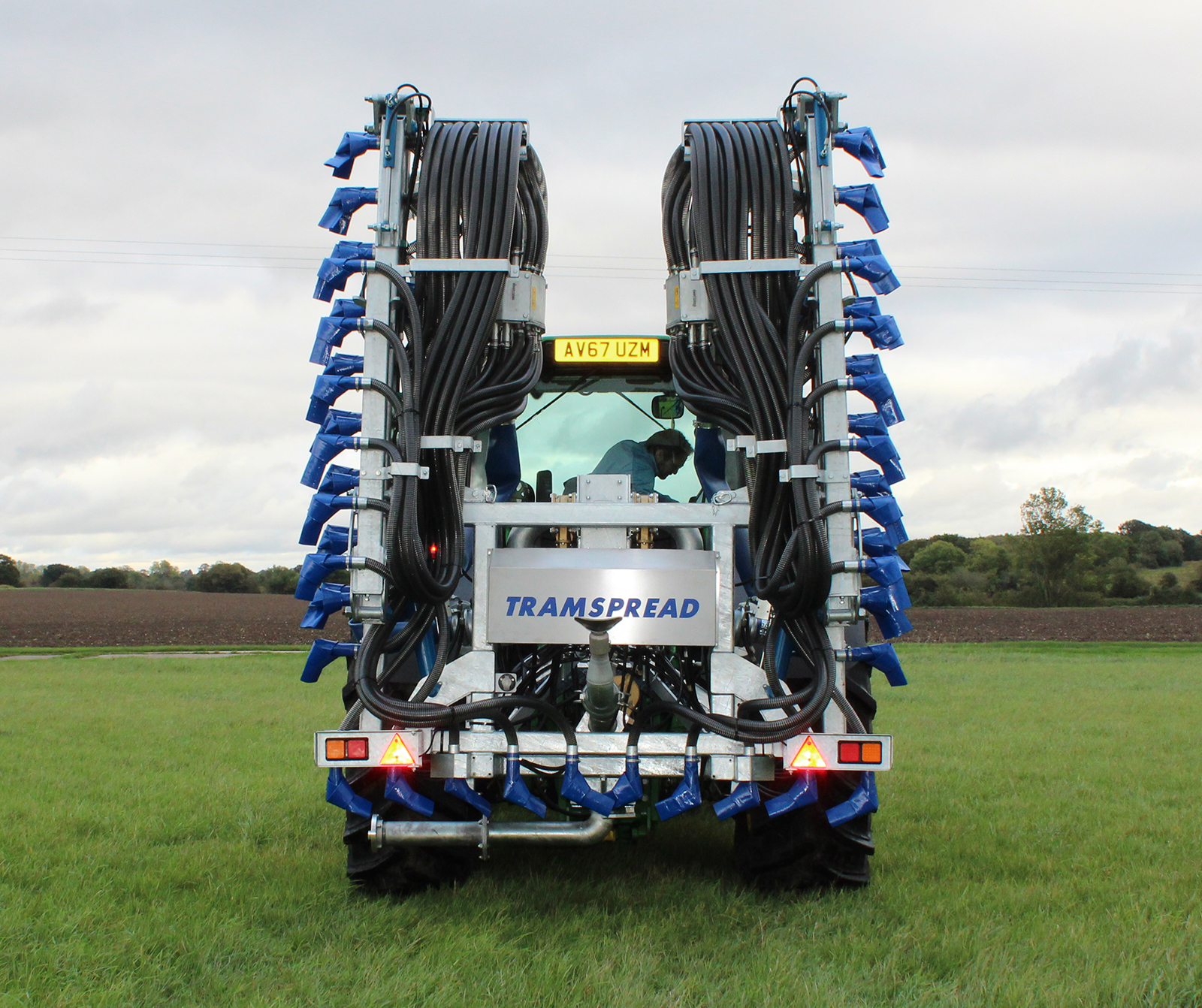

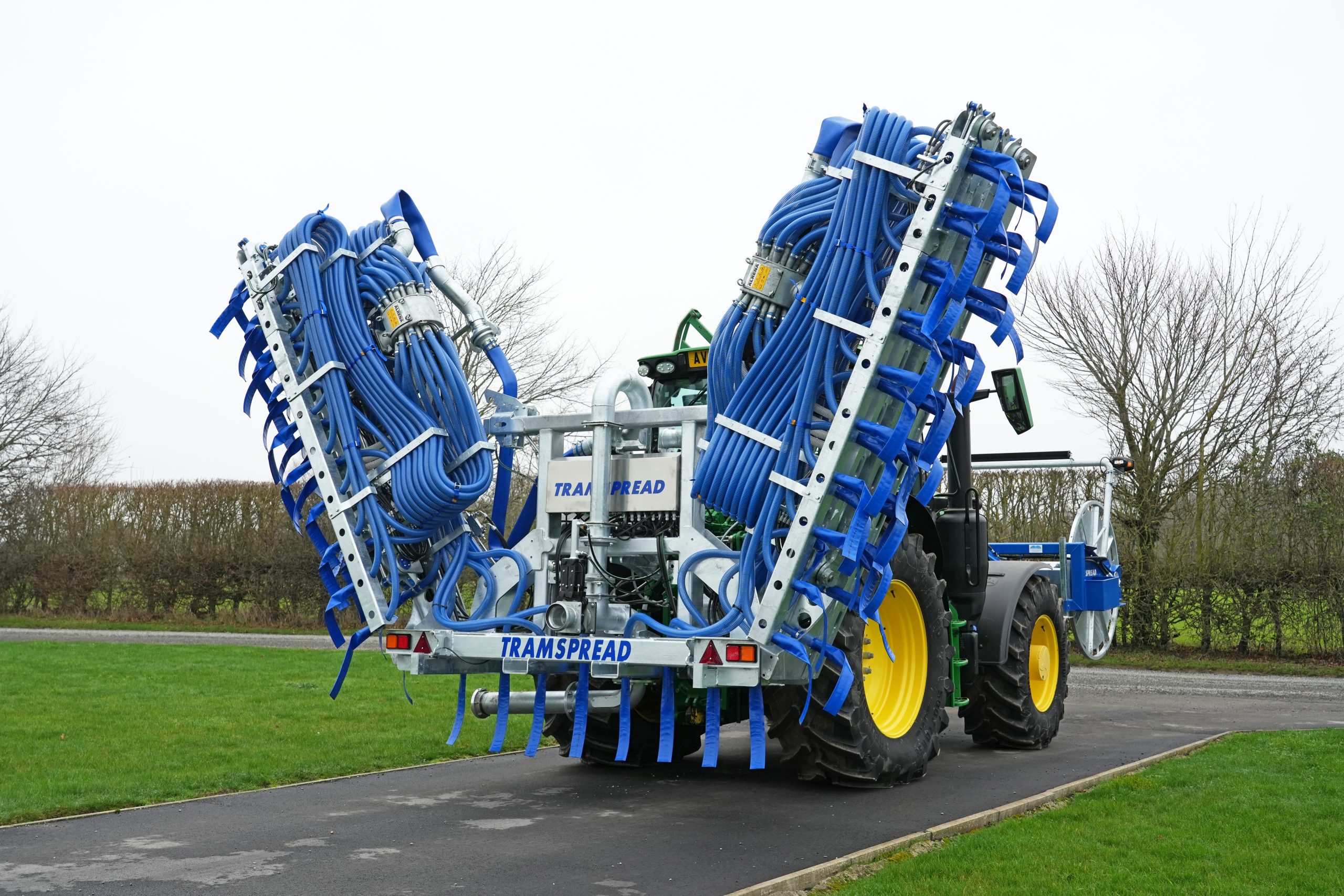

- Hydraulic vertical folding allows access to tractor pick-up hitch
- Auto transport safety latches with securing pins
- Designed to accept flowmeter and manure sensor
- 3-point linkage with female A-frame
- Front mounted 5″ swinging arm permits U-turn
- Easily tanker-mounted via linkage
- Purge outlet with spread nozzle (optional)
- Valves to decrease spread width (optional)

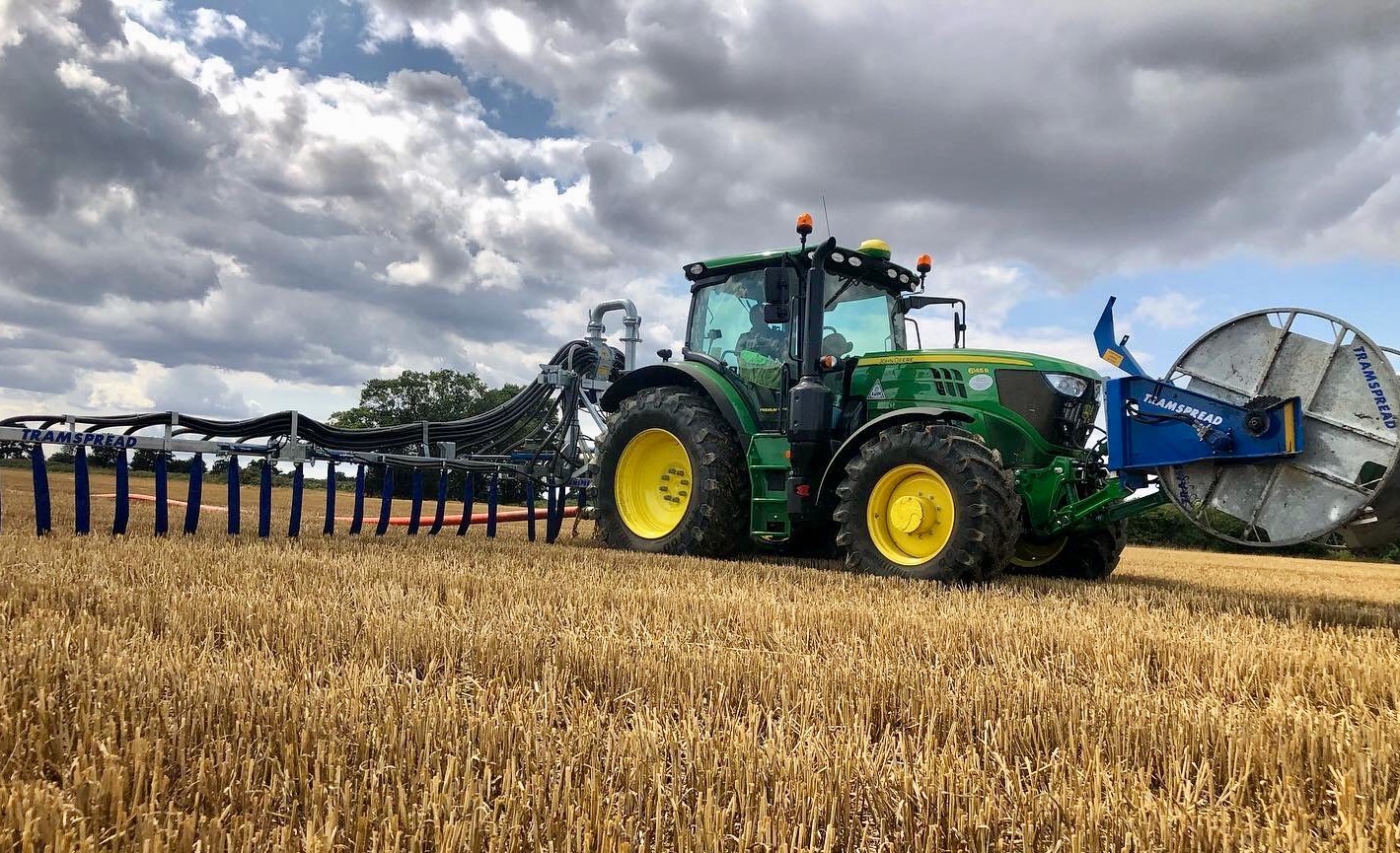

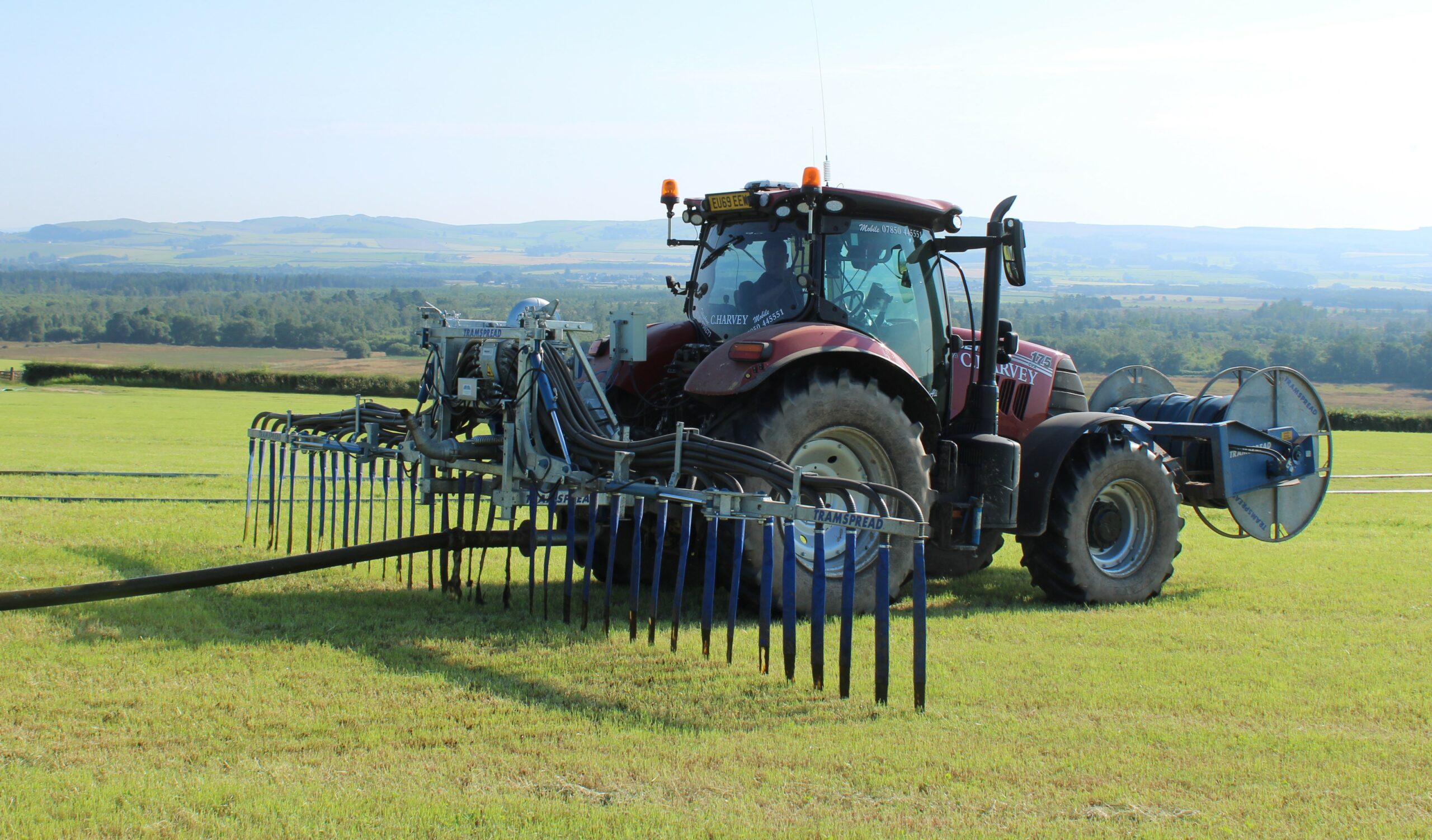

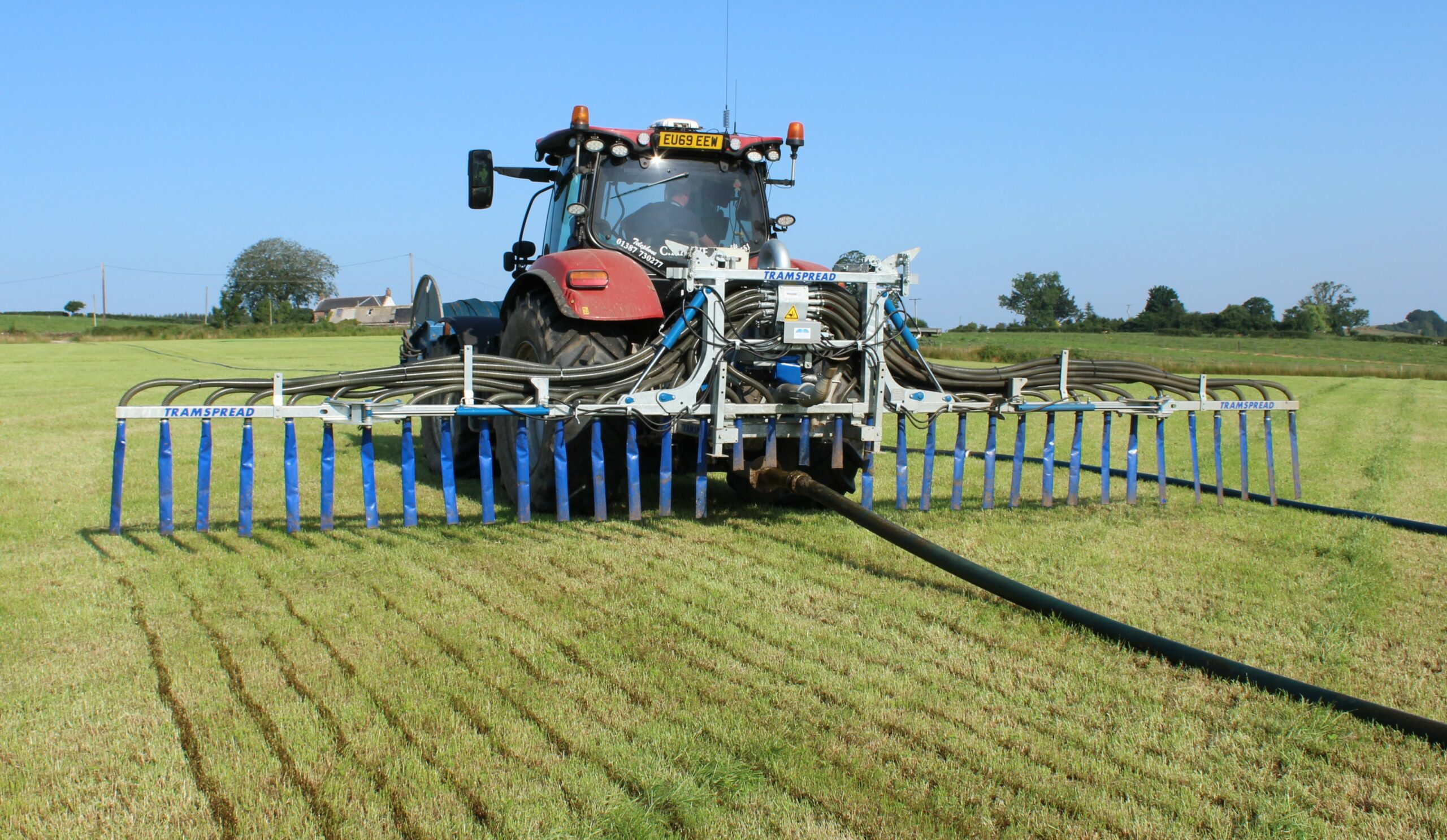

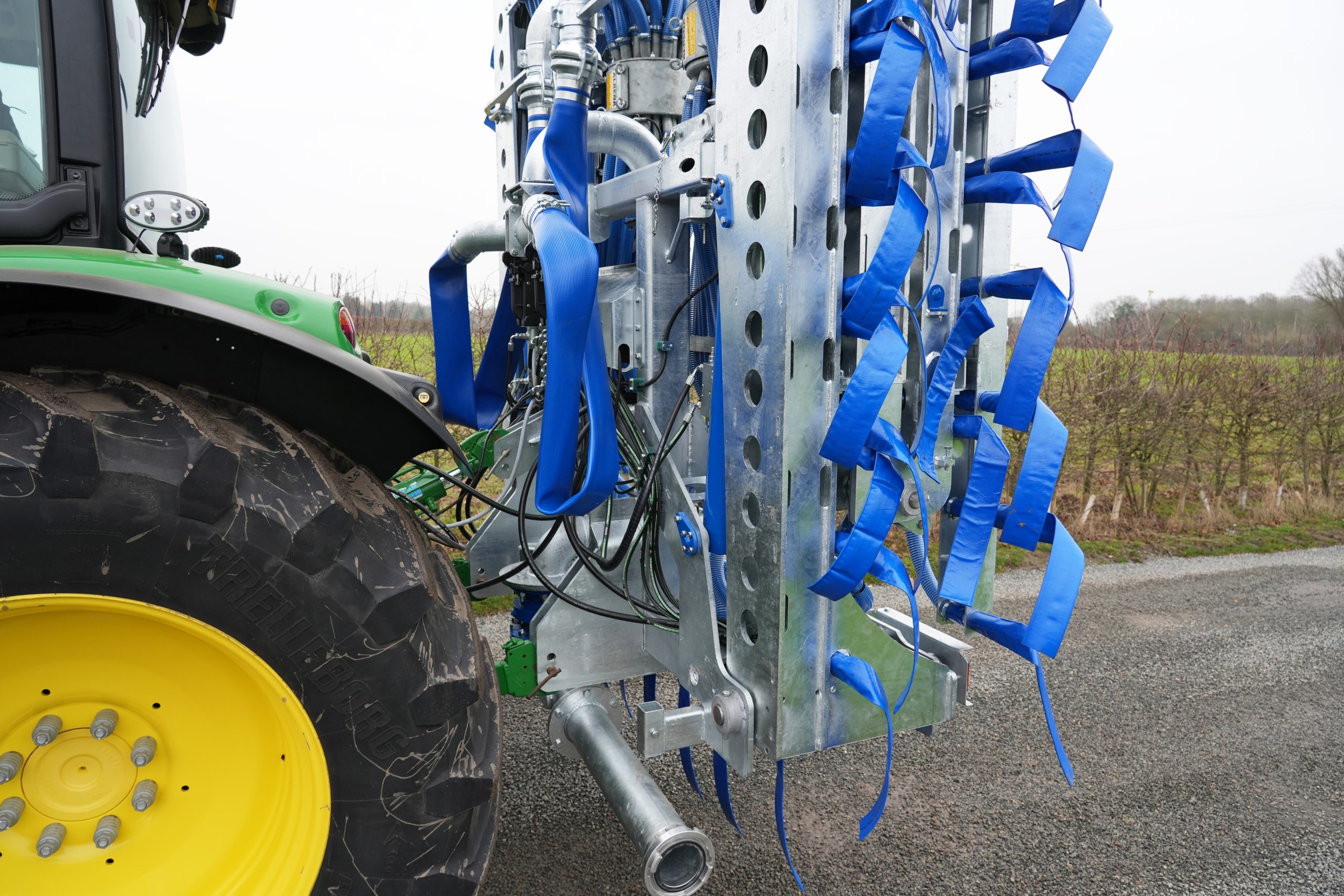

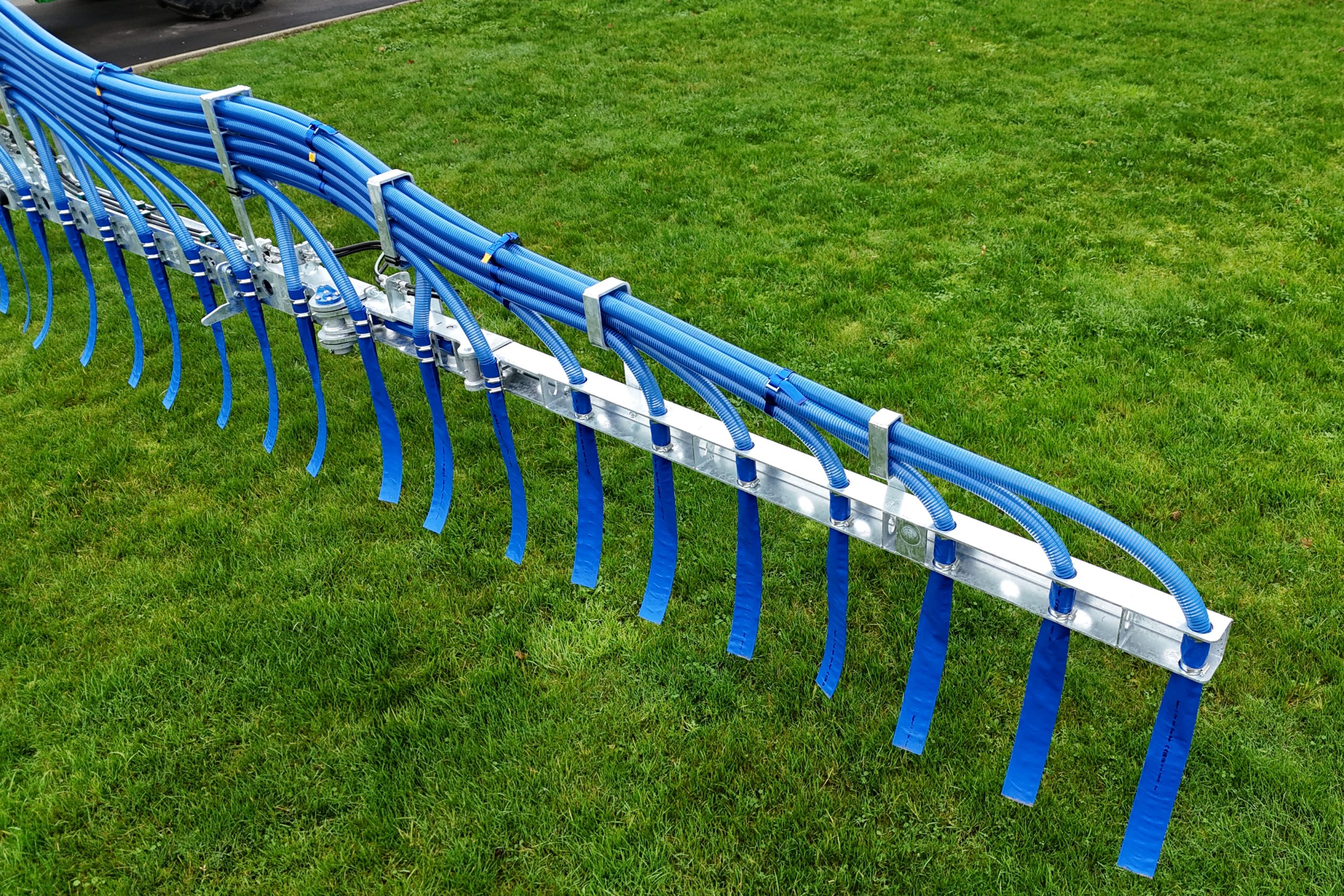

6m, 7m, 7.5m, 8m, 9m, 10m, 10.5m and 12m Suffolk Dribble Bars
- Vogelsang ECQ or Alrena distributor/macerator
- Dribble outlets 250mm apart (300mm on 12m)
- Galvanised, heavy-duty construction
- Hydraulic vertical folding allows access to tractor pick-up hitch
- Auto transport safety latches with securing pins
- Designed to accept flowmeter and manure sensor
- 3-point linkage with female A-frame
- Front mounted 4″ swinging arm permits U-turn

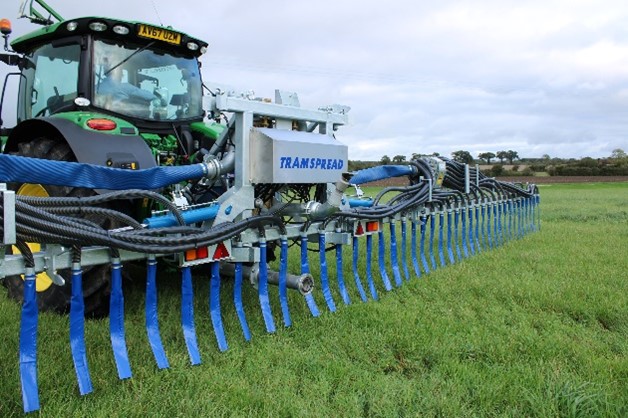

- Dribble bar easily removed from umbilical frame for tanker mounting
- Purge outlet with spread nozzle (optional)
